Exam

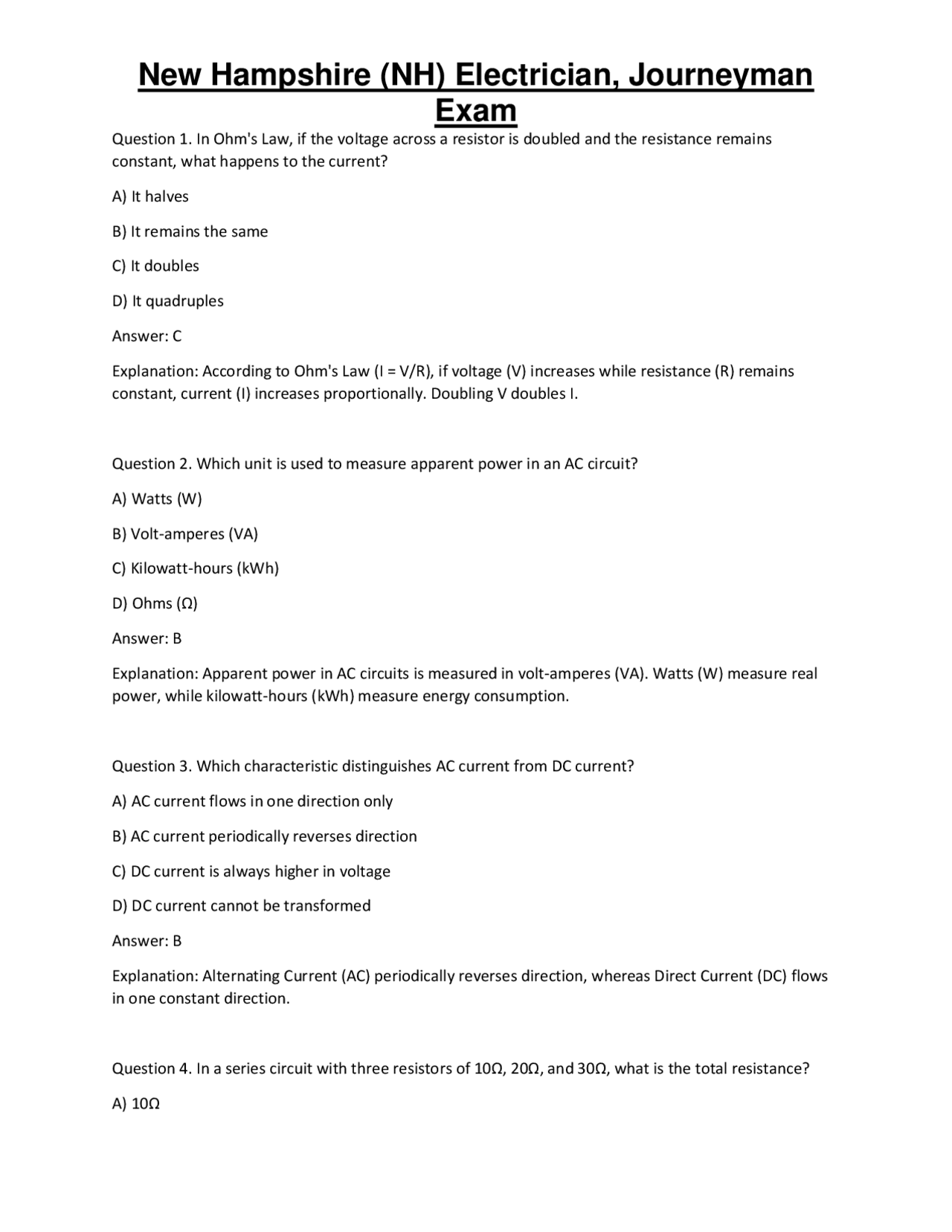

Question 1. In Ohm's Law, if the voltage across a resistor is doubled and the resistance remains constant, what happens to the current? A) It halves B) It remains the same C) It doubles D) It quadruples Answer: C Explanation: According to Ohm's Law (I = V/R), if voltage (V) increases while resistance (R) remains constant, current (I) increases proportionally. Doubling V doubles I. Question 2. Which unit is used to measure apparent power in an AC circuit? A) Watts (W) B) Volt-amperes (VA) C) Kilowatt-hours (kWh) D) Ohms (Ω) Answer: B Explanation: Apparent power in AC circuits is measured in volt-amperes (VA). Watts (W) measure real power, while kilowatt-hours (kWh) measure energy consumption. Question 3. Which characteristic distinguishes AC current from DC current? A) AC current flows in one direction only B) AC current periodically reverses direction C) DC current is always higher in voltage D) DC current cannot be transformed Answer: B Explanation: Alternating Current (AC) periodically reverses direction, whereas Direct Current (DC) flows in one constant direction. Question 4. In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, what is the total resistance? A) 10Ω
Exam
B) 60Ω
C) 20Ω
D) 30Ω
Answer: B Explanation: Total resistance in series is the sum: 10Ω + 20Ω + 30Ω = 60Ω. Question 5. For a 120V circuit with a 10% voltage drop allowance, what is the maximum permissible voltage drop? A) 12V B) 10V C) 15V D) 20V Answer: A Explanation: 10% of 120V is 12V; thus, the maximum permissible voltage drop is 12V. Question 6. Power factor is the ratio of: A) Real power to apparent power B) Reactive power to apparent power C) Voltage to current D) Resistance to reactance Answer: A Explanation: Power factor is the ratio of real (useful) power to apparent power, indicating the efficiency of power usage. Question 7. Which of the following is a measure of energy consumption over time? A) Watt B) Volt C) Kilowatt-hour (kWh) D) Ohm
Exam
Question 11. NFPA 70E primarily provides guidelines for: A) Fire safety in factories B) Electrical safety in the workplace C) Building codes for residential construction D) Environmental protection Answer: B Explanation: NFPA 70E sets standards for electrical safety practices in workplaces to prevent injuries and accidents. Question 12. Lockout/Tagout procedures are used to: A) Secure tools during maintenance B) Prevent accidental energization of electrical equipment C) Label circuit breakers D) Protect against electrical fires Answer: B Explanation: Lockout/Tagout procedures ensure that electrical equipment remains de-energized during maintenance to prevent shocks or injuries. Question 13. Arc-flash hazards are primarily caused by: A) Overloaded circuits B) Loose connections C) Sudden release of electrical energy in a high-temperature flash D) Ground faults Answer: C Explanation: Arc-flash hazards result from the sudden release of electrical energy, producing intense heat and light that can cause burns and injuries. Question 14. Which PPE is most appropriate for electrical shock protection?
Exam
A) Safety glasses B) Insulated gloves C) Steel-toe boots D) Earplugs Answer: B Explanation: Insulated gloves provide protection against electrical shocks by preventing current from passing through the worker's body. Question 15. When troubleshooting a circuit with a multimeter, what is the first step? A) Set the multimeter to measure resistance B) Turn off power to the circuit C) Connect the multimeter leads D) Replace the circuit breaker Answer: B Explanation: Safety-first: always turn off power before testing to prevent electrical shock and equipment damage. Question 16. A schematic symbol for a resistor is represented by: A) A zigzag line B) A circle with a line through it C) Two parallel lines D) A lightning bolt Answer: A Explanation: The zigzag line symbol is universally used to represent a resistor in electrical schematics. Question 17. Which document provides detailed graphical representations of electrical wiring and components? A) Electrical blueprints B) User manuals
Exam
Answer: A Explanation: NEC generally requires at least one receptacle in each room, but often more are recommended; the minimum is one per room, but local codes may specify more. Question 21. GFCI protection is required for all receptacles in which locations? A) Outdoors B) Bathrooms C) Garages D) All of the above Answer: D Explanation: GFCIs are mandated for outdoor outlets, bathrooms, garages, and other areas where water and electricity may pose shock hazards. Question 22. A branch circuit's ampacity is based on: A) The size of the wire B) The maximum load it can safely carry C) The type of circuit breaker used D) All of the above Answer: D Explanation: All these factors influence the ampacity of a branch circuit. Question 23. The purpose of overcurrent protection devices is to: A) Prevent overloads and short circuits B) Increase current flow C) Reduce voltage D) Protect only the wiring Answer: A Explanation: Overcurrent devices like fuses and circuit breakers protect circuits from currents exceeding safe levels, preventing damage and fires.
Exam
Question 24. Which of the following is a type of overcurrent protection device? A) Fuse B) Circuit breaker C) Both A and B D) Grounding rod Answer: C Explanation: Both fuses and circuit breakers serve as overcurrent protection devices. Question 25. The main purpose of grounding is to: A) Provide a path for fault current B) Stabilize voltage levels C) Protect against electrical shock D) All of the above Answer: D Explanation: Grounding serves multiple safety and system stability functions. Question 26. Bonding conductors are used to: A) Connect non-current-carrying metal parts to ground B) Carry current during normal operation C) Isolate circuits D) Reduce voltage drop Answer: A Explanation: Bonding conductors ensure all conductive parts are connected to ground to prevent shock hazards. Question 27. Which of the following is a wiring method suitable for wet or damp locations? A) Non-metallic sheathed cable (NM) B) Rigid metal conduit (RMC)
Exam
Question 31. Which type of luminaire spacing is recommended to ensure proper lighting levels? A) Based on manufacturer’s specifications B) Every 10 feet in all spaces C) At fixed intervals regardless of room size D) Only near doorways Answer: A Explanation: Proper spacing depends on manufacturer recommendations, room size, and purpose. Question 32. A receptacle rated for 15A and 125V is suitable for which of the following? A) 20A circuits B) 15A circuits C) 30A circuits D) All of the above Answer: B Explanation: A 15A, 125V receptacle is rated for 15A circuits; it should not be used on higher-rated circuits. Question 33. In a motor circuit, overload protection is designed to protect against: A) Short circuits B) Excessive motor current during overload conditions C) Voltage surges D) Ground faults Answer: B Explanation: Overload protection prevents damage by disconnecting power when motor current exceeds safe levels during overloads. Question 34. A motor disconnecting means must be: A) Located within sight of the motor
Exam
B) Capable of disconnecting all ungrounded conductors C) Clearly labeled D) All of the above Answer: D Explanation: Proper motor disconnects must meet all these requirements for safety and code compliance. Question 35. The main purpose of a transformer is to: A) Convert AC to DC B) Change voltage levels C) Provide isolation only D) Store electrical energy Answer: B Explanation: Transformers alter voltage levels between primary and secondary windings in AC systems. Question 36. Overcurrent protection for transformers is generally provided by: A) Fuses or circuit breakers on the primary side B) Ground-fault interrupters C) Surge protectors D) All of the above Answer: A Explanation: Overcurrent devices on the primary side protect transformers from overloads and faults. Question 37. An essential requirement for installing a transformer in a vault includes: A) Adequate ventilation B) Fire-resistant enclosures C) Proper clearance and guarding D) All of the above Answer: D
Exam
B) Increased overcurrent protection C) High-voltage transformers D) All of the above Answer: D Explanation: X-ray equipment involves high voltage, shielding, and specialized grounding for safety. Question 42. Hazardous (Classified) locations are classified based on: A) The type of flammable gases or vapors present B) The temperature of electrical equipment C) The size of the room D) The number of electrical devices Answer: A Explanation: Classifications depend on the presence and concentration of flammable substances. Question 43. In a Class I, Division 2 hazardous location, which wiring method is permitted? A) Non-metallic conduit B) Rigid metal conduit C) Both A and B D) Neither A nor B Answer: C Explanation: Both non-metallic conduit and rigid metal conduit are acceptable if installed per code. Question 44. The NEC requires that electrical equipment in commercial garages be rated for: A) Wet locations B) Explosive atmospheres C) High temperatures D) All of the above Answer: D
Exam
Explanation: Equipment must meet multiple safety standards depending on environmental conditions. Question 45. For aircraft hangar wiring, the NEC requires: A) Explosion-proof fixtures B) Elevated wiring C) Special grounding methods D) Both A and C Answer: D Explanation: Explosive atmospheres necessitate explosion-proof fixtures and specialized grounding. Question 46. Gasoline dispensing stations must have which type of electrical protection? A) GFCI outlets B) Explosion-proof equipment C) Standard residential wiring D) No special requirements Answer: B Explanation: The presence of flammable vapors requires explosion-proof equipment to prevent ignition. Question 47. Bulk storage plants require wiring methods that are: A) Explosion-proof or flame-proof B) Suitable for outdoor use C) Resistant to environmental hazards D) All of the above Answer: D Explanation: Safety standards mandate robust wiring for hazardous storage environments. Question 48. Spray booths for dipping or coating must have: A) Explosion-proof lighting and wiring
Exam
Explanation: To prevent damage and interference, specialized wiring and connectors are used. Question 52. Mobile homes and mobile home parks are required to have: A) Proper grounding and bonding B) Adequate service capacity C) Approved wiring methods D) All of the above Answer: D Explanation: Safety standards specify grounding, capacity, and approved wiring for mobile homes. Question 53. Temporary wiring installations must be: A) Clearly marked B) Removed promptly after use C) Rated for outdoor or indoor use as applicable D) All of the above Answer: D Explanation: Temporary wiring must meet safety standards, be marked, and removed when no longer needed. Question 54. Electric sign installations must be wired with: A) Overcurrent protection B) Proper grounding C) Approved wiring methods D) All of the above Answer: D Explanation: Proper wiring ensures safety, compliance, and reliable operation of signs. Question 55. Cranes and hoists require wiring that is: A) Heavy-duty and rated for high currents
Exam
B) Protected from environmental hazards C) Properly grounded D) All of the above Answer: D Explanation: Heavy-duty, protected, and grounded wiring ensures safe operation of cranes and hoists. Question 56. Elevator and escalator wiring must include: A) Emergency stop controls B) Proper grounding and bonding C) Dedicated circuits D) All of the above Answer: D Explanation: To ensure safety and reliable operation, all these features are required. Question 57. Electric vehicle charging systems should include: A) Dedicated circuits B) Proper overcurrent protection C) Grounding and bonding D) All of the above Answer: D Explanation: Correct installation of EV chargers involves all these safety and performance features. Question 58. For swimming pools and fountains, GFCI protection is required on: A) All receptacles B) Underwater lighting circuits C) Both A and B D) Neither A nor B Answer: C
Exam
A) Provide backup power for critical loads B) Operate only during maintenance C) Replace the main power supply permanently D) None of the above Answer: A Explanation: Standby systems supply power to essential loads during outages. Question 63. Critical operations power systems (COPS) are primarily concerned with: A) Reliability and security of power supply B) Cost reduction C) Aesthetic design D) None of the above Answer: A Explanation: COPS focus on ensuring continuous, secure power for critical functions. Question 64. Fire alarm system wiring typically involves: A) Class 1 circuits B) Dedicated power supplies C) Proper grounding and bonding D) All of the above Answer: D Explanation: Fire alarm wiring must meet strict standards for safety and reliability. Question 65. Communication systems in electrical infrastructure need to be: A) Properly grounded and shielded B) Installed according to manufacturer specifications C) Protected from environmental hazards D) All of the above
Exam
Answer: D Explanation: Proper grounding, installation, and protection are essential for communication system integrity. Question 66. Limited energy circuits are classified as: A) Class 1, 2, and 3 circuits B) High-voltage circuits only C) Power distribution circuits D) All of the above Answer: A Explanation: Limited energy circuits are divided into Classes 1, 2, and 3, based on voltage and power levels. Question 67. Energy storage systems in electrical installations often involve: A) Batteries B) Flywheels C) Supercapacitors D) All of the above Answer: D Explanation: Various technologies, including batteries, flywheels, and supercapacitors, are used for energy storage. Question 68. Wind electric systems require which type of grounding? A) System grounding in accordance with NEC B) No grounding required C) Only bonding D) Isolated from ground Answer: A Explanation: Proper grounding ensures safety and system stability in wind energy systems.
