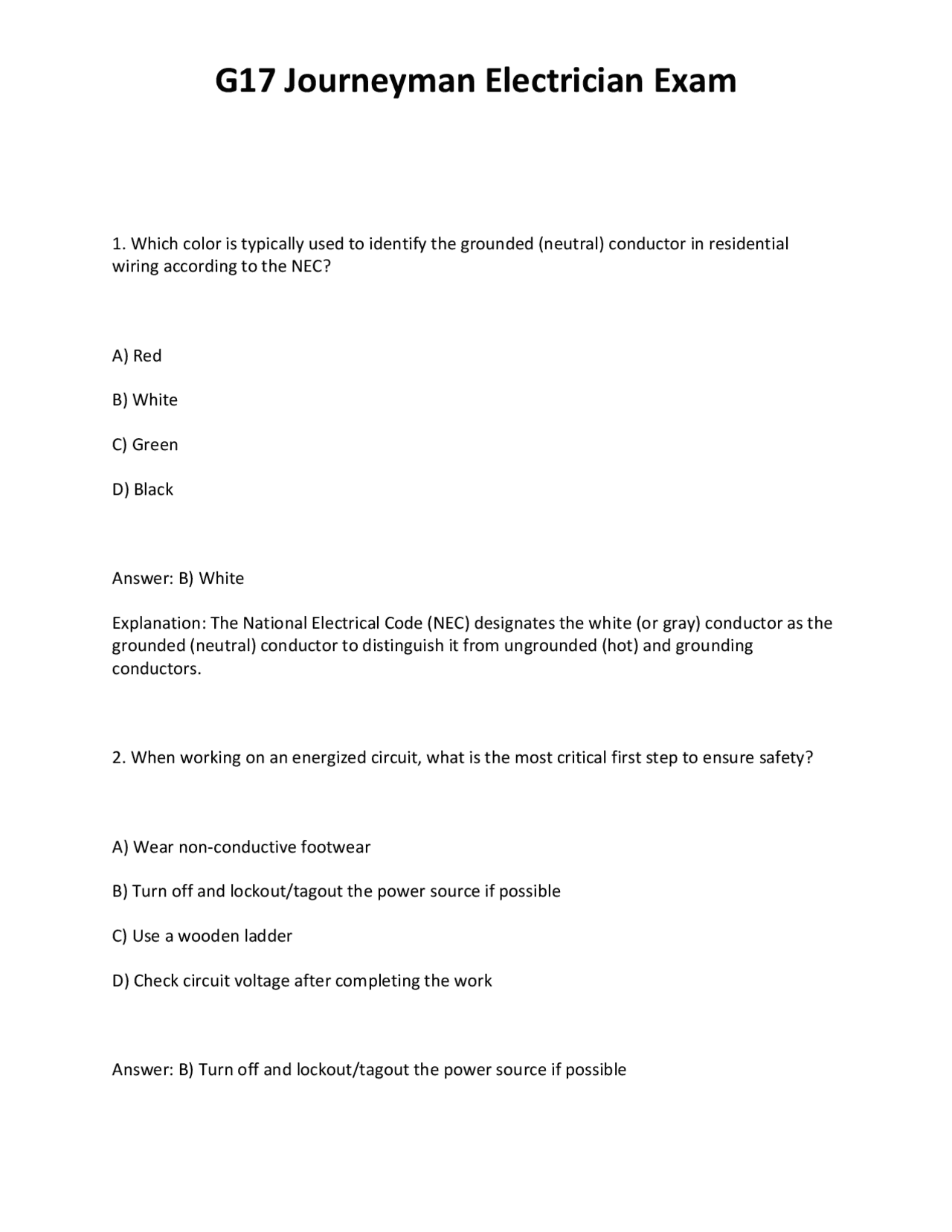

- Which color is typically used to identify the grounded (neutral) conductor in residential wiring according to the NEC? A) Red B) White C) Green D) Black Answer: B) White Explanation: The National Electrical Code (NEC) designates the white (or gray) conductor as the grounded (neutral) conductor to distinguish it from ungrounded (hot) and grounding conductors.
- When working on an energized circuit, what is the most critical first step to ensure safety? A) Wear non-conductive footwear B) Turn off and lockout/tagout the power source if possible C) Use a wooden ladder D) Check circuit voltage after completing the work Answer: B) Turn off and lockout/tagout the power source if possible
Explanation: Lockout/tagout procedures are crucial for ensuring no unexpected energization, preventing electrical shocks and accidents.
- According to OSHA and NFPA 70E standards, which class of Personal Protective Equipment (PPE) is primarily used for arc flash protection? A) Class G gloves B) Arc-rated clothing C) Leather work boots D) Safety glasses only Answer: B) Arc-rated clothing Explanation: NFPA 70E mandates arc-rated clothing in environments where arc flash hazards exist to protect workers from intense heat and blasts.
- In a lockout/tagout (LOTO) procedure, the tag primarily serves what purpose? A) To lock the breaker in the off position B) To provide a written warning that the circuit is under lockout C) To supply an alternative way to turn on the circuit D) To identify the load side of the circuit
D) To increase conductor insulation Answer: C) To ensure a low-resistance path for fault current Explanation: Grounding limits the voltage to ground on electrical systems and provides a path for fault current to facilitate overcurrent device operation.
- When a circuit breaker is rated for 20A, what is the maximum continuous load typically permitted on that circuit under the NEC? A) 10A B) 16A C) 20A D) 25A Answer: B) 16A Explanation: For continuous loads (three hours or more), the NEC generally requires derating to 80% of a circuit breaker’s rating. Thus, 80% of 20A is 16A.
- Which test instrument is best suited for measuring high levels of current in a conductor without disconnecting it? A) Multimeter with test leads
B) Megohmmeter C) Continuity tester D) Clamp meter Answer: D) Clamp meter Explanation: Clamp meters allow measurement of current flowing through a conductor by clamping around it, eliminating the need to break the circuit.
- In a single-phase system, how many degrees apart are the waves of voltage and current if the load is purely resistive? A) 0 degrees B) 90 degrees C) 120 degrees D) 180 degrees Answer: A) 0 degrees Explanation: In a purely resistive circuit, voltage and current are in phase, resulting in a zero- degree phase difference.
- A GFCI (Ground Fault Circuit Interrupter) is designed to protect against which primary hazard?
- When might a locknut and bushing be used in conduit installation? A) When connecting two separate grounding conductors B) When terminating conduit at an enclosure C) When performing wire splices in mid-run D) When supporting overhead bus bars Answer: B) When terminating conduit at an enclosure Explanation: Locknuts and bushings help secure conduit at enclosures and protect wiring from sharp edges.
- Which tool is most appropriate for verifying continuity in a conductor? A) Clamp meter B) Megohmmeter C) Standard multimeter set to the continuity function D) Non-contact voltage tester Answer: C) Standard multimeter set to the continuity function
Explanation: A multimeter on continuity mode provides an audible or visual indication of an unbroken circuit.
- If a 120V electric motor draws 8 amps, approximately how many watts of power is it consuming (ignoring power factor)? A) 15W B) 60W C) 960W D) 1500W Answer: C) 960W Explanation: Power (in watts) = Voltage × Current = 120V × 8A = 960W.
- In a residence, where are tamper-resistant receptacles typically required by the NEC? A) Only in kitchens B) Only in bathrooms C) In all living areas where children might be present D) In crawl spaces
D) Ladder falling apart from vibrations Answer: C) Electrical shock or electrocution Explanation: Metal ladders can conduct electricity. If they contact energized conductors, the user can receive an electric shock.
- Which of the following best defines a short circuit? A) An open circuit where current cannot flow B) A circuit with excessive resistance C) A low-resistance connection between two points of different potential D) A properly functioning closed circuit Answer: C) A low-resistance connection between two points of different potential Explanation: A short circuit occurs when current bypasses the normal load, often drawing excessive current.
- What does AWG stand for regarding conductor sizing? A) American Wire Gauge B) Advanced Wire Grading
C) Ampere Wire Grade D) Ampacity Width Gauge Answer: A) American Wire Gauge Explanation: American Wire Gauge is the standardized measurement system for the diameter of electrical conductors in North America.
- A circuit supplying a load at 240V with a measured current of 10A has how many kilowatts of power consumption (assuming unity power factor)? A) 0.24 kW B) 1.2 kW C) 2.4 kW D) 4.8 kW Answer: C) 2.4 kW Explanation: Power (in watts) = Voltage × Current = 240V × 10A = 2400W = 2.4 kW.
- What is the primary purpose of a conduit bending shoe on a hand bender? A) To protect the bender from scratches
A) Article 110 B) Article 200 C) Article 210 D) Article 250 Answer: D) Article 250 Explanation: NEC Article 250 covers grounding and bonding of electrical systems and equipment.
- During a routine check, which instrument would you use to measure insulation resistance on motor windings? A) Volt-ohm meter set to ohms B) Megohmmeter (megger) C) Continuity tester D) Tachometer Answer: B) Megohmmeter (megger) Explanation: Megohmmeters apply a high voltage to measure insulation resistance, identifying weak or damaged insulation in motor windings.
- What is the voltage between each hot leg and neutral in a standard single-phase, 120/240V split-phase residential service? A) 240V B) 120V C) 48V D) 60V Answer: B) 120V Explanation: In a typical single-phase residential supply, each hot leg measures 120V to neutral and 240V across both hot legs.
- Which type of fire extinguisher is suitable for electrical fires? A) Class A B) Class B C) Class C D) Class K Answer: C) Class C
Answer: C) Conduit pliers Explanation: Conduit pliers (often known as “pump pliers” or similar) are typically designed to securely tighten locknuts on conduit fittings.
- When referring to a motor’s nameplate, “PF” typically indicates what? A) Power fault B) Power frequency C) Power factor D) Protective fuse Answer: C) Power factor Explanation: Motor nameplates usually list the power factor (PF), which indicates how effectively the motor converts electrical power into mechanical power.
- In a three-phase system, what is the typical phase separation in degrees? A) 60 degrees B) 90 degrees C) 120 degrees D) 180 degrees
Answer: C) 120 degrees Explanation: Three-phase systems have three sinusoidal voltages separated by 120 electrical degrees.
- Which location in a residential dwelling typically requires GFCI protection? A) Living room outlets B) Kitchen countertop receptacles C) Bedroom light fixtures D) Hallway smoke detectors Answer: B) Kitchen countertop receptacles Explanation: The NEC requires GFCI protection for receptacles in areas where water is present, including kitchen countertops, bathrooms, garages, and outdoor locations.
- What is the primary function of a contactor in a motor control circuit? A) To measure voltage drop B) To protect against overload C) To provide remote switching of high current loads
C) Rigid metal conduit (RMC) or PVC conduit D) Knob-and-tube wiring Answer: C) Rigid metal conduit (RMC) or PVC conduit Explanation: For outdoor environments, RMC or PVC conduit is used to protect conductors from moisture and physical damage.
- For a motor rated at 10 horsepower, which code reference should be consulted for determining conductor and breaker sizing? A) NEC Article 300 B) NEC Article 310 C) NEC Article 430 D) NEC Article 210 Answer: C) NEC Article 430 Explanation: NEC Article 430 covers motor circuits, including sizing of conductors, overloads, and other protective devices.
- What is the primary reason for derating conductors in a conduit with more than three current-carrying conductors?
A) To accommodate future expansion B) To prevent excessive voltage drop C) To limit skin effect D) To reduce heat build-up and maintain insulation integrity Answer: D) To reduce heat build-up and maintain insulation integrity Explanation: Multiple current-carrying conductors in a conduit can increase heat, so ampacity must be reduced to avoid insulation damage.
- In an AC circuit with both inductive and resistive components, how does the power factor compare to unity? A) It is always unity B) It is typically less than 1 C) It is typically more than 1 D) It has no effect on the circuit Answer: B) It is typically less than 1 Explanation: Inductive or capacitive loads cause phase shifts between voltage and current, resulting in a power factor less than unity.
