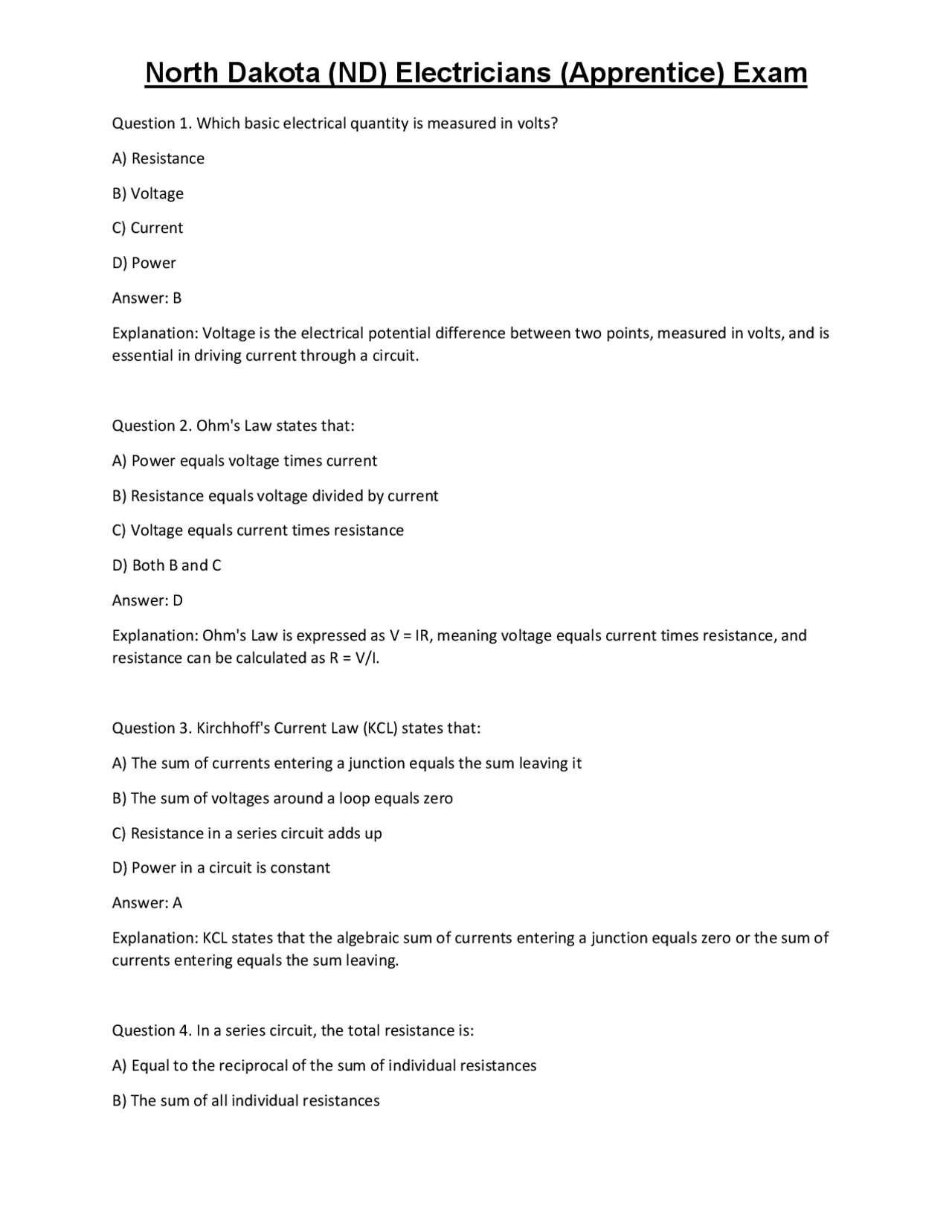

Question 1. Which basic electrical quantity is measured in volts? A) Resistance B) Voltage C) Current D) Power Answer: B Explanation: Voltage is the electrical potential difference between two points, measured in volts, and is essential in driving current through a circuit. Question 2. Ohm's Law states that: A) Power equals voltage times current B) Resistance equals voltage divided by current C) Voltage equals current times resistance D) Both B and C Answer: D Explanation: Ohm's Law is expressed as V = IR, meaning voltage equals current times resistance, and resistance can be calculated as R = V/I. Question 3. Kirchhoff's Current Law (KCL) states that: A) The sum of currents entering a junction equals the sum leaving it B) The sum of voltages around a loop equals zero C) Resistance in a series circuit adds up D) Power in a circuit is constant Answer: A Explanation: KCL states that the algebraic sum of currents entering a junction equals zero or the sum of currents entering equals the sum leaving. Question 4. In a series circuit, the total resistance is: A) Equal to the reciprocal of the sum of individual resistances B) The sum of all individual resistances
C) The product of all resistances D) Always less than the smallest resistor Answer: B Explanation: In series circuits, resistances add directly, so total resistance equals the sum of each resistor. Question 5. Which statement correctly describes a parallel circuit? A) All components are connected end-to-end in a single path B) The voltage across each component is different C) The total current divides among the branches D) Resistance adds directly Answer: C Explanation: In parallel circuits, the total current divides among branches, and the voltage across each branch is the same. Question 6. A combination circuit: A) Contains only series components B) Contains only parallel components C) Has both series and parallel components D) Is purely resistive Answer: C Explanation: Combination circuits incorporate both series and parallel elements within the same circuit. Question 7. Magnetism is primarily associated with: A) Electric charges at rest B) Moving electric charges or currents C) Resistance in a circuit D) Voltage drops Answer: B
A) To resist current flow B) To store electrical energy temporarily C) To convert AC to DC D) To increase resistance Answer: B Explanation: Capacitors store electrical energy in an electric field and influence circuit reactance in AC circuits. Question 12. Inductance in a circuit causes: A) Resistance to vary with temperature B) A delay in current change due to magnetic fields C) Immediate current flow D) Voltage to be independent of current Answer: B Explanation: Inductance opposes changes in current, producing a magnetic field that delays current variations. Question 13. Impedance in an AC circuit is best described as: A) Pure resistance only B) The total opposition to current flow, including resistance and reactance C) The resistance at zero frequency D) The same as resistance in DC circuits Answer: B Explanation: Impedance encompasses resistance and reactance, representing the total opposition to AC current. Question 14. Power factor is defined as: A) The ratio of real power to apparent power B) The phase difference between voltage and current C) The efficiency of energy conversion
D) Both A and B Answer: D Explanation: Power factor is the cosine of the phase angle between voltage and current, representing the efficiency of power usage. Question 15. A transformer operates on which principle? A) Electromagnetic induction B) Resistance heating C) Direct current conversion D) Capacitance storage Answer: A Explanation: Transformers operate on electromagnetic induction, transferring energy between circuits via changing magnetic fields. Question 16. A step-down transformer: A) Increases voltage from primary to secondary B) Decreases voltage from primary to secondary C) Is used to generate electricity D) Uses resistance to control current Answer: B Explanation: Step-down transformers reduce voltage levels from primary to secondary windings for safe distribution. Question 17. An electric motor converts: A) Electrical energy into mechanical energy B) Mechanical energy into electrical energy C) Heat into electrical energy D) Magnetic energy into electrical energy Answer: A
Question 21. The purpose of the National Electrical Code (NEC) is to: A) Ensure electrical safety and standardization B) Maximize electrical power consumption C) Regulate telecommunications D) Provide lighting design guidelines Answer: A Explanation: The NEC establishes safety standards to prevent electrical hazards and promote proper installation practices. Question 22. Which term describes a conductor that is connected to earth to prevent shock hazards? A) Insulated conductor B) Grounded conductor C) Ungrounded conductor D) Neutral conductor Answer: B Explanation: A grounded conductor provides a path to earth, reducing shock risk and stabilizing voltage levels. Question 23. Ampacity refers to: A) The maximum current a conductor can safely carry B) The voltage rating of a conductor C) The resistance of a wire D) The power capacity of a circuit breaker Answer: A Explanation: Ampacity is the current-carrying capacity of a conductor without exceeding its temperature rating. Question 24. The purpose of overcurrent protection devices is to: A) Increase current flow B) Prevent excessive current that could cause damage or fire
C) Decrease voltage D) Balance load across circuits Answer: B Explanation: Overcurrent devices like fuses and circuit breakers disconnect circuits when current exceeds safe limits. Question 25. A branch circuit is defined as: A) The main supply line to a building B) A circuit that supplies a specific load or group of loads C) The wiring that connects a transformer to a system D) The grounding conductor Answer: B Explanation: Branch circuits distribute power from the panel to individual loads or outlets. Question 26. The main function of a GFCI is: A) To protect against overcurrent B) To prevent ground faults and reduce shock hazards C) To regulate voltage D) To control motor speed Answer: B Explanation: GFCIs detect leakage current and trip to prevent electric shock in wet or damp locations. Question 27. Voltage drop calculations help determine: A) The efficiency of transformers B) The length of conductors needed to prevent excessive voltage loss C) The total current in a circuit D) The power factor of a circuit Answer: B
Question 31. A conductor with a plastic insulation suitable for general wiring is typically: A) NM-B (Nonmetallic sheathed cable) B) RMC (Rigid metal conduit) C) FMC (Flexible metal conduit) D) PVC (Polyvinyl chloride) conduit) Answer: A Explanation: NM-B cable has plastic insulation suitable for residential wiring and general use. Question 32. An open wiring system on insulators is primarily used: A) For temporary wiring or in specific industrial environments B) For underground installations C) In all residential wiring D) For underground conduit systems Answer: A Explanation: Open wiring on insulators is common in industrial or temporary setups but not typical in residential wiring. Question 33. The main advantage of armored cable (AC) over non-metallic sheathed cable (NM-B) is: A) Greater flexibility B) Increased mechanical protection against physical damage C) Easier installation in tight spaces D) Lower cost Answer: B Explanation: AC provides metal armor that protects conductors from physical damage and is suitable for exposed or hazardous locations. Question 34. The purpose of a conduit fill calculation is to: A) Determine the total length of conduit required B) Calculate the total weight of conduit
C) Ensure the number of conductors does not exceed the conduit’s capacity D) Size the circuit breaker Answer: C Explanation: Conduit fill calculations prevent overcrowding, which can cause overheating and make wiring difficult. Question 35. Liquidtight Flexible Metal Conduit (LFMC) is mainly used for: A) Indoor wiring in dry locations B) Flexible connections in wet or hazardous environments C) Underground installations only D) Power distribution in large industrial plants Answer: B Explanation: LFMC provides flexible, moisture-resistant conduit suitable for wet or hazardous areas. Question 36. Which of the following is a characteristic of electrical metallic tubing (EMT)? A) Rigid and corrosion-resistant B) Lightweight and easy to bend for conduit runs C) Only used outdoors D) Not suitable for residential wiring Answer: B Explanation: EMT is lightweight, easy to bend, and commonly used in residential and commercial wiring. Question 37. Cellular metal floor raceways are primarily used for: A) Surface wiring in commercial buildings B) Concealed wiring within floors or walls C) Underground power distribution D) Overhead suspended wiring Answer: B
Question 41. When installing a receptacle in a damp location, it should be: A) Located outdoors only B) Listed for wet or damp locations and properly protected C) Installed without cover plates D) Placed directly on concrete without any protection Answer: B Explanation: Receptacles in damp locations require suitable weatherproof or wet-location-rated devices and enclosures. Question 42. An overload protection device in a motor circuit is primarily designed to protect against: A) Short circuits B) Excessive current that could cause overheating in the motor windings C) Voltage surges D) Ground faults Answer: B Explanation: Overload protection devices prevent excessive current that can overheat motor windings over time. Question 43. The primary purpose of a transformer vault is: A) To provide a safe enclosure for large transformers B) To house circuit breakers C) To increase voltage levels D) To serve as a grounding point Answer: A Explanation: Transformer vaults safely contain large transformers, providing protection and access for maintenance. Question 44. A capacitor in an electrical circuit is used to: A) Store electrical energy and improve power factor B) Limit current flow
C) Convert AC to DC D) Reduce voltage levels Answer: A Explanation: Capacitors store electrical energy and are used in power factor correction and filtering applications. Question 45. A portable generator operates on which principle? A) Electromagnetic induction B) Resistance heating C) Chemical energy conversion in fuel cells D) Solar energy absorption Answer: A Explanation: Portable generators convert chemical energy in fuel into mechanical energy and then electrical energy via electromagnetic induction. Question 46. Storage batteries are primarily used to: A) Provide backup power in electrical systems B) Convert AC to DC C) Step down voltage levels D) Regulate frequency in power systems Answer: A Explanation: Batteries store electrical energy for backup or emergency power supply. Question 47. The main function of energy storage systems in electrical grids is to: A) Increase load demand B) Balance supply and demand by storing excess energy for later use C) Reduce voltage levels permanently D) Replace transformers entirely Answer: B
Question 51. Which of the following best describes the purpose of grounding in electrical systems? A) To improve circuit efficiency B) To provide a safe path for fault current and prevent shock hazards C) To increase voltage D) To reduce resistance of conductors Answer: B Explanation: Grounding provides a low-resistance path for fault current, ensuring safety and protecting equipment. Question 52. The term "ampacity" refers to: A) The maximum current a conductor can safely carry without exceeding temperature limits B) The voltage rating of a conductor C) The resistance of a wire D) The maximum load a circuit breaker can handle Answer: A Explanation: Ampacity defines the current capacity of conductors considering their insulation and environmental conditions. Question 53. An AFCI (Arc-Fault Circuit Interrupter) is designed to: A) Detect and disconnect arcs that could cause fires B) Protect against ground faults C) Limit short circuit current D) Control motor speed Answer: A Explanation: AFCIs detect arcing conditions that can lead to electrical fires and trip the circuit to prevent hazards. Question 54. Proper conductor sizing for a branch circuit is primarily determined by: A) The voltage of the circuit B) The expected load current and conductor ampacity ratings
C) The length of the circuit only D) The type of connectors used Answer: B Explanation: Conductor size depends on the load current and ampacity ratings to ensure safe operation. Question 55. The main difference between a service drop and a service lateral is: A) Service drop is overhead, and service lateral is underground B) Service drop is for residential, and service lateral is for industrial C) Service drop is for low voltage, and service lateral is for high voltage D) There is no difference; they are interchangeable terms Answer: A Explanation: Service drop refers to overhead service conductors from utility to the building, while service lateral can be overhead or underground. Question 56. A 3-phase transformer connection in delta configuration provides: A) Single-phase power only B) Three-phase power with no neutral needed C) Reduced voltage output D) Equal phase shift of 120 degrees only in star connections Answer: B Explanation: Delta-connected transformers supply three-phase power without requiring a neutral connection. Question 57. The purpose of a disconnecting means is to: A) Allow for safe maintenance and emergency shutdown of electrical equipment B) Increase the current capacity of a circuit C) Limit voltage fluctuations D) Reduce power consumption Answer: A
Question 61. The main purpose of a busway in electrical systems is: A) To conduct high current efficiently within a building B) To provide lighting fixtures C) To serve as a grounding system D) To connect transformers to the utility grid Answer: A Explanation: Busways are prefabricated assemblies of busbars used to distribute high current efficiently within buildings. Question 62. Flat Conductor Cable (FCC) Type CF is primarily used for: A) Heavy industrial power wiring B) Internal wiring of appliances and control panels C) Overhead power lines D) Underground high-voltage transmission Answer: B Explanation: FCC Type CF is a flexible flat cable used for internal wiring in appliances and control systems. Question 63. A key feature of power and control tray cables (TC) is: A) Their ability to carry both power and control signals in a single cable B) Their rigid metal construction C) Their use only in outdoor applications D) Their non-flexible nature Answer: A Explanation: TC cables are designed to carry power and control circuits, often in industrial settings, with a flexible design. Question 64. The primary advantage of using a liquidtight flexible metal conduit (LFMC) is: A) Its flexibility and moisture resistance in wet locations
B) Its rigid structure for underground use C) Its corrosion resistance in outdoor environments D) Its low cost compared to rigid conduit Answer: A Explanation: LFMC combines flexibility with moisture resistance, making it suitable for wet or corrosive environments. Question 65. Conductors used in residential wiring are typically made of: A) Copper or aluminum B) Steel or brass C) Iron or nickel D) Copper only Answer: A Explanation: Copper and aluminum are common conductor materials used in residential wiring for their conductivity and cost effectiveness. Question 66. The main function of a ground rod in grounding systems is to: A) Provide a low-resistance path to earth B) Conduct current during normal operation C) Increase system voltage D) Protect against overcurrent Answer: A Explanation: Ground rods provide a low-resistance path to earth, helping to safely dissipate fault currents. Question 67. The term "power factor correction" involves adding: A) Resistors to improve efficiency B) Capacitors to counteract inductive loads and improve power factor C) Inductors to increase reactance D) Transformers to step voltage up or down
