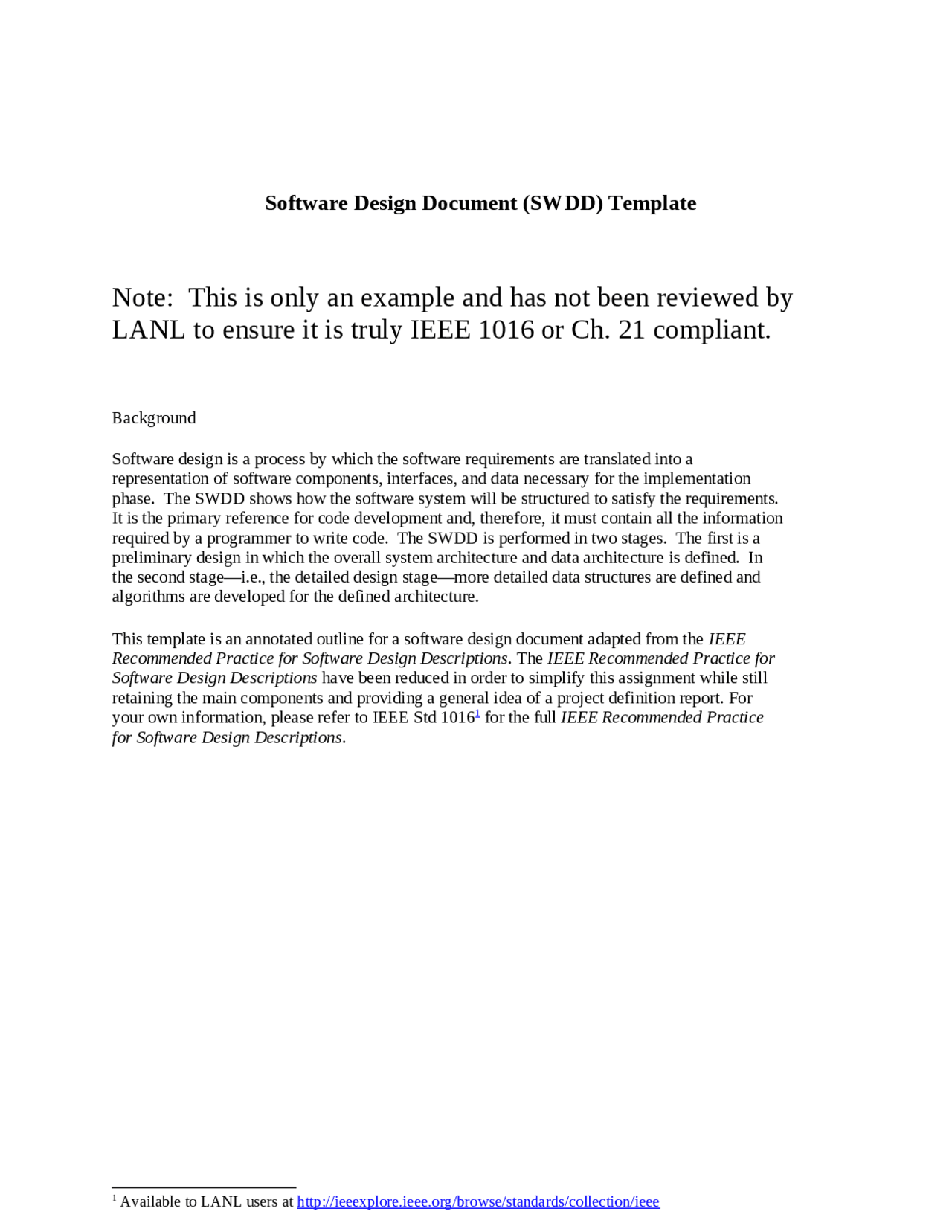

Software Design Document (SWDD) Template
Note: This is only an example and has not been reviewed by
LANL to ensure it is truly IEEE 1016 or Ch. 21 compliant.
Background
Software design is a process by which the software requirements are translated into a
representation of software components, interfaces, and data necessary for the implementation
phase. The SWDD shows how the software system will be structured to satisfy the requirements.
It is the primary reference for code development and, therefore, it must contain all the information
required by a programmer to write code. The SWDD is performed in two stages. The first is a
preliminary design in which the overall system architecture and data architecture is defined. In
the second stage—i.e., the detailed design stage—more detailed data structures are defined and
algorithms are developed for the defined architecture.
This template is an annotated outline for a software design document adapted from the IEEE
Recommended Practice for Software Design Descriptions. The IEEE Recommended Practice for
Software Design Descriptions have been reduced in order to simplify this assignment while still
retaining the main components and providing a general idea of a project definition report. For
your own information, please refer to IEEE Std 10161 for the full IEEE Recommended Practice
for Software Design Descriptions.
1 Available to LANL users at http://ieeexplore.ieee.org/browse/standards/collection/ieee
pf3
pf4
pf5

Partial preview of the text

Download Software Design Document: Guide for Translating Requirements into System Design and more Assignments Software Engineering in PDF only on Docsity!

Software Design Document (SWDD) Template

Note: This is only an example and has not been reviewed by

LANL to ensure it is truly IEEE 1016 or Ch. 21 compliant.

Background Software design is a process by which the software requirements are translated into a representation of software components, interfaces, and data necessary for the implementation phase. The SWDD shows how the software system will be structured to satisfy the requirements. It is the primary reference for code development and, therefore, it must contain all the information required by a programmer to write code. The SWDD is performed in two stages. The first is a preliminary design in which the overall system architecture and data architecture is defined. In the second stage—i.e., the detailed design stage—more detailed data structures are defined and algorithms are developed for the defined architecture. This template is an annotated outline for a software design document adapted from the IEEE Recommended Practice for Software Design Descriptions. The IEEE Recommended Practice for Software Design Descriptions have been reduced in order to simplify this assignment while still retaining the main components and providing a general idea of a project definition report. For your own information, please refer to IEEE Std 1016^1 for the full IEEE Recommended Practice for Software Design Descriptions. (^1) Available to LANL users at http://ieeexplore.ieee.org/browse/standards/collection/ieee

SWDD- [obtain number from Conduct of Engineering Document Numbering SharePoint site]

(Team Name)

(Project Title)

Software Design Document

Name (s): Lab Section: Workstation: Date: (mm/dd/yyyy)

1.0 INTRODUCTION 1.1 Purpose Identify the purpose of this SWDD and its intended audience. (e.g. “This software design document describes the architecture and system design of XX. ….”). 1.2 Scope Provide a description and scope of the software and explain the goals, objectives and benefits of your project. This will provide the basis for the brief description of your product. 1.3 Overview Provide an overview of this document and its organization. 1.4 Reference Material This section is optional. List any documents, if any, which were used as sources of information for the test plan. 1.5 Definitions and Acronyms This section is optional. Provide definitions of all terms, acronyms, and abbreviations that might exist to properly interpret the SWDD. These definitions should be items used in the SWDD that are most likely not known to the audience. 2.0 SYSTEM OVERVIEW Give a general description of the functionality, context and design of your project. Provide any background information if necessary. 3.0 SYSTEM ARCHITECTURE 3.1 Architectural Design Develop a modular program structure and explain the relationships between the modules to achieve the complete functionality of the system. This is a high level overview of how responsibilities of the system were partitioned and then assigned to subsystems. Identify each high level subsystem and the roles or responsibilities assigned to it. Describe how these subsystems collaborate with each other in order to achieve the desired functionality. Don’t go into too much detail about the individual subsystems. The main purpose is to gain a general understanding of how and why the system was decomposed, and how the individual parts work together. Provide a diagram showing the major subsystems and data repositories and their interconnections. Describe the diagram if required.
