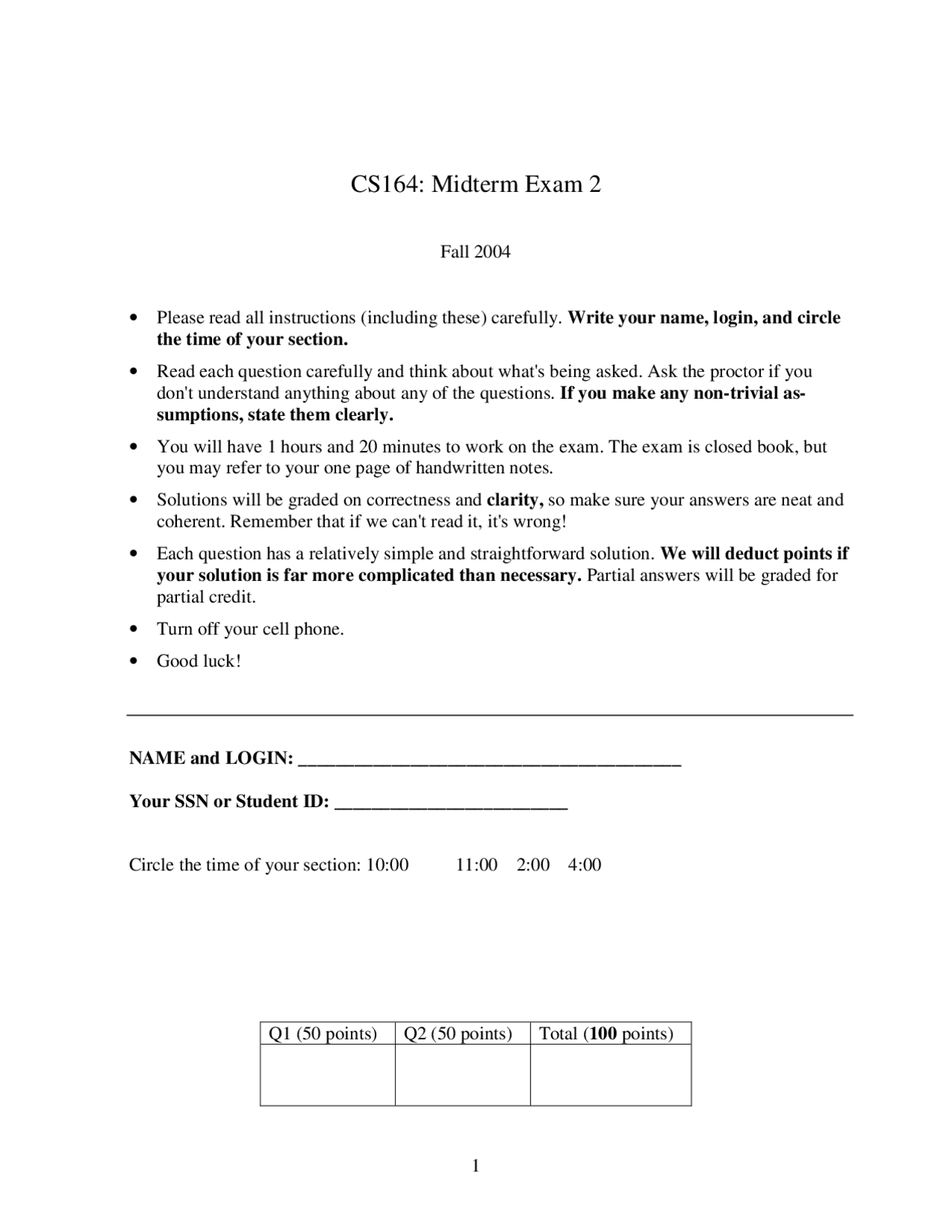

CS164: Midterm Exam 2
Fall 2004
• Please read all instructions (including these) carefully. Write your name, login, and circle
the time of your section.
• Read each question carefully and think about what's being asked. Ask the proctor if you
don't understand anything about any of the questions. If you make any non-trivial as-
sumptions, state them clearly.
• You will have 1 hours and 20 minutes to work on the exam. The exam is closed book, but
you may refer to your one page of handwritten notes.
• Solutions will be graded on correctness and clarity, so make sure your answers are neat and
coherent. Remember that if we can't read it, it's wrong!
• Each question has a relatively simple and straightforward solution. We will deduct points if
your solution is far more complicated than necessary. Partial answers will be graded for
partial credit.
• Turn off your cell phone.
• Good luck!
NAME and LOGIN: _________________________________________
Your SSN or Student ID: _________________________
Circle the time of your section: 10:00 11:00 2:00 4:00
Q1 (50 points) Q2 (50 points) Total (100 points)
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Dataflow Analysis and Interface Calls in Decaf: Midterm Exam 2 and more Exams Programming Languages in PDF only on Docsity!

CS164: Midterm Exam 2

Fall 2004

  • Please read all instructions (including these) carefully. Write your name, login, and circle the time of your section.
  • Read each question carefully and think about what's being asked. Ask the proctor if you don't understand anything about any of the questions. If you make any non-trivial as- sumptions, state them clearly.
  • You will have 1 hours and 20 minutes to work on the exam. The exam is closed book, but you may refer to your one page of handwritten notes.
  • Solutions will be graded on correctness and clarity, so make sure your answers are neat and coherent. Remember that if we can't read it, it's wrong!
  • Each question has a relatively simple and straightforward solution. We will deduct points if your solution is far more complicated than necessary. Partial answers will be graded for partial credit.
  • Turn off your cell phone.
  • Good luck! NAME and LOGIN: _________________________________________ Your SSN or Student ID: _________________________ Circle the time of your section: 10:00 11:00 2:00 4: Q1 (50 points) Q2 (50 points) Total ( 100 points)

1 Dataflow analysis

This question asks you to develop a simple dataflow analysis that can be used to optimize Decaf programs be removing from them unnecessary null checks. Background. Because dereferencing a null pointer crashes the program, in Decaf, a run-time check ensures that a null pointer is never dereferenced. This check takes place just before the pointer is dereferenced using the "." operator. For example, the statement "p.f(); " might be translated by the compiler to if (p == null) print_error_and_exit{); p.f 0 ; The null checks can be costly, but luckily we can optimize some of them away. Specifically, a check can be safely removed if the compiler can guarantee that the pointer being dereferenced will not be null for any program input. The problem. In this problem, you will develop a dataflow analysis to identify such redundant checks, so that they can be eliminated by the compiler. In particular, for every pointer dereference, you want to know whether the variable being dereferenced may be null; if it may not, then you can eliminate the null check. Simplifications. In order to simplify the analysis, you can make the following assumptions:

  • Assume that the method that you are going to analyze has only three local variables named x, y, z.
  • These variables are initialized to null.
  • All three variables are of type B, where B is a class defined as follows class B { void foo(); B moo(); }
  • The return value of moo can be either a null pointer or a valid pointer.
  • Within a basic block, the only valid statements are an assignment into a local variable and a method call (like z.foo();).
  • The right hand side of an assignment can be any of the following: - A method call (like z.moo()),
    • new B(), - Another variable, - null.
  1. (12 points) If you are using a forward analysis, specify for each of the following statements how the value at program point B is computed given the value at the program point A (i.e. how do you decide what variables may be null at B given what you know about the variables at A). If you are using a backward analysis, specify how you are going to compute the value at program point A from the value at program point B. Your analysis should not be overly conservative. You can assume you are analyzing each variable separately (A) x = null; (B)

(A)

X = new B(); (B)

(A)

x = y; (B)

(A)

x = y.moo(); (B) (hint: If y were null, you would never reach point (B))

  1. (4 points) How are you going to handle join points (or split points if you are doing a backward analysis)? In particular, if you have two different values coming into a join point from two different edges, how are you going to define the value for the join point?
  2. (4 points) What value are you going to initialize all program points too? What about the entry point (or the exit point if you are running a backward analysis)?
  1. (10 points) Run your data-flow analysis on the graph given below, and fill out the two tables provided.

Interface references. To make use of interfaces, Java introduces interface reference variables, which are like object reference variables, except that an interface variable of type I is allowed to point to objects of any type T such that the class T implements the interface I. For example, the interface reference variable t of type IM (introduced above) is allowed to point to an object of type A or C but not of type B, even though B happens to contain a method m(): IM t; t = new A(); // LEGAL t = new B(); // ILLEGAL (even though B contains method m) t = new C(); // LEGAL t.m(); // LEGAL t.k(); // ILLEGAL (even though t is guaranteed to point // to an object with method k) Compiling interfaces. Compiling Java interfaces boils down to supporting a new kind of method call t.m(), named interface method call. To the programmer, this call behaves like the virtual method call used to invoke instance methods, except that the object on which you invoke the method m comes from an interface reference variable t, as opposed to from an object reference variable. Example (continued). The code below makes both kinds of calls. B b; // b can point to any object of type B or subclass of B IK ik; // ik can point to any object that implements interface IK if (x==l) { b = new B(); ik = new A(); } else { b = new C(); ik = new C(); } b.k(); // virtual call ik.k(); // interface call When x==1, the program outputs B:k A:k Turn over.

The questions.

  1. (3 points) What output does the example print when x!=1?
  2. (3 points) In the table below, indicate for each class which interfaces it implements. Note that a class is considered to implement an interface if its superclass implements the interface. It may help if you draw the class hierarchy in which you show with edges which class implements which interfaces. class A B C implemented interfaces
  3. (3 point) In the table below, indicate which methods can be invoked on a reference variable of a particular static type. For example, list method m in column A if the following code is legal: A a; ...; a.m();
  4. (3 point) What types of objects can b and ik point to at run time? call statement b.k() virtual call ik.k() interface call dynamic types of the object
  5. (4 point) Looking at the immediately preceding table, what is the property that the types of the virtual call have that the types of the interface call don't? static type A B (^) C IK IM methods that can be invoked

Questions on this page will take you some time.

  1. (14 points) Design run-time support for interface calls. Note that the new run-time support need not look like a dispatch table at all. What you need to draw: Using the running example above, show the data structures that your compiler would generate to perform the dispatch at an interface call. Note: To earn full credit, the space requirements of your run-time data structures must not be a function of the number of interfaces in the entire program, only a function of how many interfaces a class implements. Simplifications. (1) Assume interfaces cannot extend each other (as they can in Java). (2) Assume the program is completely available prior to the execution, as in Decaf (in contrast, in Java, classes are loaded and compiled during the execution).
  2. (5 points) If your solution stores pointers (to methods or tables) in an array, give your rules for determining the index in the array where the pointer will be stored. (An example of a rule: in the case of "traditional" virtual dispatch tables, the rule is that the pointer to a method f is (a) placed at the same offset in the dispatch tables of all classes related by inheritance; and (b) the methods of a subclass are placed immediately below the offset of the superclass.)
  3. (5 points) Show the code that your compiler would generate at an interface call. Use a pseudo- code, not an assembler. Your code should assume the run-time data structures you designed above.
