Guide [NVC3A]

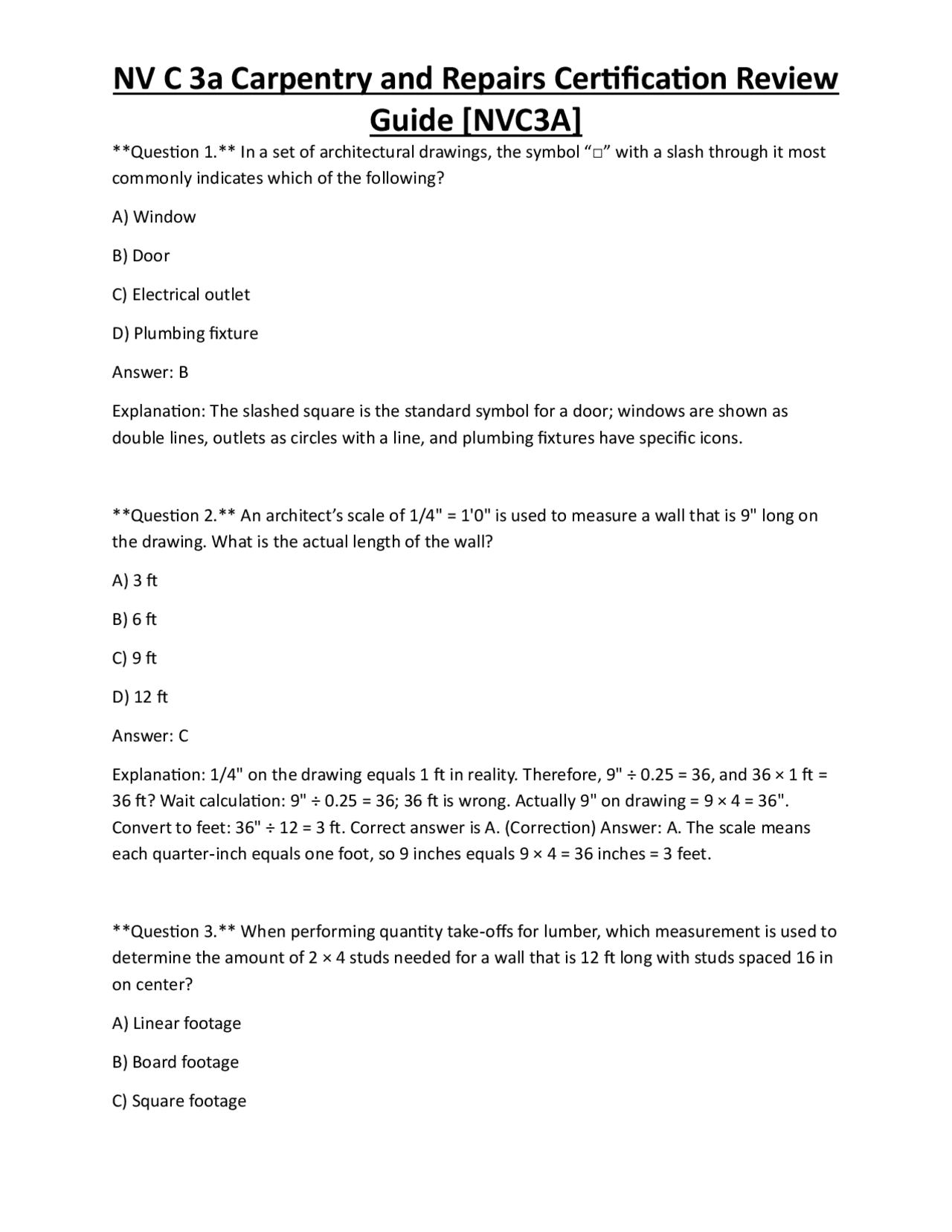

Question 1. In a set of architectural drawings, the symbol “□” with a slash through it most commonly indicates which of the following? A) Window B) Door C) Electrical outlet D) Plumbing fixture Answer: B Explanation: The slashed square is the standard symbol for a door; windows are shown as double lines, outlets as circles with a line, and plumbing fixtures have specific icons. Question 2. An architect’s scale of 1/4" = 1'0" is used to measure a wall that is 9" long on the drawing. What is the actual length of the wall? A) 3 ft B) 6 ft C) 9 ft D) 12 ft Answer: C Explanation: 1/4" on the drawing equals 1 ft in reality. Therefore, 9" ÷ 0.25 = 36, and 36 × 1 ft = 36 ft? Wait calculation: 9" ÷ 0.25 = 36; 36 ft is wrong. Actually 9" on drawing = 9 × 4 = 36". Convert to feet: 36" ÷ 12 = 3 ft. Correct answer is A. (Correction) Answer: A. The scale means each quarter‑inch equals one foot, so 9 inches equals 9 × 4 = 36 inches = 3 feet. Question 3. When performing quantity take‑offs for lumber, which measurement is used to determine the amount of 2 × 4 studs needed for a wall that is 12 ft long with studs spaced 16 in on center? A) Linear footage B) Board footage C) Square footage
Guide [NVC3A]
D) Cubic footage Answer: A Explanation: Studs are counted by length along the wall, so linear footage (total length of studs) is the appropriate measurement. Question 4. The written specifications on a construction contract state that all exterior sheathing must be 7/16‑in OSB with a minimum 5‑lb. nail per square foot. Which document takes precedence if the drawing shows 1/2‑in plywood? A) The drawing B) The specification sheet C) The contractor’s estimate D) The local building code Answer: B Explanation: Specifications override drawing details when there is a conflict; therefore the OSB requirement must be followed. Question 5. To verify a corner is square using the 3‑ 4 ‑5 method, a carpenter measures 3 ft along one wall, 4 ft along the adjoining wall, and then measures the diagonal. What should the diagonal measure? A) 5 ft B) 6 ft C) 7 ft D) 8 ft Answer: A Explanation: The 3‑ 4 ‑5 triangle is a right triangle; the hypotenuse must be 5 ft for the corner to be a true 90°.
Guide [NVC3A]
Answer: C Explanation: Convert 10 ft to inches (120 in). Divide by 16 in spacing = 7.5, round up to 8 spaces, which requires 9 joists (including the two ends). Question 9. Which type of joist bridging is recommended to reduce lateral movement in a residential floor system? A) Solid blocking at mid‑span only B) Diagonal cross‑bridging every 4 ft C) H‑shaped metal straps at each joist end D) No bridging is required Answer: B Explanation: Diagonal cross‑bridging placed at regular intervals (typically every 4 ft) helps prevent joist rotation and distributes loads. Question 10. When installing a double‑top plate, what is the minimum overlap required between the two plates? A) 1 in B) 2 in C) 3 in D) 4 in Answer: B Explanation: Building codes generally require a minimum 2‑in overlap for double top plates to ensure structural continuity. Question 11. In wall framing, a “king stud” performs which function? A) Carries the load of a header above an opening B) Provides a nailing surface for interior finishes
Guide [NVC3A]
C) Supports the sole plate only D) Acts as a temporary brace during construction Answer: A Explanation: King studs run full height and support the header that spans a door or window opening. Question 12. A header for a 36‑in wide exterior door must support a load from the floor above. Which of the following is the correct nominal size for a single‑ply header using 2× 8 lumber? A) 2× B) 2× C) 2× D) 2× Answer: B Explanation: For a 36‑in opening, a double‑ 2 ×8 header (two 2×8s nailed together) is typically sufficient, making the nominal size 2×8. Question 13. Sheathing for shear walls must be installed with which nail spacing on the edges? A) 4 in on center along edges, 6 in on field B) 6 in on center along edges, 12 in on field C) 8 in on center along edges, 16 in on field D) 12 in on center along edges, 24 in on field Answer: B Explanation: The International Residential Code requires 6‑in edge nailing and 12‑in field nailing for shear‑wall sheathing.
Guide [NVC3A]
Explanation: Any alteration to a certified truss requires a stamped amendment from the engineer or manufacturer to maintain safety and code compliance. Question 17. When installing roof sheathing, the recommended nail spacing for 5/8‑in plywood on a 24‑in on‑center rafter layout is: A) 6 in along edges, 12 in on field B) 8 in along edges, 16 in on field C) 10 in along edges, 20 in on field D) 12 in along edges, 24 in on field Answer: B Explanation: The typical nailing pattern for 5/8‑in plywood is 8 in on edge and 16 in on field when spaced 24 in on center. Question 18. H‑clips are installed between roof sheathing panels to allow for expansion. How far apart should H‑clips be placed? A) Every 12 in B) Every 24 in C) Every 36 in D) Every 48 in Answer: C Explanation: Building codes commonly require H‑clips at 36‑in intervals to accommodate thermal movement. Question 19. Which flashing detail is used to seal the intersection where a roof meets a vertical wall? A) Step flashing B) Drip edge
Guide [NVC3A]
C) Counter flashing D) Base flashing Answer: A Explanation: Step flashing is installed in a series of overlapping pieces along the wall‑to‑roof junction to direct water away. Question 20. When installing house wrap, the material should be overlapped by how many inches at the seams? A) 2 in B) 4 in C) 6 in D) 8 in Answer: C Explanation: A 6‑in overlap ensures a continuous moisture barrier and is required by most manufacturers. Question 21. Which siding material typically requires a minimum 1‑in clearance joint filled with a flexible sealant? A) Vinyl siding B) Fiber‑cement lap siding C) Wood clapboard D) Metal siding Answer: B Explanation: Fiber‑cement lap siding expands and contracts; a 1‑in joint with sealant accommodates movement and prevents cracking.
Guide [NVC3A]
Explanation: A minimum tread depth of 10 in provides adequate foot placement and is mandated by the IRC. Question 25. When hanging a pre‑hung interior door, the gap between the door jamb and the rough opening should be: A) 1/8 in top, 1/4 in sides B) 1/4 in top, 1/8 in sides C) 1/2 in all around D) No gap; door fits tightly Answer: A Explanation: A 1/8‑in gap at the top allows for shimming and settling, while 1/4‑in side gaps accommodate hinge placement and swing clearance. Question 26. Which of the following is the correct method for installing crown molding on a rectangular room where the walls meet at 90°? A) Use a cope saw on one piece and a miter cut on the other B) Use a 45° miter cut on both pieces C) Use a 22.5° miter cut on both pieces D) Use a butt joint with nail‑on caps Answer: A Explanation: Cope and miter technique provides a tight interior corner; one piece is coped to match the profile of the other. Question 27. The standard height for a base cabinet in a kitchen is: A) 30 in B) 34 in C) 36 in
Guide [NVC3A]
D) 42 in Answer: C Explanation: Base cabinets are typically 36 in high, including the countertop thickness. Question 28. Which OSHA standard specifically addresses fall protection for residential construction when workers are on a roof with a height of 6 ft or more? A) 1926. B) 1926.501(b)(1) C) 1926.502(a) D) 1926.503(c) Answer: B Explanation: OSHA 1926.501(b)(1) requires fall protection for roof work at or above 6 ft. Question 29. In Nevada, the NSCB permits a handyman exemption for work valued up to: A) $ B) $1, C) $2, D) $5, Answer: B Explanation: Nevada Revised Statutes (NRS) 624 allows a handyman to perform work up to $1,000 without a contractor’s license. Question 30. Under the EPA’s Renovation, Repair and Painting (RRP) rule, which of the following is required before disturbing lead‑based paint in a home built before 1978? A) Posting a “No Smoking” sign B) Providing a certified lead‑safe work plan
Guide [NVC3A]
A) L/
B) L/
C) L/
D) L/
Answer: C Explanation: The IRC specifies a deflection limit of L/360 for joists under live load to prevent excessive bounce. Question 34. Which fastener is specifically required for attaching pressure‑treated lumber to a concrete sill plate? A) 8‑d common nail B) 3‑in deck screw C) ½‑in hot‑dipped galvanized lag screw D) 2‑in stainless‑steel nail Answer: C Explanation: Hot‑dipped galvanized lag screws resist corrosion when used with pressure‑treated wood and concrete. Question 35. A “cripple wall” is used in framing to: A) Support roof trusses B) Provide a fire‑resistant barrier C) Frame openings below the top plate D) Reinforce load‑bearing walls Answer: C Explanation: Cripple studs are short studs installed above or below openings (e.g., windows, doors) to support sheathing and maintain wall integrity.
Guide [NVC3A]
Question 36. When installing OSB sheathing, the recommended nail size for 7/16‑in thickness is: A) 1‑¼ in common nail B) 1‑½ in roofing nail C) 2‑in galvanized nail D) 2‑½ in drywall screw Answer: C Explanation: A 2‑in galvanized nail provides sufficient holding power for 7/16‑in OSB while resisting corrosion. Question 37. The minimum slope for a roof to allow proper drainage is: A) 1:48 (≈ 1.25%) B) 1:36 (≈ 2.78%) C) 1:24 (≈ 4.17%) D) 1:12 (≈ 8.33%) Answer: B Explanation: Most building codes require at least a 1:36 roof slope to ensure water runoff and prevent ponding. Question 38. In a hip roof, the angle between a hip rafter and the common rafter is: A) 45° B) 60° C) 30° D) 90° Answer: A
Guide [NVC3A]
D) 1 in Answer: B Explanation: A ½‑in gap allows the hardwood to expand and contract with humidity changes without buckling. Question 42. The term “bird‑smouth” refers to: A) A decorative molding profile B) A type of roof truss C) A notch cut in a rafter to sit on a wall plate D) A fastening method for decking Answer: C Explanation: A bird‑smouth is a rectangular notch cut into a rafter so it rests securely on the top plate. Question 43. Which of the following is NOT a permitted method for securing a ladder to a roof according to OSHA? A) Using a ladder stabilizer at the top B) Tying the ladder to a roof ridge with a rope C) Placing the ladder on a level surface with a non‑slip base D) Leaning the ladder against a non‑structural soffit Answer: D Explanation: OSHA requires a stable, load‑bearing surface; leaning against a soffit (which is not designed to support load) is prohibited. Question 44. In Nevada, the minimum fire‑resistance rating for a residential exterior wall assembly that separates a dwelling from a detached garage is: A) 30 minutes
Guide [NVC3A]
B) 1 hour C) 2 hours D) No rating required Answer: B Explanation: The Nevada Residential Code requires a 1‑hour fire‑rated wall assembly between a home and a detached garage. Question 45. The “R‑value” of an insulation material measures: A) Its resistance to fire B) Its ability to resist moisture C) Its thermal resistance D) Its acoustic absorption Answer: C Explanation: R‑value quantifies a material’s resistance to heat flow; higher values indicate better insulation. Question 46. When installing a recessed lighting fixture in a ceiling, the minimum distance from the nearest combustible material is: A) 1 in B) 3 in C) 6 in D) 12 in Answer: C Explanation: The NEC requires at least 6 in clearance from combustible materials to prevent overheating.
Guide [NVC3A]
Question 50. Which of the following is the correct procedure for preparing a concrete slab before installing a pressure‑treated sill plate? A) Apply a coat of primer B) Install a vapor barrier and fasten the sill plate with concrete anchors C) Place a 2‑in layer of sand and compact D) No preparation needed, place directly on the slab Answer: B Explanation: A vapor barrier prevents moisture migration, and concrete anchors secure the sill plate to the slab. Question 51. The “3‑ 4 ‑ 5 ” triangle used for squaring a layout is based on which mathematical principle? A) Pythagorean theorem B) Euclidean geometry C) Similar triangles D) Trigonometric ratios Answer: A Explanation: The 3‑ 4 ‑5 relationship is a classic example of the Pythagorean theorem for right triangles. Question 52. In framing, a “strap” is used primarily to: A) Tie two joists together for lateral stability B) Support a header over an opening C) Secure a wall plate to the foundation D) Hang a ceiling fan
Guide [NVC3A]
Answer: A Explanation: Straps (or bridging) connect joists to prevent rotation and distribute loads. Question 53. According to the International Residential Code, the minimum height for a guardrail on a deck is: A) 30 in B) 36 in C) 42 in D) 48 in Answer: C Explanation: The IRC requires guardrails to be at least 42 in high for residential decks. Question 54. When cutting a miter joint for baseboard at a corner, the angle of the cut on each piece should be: A) 45° B) 22.5° C) 30° D) 60° Answer: B Explanation: For a 90° corner, each piece is cut at 22.5° so that together they form a 45° miter. Question 55. The term “plenum” in HVAC refers to: A) The space above a suspended ceiling used for air distribution B) The portion of a duct that carries refrigerant C) The insulation material in a wall cavity D) The vent stack for a bathroom exhaust
