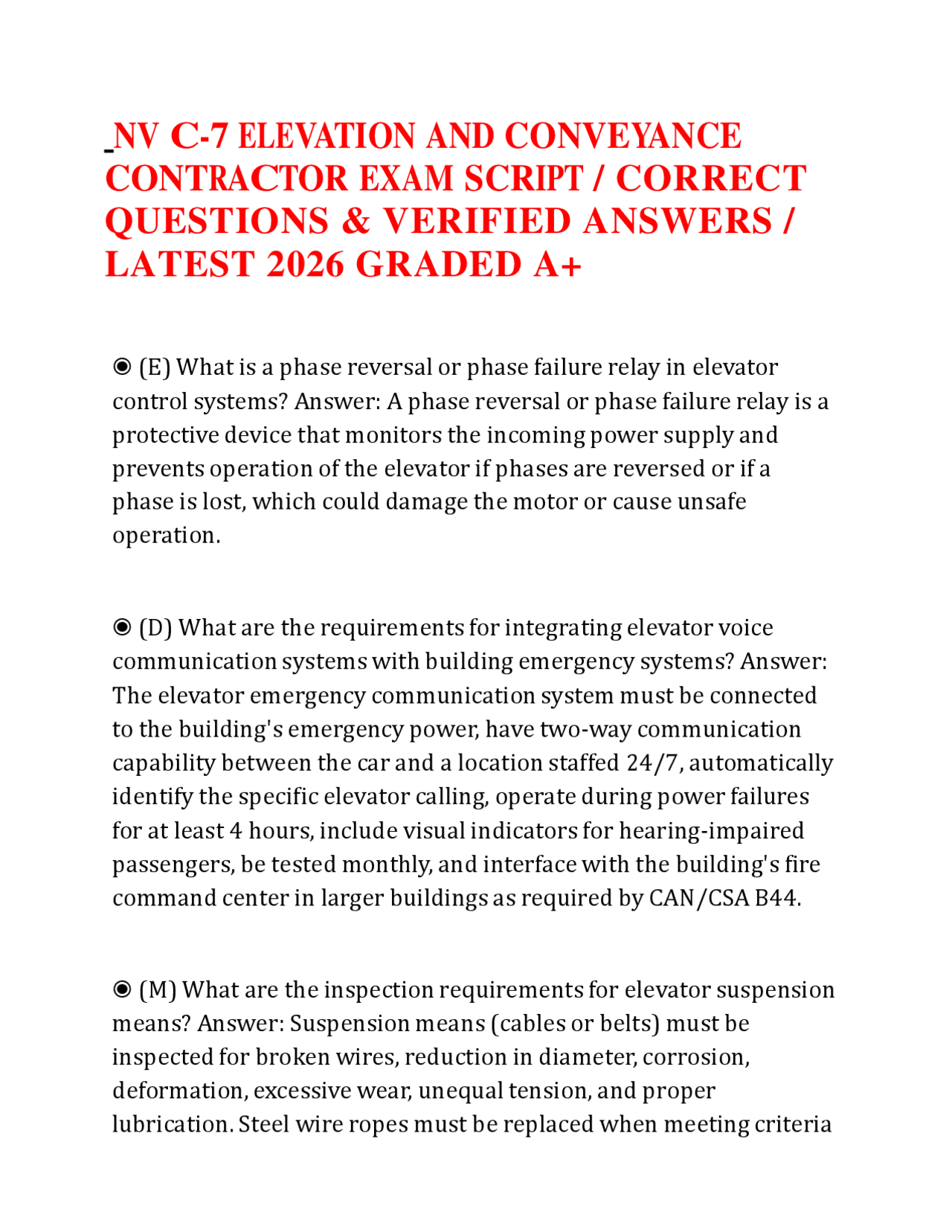

NV C- 7 ELE VATION AND CONVE YANCE
CONT RACTOR EXA M SCR IPT / CORRECT
QUESTIONS & VERIFIED ANSWERS /
LATEST 2026 GRADED A+
◉ (E) What is a phase reversal or phase failure relay in elevator control systems? Answer: A phase reversal or phase failure relay is a protective device that monitors the incoming power supply and prevents operation of the elevator if phases are reversed or if a phase is lost, which could damage the motor or cause unsafe operation.
◉ (D) What are the requirements for integrating elevator voice communication systems with building emergency systems? Answer: The elevator emergency communication system must be connected to the building's emergency power, have two-way communication capability between the car and a location staffed 24/7, automatically identify the specific elevator calling, operate during power failures for at least 4 hours, include visual indicators for hearing-impaired passengers, be tested monthly, and interface with the building's fire command center in larger buildings as required by CAN/CSA B44.
◉ (M) What are the inspection requirements for elevator suspension means? Answer: Suspension means (cables or belts) must be inspected for broken wires, reduction in diameter, corrosion, deformation, excessive wear, unequal tension, and proper lubrication. Steel wire ropes must be replaced when meeting criteria
in CAN/CSA B44, such as more than 12 broken wires in one lay or more than 24 broken wires in one strand. Documentation of inspections must be maintained according to CAN/CSA B44.2.
◉ (E) What is the purpose of a limit switch in an elevator system? Answer: A limit switch is a safety device that detects when the elevator car has traveled beyond its normal operating range and interrupts the power to stop the elevator, preventing overtravel and potential damage.
◉ (D) What factors must be considered when designing elevator systems for healthcare facilities in Quebec? Answer: Considerations include: minimum car size to accommodate stretchers (86 in × 54 in/2185 mm × 1370 mm), specialized infection control surfaces that can be sanitized, hands-free operation capabilities, enhanced ventilation, backup power for all elevators, medical gas proximity concerns, special provisions for patient transport between departments, staff-only operation modes, and compliance with both healthcare facility standards and CAN/CSA B44.
◉ (M) What are the requirements for the elevator car emergency lighting system? Answer: The emergency lighting system must activate automatically upon power failure, provide illumination of at least 0.2 fc (2 lux) measured 4 ft (1.2 m) above the car floor and at the control panel, operate for at least 4 hours, and be tested monthly with results documented in the maintenance log as specified in CAN/CSA B44.
detection, seismic detection devices that activate when acceleration exceeds 0.15g horizontally, positive guide shoe engagement, and protection of critical components. The specific requirements vary based on the building's seismic zone classification.
◉ (E) What is the purpose of a door restrictor in an elevator system? Answer: A door restrictor prevents passengers from manually opening the car door when the elevator is outside the unlocking zone (typically 18 in/455 mm above and below a landing), preventing passengers from attempting to exit when the car is not properly aligned with a landing.
◉ (M) What are the requirements for elevator pit access? Answer: The pit must have a proper access door or ladder extending at least 48 in (1220 mm) above the landing threshold. For pits deeper than 67 in (1700 mm), a permanent ladder is required. A pit stop switch must be accessible from the landing entrance and be reachable before fully entering the pit. Adequate lighting of 10 fc (100 lux) must be provided as specified in CAN/CSA B44.
◉ (D) What factors must be considered when determining the correct buffer type and stroke length for a traction elevator? Answer: Buffer selection factors include: elevator rated speed, car and counterweight masses, available pit depth, energy absorption requirements, solid buffers (for speeds up to 150 ft/min or 0. m/s), spring buffers (for speeds up to 200 ft/min or 1 m/s), and oil buffers (for higher speeds). Stroke length must be calculated based
on gravitational retardation formulas specified in CAN/CSA B44, with minimum strokes ranging from 1.5 in (38 mm) to over 67 in (1700 mm) depending on speed.
◉ (M) What are the requirements for elevator car top emergency exits? Answer: The car top emergency exit must have a minimum clear opening of 16 in × 24 in (400 mm × 600 mm), be hinged or removable from the top of the car only, be equipped with a switch that prevents operation when open, have means to open from outside the car without tools, and not open into the path of counterweight movement as specified in CAN/CSA B44.
◉ (E) What is the maximum allowable speed for an escalator in a public installation? Answer: The maximum allowed escalator speed is 100 ft/min (0.5 m/s) for a 30° inclination angle, with higher speeds of up to 180 ft/min (0.9 m/s) permitted only under specific conditions with additional safety features as specified in CAN/CSA B44.
◉ (D) What requirements apply to the modernization of elevators for compliance with barrier-free access regulations? Answer: Modernization for barrier-free access must include: car dimensions of at least 68 in × 54 in (1730 mm × 1370 mm) where possible, control panels with buttons centered between 35-48 in (890- mm) above the floor, tactile and Braille markings, audible signals for direction, visual indicators, door protection devices, handrails on three sides, and voice announcements for floor levels. Variances may
component cooling and humidity control (below 95% non- condensing) is required.
◉ (M) What are the requirements for elevator hoistway fire protection? Answer: Hoistways must be enclosed in a fire-rated shaft (typically 2-hour rating), with properly rated fire doors at each landing, smoke detectors at required locations, and penetrations properly firestopped. Any glass in the hoistway must be fire-rated appropriate to the location. Machine rooms must maintain the same fire rating as the hoistway and include appropriate fire extinguishers as specified in the Quebec Construction Code.
◉ (E) What is the maximum allowable clearance between the car sill and the hoistway sill? Answer: The maximum allowable clearance between the car sill and hoistway sill is 1.25 in (32 mm) as specified in CAN/CSA B44.
◉ (D) What are the specific requirements for material handling (freight) elevators intended for hazardous locations? Answer: Freight elevators in hazardous locations must have: explosion-proof electrical components rated for the specific class and division of hazardous environment, special ventilation systems, non-sparking materials for mechanical components, sealed control systems, temperature monitoring, emergency power cutoff systems, additional grounding, and warning signage. All components must comply with both CAN/CSA B44 and Canadian Electrical Code requirements for hazardous locations.
◉ (M) What are the maintenance and inspection requirements for elevator safety circuits? Answer: Safety circuits must be tested monthly to verify: emergency stop functions, door safety reversal, final limit switches, inspection operation controls, leveling circuits, and overspeed protection. Annual comprehensive testing must include verification of all safety circuit voltages, continuity, grounding, and component conditions. Documentation must include dated records of all tests with pass/fail results as specified in CAN/CSA B44.2.
◉ (E) What is the purpose of a retiring cam in an elevator door system? Answer: A retiring cam is a mechanical device that engages and unlocks the hoistway door as the elevator arrives at a floor, allowing the doors to open only when the car is properly aligned with the landing.
◉ (D) What calculations and considerations are required when determining the appropriate capacity and speed for a passenger elevator system in a high-traffic commercial building? Answer: Calculations must include: peak 5-minute handling capacity (typically 12-15% of building population), maximum waiting time (typically 20-30 seconds), round-trip time analysis, number of elevators required based on population density (100-150 ft²/person or 9-14 m²/person of rentable area), zoning considerations for buildings over 20 floors, proper car size to capacity ratio, speed selection based on building height (typically 350-700 ft/min or 1.75-
Lighting fixtures must be guarded to prevent lamp breakage, have at least two parallel-connected lamps, be powered from a dedicated branch circuit separate from motor power, and include emergency lighting that operates automatically during power failure.
◉ (D) What calculations must be performed to properly size traction elevator counterweights? Answer: Counterweight calculations must include: car weight plus 40-50% of rated capacity, proper weight distribution within the counterweight frame, frame strength analysis for safety application forces, impact loading factors, guide rail sizing based on counterweight mass, and seismic considerations. Proper balance ensures optimal motor efficiency and energy consumption throughout the elevator's travel.
◉ (E) What is the purpose of a buffer switch in an elevator system? Answer: A buffer switch detects when an elevator car or counterweight contacts its buffer at the bottom of the hoistway, immediately cutting power to the driving machine and brake to prevent continued operation while the buffer is compressed.
◉ (M) What are the minimum requirements for maintenance spaces around elevator machinery? Answer: Machinery spaces must have minimum horizontal clearances of 18 in (455 mm) on two sides of controllers and machinery for inspection and service, a minimum of 78 in (2000 mm) vertical clearance where maintenance personnel need to stand, and clear headroom of at least 6.5 ft (2 m) along the path to machinery as specified in CAN/CSA B44.
◉ (D) What factors must be considered when designing and installing an elevator for a healthcare facility that will transport patients during medical emergencies? Answer: Design factors include: minimum car dimensions of 6 ft × 9 ft (1.8 m × 2.7 m) to accommodate stretchers and medical equipment, minimum door width of 4 ft (1.2 m), dedicated electrical service with emergency power backup, special control systems for priority medical emergency use, enhanced ventilation, specialized interior finishes for infection control, communication systems integrated with nurse stations, and increased capacity of at least 4000 lbs (1814 kg).
◉ (M) What are the requirements for elevator machine room fire protection? Answer: Machine rooms must have the same fire rating as the hoistway (typically 2 hours), properly rated fire doors with self-closing devices, automatic fire detection connected to the building fire alarm system, appropriate fire extinguishers (CO₂ or clean agent type) for electrical fires, and all penetrations properly firestopped to maintain the fire separation integrity.
◉ (E) What is the definition of an elevator "running clearance"? Answer: Running clearance is the space between the car and the hoistway wall, or between the car and the counterweight, which must be maintained throughout the travel path to prevent contact during normal operation.
◉ (D) What calculations and considerations are required when designing a material lift system for an industrial warehouse with varying load requirements? Answer: Design considerations must include: maximum material weight and dimensions, frequency of use, loading patterns (continuous vs. intermittent), floor loading capacity assessment, adequate structural support for guide rails, proper motor sizing with service factor allowances, brake capacity at 125% of maximum load, electrical service requirements including voltage drop calculations, control system durability in industrial environments, and proper safety factor applications for all components (typically 5:1 for suspension means and 10:1 for critical components).
◉ (M) What are the specific requirements for installing and testing elevator hoistway door interlocks? Answer: Door interlocks must prevent operation of the elevator unless all hoistway doors are closed and locked, prevent opening of any hoistway door from the landing side unless the car is within the landing zone, withstand a force of 1500 lbf (6.7 kN) without permanent deformation, be inaccessible from the landing when the doors are closed, and be tested annually with results documented as specified in CAN/CSA B44.
◉ (E) What is the maximum allowable angle of inclination for an escalator intended for public use? Answer: The maximum allowable angle of inclination for a public escalator is 30 degrees from horizontal as specified in CAN/CSA B44.
◉ (D) What calculations and procedures are required to properly determine the maximum working pressure of a hydraulic elevator system? Answer: Calculations must include: static pressure at full load, dynamic pressure during acceleration, pressure loss in piping, valve and fitting losses, temperature effects on fluid viscosity, cylinder and plunger sizing factors, relief valve setting determination (typically 150% of working pressure), verification of all component pressure ratings, burst testing certification of critical components at 5× maximum working pressure, and proper documentation of all design calculations as required by CAN/CSA B44.
◉ (M) What are the required safety features for a residential elevator installation according to Quebec regulations? Answer: Residential elevators must have: car door or gate with electric contact, hoistway doors with mechanical locks, emergency stop switch, alarm button or telephone, overtravel protection, final terminal stopping devices, safety mechanism for uncontrolled movement, lighting with emergency backup, and annual maintenance by qualified personnel as specified in the Quebec Construction Code.
◉ (E) What is the purpose of a slack rope switch in a traction elevator system? Answer: A slack rope switch detects when hoisting ropes lose tension or become slack, and immediately stops the elevator to prevent further operation until the condition is corrected, protecting against potential rope jump or damage.
◉ (E) What is the definition of "rated speed" in elevator terminology? Answer: Rated speed is the speed in the up direction with rated load in the car, at which the elevator is designed to operate under normal conditions, expressed in feet per minute (ft/min) or meters per second (m/s).
◉ (M) What are the requirements for elevator hoistway ventilation? Answer: Hoistway ventilation requires an opening at the top of the hoistway with a minimum area of 3.5% of the hoistway cross- sectional area or at least 1 ft² (0.09 m²). The opening must be protected from weather, not compromise fire separation requirements, and be designed to prevent the accumulation of smoke and hot gases as specified in CAN/CSA B44.
◉ (D) What calculations are required when designing the structural support system for a machine-room-less (MRL) elevator installation? Answer: Calculations must include: total dynamic loading of machine and suspension system, impact factors for normal and emergency operation, deflection analysis under various load conditions, vibration analysis and damping requirements, seismic loading where applicable, connection design with appropriate safety factors, load transfer path through the building structure, and verification that all components meet the 5:1 safety factor required by CAN/CSA B44.
◉ (E) What is the definition of a "private residence elevator" according to CAN/CSA B44? Answer: A private residence elevator is
an elevator installed in a private residence, operated automatically or by continuous pressure operation, serving only that residence, with a rated load not exceeding 1400 lbs (635 kg) and travel not exceeding 50 ft (15 m).
◉ (M) What are the requirements for elevator sump pumps and drainage systems? Answer: Elevator pit drainage systems must include a sump with a capacity to handle water volume from sprinklers (if present) or groundwater seepage, have a pump with capacity of at least 50 gal/min (3 L/s), connect to the building's drainage system through an indirect connection, and for hydraulic elevators, include oil separation capability or containment to prevent environmental contamination.
◉ (D) What factors must be considered when designing and installing an observation elevator with glass hoistway and car enclosures? Answer: Design factors include: special glass ratings for both impact resistance and fire rating, additional structural supports for the glass panels, specialized car frame designs to accommodate glass panels, modified guide rail systems, special considerations for door operators and mechanisms, enhanced ventilation to prevent fogging, specialized lighting that minimizes reflections, and additional safety features for passenger protection as specified in CAN/CSA B44 for observation elevators.
◉ (M) What are the requirements for elevator emergency communication systems? Answer: Emergency communication
piping, cylinder, and fittings, testing pressure relief valve operation, inspecting and testing the rupture valve, verifying system pressure under various load conditions, ensuring proper operation of manual lowering valves, checking packing gland condition, and maintaining records of all findings as specified in CAN/CSA B44.2.
◉ (E) What is the purpose of a limit switch in a dumbwaiter installation? Answer: A limit switch in a dumbwaiter stops travel beyond normal terminal landings, preventing overtravel and potential damage to the equipment or structure.
◉ (D) What engineering considerations and calculations are required when converting an existing winding drum elevator to modern traction drive technology? Answer: Conversion requires: structural analysis of existing hoistway and supports, complete replacement of suspension system with proper safety factors, counterweight addition and guide rail reinforcement, structural modifications for new machine location, electrical service adequacy assessment, control system design compatible with existing landing arrangements, door operator upgrades, proper compensation for increased speeds, and complete safety circuit redesign. All modifications must be certified by a professional engineer and comply fully with current CAN/CSA B44 requirements.
◉ (M) What are the requirements for elevator operating devices and control panels in barrier-free design? Answer: Barrier-free control panels must have buttons centered between 35-48 in (890-
mm) above the car floor, be placed at least 16 in (400 mm) from any corner, include raised tactile and Braille markings next to buttons, provide visual and audible confirmation of button registration, and have emergency controls grouped at the bottom of the panel with minimum dimensions of 3/4 in (19 mm) as specified in CAN/CSA B44.
◉ (E) What is meant by the term "runby" in elevator installations? Answer: Runby is the distance that the elevator car or counterweight can travel beyond their normal terminal stopping positions before contacting the buffers, providing safety clearance in case of overtravel.
◉ (D) What factors must be analyzed when replacing an existing elevator controller with a modern microprocessor-based system in a building with inconsistent power quality? Answer: Analysis must include: power quality assessment with harmonic distortion measurements, transient voltage protection requirements, proper grounding system verification, electromagnetic interference mitigation, power conditioning needs, backup power system compatibility, firmware protection against power anomalies, component selection for voltage tolerance, proper isolation of control circuits, and comprehensive commissioning procedures to verify stable operation under various power conditions.
◉ (M) What are the requirements for elevator machine room access and security? Answer: Machine room access must be through self-
