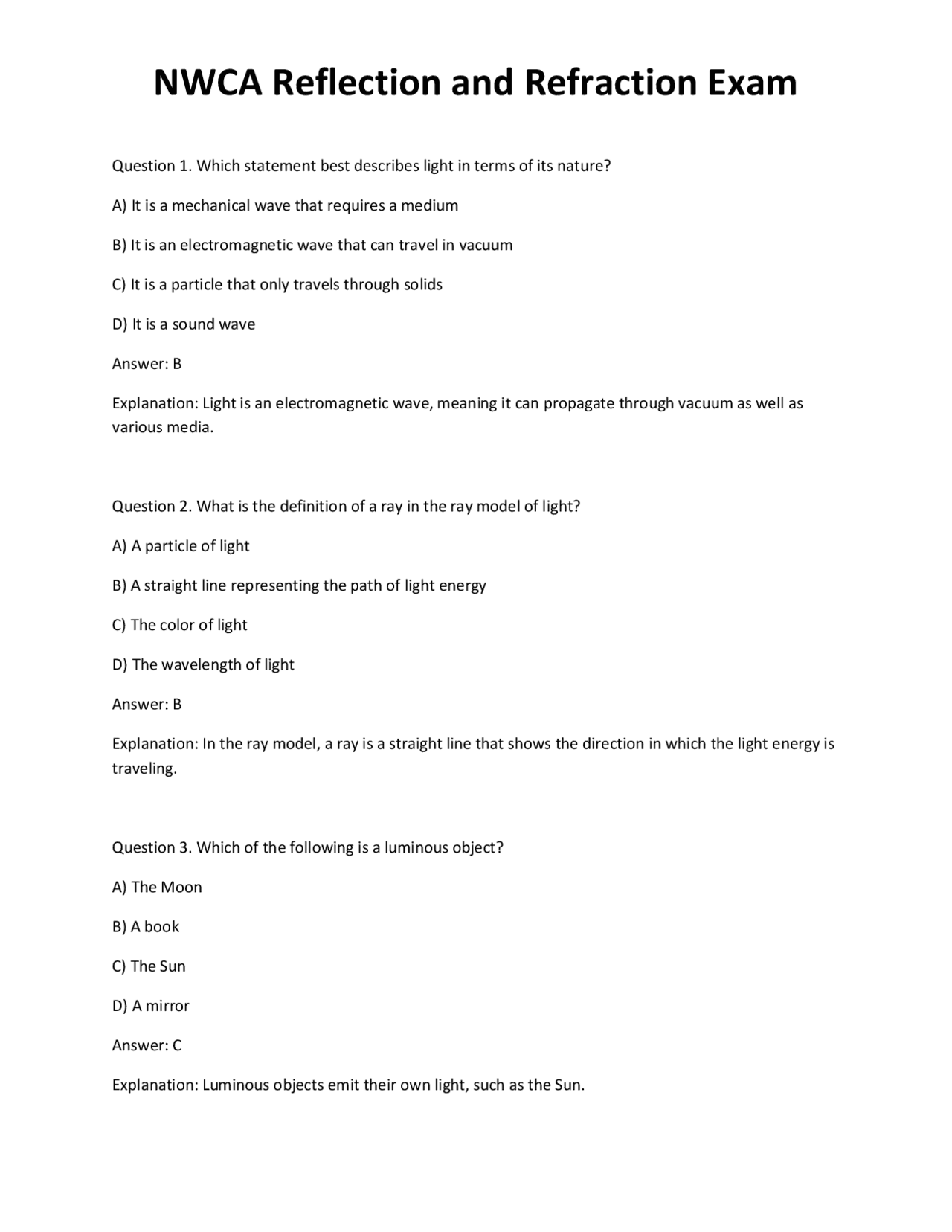

Question 1. Which statement best describes light in terms of its nature? A) It is a mechanical wave that requires a medium B) It is an electromagnetic wave that can travel in vacuum C) It is a particle that only travels through solids D) It is a sound wave Answer: B Explanation: Light is an electromagnetic wave, meaning it can propagate through vacuum as well as various media. Question 2. What is the definition of a ray in the ray model of light? A) A particle of light B) A straight line representing the path of light energy C) The color of light D) The wavelength of light Answer: B Explanation: In the ray model, a ray is a straight line that shows the direction in which the light energy is traveling. Question 3. Which of the following is a luminous object? A) The Moon B) A book C) The Sun D) A mirror Answer: C Explanation: Luminous objects emit their own light, such as the Sun.
Question 4. What distinguishes a non-luminous object? A) It produces sound B) It reflects light from luminous sources C) It emits its own light D) It absorbs all light Answer: B Explanation: Non-luminous objects do not emit light; instead, they reflect light from luminous objects. Question 5. Which material is considered transparent? A) Frosted glass B) Wood C) Clear glass D) Paper Answer: C Explanation: Transparent materials like clear glass allow most light to pass through. Question 6. What is meant by a translucent material? A) Allows all light to pass through B) Blocks all light C) Allows some light to pass but scatters it D) Emits light Answer: C Explanation: Translucent materials, such as frosted glass, allow light through but scatter it, preventing clear images.
Question 10. What is diffuse reflection? A) Reflection that forms a clear image B) Reflection from a smooth surface C) Scattering of light from a rough surface D) Transmission of light Answer: C Explanation: Diffuse reflection is when light scatters in many directions from a rough surface. Question 11. Which characteristic best describes the image formed by a plane mirror? A) Real and inverted B) Virtual and erect C) Magnified D) Diminished Answer: B Explanation: Plane mirrors form virtual, erect, and same-sized images. Question 12. In a plane mirror, the image distance is always: A) Greater than object distance B) Equal to object distance C) Less than object distance D) Zero Answer: B Explanation: The image distance is always equal to the object distance from the mirror.
Question 13. What is the principal axis of a spherical mirror? A) The line joining the pole and the focus B) The center of curvature C) The straight line passing through the pole and center of curvature D) The edge of the mirror Answer: C Explanation: The principal axis is the straight line passing through both the pole and center of curvature. Question 14. Which mirror converges light rays to a point? A) Convex mirror B) Plane mirror C) Concave mirror D) Opaque mirror Answer: C Explanation: Concave (converging) mirrors focus parallel rays to a point called the focus. Question 15. In a convex mirror, the image formed is: A) Real and inverted B) Virtual, diminished, and erect C) Real and magnified D) Same size as object Answer: B Explanation: Convex mirrors always form virtual, diminished, and erect images.
Question 19. What is refraction? A) The bending of light when it passes from one medium to another B) Reflection from a surface C) Absorption of light by a medium D) Dispersion of light Answer: A Explanation: Refraction is the bending of light as it moves through different media. Question 20. Which factor affects the speed of light in a medium? A) The color of the medium B) The optical density (refractive index) of the medium C) The temperature of the source D) The size of the medium Answer: B Explanation: The optical density (refractive index) determines light's speed in a medium. Question 21. Snell’s Law is expressed as: A) sinθ1 = sinθ B) n1sinθ1 = n2sinθ C) n1/n2 = θ1/θ D) θ1 = θ Answer: B Explanation: Snell’s Law states that n1sinθ1 = n2sinθ2, relating angles and refractive indices.
Question 22. Absolute refractive index is defined as: A) Speed of light in medium/speed in vacuum B) Speed of light in vacuum/speed in medium C) Speed of sound in medium/speed in vacuum D) None of the above Answer: B Explanation: Absolute refractive index is the ratio of the speed of light in vacuum to that in the medium. Question 23. Relative refractive index compares: A) Two different colors of light B) The refractive index of one medium to another C) The refractive index of a medium to vacuum D) The optical densities of planets Answer: B Explanation: Relative refractive index is the ratio of the speed of light in two different media. Question 24. What is lateral displacement? A) The shift of a ray parallel to the original path after passing through a slab B) The change in color of light C) The refraction angle D) The focus of a lens Answer: A Explanation: Lateral displacement is the parallel shift of light as it passes through a parallel-sided slab.
Question 28. Which application uses total internal reflection? A) Plane mirrors B) Optical fibers C) Convex lenses D) Prisms for dispersion Answer: B Explanation: Optical fibers use total internal reflection to transmit light signals efficiently. Question 29. What causes the brilliance of diamonds? A) High refractive index and total internal reflection B) Large size C) Flat surfaces only D) Low density Answer: A Explanation: Diamonds have a high refractive index, causing multiple internal reflections and brilliance. Question 30. What type of lens is convex? A) Diverging B) Converging C) Opaque D) Reflecting Answer: B Explanation: Convex lenses are converging lenses that focus light rays to a point.
Question 31. Which lens forms only virtual, erect, and diminished images? A) Convex lens B) Concave lens C) Plane mirror D) Concave mirror Answer: B Explanation: Concave (diverging) lenses always form virtual, erect, and diminished images. Question 32. What is the optical center of a lens? A) The edge of the lens B) The center of curvature C) The geometric center through which light passes undeviated D) The principal focus Answer: C Explanation: The optical center is the geometric midpoint of the lens. Question 33. The principal focus of a convex lens is: A) Point where parallel rays converge after passing through the lens B) Point where light diverges C) Center of curvature D) Optical center Answer: A Explanation: For convex lenses, the principal focus is where parallel rays converge.
Question 37. A lens with a focal length of 0.5 m has a power of: A) 2 D B) 0.5 D C) 1 D D) 4 D Answer: A Explanation: P = 1/0.5 = 2 Dioptres. Question 38. The basic parts of the human eye involved in refraction are: A) Retina, optic nerve, pupil B) Cornea, lens, retina C) Iris, pupil, ciliary muscles D) Aqueous humor and sclera Answer: B Explanation: The cornea, lens, and retina are crucial for refraction of light in the eye. Question 39. Myopia is: A) Farsightedness B) Nearsightedness C) Astigmatism D) Presbyopia Answer: B Explanation: Myopia is nearsightedness, where distant objects appear blurry.
Question 40. Which lens corrects hypermetropia? A) Concave lens B) Convex lens C) Cylindrical lens D) Bifocal lens Answer: B Explanation: Convex lenses are used to correct hypermetropia (farsightedness). Question 41. Dispersion is: A) The splitting of white light into its colors B) The bending of light at a surface C) Reflection of light D) Scattering of light Answer: A Explanation: Dispersion is the splitting of white light into its constituent colors by a prism. Question 42. Which color of visible light is deviated the most during dispersion? A) Red B) Blue C) Green D) Violet Answer: D Explanation: Violet light is bent the most due to its shortest wavelength.
Explanation: Atmospheric refraction bends sunlight, causing the sun to be visible before it rises and after it sets. Question 46. A virtual image is: A) Formed where light rays actually meet B) Formed by the apparent intersection of rays C) Always real and inverted D) Only produced by lenses Answer: B Explanation: Virtual images are produced where rays appear to meet, not where they actually do. Question 47. The field of view of a convex mirror is: A) Narrow B) Limited C) Wide D) Zero Answer: C Explanation: Convex mirrors provide a wide field of view, useful for security and vehicles. Question 48. What is an emergent ray? A) A ray reflected back at the same angle B) A ray that exits a medium after refraction C) A ray absorbed by a medium D) A ray that never leaves the medium Answer: B
Explanation: An emergent ray is one that leaves a medium after undergoing refraction. Question 49. Which device uses a concave mirror for focusing light? A) Car rearview mirror B) Shaving mirror C) Projector lens D) Spectacles Answer: B Explanation: Concave mirrors are used in shaving mirrors to provide magnified, focused images. Question 50. The image formed by a convex lens when the object is between the optical center and the focus is: A) Real and inverted B) Virtual and erect C) Real and magnified D) Diminished and inverted Answer: B Explanation: When the object is within focal length, convex lenses form virtual, erect, and magnified images. Question 51. The focal length of a concave lens is: A) Always positive B) Always negative C) Sometimes zero D) Always infinite
Answer: D Explanation: Plane mirror images are always virtual, not real. Question 55. The bending of light at the boundary of two media is due to: A) Change in speed of light B) Change in energy of light C) Absorption of light D) Light becoming a particle Answer: A Explanation: Refraction occurs due to the change in the speed of light between media. Question 56. Which of these is a practical use of total internal reflection? A) Glass windows B) Optical fiber communication C) Spectacles D) Plane mirrors Answer: B Explanation: Optical fiber communication is based on total internal reflection. Question 57. The image formed by a concave mirror when the object is beyond the center of curvature is: A) Real, inverted, diminished B) Virtual, erect, magnified C) Real, inverted, magnified D) Virtual, diminished
Answer: A Explanation: Image is real, inverted, and diminished when the object is beyond the center of curvature. Question 58. In the human eye, the image is formed on the: A) Cornea B) Lens C) Retina D) Iris Answer: C Explanation: The retina receives the real inverted image in the eye. Question 59. The angle of deviation in a prism is: A) Always zero B) The angle between the incident and emergent rays C) The angle of refraction D) The angle of incidence Answer: B Explanation: Angle of deviation is the angle between the direction of the incident ray and the emergent ray. Question 60. The power of a convex lens is: A) Negative B) Positive C) Zero D) Non-existent
