Refraction Ultimate Exam

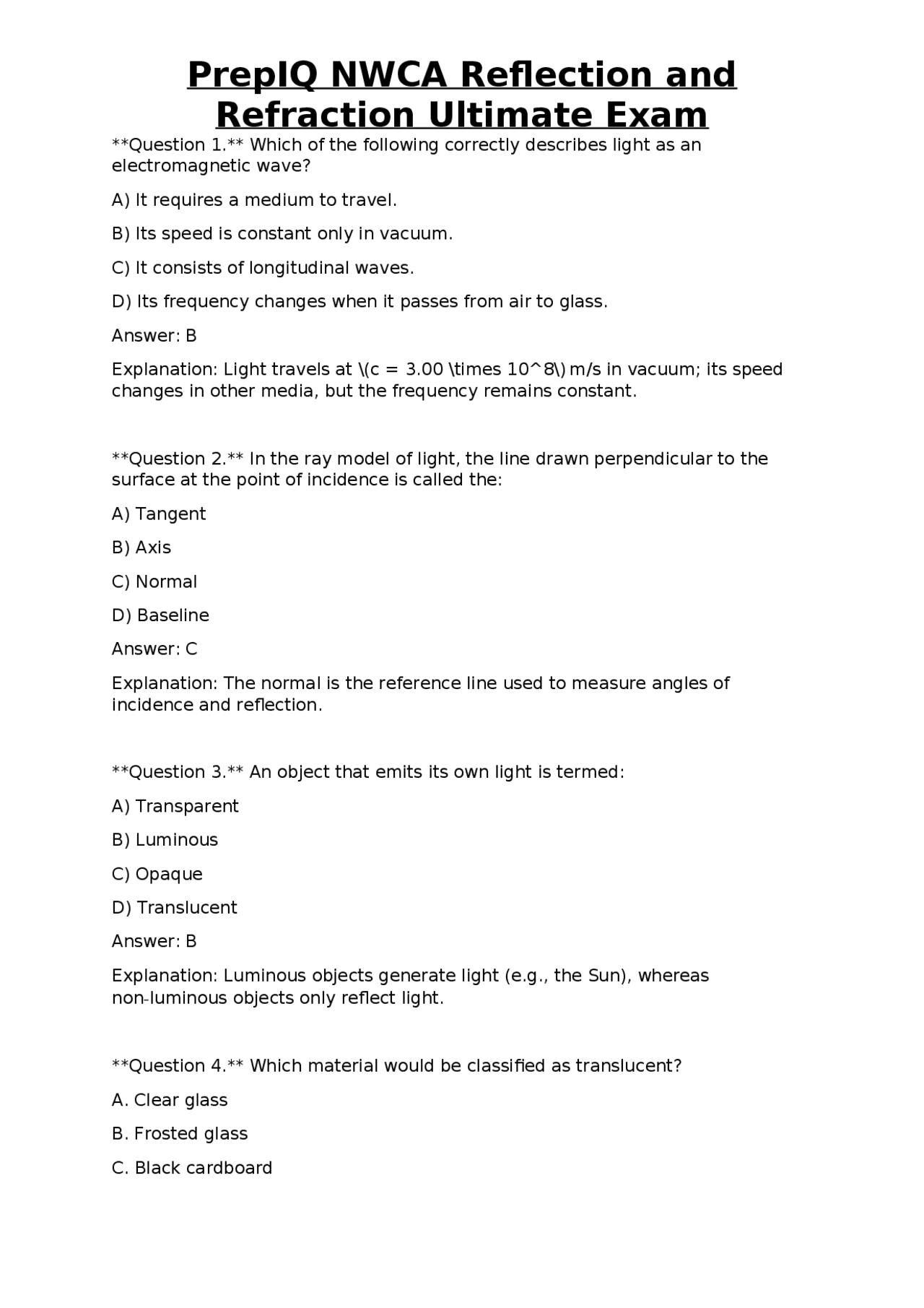

Question 1. Which of the following correctly describes light as an electromagnetic wave? A) It requires a medium to travel. B) Its speed is constant only in vacuum. C) It consists of longitudinal waves. D) Its frequency changes when it passes from air to glass. Answer: B Explanation: Light travels at (c = 3.00 \times 10^8) m/s in vacuum; its speed changes in other media, but the frequency remains constant. Question 2. In the ray model of light, the line drawn perpendicular to the surface at the point of incidence is called the: A) Tangent B) Axis C) Normal D) Baseline Answer: C Explanation: The normal is the reference line used to measure angles of incidence and reflection. Question 3. An object that emits its own light is termed: A) Transparent B) Luminous C) Opaque D) Translucent Answer: B Explanation: Luminous objects generate light (e.g., the Sun), whereas non-luminous objects only reflect light. Question 4. Which material would be classified as translucent? A. Clear glass B. Frosted glass C. Black cardboard
Refraction Ultimate Exam
D. Mirror Answer: B Explanation: Translucent materials allow light to pass but scatter it, so objects cannot be seen clearly through frosted glass. Question 5. The law of reflection states that: A) (\theta_i = \theta_r) measured from the surface. B) (\theta_i = \theta_r) measured from the normal. C) (\theta_i + \theta_r = 90^\circ). D) (\theta_i = 2\theta_r). Answer: B Explanation: Both incidence and reflection angles are measured from the normal and are equal. Question 6. Specular reflection is produced by: A) Rough surfaces B) Diffusing particles in air C) Smooth, polished surfaces D) Transparent media Answer: C Explanation: A smooth surface like a mirror reflects light in a single direction, yielding a clear image. Question 7. Diffuse reflection occurs when: A) Light is reflected from a mirror. B) Light passes through a prism. C) Light strikes a rough surface. D) Light is absorbed completely. Answer: C Explanation: Rough surfaces scatter incident rays in many directions, creating a matte appearance.
Refraction Ultimate Exam
Answer: C Explanation: Convex mirrors diverge reflected rays, producing virtual, upright, reduced images. Question 12. In ray diagrams for concave mirrors, a ray passing through the focus after reflection will: A) Pass through the centre of curvature. B) Remain parallel to the principal axis. C) Pass through the focus before striking the mirror. D) Remain parallel to the principal axis after reflection. Answer: D Explanation: A ray directed toward the focus reflects and leaves parallel to the principal axis. Question 13. The mirror formula (\frac{1}{f} = \frac{1}{v} + \frac{1}{u}) is applicable to: A) Only plane mirrors. B) Only concave mirrors. C) Only convex mirrors. D) Both concave and convex spherical mirrors. Answer: D Explanation: The sign convention allows the formula to be used for any spherical mirror. Question 14. The magnification produced by a mirror is given by (m = - frac{v}{u}). If an object is placed at the centre of curvature, the magnification is: A) 0 B) 1 C) - D) 2 Answer: C Explanation: At the centre of curvature, (v = u); thus (m = -1) indicating an upright (virtual) image of same size, but for mirrors the image is real and inverted, so the negative sign denotes inversion.
Refraction Ultimate Exam
Question 15. When light passes from air (n≈1.00) into water (n≈1.33), its speed: A) Increases B) Decreases C) Remains the same D) Becomes zero Answer: B Explanation: Light slows down in a medium with higher refractive index; (v = c/n). Question 16. Snell’s law is expressed as (n_1\sin\theta_1 = n_2\sin\theta_2). Which statement is true when light goes from a denser to a rarer medium? A) (\theta_2 < \theta_1) B) (\theta_2 = \theta_1) C) (\theta_2 > \theta_1) D) No refraction occurs. Answer: C Explanation: The ray bends away from the normal when entering a less optically dense medium, making (\theta_2) larger. Question 17. The absolute refractive index of a material is defined as: A) Ratio of its density to that of air. B) Ratio of speed of light in vacuum to speed in the material. C) Ratio of wavelength in vacuum to wavelength in the material. D) Both B and C. Answer: D Explanation: Since (n = c/v = \lambda_0/\lambda), both definitions are equivalent. Question 18. The relative refractive index of glass with respect to water is: A) (n_{\text{glass}}/n_{\text{water}}) B) (n_{\text{water}}/n_{\text{glass}})
Refraction Ultimate Exam
Answer: A Explanation: Using (\theta_c = \sin^{-1}(1/1.33)) gives about 48.6°. Question 22. Optical fibers rely on which phenomenon to guide light? A) Refraction through graded index. B) Diffraction at the core-cladding boundary. C) Total internal reflection. D) Scattering by impurities. Answer: C Explanation: Light is confined within the high-index core by TIR at the core-cladding interface. Question 23. A convex lens has a focal length of +20 cm. An object is placed 30 cm in front of the lens. The image formed is: A) Real, inverted, and magnified. B) Real, inverted, and reduced. C) Virtual, upright, and magnified. D) Virtual, upright, and reduced. Answer: B Explanation: Using (1/f = 1/v - 1/u), (v = 60) cm (real, on the opposite side). Magnification (m = v/u = 2) → actually magnified; re-calculate: (1/0.2 = 1/v - 1/0.3) → (5 = 1/v - 3.33) → (1/v = 8.33) → (v ≈ 0.12) m (12 cm). So image is real, inverted, reduced. Answer B. Question 24. For a concave lens, the focal length is: A) Positive B) Negative C) Zero D) Undefined Answer: B Explanation: Diverging lenses have a virtual focus on the same side as the object, giving a negative focal length.
Refraction Ultimate Exam
Question 25. The lens formula (\frac{1}{f} = \frac{1}{v} - \frac{1}{u}) is analogous to the mirror formula because: A) Both involve the same sign conventions. B) Both relate object, image, and focal distances. C) Both only apply to thin lenses. D) Both give magnification directly. Answer: B Explanation: The equations connect object distance, image distance, and focal length for lenses and mirrors respectively. Question 26. The power of a lens measured in dioptres (D) is: A) The reciprocal of its focal length in meters. B) The focal length in centimeters. C) The square of the focal length in meters. D) Independent of focal length. Answer: A Explanation: (P = 1/f) (with (f) in meters) defines the lens power. Question 27. A person with myopia (nearsightedness) requires a corrective lens that is: A) Convex (positive power). B) Concave (negative power). C) Plano-convex. D) Plano-concave with a focal length equal to the eye’s length. Answer: B Explanation: Myopia is corrected with a diverging lens to move the virtual image farther away. Question 28. Hypermetropia (farsightedness) is corrected by: A) Concave lenses. B) Convex lenses. C) Mirrors. D) Polarizing filters.
Refraction Ultimate Exam
A) The atmosphere absorbs blue light. B) The light travels a longer path, enhancing scattering of shorter wavelengths. C) The Sun’s temperature drops. D) The Earth’s rotation changes the Sun’s spectrum. Answer: B Explanation: Increased scattering removes blue and green components, leaving predominantly red wavelengths. Question 33. The phenomenon of a mirage on a hot road is caused by: A) Total internal reflection in the air. B) Refraction through layers of air with varying temperature (and thus density). C) Diffraction around obstacles. D) Polarization of sunlight. Answer: B Explanation: Hot air near the surface has lower density, causing light rays to bend upward and create an apparent displaced image. Question 34. Which of the following statements about the normal line in refraction is correct? A) It bisects the angle between incident and refracted rays. B) It is always parallel to the interface. C) Angles are measured from the normal, not the surface. D) It only exists for reflective surfaces. Answer: C Explanation: Both incidence and refraction angles are defined with respect to the normal. Question 35. If the refractive index of a medium is 2.0, the speed of light in that medium is: A) (1.5 \times 10^8) m/s B) (3.0 \times 10^8) m/s C) (6.0 \times 10^8) m/s D) (0.5 \times 10^8) m/s
Refraction Ultimate Exam
Answer: A Explanation: (v = c/n = (3.0 \times 10^8)/2 = 1.5 \times 10^8) m/s. Question 36. In a thin lens, the principal focus is located at a distance equal to the: A) Radius of curvature. B) Focal length from the lens. C) Diameter of the lens. D) Object distance. Answer: B Explanation: The focal point lies on the principal axis at a distance (f) from the optical centre. Question 37. For a spherical mirror, the sign of the radius of curvature is: A) Positive for concave, negative for convex. B) Positive for convex, negative for concave. C) Always positive. D) Always negative. Answer: A Explanation: By the Cartesian sign convention, a concave mirror’s centre of curvature lies on the same side as the incoming light, giving a positive R; convex gives negative R. Question 38. When an object is placed between the focal point (F) and a concave mirror, the image formed is: A) Real, inverted, and magnified. B) Real, inverted, and reduced. C) Virtual, upright, and magnified. D) Virtual, upright, and reduced. Answer: C Explanation: Inside the focal length, the reflected rays diverge; the brain extrapolates them to a virtual, upright, enlarged image.
Refraction Ultimate Exam
A) Coincident with the lens surfaces. B) Located at the centre of curvature of each surface. C) Generally not coincident with the lens surfaces. D) Always outside the lens material. Answer: C Explanation: For thick lenses, the principal planes lie inside the lens, not necessarily at the surfaces. Question 43. The phenomenon that allows a diamond to sparkle is primarily: A) Diffraction. B) High refractive index leading to total internal reflection. C) Low dispersion. D) Absorption of infrared. Answer: B Explanation: Diamond’s high index causes many internal reflections, enhancing brilliance. Question 44. A light ray entering a medium with a higher refractive index bends: A) Toward the normal. B) Away from the normal. C) Parallel to the interface. D) Not at all. Answer: A Explanation: The ray slows down, causing it to refract toward the normal. Question 45. Which of the following statements about the human eye’s cornea is correct? A) It provides most of the eye’s refractive power. B) It can change shape to focus near objects. C) It contains the photoreceptor cells. D) It is responsible for accommodation. Answer: A
Refraction Ultimate Exam
Explanation: The cornea contributes about two-thirds of the eye’s total refractive power. Question 46. The term “lateral inversion” refers to: A) Image being upside-down. B) Image being reversed left-to-right. C) Image being reduced in size. D) Image being virtual. Answer: B Explanation: Plane mirrors flip the image horizontally, swapping left and right. Question 47. When a convex lens forms a virtual image that is larger than the object, the object must be: A) Between the focal point and the lens. B) At the focal point. C) Beyond twice the focal length. D) At infinity. Answer: A Explanation: For a converging lens, an object inside the focal length yields a virtual, upright, magnified image. Question 48. The principal axis of a spherical mirror is: A) The line joining the centre of curvature to the vertex. B) Perpendicular to the surface at the vertex. C) The line joining the focal point to the object. D) The line parallel to the reflected ray. Answer: A Explanation: The principal axis passes through the centre of curvature and the mirror’s vertex. Question 49. In the context of lenses, the term “optical centre” refers to: A) The geometric centre of the lens. B) The point where the principal axis intersects the lens.
Refraction Ultimate Exam
Question 53. In a microscope, the objective lens is typically: A) Convex with a short focal length. B) Concave with a long focal length. C) Plano-convex with zero power. D) A flat mirror. Answer: A Explanation: The objective is a high-power convex lens that creates a real, enlarged image for the eyepiece. Question 54. A telescope used for astronomical observations employs a concave primary mirror and a convex secondary mirror. This configuration is known as: A) Refracting telescope. B) Newtonian telescope. C) Cassegrain telescope. D) Galilean telescope. Answer: C Explanation: The Cassegrain design uses a parabolic primary and hyperbolic convex secondary to fold the optical path. Question 55. The term “diopter” is used to express: A) The focal length in centimeters. B) The reciprocal of focal length in meters. C) The angle of deviation. D) The speed of light in a medium. Answer: B Explanation: One diopter equals (1\ \text{m}^{-1}). Question 56. When light passes from water (n=1.33) into oil (n=1.50), the ray will: A) Bend toward the normal. B) Bend away from the normal.
Refraction Ultimate Exam
C) Not bend because n values are close. D) Undergo total internal reflection. Answer: A Explanation: Entering a higher-index medium causes the ray to bend toward the normal. Question 57. In a double-concave lens, the focal length is: A) Positive. B) Negative. C) Zero. D) Infinite. Answer: B Explanation: Diverging lenses have negative focal lengths. Question 58. The “principal focus” of a concave mirror is located: A) At the centre of curvature. B) Halfway between the vertex and centre of curvature. C) At the vertex. D) At infinity. Answer: B Explanation: For spherical mirrors, (f = R/2). Question 59. The phenomenon of “rainbow” formation is primarily due to: A) Diffraction of sunlight by water droplets. B) Refraction, internal reflection, and dispersion within droplets. C) Scattering of blue light. D) Polarization of sunlight. Answer: B Explanation: Light refracts entering a droplet, reflects internally, refracts again, and disperses into colors. Question 60. Which of the following statements about the “normal” is false?
Refraction Ultimate Exam
D) They produce real images. Answer: B Explanation: Divergence of reflected rays expands the observable area. Question 64. In a glass slab of thickness (t) and refractive index (n), the lateral displacement (d) of an emergent ray (for small angles) is given by: A) (d = t \sin(\theta_i - \theta_r)) B) (d = t \frac{\sin(\theta_i - \theta_r)}{\cos\theta_r}) C) (d = t \frac{\sin(\theta_i - \theta_r)}{\cos\theta_i}) D) (d = t \tan(\theta_i + \theta_r)) Answer: B Explanation: Derivation from geometry yields (d = t \frac{\sin(\theta_i - theta_r)}{\cos\theta_r}). Question 65. Which of the following best describes the “paraxial approximation” used in lens and mirror calculations? A) Only rays far from the axis are considered. B) Angles are assumed to be small so that (\sin\theta ≈ \theta) (in radians). C) Mirrors are assumed to be flat. D) Light is assumed to be monochromatic. Answer: B Explanation: Small-angle approximation simplifies trigonometric functions, allowing linear equations. Question 66. In a telescope, the angular magnification is given by the ratio of: A) Focal length of the objective to that of the eyepiece. B) Focal length of the eyepiece to that of the objective. C) Aperture diameters of the two lenses. D) Distance between lenses to the focal length of the objective. Answer: B Explanation: Magnification (M = f_{\text{objective}} / f_{\text{eyepiece}}) for astronomical telescopes.
Refraction Ultimate Exam
Question 67. A concave mirror with a radius of curvature of 40 cm will have a focal length of: A) 20 cm B) 40 cm C) 80 cm D) 10 cm Answer: A Explanation: (f = R/2 = 20) cm. Question 68. The image formed by a convex lens when the object is placed at the focal point is: A) Real, at infinity. B) Virtual, at the focal point. C) Real, at twice the focal length. D) No image is formed. Answer: A Explanation: Rays emerge parallel, indicating the image is formed at infinity. Question 69. Which of the following is true for a thin lens placed in air? A) Its focal length depends on the surrounding medium. B) Its focal length is independent of the surrounding medium. C) Its focal length doubles when immersed in water. D) Its focal length becomes negative in air. Answer: B Explanation: For a thin lens, (f) is determined by the lens material and shape; the surrounding medium (air) is taken as reference (n≈1). Question 70. The “principal plane” of a thin lens coincides with: A) The lens surface. B) The centre of curvature of each surface. C) The geometric centre of the lens.
