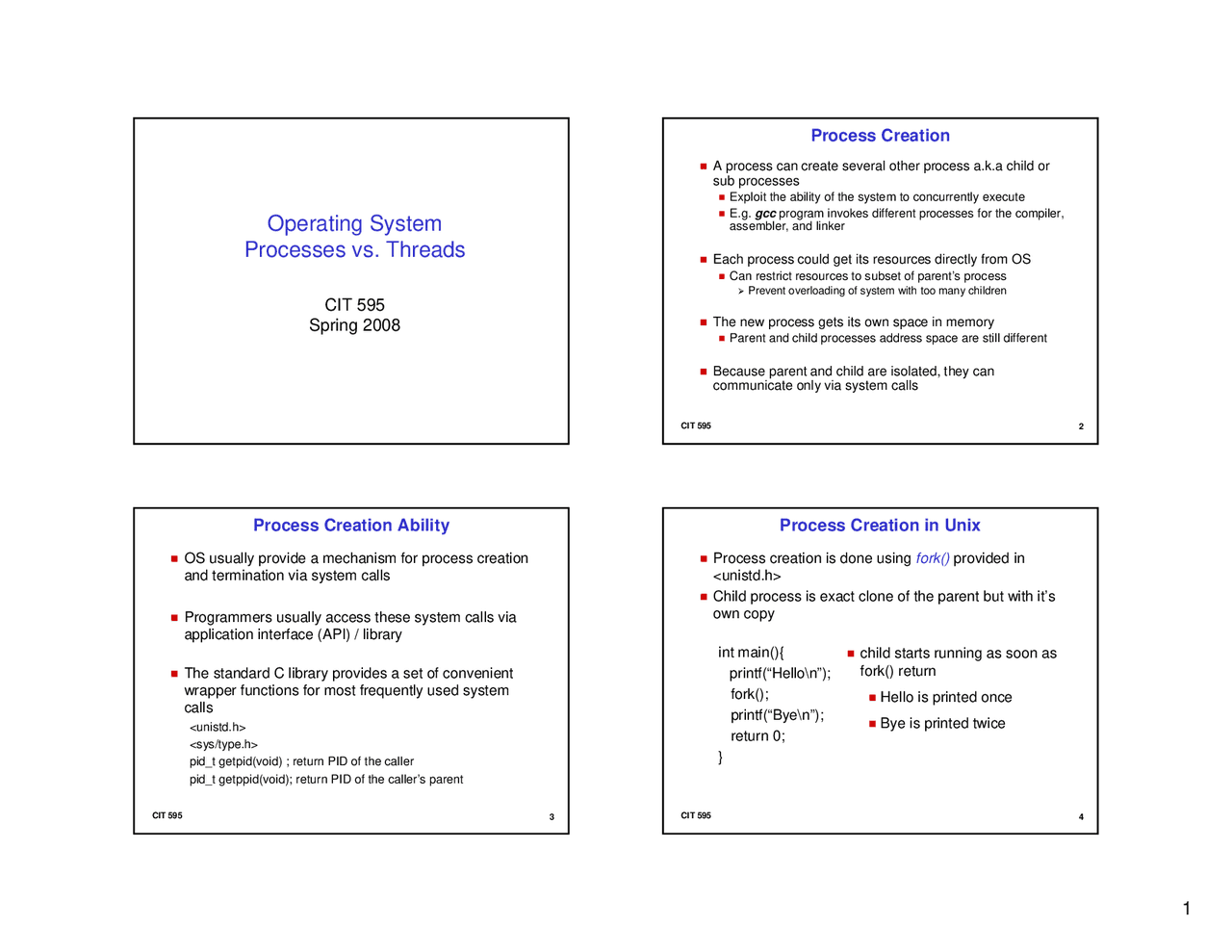

Operating System
Processes vs. Threads
CIT 595
Spring 2008
2
CIT 595
Process Creation
A process can create several other process a.k.a child orsub processes
Exploit the ability of the system to concurrently execute
E.g.
gcc
program invokes different processes for the compiler,
assembler, and linker
Each process could get its resources directly from OS
Can restrict resources to subset of parent’s process
¾
Prevent overloading of system with too many children
The new process gets its own space in memory
Parent and child processes address space are still different
Because parent and child are isolated, they cancommunicate only via system calls
3
CIT 595
Process Creation Ability
OS usually provide a mechanism for process creationand termination via system calls
Programmers usually access these system calls viaapplication interface (API) / library
The standard C library provides a set of convenientwrapper functions for most frequently used systemcalls
<unistd.h><sys/type.h>pid_t getpid(void) ; return PID of the callerpid_t getppid(void); return PID of the caller’s parent
4
CIT 595
Process Creation in Unix
Process creation is done using
fork()
provided in
<unistd.h>
Child process is exact clone of the parent but with it’sown copy
int main(){
printf(“Hello\n”);fork();printf(“Bye\n”);return 0;
child starts running as soon asfork() return
Hello is printed once
Bye is printed twice
5
CIT 595
Example of Process Creation using C
//includes not shownint main(){
pid_t pid;int status;pid_t s;/* fork another process /pid = fork();if (pid < 0) { / error occurred */
fprintf(stderr, "Fork Failed");exit(-1);
} else if (pid == 0) { /* child process */
//Overlay address space with UNIX command "ls"
printf("child pid = %d\n", getpid());if(execl("/bin/ls", "ls", "-la", NULL) < 0){
printf("Command not found\n");exit(1); }
exit(0);
}
else { /* parent process */
/* parent will wait for the child to complete */
printf("#####I am the parent#######\n");
s = wait (&status);if(s != -1) printf("Parent detect child
process # %d is done\n", s);
} return 0;
}
6
CIT 595
Make child do something useful?
After fork which process is parent? child? pid_t fork(void);
For child, fork() return value is 0
For parent, fork() return value is the PID of the child
fork() returns -1 if error occurred
To make child do something overload its address space withwhat you want it do
Use
exec()
system call (and its variants)
E.g. int execl(const char *path, const char *arg, ...);
Args to exec are
¾
location of the executable code ¾
Array of string pointers
There are many variations on exec
¾
See man pages for execl() and execv
If error occurred then returns -
7
CIT 595
Parent Waiting on child to complete
Often a process will have nothing do until its childterminates
E.g. what the unix shell usually does when you type a newcommand
pid_t wait(int *)
Blocks parent until child terminates
On success, returns the pid of the child that exited or -1 if erroroccured
Once the child exits, the integer value reference (passed towait) is filled in with the particular status
¾
The parent then can use this status to do something
Other variation on wait as well
8
CIT 595
Process Termination
exit()
forces the current process to terminate
Is also automatically called when the process ends
OS passes the child’s exit status to the parent andthen discards the process
On discarding the process all the resources such asmemory and I/O are de-allocated
13
CIT 595
Process and Threads
Like process states, threads also have states:
New, Ready, Running, Waiting and Terminated
Like processes, the OS will switch between threads (even ifthough they belong to a single process) for CPU usage
Like process creation, thread creation is supported by APIs
Java Threads may be created by:^
Extending Thread class
Implementing the Runnable interface
In C, threads are created using functions in <pthread.h> library
14
CIT 595
Sharing Address Space
Sharing address space requires only one copy of code or data inmain memory
E.g.1: 2 processes share the same library routine (code)
E.g.2: A print program produces characters and that is consumed byprinter driver (two processes sharing data)
E.g.3: Threads within a process share (global) data section
As long as shared data is not being modified there is no problem
But concurrent access to shared data that modify the value of thedata can lead to
data inconsistency
E.g. Printer driver consumed data before print program produced it
15
CIT 595
Threading Example
class Counter {
private int c = 0;public void increment() {c++;} public void decrement() {
c--;
} public int value() {
return c;
If a Counter object isreferenced from multiplethreads
There will be interferencebetween threads when 2operations (increment anddecrement), running indifferent threads, but actingon the same data (i.e. c)
This means that the twooperations consist of multiplesteps, and the sequences ofsteps overlap.
16
CIT 595
Threading Example (contd..)
Remember that single expression “c++” can be decomposed into three steps:1.
Retrieve the current value of c.
Increment the retrieved value by 1.
Store the incremented value back in c.
The same applies for c--
17
CIT 595
Threading Example (contd..)
Suppose Thread 1 invokes increment at about thesame time Thread 2 invokes decrement
In reality OS is going to switch between Thread 1 and 2
If the initial value of c is 0, their interleaved actionsmight follow this sequence:
Thread 1: Retrieve c
Thread 2: Retrieve c
Thread 1: Increment retrieved value; result is 1
Thread 2: Decrement retrieved value; result is -
Thread 1: Store result in c; c is now 1
Thread 2: Store result in c; c is now -
18
CIT 595
Race Condition
In previous example, Thread 1's result is lost, overwritten by Thread 2
Many different interleaving can result in different value of “c”
A situation where several process/threads access and manipulate the same data concurrently and theoutcome of the execution depends on the particularorder in which the access takes place is known as Race Condition
19
CIT 595
Synchronization
To avoid race conditions, need to guarantee exclusiveaccess to the shared data at any point in time
Synchronization is achieved by^
Request entry to critical section (regions of code that maychange shared data)
Access (shared) data in critical section
Request exit from critical section
Synchronization can be conceptualized as
locking
mechanism
When a thread/process is in critical-section, the region islocked for others
Only can enter critical section if lock is open
20
CIT 595
Implementing Synchronization
The lock state is implemented by a memory location
The location contains value 0 if the lock is unlockedand 1 if the lock is locked
This is e.g. with two threads/processes can be furtherexpanded to multiple threads/processes
The update to this memory location is atomic (nointerruptions) and is guaranteed by the OS
25
CIT 595
Thread join
Causes the calling thread to wait for another thread to terminate
Just like wait() for processes
¾
Parent process do not have to wait for children
For threads it important as we run the risk of executing an exit (reachend of main) which will terminate the process and all threads beforethe threads have completed
int pthread_join(pthread_t thread, void ** value_ptr)
thread
is the id of the thread to wait on
value_ptr
is the value given to
pthread_exit()
by the terminating thread
returns 0 to indicate success
Usuage
void * return_val;….//after code creating threadsif(pthread_join(worker_thread, &return_val)){
printf(“Error while waiting on thread\n”);exit(1);
26
CIT 595
Thread mutex
Mutex is short for mutual exclusion
Provides lock mechanism for shared data
To create a mutex
*int pthread_mutex_init(pthread_mutex_t mutex, pthread_mutexattr_t * attr)
mutex
is the lock (of type pthread_mutex_t)
attr
is the lock attributes ¾
NULL by default
To lock:
int pthread_mutex_lock(pthread_mutex_t *mutex)
If lock is already locked the calling thread is blocked
If lock is not locked the calling thread acquires it
returns 0 on success
To Unlock:
pthread_mutex_unlock
27
CIT 595
Mutex (contd..)
Declare variables as globals i.e. outside all methods
E.g. pthread_mutex_t myMutex;
For synchronization:pthread_mutex_lock(&myMutex)
//critical section codepthread_mutex_unlock(&myMutex)
After all work is done, need to destroy them
pthread_mutex_destroy (&myMutex);
See example p2.c
28
CIT 595
Cond and Wait
If we want one thread to signal an event to another weneed to use Conditional variables
pthread_cond_t condVariable
Idea is one thread wait until a certain condition is true
Test condition
If not true, calls pthread_cond_wait(..) to block until it is
Another thread makes the condition true and callpthread_cond_signal(…) to unblock the thread waiting
To avoid race conditions, the conditional variable must be use a mutex
29
CIT 595
Example
Signalling thread pthread_mutex_lock(&mutex);flag =1;pthread_cond_signal(&condition);pthread_mutex_unclock(&mutex);
condition is conditional variable
type pthread_cond_t
mutex is mutex variable
type pthread_mutex_t
Waiting thread pthread_mutex_lock(&mutex);if(flag == 0)
pthread_cond_wait(&condition,&mutex); pthread_mutex_unlock(&mutex) ^
Wait will automatically release themutex while it waits
After signal is received and thread isawakened,
mutex
will be automatically
locked for use by the thread.
Programmer is then responsible forunlocking
mutex
when the thread is
finished with it
30
CIT 595
Deadlock in Resource Sharing Environment
A
deadlock
occurs when 2 or more processes/threads
permanently block each other by each having a lockon a resource which the other tasks are trying to lock
Deadlock can occur due to^
Locks: Waiting to acquire locks on resources, such as objects,pages etc.
Sharing resources such as I/O devices printer, disks etc.
31
CIT 595
Deadlock High-Level View
Task (thread/process) T1 has a lock onresource R1 (indicated by the arrow fromR1 to T1) and has requested a lock onresource R2 (indicated by the arrow fromT1 to R2).
Task T2 has a lock on resource R2 andhas requested a lock on resource R
Because neither task can continue until aresource is available and neither resourcecan be released until a task continues, adeadlock state exists
32
CIT 595
Deadlock Handling
OS must also monitor or avoid deadlock
Monitor (more practical approach):^
Another service routine that periodically goes and checks on waitingtasks
If deadlock is determined, then
¾
Abort all processes/threads within that are deadlock – expensive ¾
Abort one process at a time till deadlock is cycle is eliminated
Avoidance^
By not explicitly over allocating resources
However this requires prior knowledge of total resources needed byeach task – not practical
Difficult but many algorithms are proposed
¾
E.g. Banker’s Algorithm
37
CIT 595
Bankers Algorithm
Modeled after banker that gives credit to customers
Idea is that not all customers will need their maximumcredit immediately
Reserve lesser units than the total need
Before actually giving credit check to see if financialsafe
Example with Single Resource class
System contains 10 units of resource class
Max Need for P1 = 8, P2 = 7, P3 = 5
Current Allocation for (P1 =3, P2 = 1, P3 = 3)
If process P1 makes request for one more resource unit i.e.(1, 0, 0) is the system in safe state?
38
CIT 595
Banker’s Algorithm
To complete a process P
i , check for all resource class R
k
Total_resource
k
k
=
Max_need
i,k
i,k
Total_Allocated =
(Allocated_resources
i,k
If satisfied, it simulates completion of Process P
i^
and
release of all resources allocated to it by updatingTotal_allocated
k
for each R
k
P1’s request for one resource unit leads system into safestate
Sequence P3, P1, P
