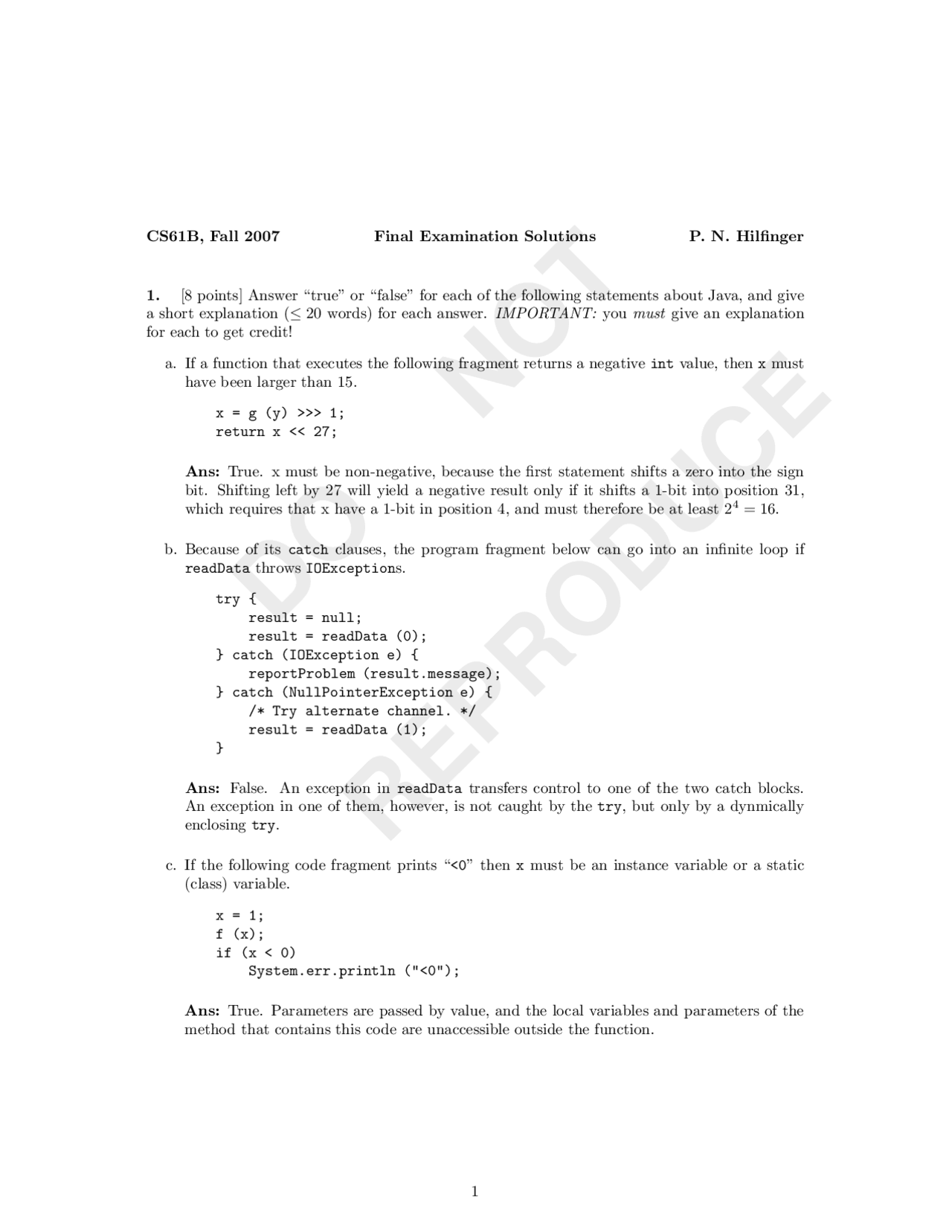

CS61B, Fall 2007 Final Examination Solutions P. N. Hilfinger
- [8 points] Answer “true” or “false” for each of the following statements about Java, and give a short explanation (≤ 20 words) for each answer. IMPORTANT: you must give an explanation for each to get credit!
a. If a function that executes the following fragment returns a negative int value, then x must have been larger than 15.
x = g (y) >>> 1; return x << 27;
Ans: True. x must be non-negative, because the first statement shifts a zero into the sign bit. Shifting left by 27 will yield a negative result only if it shifts a 1-bit into position 31, which requires that x have a 1-bit in position 4, and must therefore be at least 2^4 = 16.
b. Because of its catch clauses, the program fragment below can go into an infinite loop if readData throws IOExceptions.
try { result = null; result = readData (0); } catch (IOException e) { reportProblem (result.message); } catch (NullPointerException e) { /* Try alternate channel. */ result = readData (1); }
Ans: False. An exception in readData transfers control to one of the two catch blocks. An exception in one of them, however, is not caught by the try, but only by a dynmically enclosing try.
c. If the following code fragment prints “<0” then x must be an instance variable or a static (class) variable.
x = 1; f (x); if (x < 0) System.err.println ("<0");
Ans: True. Parameters are passed by value, and the local variables and parameters of the method that contains this code are unaccessible outside the function.
DO
NOT
REPRODUCE
d. Given the following (partial) class definition:
package things; public class Widget { protected int x; public void f (int y, util.Zapper z) { z.execute (this, y); } }
If every line of Java code that is executed during the call to z.execute is contained in the class util.Zapper (util is a package), then the call to execute might modify this.x if Zapper is a subtype of Widget.
Ans: False. Zapper has protected access to x only if the static type of its first parameter is a subtype of Zapper. But it isn’t (it’s Widget).
e. Given the following (partial) class definition:
package things; public class Widget extends util.Zapper { protected int x; public void f (int y, util.Zapper z) { z.execute (this, y); } }
If every line of Java code that is executed during the call to z.execute is contained in the class util.Zapper (util is a package), then the call to execute might modify this.x.
Ans: False. Zapper is not in the same package as Widget and it is not a subtype of Widget.
f. The program fragment below prints “ 0 ”:
String[] items = new String[3]; System.out.println (items[0].length ());
Ans: False. It blows up with a NullPointerException, since items[0] is uninitialized.
DO
NOT
REPRODUCE
- [6 points] The following questions concern an alternative to Dijkstra’s algorithm. Assume that there are N vertices numbered 1... N. Assume also that edgeLength(x, y) returns the length of the edge between vertices x and y in constant time, with edgeLength(x, x)= 0 and edgeLength(x, y)= ∞ if there is no edge between x and y.
a. For the definition of shortestPathLength below, demonstrate that the worst-case time for computing shortestPathLength(1,2) is Ω(2N^ ). (Hints: this is a loose bound; you can consider just part of the execution of SPL to get it. The time required to compute SPL depends only on k, whose initial value comes from shortestPathLength.)
/** The length of the shortest path between vertex V0 and vertex V1. */ int shortestPathLength (int v0, int v1) { return SPL (v0, v1, N); }
/** The length of the shortest path between vertex V0 and V1 that uses
- only vertices numbered <= K (except possibly for the two endpoints V0 and
- V1). */ int SPL (int v0, int v1, int k) { if (v0 == v1) return 0; int len; len = edgeLength (v0, v1); for (int i = 1; i <= k; i += 1) len = Math.min (len, SPL (v0, i, i-1) + SPL (i, v1, i-1)); return len; }
Ans: Consider just the call SPL(v0, v1, N), made by shortestPathLength. This makes at least the two calls SPL(v0,N,N-1) and SPL(N,v1,N-1) (and many others). Each of these in turn calls SPL twice, etc. So there can be at least 2N^ calls on SPL, which leads to the result.
Problem continues on the next page.
DO
NOT
REPRODUCE
b. Here is most of an alternative, memoized algorithm for the same problem. Fill in the blanks to make it work. In addition to the assumptions at the beginning of the problem, you may also assume that edgeLength(x, y)> 0 if x 6 = y.
int[][][] memo = new int[N+1][N+1][N+1] ;
static int SPL (int v0, int v1, int k) {
if ( v0 != v1 && memo[v0][v1][k] == 0 ) { int len; len = edgeLength (v0, v1); for (int i = 1; i <= k; i += 1) len = Math.min (len, SPL (v0, i, i-1) + SPL (i, v1, i-1));
memo[v0][v1][k] = len; }
return memo[v0][v1][k] ; }
c. Given the definition of SPL in part (b) above, give a bound on the time to compute the following loop (as a function of N , the number of vertices):
for (int v0 = 1; v0 <= N; v0 += 1) for (int v1 = 1; v1 <= N; v1 += 1) shortestDist[v0][v1] = shortestPathLength (v0, v1);
Ans: Θ(N 3 ). Once the memo array is filled (and it contains N 3 elements), each call to shortestPathLength takes constant time.
DO
NOT
REPRODUCE
Now let’s fix the problem raised in part (a) by defining a new kind of HashSet that requires its elements to implement an interface Observable. We’ll call this new type HashMutableSet. The idea is that Observable objects define a method that allows another object (in our case, a HashMutableSet) to “register” itself as an observer of the Observable object. At any given time, an Observable may be observed by any number of objects (e.g., a StringHolder might belong to any number of HashMutableSets simultaneously). To function as an observer, a class (in our case, HashMutableSet) must implement another interface, which we’ll call Observer. An Observer provides two methods by which an Observable object that it has registered with can inform the Observer of changes to that Observable object. The Observable object calls one method on all of its Observers just before it makes some change to itself, and it calls the other method just after it makes some change to itself. For both methods, the Observable passes itself (the object that is changing) as an argument. So the idea is that when a HashMutableSet .adds an object, A, to itself, it first registers itself to observe A. If a method of A wants to change A’s value, then it first tells all of A’s registered observers (including our HashMutableSet) that A is about to change, and after carrying out the change, it tells the same observers that A’s value has changed. The rest of this problem involves implementing this idea.
b. Define the interfaces Observable and Observer. These interfaces must not be specific in any way to HashMutableSet or StringHolder.
public interface Observable { void addObserver (Observer obs); }
public interface Observer { void preChange (Observable obs); void postChange (Observable obs); }
Continued on next page
DO
NOT
REPRODUCE
c. Now implement an Observable extension of StringHolder. This must work with any kind of Observer, not just HashMutableSets.
class ObservableStringHolder extends StringHolder implements Observable {
ObservableStringHolder (String initial) { super (initial); }
public void addObserver (Observer obs) { observers.add (obs); }
private ArrayList observers = new ArrayList ();
void put (String val) { for (Observer obs : observers) obs.preChange (this); super.put (val); for (Observer obs : observers) obs.postChange (this); }
}
Continued on next page
DO
NOT
REPRODUCE
- [10 points] The following questions involve sorting. Warning: do not assume that the al- gorithms illustrated always conform exactly to those presented in the reader and lecture notes. We are interested in whether you understand the major ideas behind the algorithms. Where the question asks for a reason, you must provide an explanation to get credit.
a. Could these be major steps from a run of quicksort? Why or why not? dze ccf bkw hwy pjk xce aux qtr xpa atm atm ccf bkw hwy pjk xce aux qtr xpa dze atm aux bkw hwy pjk xce ccf qtr xpa dze atm aux bkw ccf pjk xce hwy qtr xpa dze atm aux bkw ccf dze xce hwy qtr xpa pjk atm aux bkw ccf dze hwy xce qtr xpa pjk atm aux bkw ccf dze hwy pjk qtr xpa xce atm aux bkw ccf dze hwy pjk qtr xce xpa
Ans: Yes, if we choose a bad pivot each time (smallest entry).
b. Nunne T. Wisely wrote a program that he thought performed an LSD radix sort. Here is an illustration at major steps of the algorithm, starting with the input. As you can see it gets the wrong answer in this case. Describe as succinctly as possible how he’s apparently messed up the algorithm. dze ccf bkw cwy pjk xce dzx ctr xpa pjm xpa xce dze ccf pjk pjm ctr bkw dzx cwy ccf xce pjm pjk bkw xpa ctr cwy dzx dze bkw cwy ctr ccf dze dzx pjk pjm xpa xce
Ans: He forgot to make the sort stable for each character.
c. What sorting algorithm does the following illustrate? The first line represents the input and the remainder are contents of the output array at points in the algorithm where it changes (‘--’ means “not yet assigned to”). 14 13 10 17 23 26 07 24 29 04 -- -- -- -- 14 -- -- -- -- -- -- -- -- 13 14 -- -- -- -- -- -- -- 10 13 14 -- -- -- -- -- -- -- 10 13 14 17 -- -- -- -- -- -- 10 13 14 17 23 -- -- -- -- -- 10 13 14 17 23 -- 26 -- -- 07 10 13 14 17 23 -- 26 -- -- 07 10 13 14 17 23 24 26 -- -- 07 10 13 14 17 23 24 26 29 04 07 10 13 14 17 23 24 26 29 04 07 10 13 14 17 23 24 26 29
Ans: Counting sort.
DO
NOT
REPRODUCE
d. What sorting algorithm does the following illustrate?
dze ccf hwy pjk bkw xce aux qtr xpa atm ccf dze hwy bkw pjk aux xce qtr atm xpa ccf dze bkw hwy pjk aux xce atm qtr xpa bkw ccf dze hwy pjk atm aux qtr xce xpa atm aux bkw ccf dze hwy pjk qtr xce xpa
Ans: Merge sort.
e. What sorting algorithm does the following illustrate? dze ccf bkw hwy pjk xce aux qtr xpa atm dze ccf bkw hwy pjk xce aux qtr atm xpa dze ccf bkw hwy pjk xce aux atm qtr xpa dze ccf bkw hwy pjk xce atm aux qtr xpa dze ccf bkw hwy pjk atm aux qtr xce xpa dze ccf bkw hwy atm aux pjk qtr xce xpa dze ccf bkw atm aux hwy pjk qtr xce xpa dze ccf atm aux bkw hwy pjk qtr xce xpa dze atm aux bkw ccf hwy pjk qtr xce xpa atm aux bkw ccf dze hwy pjk qtr xce xpa
Ans: Insertion sort (but working from the right).
DO
NOT
REPRODUCE
d. If we have space to store M nodes (in addition to the space already occupied by our tree), how deep a tree can we explore using breadth-first search (see problem c)?
Ans: Down to the point where the breadth of a level is M , or about lg M levels.
e. Suppose we have a heap in which the top value is the largest. At what depths in the tree (distances from the root) can the fourth-largest value occur? Give examples in which it occurs at the minimal possible depth and at the maximal possible depth.
Ans: Anywhere within levels 2–4 (where the top is level 1).
f. If a 2-4 tree has a height of h (that is, if the lowest nodes that contain keys are at a distance of h edges from the root), what is the maximum possible height of a corresponding red-black tree? Give your reasoning.
Ans: A cluster of red-black nodes that represents a 2-4 node can have a height of at most 1. Thus, you get at most one more edge per level of the 2-4 tree: height 2h.
DO
NOT
REPRODUCE
- [1 point] In what state was the first 911 call made?
Ans: Alabama
- [7 points] In the following (partial) implementation of a trie data structure, there are several errors at some of the points indicated by “// ERROR?”. When “// ERROR?” occurs alone on a line, it means that there might be a missing statement. Correct these as succinctly as possible. Do not correct things that don’t need to be corrected (not all indicated points are erroneous).
/** A set of Strings. TrieSets are initially empty. They may be added to,
- but Strings cannot be removed. */ public class TrieSet {
/** Set THIS to the union of THIS with { X }. Return true iff
- THIS changes as a result (i.e., X was not previously present).
- If y is a String in THIS that is not equal to X, then X is assumed
- not to begin with y and y is assumed not to begin with X. */ public boolean add (String x) { int size0 = root.size (); root = root.insert (x, 0); return size0 != root.size (); }
/** True iff THIS contains X */ public boolean contains (String x) { return root.contains (x, 0); }
/** Number of (distinct) Strings in THIS. */ public int size () { return root.size (); }
private Node root = new Empty ();
Continued on next page
DO
NOT
REPRODUCE
private static class Leaf extends Node { Leaf (String x) { val = x; }
Node insert (String x, int k) { if (x.equals (val)) return this; // ERROR
Node result = new Inner (); result.insert (val, k); result.insert (x, k); return result; }
boolean contains (String x, int k) { return val.equals (x); // ERROR }
int size () { return 1; // OK }
private String val; }
Continued on next page
DO
NOT
REPRODUCE
private static class Inner extends Node { private char[] keys = new char[0]; // ERROR private Node[] kids = new Node[0]; // ERROR private int size = 0;
int size () { return size; }
boolean contains (String x, int k) { for (int i = 0; i < kids.length; i += 1) if (keys[i] == x.charAt (k)) // ERROR return kids[i].contains (x, k+1); // ERROR return false; }
Node insert (String x, int k) { for (int i = 0; i < keys.length; i += 1) { if (keys[i] == x.charAt (k)) { // OK int size0 = kids[i].size (); kids[i] = kids[i].insert (x, k+1); size += kids[i].size () - size0; // ERROR return this; } } Node[] newKids = new Node[kids.length+1]; char[] newKeys = new char[keys.length+1]; System.arraycopy (kids, 0, newKids, 0, kids.length); System.arraycopy (keys, 0, newKeys, 0, kids.length); newKids[kids.length] = new Leaf (x); newKeys[kids.length] = x.charAt (k);
kids = newKids; // ERROR keys = newKeys;
size += 1; // OK return this; } }
}
