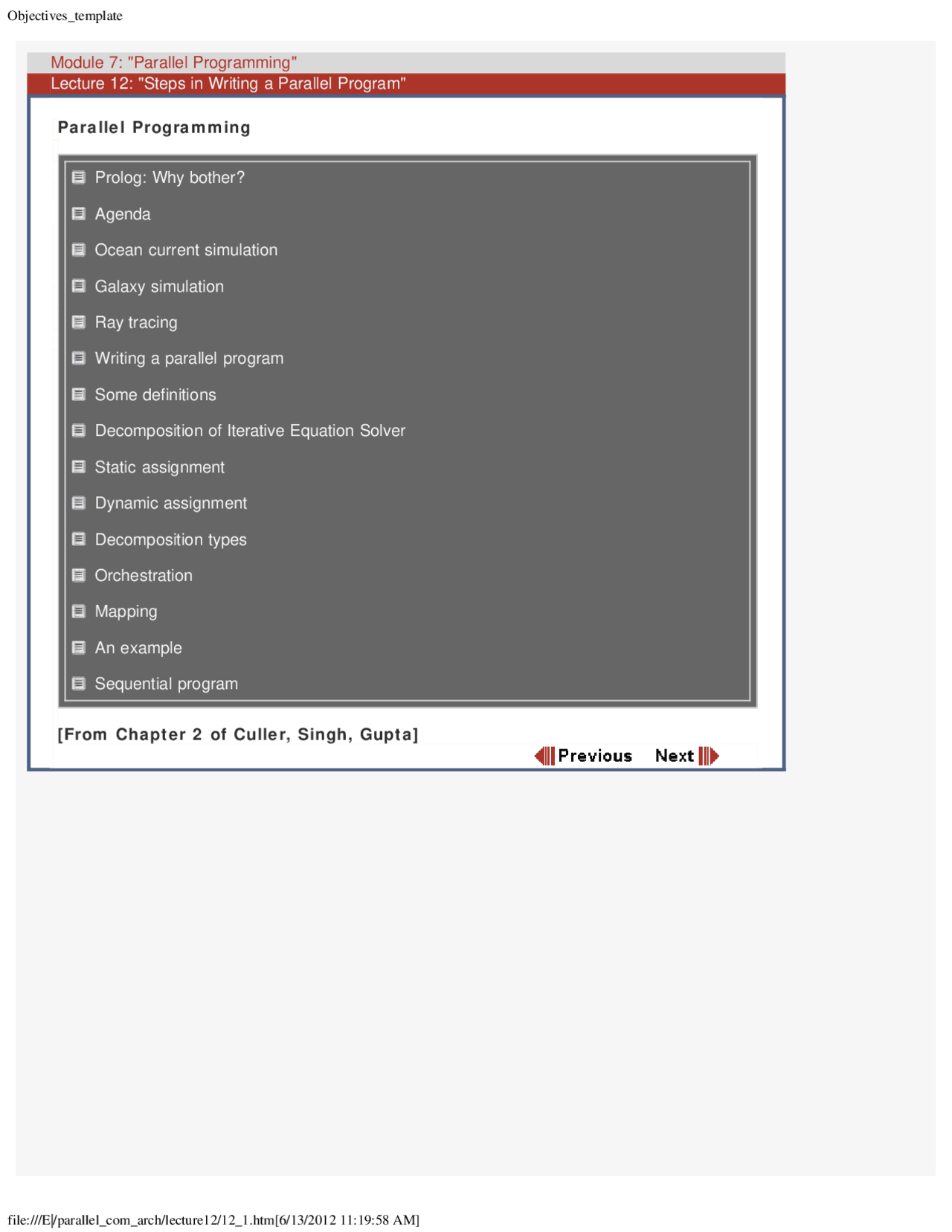

Module 7: "Parallel Programming"
Lecture 12: "Steps in Writing a Parallel Program"
Parallel Programming
Prolog: Why bother?
Agenda
Ocean current simulation
Galaxy simulation
Ray tracing
Writing a parallel program
Some definitions
Decomposition of Iterative Equation Solver
Static assignment
Dynamic assignment
Decomposition types
Orchestration
Mapping
An example
Sequential program
[From Chapter 2 of Culler, Singh, Gupta]
Module 7: "Parallel Programming"
Lecture 12: "Steps in Writing a Parallel Program"
Prolog: Why bother?
As an architect why should you be concerned with parallel programming? Understanding program behavior is very important in developing high-performance computers An architect designs machines that will be used by the software programmers: so need to understand the needs of a program Helps in making design trade-offs and cost/performance analysis i.e. what hardware feature is worth supporting and what is not Normally an architect needs to have a fairly good knowledge in compilers and operating systems
Agenda
Parallel application case studies Steps in writing a parallel program Example
Ocean current simulation
Regular structure, scientific computing, important for weather forecast Want to simulate the eddy current along the walls of ocean basin over a period of time Discretize the 3-D basin into 2-D horizontal grids Discretize each 2-D grid into points One time step involves solving the equation of motion for each grid point Enough concurrency within and across grids After each time step synchronize the processors
Galaxy simulation
Simulate the interaction of many stars evolving over time Want to compute force between every pair of stars for each time step Essentially O(n 2 ) computations (massive parallelism) Hierarchical methods take advantage of square law If a group of stars is far enough it is possible to approximate the group entirely by a single star at the center of mass Essentially four subparts in each step: divide the galaxy into zones until further division does not improve accuracy, compute center of mass for each zone, compute force, update star position based on force Lot of concurrency across stars
Module 7: "Parallel Programming"
Lecture 12: "Steps in Writing a Parallel Program"
Static assignment
Given a decomposition it is possible to assign tasks statically For example, some computation on an array of size N can be decomposed statically by assigning a range of indices to each process: for k processes P 0 operates on indices 0 to (N/k)-1, P 1 operates on N/k to (2N/k)-1,…, P (^) k-1 operates on (k-1)N/k to N- For regular computations this works great: simple and low-overhead What if the nature computation depends on the index? For certain index ranges you do some heavy-weight computation while for others you do something simple Is there a problem?
Dynamic assignment
Static assignment may lead to load imbalance depending on how irregular the application is Dynamic decomposition/assignment solves this issue by allowing a process to dynamically choose any available task whenever it is done with its previous task Normally in this case you decompose the program in such a way that the number of available tasks is larger than the number of processes Same example: divide the array into portions each with 10 indices; so you have N/ tasks An idle process grabs the next available task Provides better load balance since longer tasks can execute concurrently with the smaller ones Dynamic assignment comes with its own overhead Now you need to maintain a shared count of the number of available tasks The update of this variable must be protected by a lock Need to be careful so that this lock contention does not outweigh the benefits of dynamic decomposition More complicated applications where a task may not just operate on an index range, but could manipulate a subtree or a complex data structure Normally a dynamic task queue is maintained where each task is probably a pointer to the data The task queue gets populated as new tasks are discovered
Decomposition types
Decomposition by data The most commonly found decomposition technique The data set is partitioned into several subsets and each subset is assigned to a process The type of computation may or may not be identical on each subset Very easy to program and manage Computational decomposition Not so popular: tricky to program and manage All processes operate on the same data, but probably carry out different kinds of computation More common in systolic arrays, pipelined graphics processor units (GPUs) etc.
Module 7: "Parallel Programming"
Lecture 12: "Steps in Writing a Parallel Program"
Mapping
At this point you have a parallel program Just need to decide which and how many processes go to each processor of the parallel machine Could be specified by the program Pin particular processes to a particular processor for the whole life of the program; the processes cannot migrate to other processors Could be controlled entirely by the OS Schedule processes on idle processors Various scheduling algorithms are possible e.g., round robin: process#k goes to processor#k NUMA-aware OS normally takes into account multiprocessor-specific metrics in scheduling How many processes per processor? Most common is one-to-one
An example
Iterative equation solver Main kernel in Ocean simulation Update each 2-D grid point via Gauss-Seidel iterations A[i,j] = 0.2(A[i,j]+A[i,j+1]+A[i,j-1]+A[i+1,j]+A[i-1,j]) Pad the n by n grid to (n+2) by (n+2) to avoid corner problems Update only interior n by n grid One iteration consists of updating all n2 points in-place and accumulating the difference from the previous value at each point If the difference is less than a threshold, the solver is said to have converged to a stable grid equilibrium
Sequential program
int n; float **A, diff;
begin main() read (n); /* size of grid */ Allocate (A); Initialize (A); Solve (A); end main
begin Solve (A)
int i, j, done = 0;
float temp;
while (!done)
diff = 0.0;
for i = 0 to n-
for j = 0 to n-
temp = A[i,j];
A[i,j] = 0.2(A[i,j]+A[i,j+1]+A[i,j-1]+A[i-
1,j]+A[i+1,j]);
diff += fabs (A[i,j] - temp);
endfor
endfor
if (diff/(n*n) < TOL) then done = 1;
endwhile
end Solve
