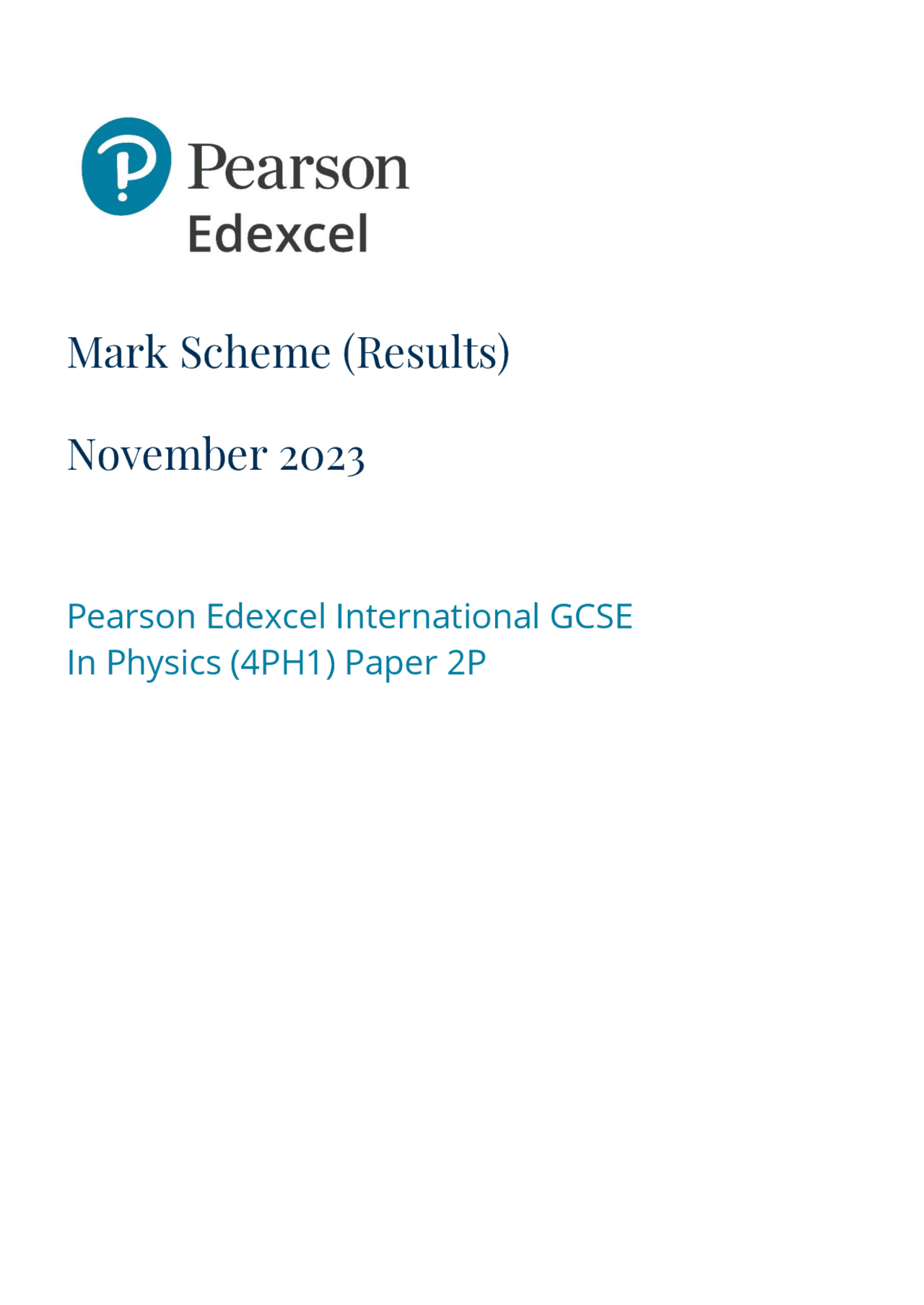

Mark Scheme (Results)

November 2023

Pearson Edexcel International GCSE

In Physics (4PH1) Paper 2P

Edexcel and BTEC Qualifications

Edexcel and BTEC qualifications are awarded by Pearson, the UK’s largest awarding body. We provide

a wide range of qualifications including academic, vocational, occupational and specific programmes

for employers. For further information visit our qualifications websites at www.edexcel.com or

www.btec.co.uk. Alternatively, you can get in touch with us using the details on our contact us page

at www.edexcel.com/contactus.

Pearson: helping people progress, everywhere

Pearson aspires to be the world’s leading learning company. Our aim is to help everyone progress

in their lives through education. We believe in every kind of learning, for all kinds of people, wherever

they are in the world. We’ve been involved in education for over 150 years, and by working across

70 countries, in 100 languages, we have built an international reputation for our commitment to high

standards and raising achievement through innovation in education. Find out more about how we

can help you and your students at: www.pearson.com/uk

November 2023

Question Paper Log Number P73429A

Publications Code 4PH1_2P_MS_

All the material in this publication is copyright

© Pearson Education Ltd 2023

Question number Answer Notes Marks 1 (a) all five rows correct = 3 marks row cannot score if both boxes ticked allow any reasonable indication other than a tick

3 - 4 rows correct = 2 marks 1 - 2 rows correct = 1 mark (b) high temperature; ignore references to repulsion or attraction

(so that) nuclei will have high(er) speed or high(er) {kinetic energy/KE}; condone particles, atoms, molecules for nuclei high pressure; plus one from:

• (so that nuclei will be) closer together / eq;
• (so that nuclei are) more likely to collide/ eq; e.g. closely packed e.g. collide more frequently Total for Question 1 = 7 marks

Question number Answer Notes Marks 2 (a) (i) substitution OR rearrangement; 2 evaluation; e.g. 19 = force × 0.55 OR force = moment/distance (force =) 35 (N) allow 34.5, 34.54, etc.

• 1 POT error (ii) A (0.25 m); 1 B is incorrect because this is not a perpendicular distance C is incorrect because this is the distance between weight and force F D is incorrect because this is the distance to force F (b) (i) force X has the shorter distance to the CoG; Note: no credit for repeating question I.e. CoG is closer to support A condone reference to force A accept ‘weight’ for CoG

moments of two forces must be equal/eq; allow RA i.e. (total) clockwise moment = (total) anti- clockwise moment so force X must be larger; DOP on either (ii) any three from: 3 force X decreases; force Y increases; change by the same amount; allow idea of change with distance is linear total force remains the same; Total for Question 2 = 9 marks

(b) (i) substitution into given formula; 3 rearrangement; evaluation; - 1 POT error e.g. 54 000 = 0.56 × c × 22 c = 54 000 / 0.56 × 22 (c =) 4400 (J/kg °C) allow 4383… allow any reasonable rounding ignore rounding error after 3sf (ii) any two from: ignore references to KE or sound

MP1. heating of beaker/heating of thermometer; allow idea of ‘heat goes to beaker/thermometer’ MP2. heating of surroundings/heating of insulation; allow idea of ‘heat going to surroundings or insulaton’ MP3. insulation not perfect; e.g. insulation conducts or radiates MP4. hole(s) in lid for thermometer/heater leave gaps; allow idea of heat ‘escaping’ through lid or via evaporation Total for Question 3 = 11 marks

Question number Answer Notes Marks 4 (a) substitution into given formula; ignore units 3 rearrangement; evaluation; 2 marks max. if time not converted correctly to seconds e.g. 40 (J), 2400 (J) e.g. 16 = energy / 2.5 (× 3600) energy = 16 × 2.5 (× 3600) (energy =) 140 000 (J) allow 144 000 (J) 2.5 × 60 × 60 or 9000 seen for 1 mark if no other mark awarded (b) any six from: 6 MP1. it steps up or steps down the voltage; allow “increases”, “decreases” or “changes” MP2. current in (primary) coil produces magnetic field; MP3. current is changing/alternating; MP4. causing a (changing) magnetic field in the core ; e.g. making the core magnetised MP5. the core strengthens the magnetic field; MP6. idea that iron is a soft magnetic material I.e. can gain and lose its magnetism easily allow “concentrates” for “strengthens” MP7. field lines interact with (secondary) coil; idea of core linking the two coils with magnetic field MP8. which induces a voltage in the secondary coil; condone “induces a current” MP9. transformer won’t work with (steady) d.c.; ignore idea of “works with a.c.” repetition of stem (c) less turns (on the primary coil) / eq; ignore any reference to secondary ignore references to increasing current, power or voltage of the primary coil

condone ‘coils’ for ‘turns’ Total for Question 4 = 10 marks

Question number Answer Notes Marks 6 (a) idea that (total) momentum before = (total) momentum after (event); ignore ‘momentum is conserved’

(b) (i) zero/0/nought/nothing; 1 (ii) recall of momentum = mass × velocity; allow standard symbols e.g. p = m × v

substitution; evaluation; - 1 POT error e.g. p = mv p = 2.6 × 10−^8 × 26 000 p = 6.8 × 10−^4 (kg m/s) allow 6.76 × 10 −^4 (iii) 6.8 × 10−^4 (kg m/s); allow ecf from (ii) 2 right; (iv) substitution into ‘F=ma’; ignore units 4 rearrangement; evaluation; −1 for POT error answer given to 2s.f.; independent mark e.g. 2.6 (×10−^3 )= 1.2 × acceleration acceleration 2.6 (×10−^3 ) / 1. (acceleration =) 2.16… × 10−^3 (m/s^2 ) (acceleration =) 2.2 × 10−^3 (m/s^2 ) (c) any two from: ignore idea of simple yes/no

MP1. idea of tiny amount of fuel ‘consumed’ per second; MP2. any attempt of calculation of time to run out of xenon seen ;

MP3. correct calculation of 7.575... × 106 s; accept 88 or 87.68..

days, 2104 hours, 1.26..

× 105 minutes , 12.5..

weeks, 0.24... years MP4. idea that ‘burn’ is for a long time; MP5. idea that low acceleration for long time gives high speed change; MP6. mass of spacecraft will be larger so acceleration is even smaller; Total for Question 6 = 13 marks

Question number Answer Notes Marks 7 (a) microphone; 1 (b) (i) determination of number of squares for one period; allow 5.2 − 5.5 squares 2 use of timebase to determine appropriate period in seconds; ‘5 x 0.002’ or ‘0.01’ scores 1 ‘8 x 0.002’ or ‘0.016’ scores 1 accept 0.0104 − 0.0110 (s) for 2 marks e.g. period = 8/1.5 = 5.3 squares period = (5.3 × 0.002 =) 0.011(s) (ii) use of f = 1 / T to evaluate frequency; allow ecf from (i) 1 e.g. frequency = (1 / 0.011 =) 91 (Hz) allow 90.9-96.2 (Hz) (c) (i) energy (transferred) = charge × voltage; allow rearrangements and standard symbols e.g E = Q × V

allow W for energy ignore C for charge (ii) amplitude of signal in volts determined; 3 evaluation of effective voltage; ecf amplitude in volts evaluation of energy transferred; reject 6.3 × 10 −5^ / √

• 1 POT error e.g. amplitude = 2 squares × 5 = 10 V effective voltage = 10 / √2 = 7.1 V energy transferred = (7.1 × 6.3 × 10 −^5 =) 4.5 × 10 −^4 (J) allow 4.4 × 10 −^4 − 4.5 × 10 −^4 (J) 8.9... × 10 −4^ scores 2 Total for Question 7 = 8 marks
