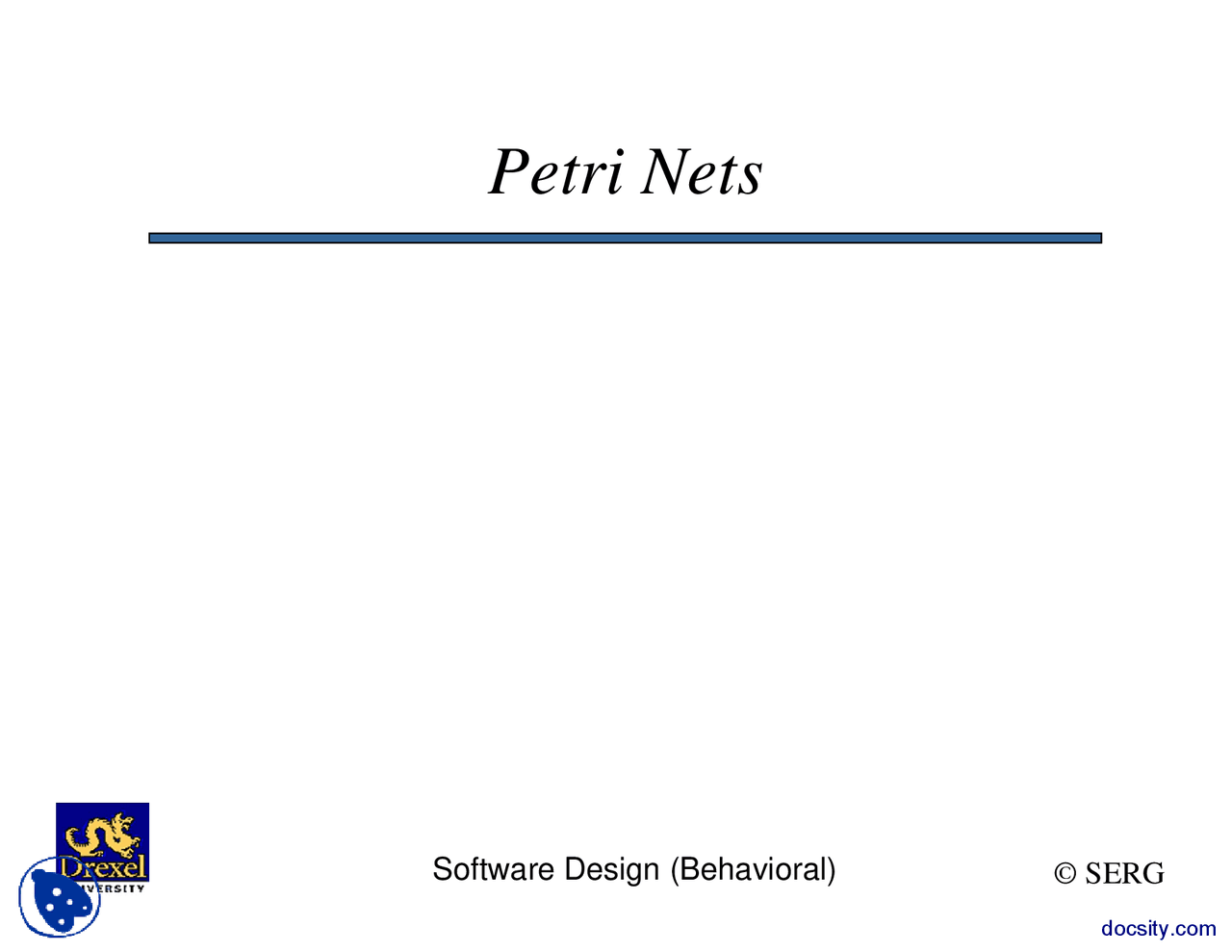

© SERG
Software Design (Behavioral)
Petri Nets
© SERG
Software Design (Behavioral)
A Simple Petri Net
P
P
t
t
t
P
P
© SERG
Software Design (Behavioral)
A Marked Petri Net
After Firing t
P
P
t
t
t
P
P
© SERG
Software Design (Behavioral)
Definition of a Petri Net
PNet = (P, T, A, M0)
P
is a finite set of
places
(labeled circles),
where a place holds tokens.
T
is a finite set of
transitions
(bars), where a
transition represents an activity.
A
is a finite set of directed
arcs
, where an arc
connects a place and a transition.
M
is the initial
marking
of
PNet
, where a
marking is an arrangement of tokens in placesrepresenting state.
© SERG
Software Design (Behavioral)
Petri Net
Execution Model (Cont’d)
•^
Firing a Transition:
An enabled transition
is non deterministically selected and
fired
by removing one token from each of itsinput places and depositing one token ateach of its output places.
-^
Firing Sequence:
A firing sequence
<t0,t1, …, tn>
such that
t
is enabled and
fired in
M
,^
t
is enabled and fired in
M
© SERG
Software Design (Behavioral)
Petri Net Firing
© SERG
Software Design (Behavioral)
A Marked Petri Net Semaphore
IN
IN
CR
CR
SEM
OUT
OUT
IN = Input of ProcessOUT = Output of ProcessCR = Critical Region
SEM = Semaphore
© SERG
Software Design (Behavioral)
Enabled Transitions IN
IN
CR
CR
SEM
OUT
OUT
© SERG
Software Design (Behavioral)
Enabled Transition
IN
IN
CR
CR
SEM
OUT
OUT
© SERG
Software Design (Behavioral)
After Firing
IN
IN
CR
CR
SEM
OUT
OUT
© SERG
Software Design (Behavioral)
Deadlock and Starvation
- A Petri Net with a given marking is in
deadlock
iff no transition is enabled in that
marking.
- A Petri Net with a given marking is in
starvation
iff one or more transitions have
been permanently disabled.
- A Petri Net is
live
if every transition can
eventually be fired.
© SERG
Software Design (Behavioral)
A Deadlocked Petri Net
© SERG
Software Design (Behavioral)
A Deadlocked Petri Net
© SERG
Software Design (Behavioral)
