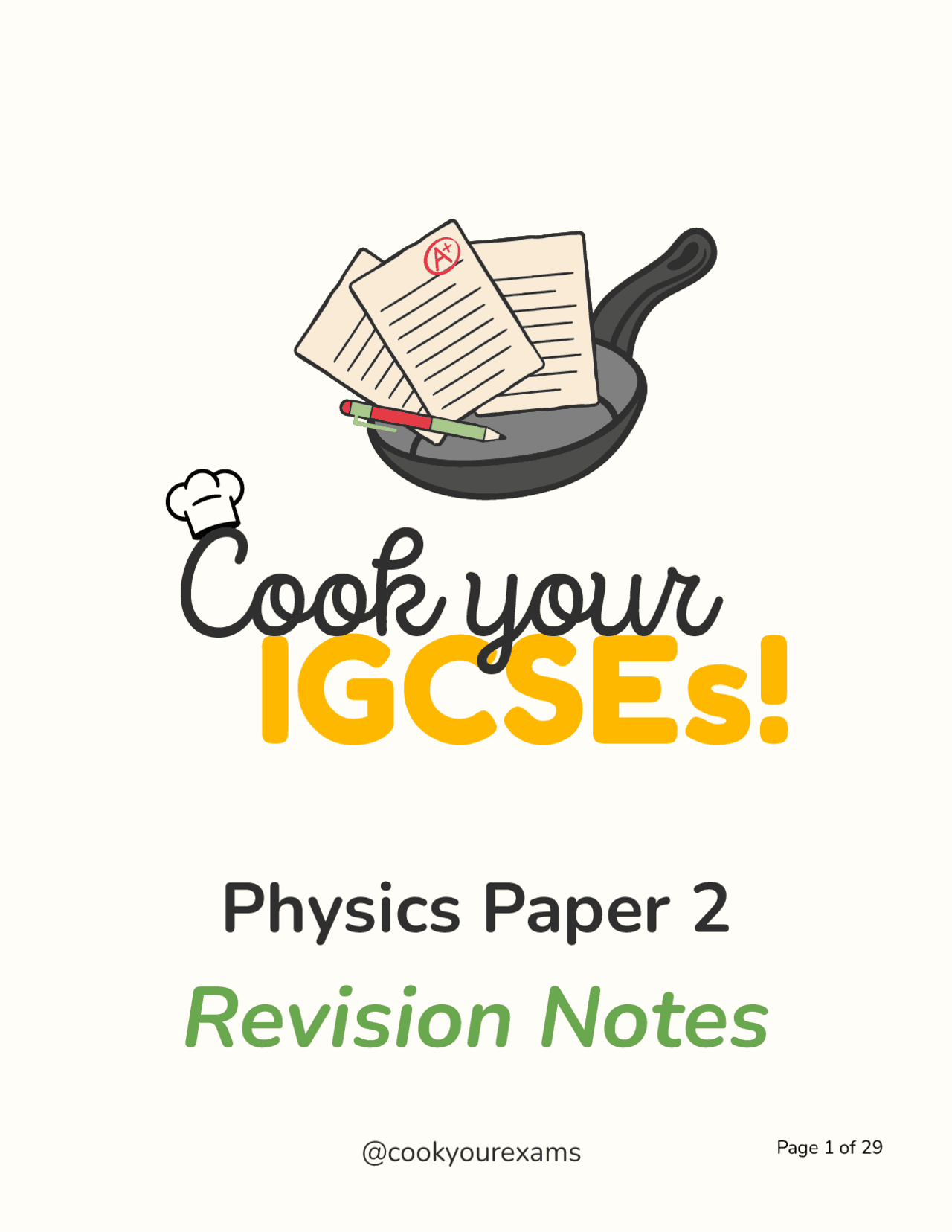

IGCSEs!

Cook your

Physics Paper 2

Revision Notes

Candidate Performance by Topic Area (Areas to Revise)

Rank Topic Performance Summary (Common Difficulties and Strengths)

1 (Most Difficult)

Astrophysics & Waves ●^ Explaining the^ Doppler effect^ in detail was challenging; many students incorrectly linked frequency changes to distance rather than relative motion. ● Explaining how redshift data supports the Big Bang theory required a level of detail that many did not provide. ● Justifying why a star becomes a supernova, by linking its large mass and very bright absolute magnitude, was a common weak point.

2 Forces and Motion

Common Difficulties: ● Conceptually explaining how safety features like airbags work was a major challenge. The most common error was stating that the change in momentum decreases, instead of the rate of change of momentum. ● Applying the Principle of Moments in complex scenarios and explaining what happens when a spring is stretched beyond its elastic limit also proved difficult.

3 Experimental Skills & Data Analysis

Common Difficulties: ● Understanding the difference between accuracy and precision and suggesting specific improvements for each was poorly answered. ● Answering "show that" questions; students often failed to show all steps or evaluate their answer to a higher precision than the given value.

Common Difficulties:

Page 2 of 29

IGCSEs!

Cook your

@cookyourexams

Key Theories Tested: Forces and Motion

Common Calculations ALWAYS WRITE TO 2 S.F. UNLESS INSTRUCTED

OTHERWISE.

Momentum : This is a fundamental concept, defined by the formula momentum = mass × velocity (p=m×v). ○ Questions frequently test the principle of conservation of momentum , where the total momentum before a collision equals the total momentum after it. ○ Students are also expected to understand how safety features, like airbags, work by increasing the time of impact to reduce the rate of change of momentum, thereby lowering the force experienced. ○ A common mistake is confusing a decrease in the rate of change of momentum with a decrease in the change in momentum itself. Newton's Third Law : This law is often tested in the context of collisions. ○ Students must understand that during a collision, the forces exerted by the two objects on each other are equal in magnitude and opposite in direction. ○ A frequent error is failing to specify the direction of both forces involved. Principle of Moments : This principle states that for an object to be in equilibrium or balanced, the sum of the clockwise moments about a pivot must equal the sum of the anti-clockwise moments. Students must identify the pivot, forces, and their perpendicular distances to apply this principle correctly. Hooke's Law : Investigations explore the relationship between the force applied to a spring and its extension. ○ Successful answers describe this as a directly proportional or linear relationship. ○ Explanations must also cover what happens when the force is too large, causing the spring to exceed its limit of proportionality and become permanently stretched.

Momentum Calculation : Students must calculate momentum using the formula p=m×v. This includes "show that" questions where the mass must be calculated from a given momentum and velocity. To score full marks on "show that" questions, candidates should evaluate their answer to more significant figures than the value given in the question to demonstrate the rounding process. Force from Change in Momentum : A key calculation involves the formula Force = change in momentum / time (F=Δp/t). This is used to determine the force exerted during a collision or the time over which the collision occurs.

Principle of Moments Calculation : This involves setting up and solving an equation where the clockwise moment (Force × distance) equals the anti-clockwise moment (Force × distance) to find an unknown force or distance. Successful candidates clearly write out each stage of their calculation. Work Done by a Force : Students calculate work done using the formula Work done = force × distance moved in the direction of the force. Errors often arise from failing to convert units, such as grams to kilograms or millimeters to meters, before calculation.

● Transformers and the National Grid : This is a frequently tested area. You're expected to know the roles of step-up and step-down transformers. A key part of this is explaining why they are used. Successful explanations follow a clear chain of logic: ○ a step-up transformer increases voltage, ○ which in turn decreases current. ○ This reduction in current minimizes energy (or heat) loss in the transmission cables, making the process more efficient. ○ A step-down transformer then lowers the voltage to a safer level for use in homes and schools. ● Static Electricity : Questions often test how objects become charged, usually by the transfer of electrons through friction (rubbing). You should be able to describe simple experiments to demonstrate that an object is charged, ○ such as using it to attract small pieces of paper ○ or a stream of water.

Explanations for why a charged object can attract a neutral one (through induced charges) are also important. Another key area is explaining why static charge buildup can be dangerous, for instance, during aircraft refueling, where a spark could cause a fire or explosion.

● Induced Current : This more challenging concept is also tested. You should be able to explain how a current can be induced in a conductor, such as ○ the iron core of a transformer. The core theory is that ○ a changing magnetic field ○ cutting through a conductor ○ induces a voltage (or electromotive force, emf). ○ Because the conductor (the iron core) has free-moving electrons,

Key Theories and Concepts Tested: Electricity

Momentum

Force and Momentum Change

Energy and Specific Heat Capacity

(ΔQ=m×c×ΔT )

1. Substitution : Correctly substitute the given mass and velocity into the formula.
2. Unit Conversion : Ensure mass is in kilograms (kg). A power-of-ten error from incorrect unit conversion is a common penalty.
3. Evaluation : Calculate the final answer.

Substitution : Correctly substitute the values for momentum change and time. Rearrangement : Confidently rearrange the formula to solve for the unknown variable (e.g., time). Evaluation : Calculate the final answer.

Temperature Difference : Correctly evaluate the change in temperature from the given data. Substitution : Substitute the known values for mass, temperature change, and energy into the formula. Rearrangement : Rearrange the equation to solve for the unknown (often the specific heat capacity, 'c'). Evaluation : Calculate the final answer. Errors often occur from incorrect calculator use, so be sure to use brackets where necessary.

momentum = mass× velocity

Force = change in momentum/time

Change in thermal energy = mass × specific heat capacity × change in temperature

Principle of Moments

Transformer Voltage and Turns Ratio

Wave Speed, Frequency, and Wavelength

(v=f×λ)

1. Identify Moments : Correctly identify the clockwise and anti-clockwise moments about the pivot.
2. Set up Equation : State that the sum of clockwise moments equals the sum of anti-clockwise moments for the system to be balanced.
3. Evaluation : Solve the equation to find the unknown force or distance.

Substitution : Place the known values into the formula. Rearrangement : If necessary, rearrange the formula to solve for the unknown (e.g., wavelength). Evaluation : Calculate the final answer.

1. Substitution : Correctly substitute the given values from a table or text into the formula.
2. Rearrangement : Accurately rearrange the formula to solve for the unknown variable. This is a common point where errors are made.
3. Evaluation : Calculate the final numerical answer.

wave speed= frequency × wavelength

moment = force × distance Sum of clockwise moments = sum of anticlockwise moments

In the 2024 June R Paper, there was a question for 5 marks for drawing a wave in an oscilloscope using the key provided:

Particle Motion

Changes of State (Boiling/Heating)

Changes of State (Freezing/Cooling)

Sound Transmission

Gases : Particles are arranged randomly and are far apart from each other.

Solids : Particles vibrate in fixed positions. Liquids : Particles slide over each other. Gases : Particles move freely and randomly.

When a substance is heated, its temperature rises until it reaches its boiling point. During boiling (the change of state), the temperature remains constant even as energy is supplied. This is because the energy is being used to break the bonds between particles rather than increasing their kinetic energy. This is represented by a horizontal line on a heating curve.

When a substance cools, its temperature decreases until it reaches its freezing point. During freezing, the temperature remains constant as the substance changes from a liquid to a solid.

Sound travels faster through liquids than through gases. This is because the particles in a liquid are closer together, allowing vibrations to be passed on more effectively and quickly between them.

Waves

For this you need to calculate the time period using f = 1/t and then check the key to draw the waves.

This is the most common method described in the exam materials. It involves two people standing a large, measured distance apart.

Method:

Human Hearing

Speed of Sound Experiment

Sound Transmission

Doppler Effect (^) The Doppler effect causes a change in the observed pitch (frequency) of a wave when the source is moving relative to the observer. When a sound source moves towards an observer, the pitch heard is higher. When the source moves away from the observer, the pitch heard is lower.

A greater speed of the source results in a greater change in pitch.

Sound travels via the vibrations of particles. Sound travels more effectively and faster through liquids than gases because the particles are closer together , allowing vibrations to be passed on more easily.

An investigation to measure the speed of sound typically involves one person creating a sound and a visual signal (like clapping hands) while another person at a large, measured distance (e.g., 100-300m) times the interval between seeing the signal and hearing the sound. The speed is then calculated using speed = distance/time. Repeating the experiment and calculating an average improves reliability.

The typical range of human hearing is from 20 Hz to 20,000 Hz. Sounds outside this range, like 10 Hz or 25,000 Hz, cannot be heard by most humans.

(5 Marks) Investigating Speed of Sound (Choose any of the 3 methods)

in the 2022 June R Paper

Investigation 1: Two-Person Method

A more advanced method involves using electronic equipment.

Method:

Two microphones are placed a measured distance apart. The microphones are connected to an oscilloscope.

Investigation 3: Using Microphones and an Oscilloscope

1. Two people stand a significant distance apart, for example, 300 meters, which is measured beforehand.
2. One person has two objects to make a sound (like clapping their hands), and the other person has a timer or stopwatch and binoculars.
3. The first person claps their hands. The second person starts the stopwatch when they see the clap through the binoculars and stops it when they hear the sound.
4. The speed of sound is then calculated using the formula: Speed = Distance / Time.
5. To improve reliability, the experiment should be repeated several times, and an average time should be calculated.

Distance : A large distance (at least 100m) is necessary to ensure the time interval is long enough to measure accurately. Errors : A primary source of error is human reaction time when starting and stopping the timer, which is why a large distance is important to minimize its effect.

Some students opt to describe an echo method for this investigation.

Method:

1. A person stands a measured distance from a large, flat wall.
2. The person makes a sharp sound (e.g., a clap) and starts a timer.
3. The timer is stopped when the echo is heard.
4. The total distance the sound has traveled is double the distance to the wall (to the wall and back).
5. The speed is calculated using Speed = (2 × Distance) / Time.

Investigation 2: Echo Method

Key Considerations:

Redshift

Stellar Evolution (Sun-like Stars)

Stellar Evolution (Massive Stars)

Absolute Magnitude

The Big Bang Theory

● A nebula collapses to form a protostar. ● When the core is hot enough, nuclear fusion begins, and the star enters the main sequence. ● After exhausting its hydrogen, it expands into a Red Giant , which is brighter but has a cooler surface than a main sequence star. ● Finally, it collapses to become a hot, dim White Dwarf.

The process starts similarly, but for stars with a mass much larger than the Sun. ● After the main sequence, the star becomes a Red Supergiant. ● The core collapses, and fusion of heavier elements begins. ● When fusion stops, the star explodes in a supernova. A star must have a much larger mass than the Sun and a very low (bright) absolute magnitude to become a supernova.

● This is a measure of a star's brightness as if it were viewed from a standard distance.

● The universe began from a very hot, dense single point and has been expanding and cooling ever since. Evidence : Key evidence includes the redshift of distant galaxies and the existence of Cosmic Microwave Background Radiation (CMBR). (I think mentioning Redshift and its explanation is enough if you haven’t learnt about CMBR like me.)

● Light from distant galaxies is redshifted, meaning its wavelength has increased. This indicates the galaxies are moving away from each other. The further a galaxy is, the greater its redshift and the faster it is moving away. This relationship supports the theory of an expanding universe. Calculation : The recessional speed (v) is calculated using the formula

where Δλ is the change in wavelength, λ wavelength, and c is the speed of light.

_0 is the reference

Energy, Work and Power

Concept

Energy Resources

Power and Energy Calculation

Specific Heat Capacity

Summary of Answer / Key Principles

You need to know the advantages and disadvantages of different energy sources. Renewable (e.g., Solar, Geothermal, Wave Power) : Advantages include being renewable and producing no polluting gases. Disadvantages include dependency on weather/location and the potential to harm wildlife. Non-Renewable (e.g., Natural Gas) : Advantages include reliability and the ability to meet demand. Disadvantages include being non-renewable and producing greenhouse gases.

Definition : The energy required to raise the temperature of a unit mass (1 kg) of a substance by one degree Celsius (1°C) Calculation : Use the formula

(ΔQ=mcΔT). Ensure you correctly calculate the temperature change and use standard units (Joules, kg, °C).

Change in thermal energy= mass × specificheatcapacity × change in temperature

The relationship is given by the formula Power = Energy / Time (P=E/t). You must be able to rearrange this formula to solve for any variable. Unit conversion is crucial. Ensure energy is in Joules, power is in Watts, and time is in seconds before calculating. Errors often occur when time is given in minutes or energy in kilojoules (kJ).

Half-Life

Concept

Nuclear Reactions

Nuclear Reactor Components

Summary of Answer / Key Principles

Nuclear Fission : A process where a nucleus splits, releasing energy and producing radioactive daughter nuclei. Nuclear Fusion : A process where nuclei combine, which requires very high pressure and temperature and also releases energy.

Control Rods : Their function is to absorb neutrons to control the rate of the chain reaction. Moderator : Its purpose is to reduce the speed (or kinetic energy) of neutrons, making them more likely to cause further fission.

Definition : The time taken for the activity, number of radioactive nuclei, or count rate of an isotope to decrease by half. Safety Application : After several half-lives have passed (e.g., more than two), the amount of remaining radioactive material and its activity is significantly reduced, making it safer for visitors to be near.

Natural Gas

Wave (Water movement ) Power

It is reliable and not dependent on the weather The electricity generated can be changed to meet demand , and it has a short startup time.

It is a renewable resource. It produces no polluting gases.

It is a non-renewable resource that will eventually run out. Burning it produces carbon dioxide and other greenhouse gases, contributing to global warming. The waves are not always present and are weather-dependent. The generators can be damaged by storms. It may cause harm to wildlife.

Radioactivity

Concept

Static Electricity

Transformers

Summary of Answer / Key Principles

Charging Method : An object becomes charged by gaining or losing negatively charged electrons through friction (rubbing it with another insulator). Demonstrating Charge : A charged rod can be used to attract neutral objects like small pieces of paper or a stream of water. It can also be used with a gold leaf electroscope, which will show deflection. Dangers : A build-up of static charge can be dangerous as it can create a spark, which could cause a fire or an explosion, especially during processes like aircraft refueling.

Function : Step-up transformers increase voltage, while step-down transformers decrease voltage. Turns Ratio Calculation : The relationship between voltage and the number of turns on the primary (p) and secondary (s) coils is given by the formula: Vp / Vs = Np / Ns. You must be able to rearrange this to find any unknown value.

Charged Particles

Safety and Penetration

Neutral vs. Charged Particles : Neutral particles have an equal number of protons and electrons, while positively charged particles (ions) have lost electrons. Acceleration : A positively charged particle (like a proton) will accelerate in an electric field because it is repelled by a positive plate and attracted to a negative plate, resulting in a net force on it.

Radiation from a source is unlikely to penetrate through thick shielding materials like concrete walls, which is a key safety feature in facilities using radioactive materials.

Electricity
