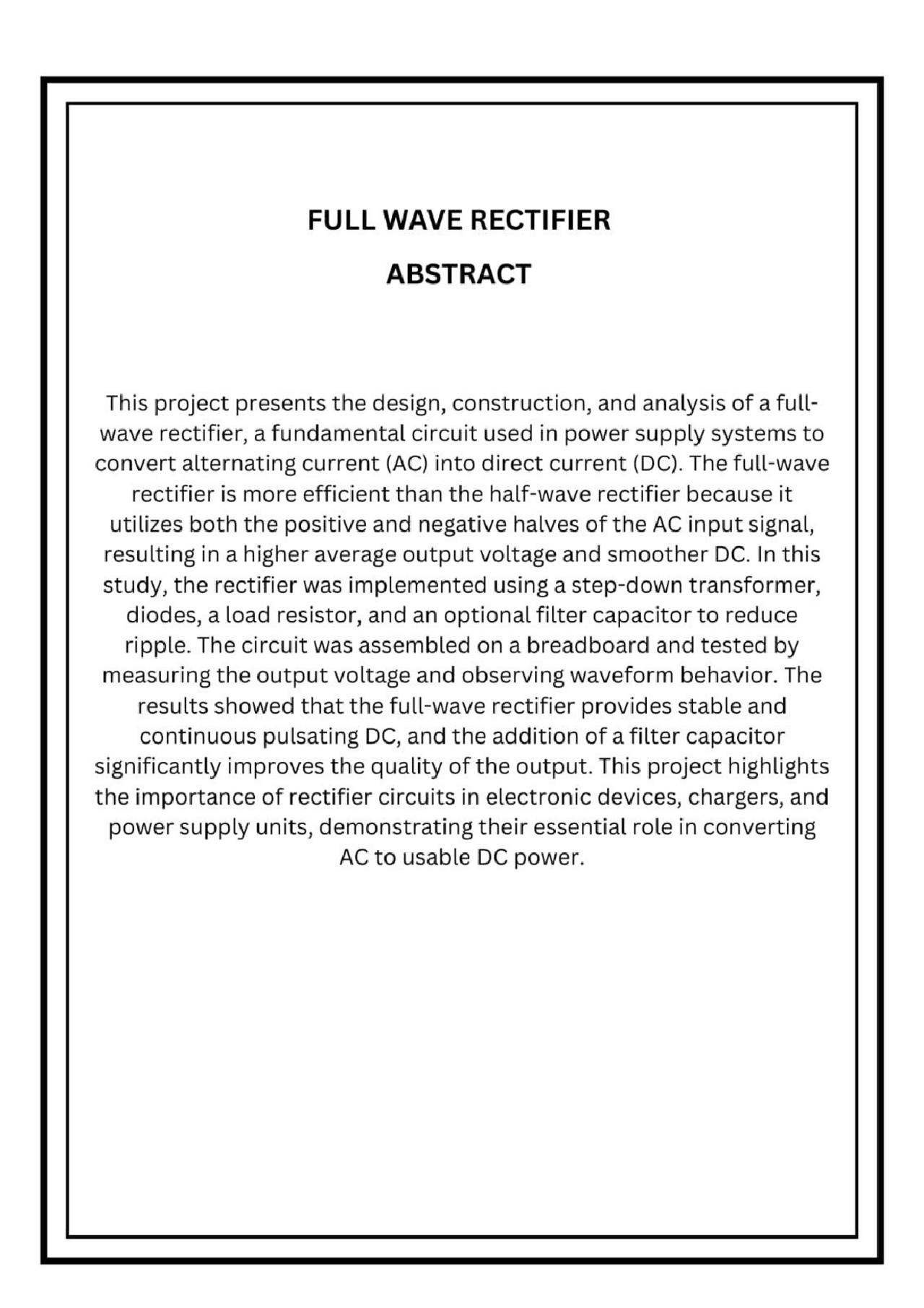

FULL WAVE RECTIFIER ABSTRACT This project presents the design, construction, and analysis of a full- wave rectifier, a fundamental circuit used in power supply systems to convert alternating current (AC) into direct current (DC). The full-wave rectifier is more efficient than the half-wave rectifier because it utilizes both the positive and negative halves of the AC input signal, resulting in a higher average output voltage and smoother DC. In this study, the rectifier was implemented using a step-down transformer, diodes, a load resistor, and an optional filter capacitor to reduce ripple. The circuit was assembled on a breadboard and tested by measuring the output voltage and observing waveform behavior. The results showed that the full-wave rectifier provides stable and continuous pulsating DC, and the addition of a filter capacitor significantly improves the quality of the output. This project highlights the importance of rectifier circuits in electronic devices, chargers, and power supply units, demonstrating their essential role in converting AC to usable DC power. TABLE OF CONTENTS TOPIC Introduction Circuit diagram Material required Material Description Methodology Results Analysis and Interpretation Discussion and future outcomes Conclusion Hardware Implementation Reference PAGE NO. List of tables TABLES PAGE NO. Table 1.1 13 CHAPTER-1 INTRODUCTION A full-wave rectifier is an electronic circuit that converts an alternating current (AC) into direct current (DC) by utilizing both the positive and negative halves of the AC input waveform. Ina standard AC power supply, the current continuously changes direction, flowing first in one direction and then in the opposite direction. However, most electronic devices and circuits require direct current, where the current flows in only one direction. A full- wave rectifier solves this problem by converting both halves of the AC signal into a pulsating DC output. During the positive half-cycle of the AC input, the rectifier allows current to pass through the load in the normal direction. During the negative half-cycle, the rectifier reverses the direction of the current so that it still flows through the load in the same direction. As aresult, both halves of the AC waveform contribute to the output, making the rectification process more efficient than that of a half-wave rectifier, which uses only one half of the input signal. Compared to a half-wave rectifier, a full-wave rectifier offers several advantages. It has a higher average output voltage, better transformer utilization, and greater conversion efficiency. Since both halves of the AC waveform are used, the output contains less ripple and provides a smoother DC signal. This reduced ripple makes filtering easier and improves the performance of electronic devices powered by the rectifier. 1.3. Advantages A full-wave rectifier offers several advantages over a half-wave rectifier. Since it uses both halves of the AC input waveform, it achieves a much higher rectification efficiency. This means a greater portion of the input power is converted into useful DC output power. Another significant advantage is the lower ripple factor. The output waveform is smoother because current flows through the load during both half-cycles of the input signal. As a result, less filtering is required to obtain a steady DC voltage. Full-wave rectifiers also provide a higher average output voltage and better transformer utilization. These characteristics improve the overall performance and reliability of power supply circuits. Due to their efficiency and superior output quality, they are preferred in most practical electronic and electrical applications. CHAPTER-2 CIRCUIT DIAGRAM 1, Center-Tapped Full-Wave Rectifier 2. Bridge Rectifier A.C. Supply For Bridge Rectifier 1.Step-Down Transformer (230 V AC / 12 V AC) - Used to reduce the mains AC voltage to a lower and safer value. 2.PN Junction Diodes (1N4007) - 4 Nos. โ Connected ina bridge configuration to perform full-wave rectification. 3.Load Resistor (RL) - 1 kQ or suitable value - Used as the output load. 4. Filter Capacitor (Optional) - Used to smooth the pulsating DC output and reduce ripple. 5. Breadboard or Circuit Board - For assembling the circuit. 6.Connecting Wires โ For making electrical connections. 7.AC Power Supply - To energize the transformer. 8. Digital Multimeter (DMM) - For measuring input and output voltages. 9. Cathode Ray Oscilloscope (CRO) / Digital Oscilloscope โ For observing input and output waveforms. 10. Switch and Fuse (Optional) - For circuit protection and safe operation. CHAPTER-4 MATERIAL DESCRIPTION 1. Transformer A transformer is an electrical device used to transfer electrical energy from one circuit to another through electromagnetic induction. It is commonly used to increase or decrease the voltage of an alternating current (AC) supply. In the bridge rectifier circuit, a step-down transformer is used to reduce the high mains voltage of 230 VAC toa lower voltage, usually 12 V AC, which is suitable for laboratory experiments and electronic circuits. A transformer consists of two coils called the primary winding and secondary winding, wound around a soft iron core. When AC voltage is applied to the primary winding, it produces a changing magnetic field in the core. This changing magnetic field induces an AC voltage in the secondary winding. The voltage obtained at the secondary winding depends on the number of turns in the two windings. 2. Diodes (1N4007) A diode is a semiconductor device that allows electric current to flow in only one direction and blocks it in the opposite direction. It is made by joining p-type and n-type semiconductor materials to form a p-n junction. Diodes are widely used in rectifier circuits to convert alternating current (AC) into direct current (DC). In a bridge rectifier circuit, four 1N4007 diodes are connected ina bridge arrangement. During the positive half-cycle of the AC input, two diodes conduct current while the other two remain non- conducting. During the negative half-cycle, the conducting and non- conducting diodes interchange their roles. As a result, current flows through the load resistor in the same direction during both half- cycles of the input AC signal. CHAPTER-5 METHODOLOGY The methodology of this project is based on the study and construction of a Bridge Rectifier, which is used to convert alternating current (AC) into direct current (DC). Since most electronic devices require DC power for their operation, rectification is an important process in electronic circuits. This project demonstrates how a bridge rectifier utilizes both halves of the AC input waveform to produce a pulsating DC output. The experiment begins with a step-down transformer, which reduces the mains voltage of 230 V AC to a lower voltage, typically 12 V AC. This lower voltage is safer for laboratory experiments and suitable for the operation of the rectifier circuit. The AC output from the transformer is then supplied to the bridge rectifier circuit. The bridge rectifier consists of four PN junction diodes (1N4007) connected in a bridge configuration. These diodes are arranged in such a way that current flows through the load resistor in the same direction during both the positive and negative half-cycles of the AC input signal. During the positive half-cycle, one pair of diodes conducts while the other pair remains reverse-biased. During the negative half-cycle, the conducting and non-conducting pairs interchange their roles. Thus, both halves of the AC waveform are utilized, resulting in a full-wave rectified output. CHAPTER-6 RESULTS The full-wave rectifier successfully converted the alternating current (AC) input into pulsating direct current (DC). Both the positive and negative halves of the AC signal were rectified, giving a higher average DC output than a half-wave rectifier. The output was more continuous and showed fewer gaps between pulses. When a filter capacitor was connected, the ripple in the output decreased, making the DC smoother and more stable. Overall, the results confirmed that the full- wave rectifier is efficient and provides a better-quality DC output. CHAPTER-8 DISCUSSION AND FUTURE OUTCOMES Discussion 1.The full-wave rectifier was able to utilize both halves of the AC input, making it more efficient than a half-wave rectifier. 2.The output obtained was smoother and had a higher average DC value. 3.The addition of a filter capacitor significantly reduced ripple, showing the importance of filtering in power supplies. 4.The experiment demonstrated the practical use of diodes and transformers in converting AC to DC. 5. Overall performance matched theoretical expectations, confirming the reliability of full-wave rectification in electronic circuits. Future Outcomes 1.The circuit can be improved by adding better filters (like LC or RC filters) for smoother DC output. 2.A voltage regulator can be added to maintain a constant DC output. 3.The rectifier can be upgraded to handle higher power for real- world applications. 4.This project can be extended to design a complete DC power supply unit. 5.Learning from this experiment helps in building more advanced circuits like chargers, adaptors, and converters. CHAPTER-10 HARDWARE IMPLEMENTATION The hardware implementation of the full-wave rectifier involves assembling the required electronic components on a breadboard or PCB. A step-down transformer is first used to reduce the AC mains voltage to a safer low voltage. Diodes are then connected either ina center-tapped configuration (two diodes) or in a bridge configuration (four diodes) to rectify both halves of the AC signal. A load resistor is connected across the output to observe the rectified DC voltage. A filter capacitor may also be added to smooth the pulsating DC and reduce ripple. After assembling the circuit, the AC supply is applied, and the output is measured using a multimeter. The hardware setup clearly demonstrates how the full-wave rectifier converts AC into a more stable DC output. CHAPTER-11 REFERENCE References 1. Principles of Electronics - for basic theory of rectifiers and electronic components. 2. Basic Electronics - for detailed explanation of rectifier circuits and waveforms. 3. Electronic Devices and Circuits โ for understanding diode characteristics and rectification concepts. 4. NCERT Class 12 Physics Textbook โ Semiconductor Electronics chapter for rectification basics. 5. Classroom notes and teacher-provided materials for experimental procedures and observations
