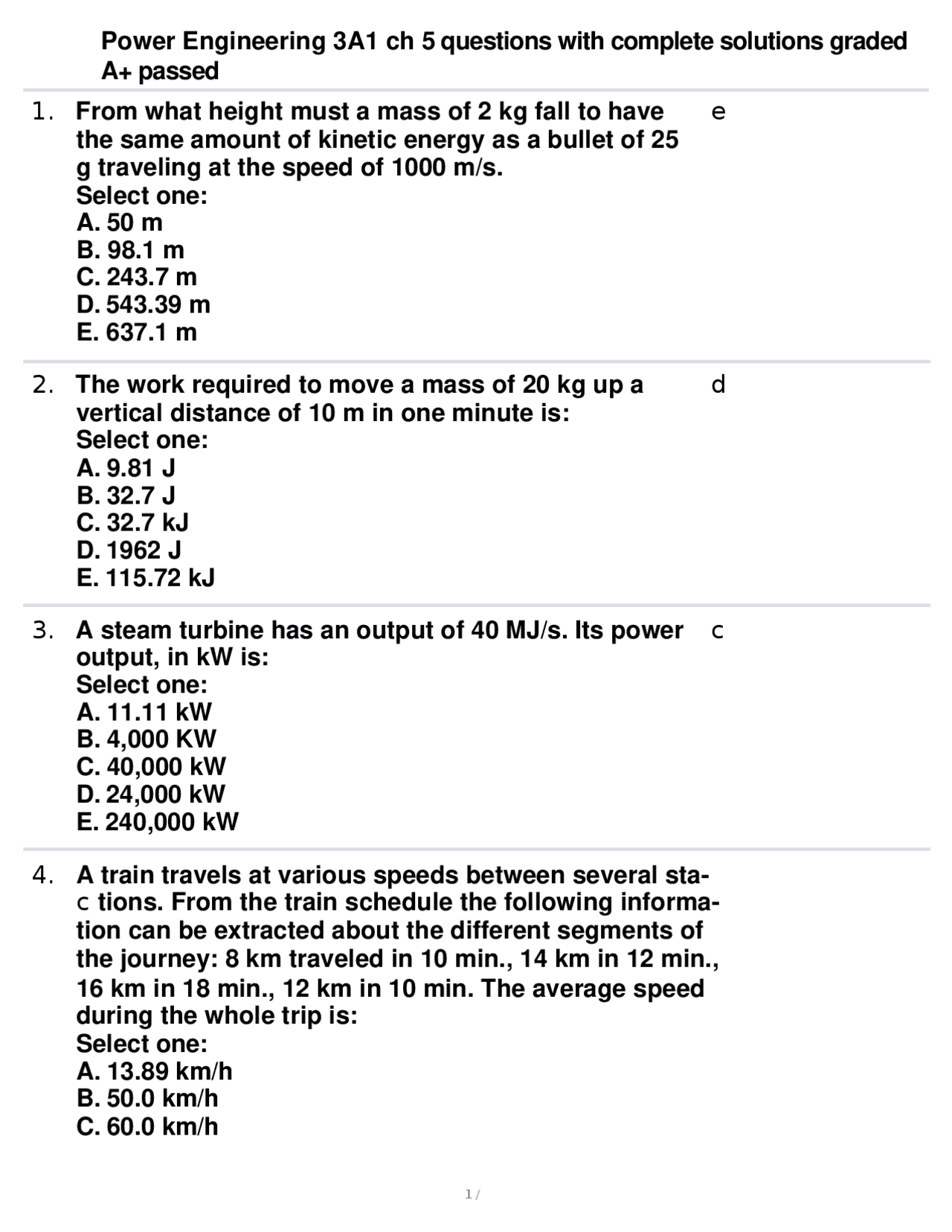

Power Engineering 3A1 ch
5 questions with complete solutions graded
A+ passed
1 /
6
1. From what height must a mass of 2 kg fall to have e
the same amount of kinetic energy as a bullet of 25
g traveling at the speed of 1000 m/s.
Select one:
A. 50 m
B. 98.1 m
C. 243.7 m
D. 543.39 m
E. 637.1 m
2. The work required to move a mass of 20 kg up a d
vertical distance of 10 m in one minute is:
Select one:
A. 9.81 J
B. 32.7 J
C. 32.7 kJ
D. 1962 J
E. 115.72 kJ
3. A steam turbine has an output of 40 MJ/s. Its power c
output, in kW is:
Select one:
A. 11.11 kW
B. 4,000 KW
C. 40,000 kW
D. 24,000 kW
E. 240,000 kW
4. A train travels at various speeds between several sta-
c tions. From the train schedule the following informa-
tion can be extracted about the different segments of
the journey: 8 km traveled in 10 min., 14 km in 12 min.,
16 km in 18 min., 12 km in 10 min. The average speed
during the whole trip is:
Select one:
A. 13.89 km/h
B. 50.0 km/h
C. 60.0 km/h
pf3
pf4
pf5

Partial preview of the text

Download Power Engineering: Energy and Work Problems with Solutions and more Exams Engineering in PDF only on Docsity!

A+ passed 1 /

  1. From what height must a mass of 2 kg fall to have e the same amount of kinetic energy as a bullet of 25 g traveling at the speed of 1000 m/s. Select one: A. 50 m B. 98.1 m C. 243.7 m D. 543.39 m E. 637.1 m
  2. The work required to move a mass of 20 kg up a d vertical distance of 10 m in one minute is: Select one: A. 9.81 J B. 32.7 J C. 32.7 kJ D. 1962 J E. 115.72 kJ
  3. A steam turbine has an output of 40 MJ/s. Its power c output, in kW is: Select one: A. 11.11 kW B. 4,000 KW C. 40,000 kW D. 24,000 kW E. 240,000 kW
  4. A train travels at various speeds between several sta- c tions. From the train schedule the following informa- tion can be extracted about the different segments of the journey: 8 km traveled in 10 min., 14 km in 12 min., 16 km in 18 min., 12 km in 10 min. The average speed during the whole trip is: Select one: A. 13.89 km/h B. 50.0 km/h C. 60.0 km/h

A+ passed 2 / D. 72.0 km/h E. 100.0 km/h

  1. By definition, the result of a force moving through a c distance is: Select one: A. Power B. Acceleration C. Work D. Moment of force E. Velocity
  2. As the acceleration due to gravity is a known con- c stant, the final velocity of a falling body may be found by the formula: Select one: A. v = u² + 2as² B. v = u + v/ C. v = u + at D. v = u²+ 2as E. v = ut + ½at²
  3. A word that refers to the change in the position of a b body, relative to some reference point is: Select one: A. Magnitude B. Displacement C. Direction D. Distance E. Velocity
  4. The kinetic energy of a 1000 kg automobile travelling c at 60 km/h is: Select one: A. 16.67 kJ B. 60 kJ C. 138.8 kJ D. 60 000 kJ E. None of the above

A+ passed 4 / B. Speed multiplied by time C. A scalar quantity D. Acceleration divided by time E. Velocity divided by time

  1. In order to calculate the power in watts required to lift a a 25 kg concrete block to a height of 40 m, you would also need to know the: Select one: A. Time in seconds B. Specific gravity of concrete C. Mass-to-height ratio D. Atmospheric pressure E. Volume and density of the block
  2. An airplane travels 1000 km eastwards for 2 hours. Its b average speed in m/s is: Select one: A. 69.44 m/s B. 138.89 m/s C. 500 m/s D. 1000 m/s E. 3600 m/s
  3. Average velocity is determined by: c Select one: A. V(ave) = v/ B. V(ave) = u + 2a s² C. V(ave) = (u + v)/ D. V(ave) = u - at E. V(ave) = ut + 1/2 a t²
  4. The hammer of a pile driver has a mass of 3000 kg. b It falls through a height of 9 m. The hammer's kinetic energy just before impact is: Select one: A. 27.0 kJ B. 264.87 kJ C. 27,000 kJ

A+ passed 5 /

D. 243,000 J

E. None of the above

  1. The power required to drive a pump which has an d output of 15 kW and an efficiency of 90% is: Select one: A. 10.0 kW B. 13.5 kW C. 15.0 kW D. 16.67 kW E. 17.5 kW
  2. In a speed test, a car traveling at 40 km/h increases its b velocity uniformly for 4 seconds, while traveling the controlled distance of 100 m. Its acceleration in m/s² is: Select one: A. 25 m/s² B. 6.945 m/s² C. 4.45 m/s² D. 2.8 m/s² E. 111.15 m/s²
  3. Acceleration is: b Select one: A. The increase of the displacement of a body B. A body's rate of change of velocity C. Expressed usually as km/h D. The rate of change of time E. The increase of the velocity of a body
  4. A motorcycle traveling at 30 km/h increases its veloci- c ty uniformly to 110 km/h in the time of 5 seconds, while travelling the distance of 97.2 m. Its acceleration in m/s² is: Select one: A. 16 B. 7. C. 4.
