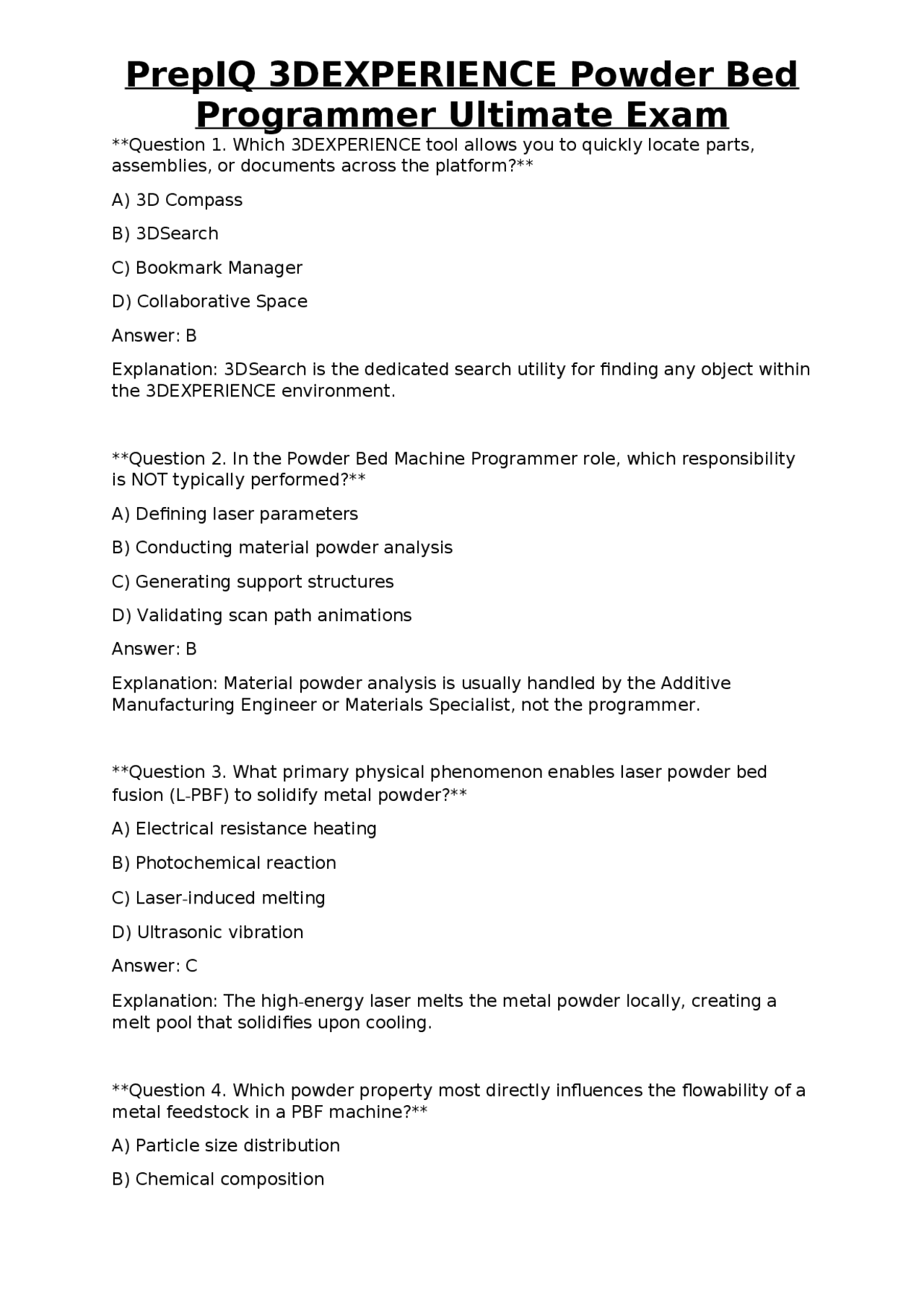

Programmer Ultimate Exam
Question 1. Which 3DEXPERIENCE tool allows you to quickly locate parts, assemblies, or documents across the platform? A) 3D Compass B) 3DSearch C) Bookmark Manager D) Collaborative Space Answer: B Explanation: 3DSearch is the dedicated search utility for finding any object within the 3DEXPERIENCE environment. Question 2. In the Powder Bed Machine Programmer role, which responsibility is NOT typically performed? A) Defining laser parameters B) Conducting material powder analysis C) Generating support structures D) Validating scan path animations Answer: B Explanation: Material powder analysis is usually handled by the Additive Manufacturing Engineer or Materials Specialist, not the programmer. Question 3. What primary physical phenomenon enables laser powder bed fusion (L-PBF) to solidify metal powder? A) Electrical resistance heating B) Photochemical reaction C) Laser-induced melting D) Ultrasonic vibration Answer: C Explanation: The high-energy laser melts the metal powder locally, creating a melt pool that solidifies upon cooling. Question 4. Which powder property most directly influences the flowability of a metal feedstock in a PBF machine? A) Particle size distribution B) Chemical composition
Programmer Ultimate Exam
C) Thermal conductivity D) Magnetic permeability Answer: A Explanation: Uniform and appropriate particle size distribution reduces inter-particle friction, improving flowability. Question 5. When configuring a machine from the library, which parameter defines the maximum allowable part height? A) Laser power B) Build volume Z-axis dimension C) Hatch spacing D) Gas flow rate Answer: B Explanation: The Z-axis dimension of the build volume sets the tallest part that can be printed. Question 6. In a virtual manufacturing cell, the term “build tray” refers to: A) The software module for slicing B) The physical plate that holds powder during printing C) The data file containing support geometry D) The user-defined workspace for part nesting Answer: B Explanation: The build tray is the real hardware component where the powder bed is formed and parts are built. Question 7. Which resource must be defined before assigning laser power in a PBF program? A) Powder reuse count B) Gas composition C) Machine-specific power limits D) Part color code Answer: C
Programmer Ultimate Exam
A) Thin walls B) Large flat overhangs C) Fine lattice structures D) Internal cavities Answer: B Explanation: Block supports provide a solid foundation for extensive flat overhangs, reducing sagging. Question 12. Point supports are primarily used to: A) Reduce thermal gradients B) Provide minimal contact for delicate features C) Fill large voids within the part D) Accelerate powder recoating Answer: B Explanation: Point supports contact the part at discrete locations, minimizing material usage and post-processing effort for delicate features. Question 13. Which parameter controls the size of perforations in a volume support? A) Support density B) Perforation diameter C) Tooth height D) Fragmentation angle Answer: B Explanation: Perforation diameter directly sets the hole size, influencing removal ease and powder flow. Question 14. When manually editing supports, the “tooth-top geometry” setting affects: A) The color of the support in the preview B) The contact area between support and part C) The laser power required for support melting D) The powder reuse factor
Programmer Ultimate Exam
Answer: B Explanation: Tooth-top geometry defines the shape of the support tip that contacts the part, impacting removal force. Question 15. Heat-sink supports differ from regular supports because they are designed to: A) Increase build speed B) Conduct heat away from critical features C) Reduce powder consumption D) Replace internal lattice structures Answer: B Explanation: Heat-sink supports are strategically placed to improve thermal dissipation, reducing warping and residual stress. Question 16. In slicing, a layer thickness of 30 μm will generally result in: A) Faster build time but rougher surface finish B) Slower build time but finer surface detail C) No impact on build time D) Increased powder consumption only Answer: B Explanation: Thinner layers increase the number of slices, extending build time while improving surface resolution. Question 17. Which hatching pattern is most effective at reducing residual tensile stress in cubic parts? A) Horizontal stripes only B) Checkerboard C) Spiral outward from center D) Randomized lines Answer: B Explanation: Checkerboard hatching alternates scan directions, balancing thermal gradients and minimizing tensile stress.
Programmer Ultimate Exam
D) Powder particle size distribution Answer: B Explanation: Visualizing the path helps identify unnecessary jumps or overlaps that could be optimized. Question 22. Geometric rework in the programming stage may involve: A) Changing the part’s color in the CAD model B. Adding escape holes to reduce powder entrapment C. Modifying machine firmware D. Updating the user’s login credentials Answer: B Explanation: Adding features like escape holes can improve powder removal without altering the original design intent. Question 23. Which file format is commonly used for Siemens-based PBF machines? A) .sli B) .stl C) .cl D) .obj Answer: A Explanation: Siemens machines typically accept .sli (Sintering Language) files containing laser instructions. Question 24. A manufacturing report generated after programming should include all EXCEPT: A) Estimated build time B) Powder reuse count C) Operator’s personal email address D) Support volume statistics Answer: C Explanation: Personal contact information is not required for traceability or quality documentation.
Programmer Ultimate Exam
Question 25. IP protection in 3DEXPERIENCE is managed through: A) Password-protected PDFs only B) Data permissions and access rights on files C) Encryption of the laser power settings D) Disabling the 3DSearch function Answer: B Explanation: Permissions control who can view, edit, or export manufacturing files, safeguarding intellectual property. Question 26. The 3D Compass in 3DEXPERIENCE provides: A) Real-time laser power monitoring B) Navigation through the hierarchical structure of projects and objects C) Automatic support generation D) Powder particle size analysis Answer: B Explanation: 3D Compass is the navigation pane that lets users browse projects, folders, and data objects. Question 27. Which collaborative space feature helps multiple engineers work on the same build program simultaneously? A) Version locking B) Real-time co-editing C) Offline rendering D) Single-user checkout only Answer: B Explanation: Real-time co-editing enables concurrent modifications while maintaining data integrity. Question 28. Gas flow rate in an EB-PBF machine primarily influences: A) Laser wavelength B) Powder spread uniformity and electron beam stability
Programmer Ultimate Exam
Explanation: Point supports provide discrete contact points, reducing material usage for slender features. Question 32. The “fragmentation” control in support generation affects: A) The color of the support in the preview B) The number of separate support islands created C) The laser pulse frequency D) The powder recycling ratio Answer: B Explanation: Fragmentation splits large support structures into smaller pieces, facilitating removal. Question 33. In the context of PBF, “stair-stepping” is a visual artifact caused by: A) Incorrect powder composition B) Layer thickness being too large relative to part slope C) Excessive laser power D) Insufficient gas flow Answer: B Explanation: Large layer heights on inclined surfaces produce a stepped appearance, known as stair-stepping. Question 34. Which of the following is NOT a typical parameter in the “Technology” tab when defining a machine? A) Laser wavelength B) Build plate material C) Powder particle shape D) Maximum chamber pressure Answer: C Explanation: Powder particle shape is a material property, not a machine technology setting. Question 35. When assigning a build plate, the “substrate type” influences:
Programmer Ultimate Exam
A) The color of the finished part B) The adhesion behavior of the first layer C) The laser scan speed automatically D) The number of support structures generated Answer: B Explanation: Different substrates (e.g., steel, ceramic) affect how well the melt pool adheres during the initial layers. Question 36. A “contour” scan in slicing is used to: A) Fill the interior of the part with dense material B) Define the outermost perimeter of each layer C) Create internal lattice structures D) Cool the part between layers Answer: B Explanation: Contour scans trace the part’s outer boundary, establishing the surface geometry. Question 37. Which scanning strategy is most effective for reducing warping in tall, slender parts? A) Single direction horizontal stripes B) Alternating stripe direction each layer C) Randomized hatch angles D) No scanning; use only supports Answer: B Explanation: Alternating stripe direction balances thermal gradients, mitigating warping in tall parts. Question 38. The “up-skin” parameter determines: A) The number of solid layers on the top surface of the part B) The laser power for the final layer only C) The density of powder on the build tray D) The support density beneath the part’s roof Answer: A
Programmer Ultimate Exam
A) Faster build time due to fewer scan lines B) Better heat dissipation for large overhangs C) Reduced material usage for complex geometries D) Increased structural rigidity during printing Answer: C Explanation: Volume supports can conform to intricate shapes, using less material than bulky block supports. Question 43. When defining “laser power” for a new alloy, the programmer should first consult: A) The machine’s default preset values B) The alloy’s recommended energy density range C) The last build’s power setting D) The operator’s personal preference Answer: B Explanation: Energy density (power × exposure time / area) guides appropriate power selection for a specific alloy. Question 44. The “perforation” feature in support generation is primarily intended to: A) Increase support strength B) Allow powder to flow through the support during recoating C) Change the color of the support in the visualization D. Reduce laser power requirements Answer: B Explanation: Perforations create channels for powder to pass, preventing accumulation and facilitating recoating. Question 45. Which slicing parameter directly impacts the number of laser “turn-on/off” cycles? A) Layer thickness B) Hatch spacing C) Contour count per layer
Programmer Ultimate Exam
D) Support density Answer: C Explanation: More contours increase the number of distinct laser activation events per layer. Question 46. In the 3DEXPERIENCE platform, a “bookmark” is used to: A) Save a specific view or state of a program for quick access B) Store powder batch certificates C. Lock a part file for editing D. Export the build file to external software Answer: A Explanation: Bookmarks capture a particular navigation or configuration snapshot for later retrieval. Question 47. The “gas composition” in an EB-PBF chamber is typically: A) Pure oxygen B) Argon with a small percentage of hydrogen C) Nitrogen only D. Vacuum with no gas Answer: B Explanation: Argon provides an inert atmosphere, and a trace of hydrogen can improve beam stability. Question 48. Which of the following is a key indicator that a part orientation is sub-optimal? A) Minimal support volume B) Low estimated build time C) Large number of overhangs exceeding 45° D. Uniform powder distribution Answer: C Explanation: Excessive steep overhangs suggest the part is not oriented for optimal support reduction.
Programmer Ultimate Exam
D. Laser power ÷ (Layer thickness × Hatch spacing) Answer: D Explanation: Energy density (J/mm³) = Power / (Layer thickness × Hatch spacing × Scan speed), but the simplified common form is Power ÷ (Layer thickness × Hatch spacing). Question 53. Which of the following actions would most directly reduce powder waste caused by supports? A) Increase layer thickness B) Use point supports instead of block supports where possible C) Raise laser power D) Decrease gas flow rate Answer: B Explanation: Point supports use less material than bulkier block supports, thereby decreasing powder waste. Question 54. The “contour offset” parameter in slicing determines: A) The distance between the outermost contour and the actual part surface B) The laser power for the contour scan C) The number of support towers generated D. The powder particle size distribution Answer: A Explanation: Contour offset sets how far the scan path is placed from the nominal surface, influencing dimensional accuracy. Question 55. Which of the following is a primary reason to perform a “laser path animation” before exporting the build file? A) To verify the correct file extension is used B) To identify any unnecessary laser travel that could increase build time C. To adjust the powder composition automatically D. To change the machine’s firmware version Answer: B Explanation: Animation reveals inefficient movements, allowing the programmer to streamline the path.
Programmer Ultimate Exam
Question 56. In 3DEXPERIENCE, the “Collaborative Space” feature primarily facilitates: A) Real-time data sharing and version control among team members B) Automatic powder analysis C. Laser calibration routines D. Machine hardware diagnostics Answer: A Explanation: Collaborative Spaces enable multiple users to work on the same project with controlled versioning. Question 57. Which parameter is most critical when programming a new titanium alloy for L-PBF? A) Laser wavelength B) Energy density (J/mm³) C) Powder color D) Build plate temperature only Answer: B Explanation: Titanium alloys require precise energy density to achieve full density without excessive evaporation. Question 58. The “support density” setting influences: A) The color of the support in the preview only B) The amount of material used for supports and their removal difficulty C. The laser spot size automatically D. The gas flow speed inside the chamber Answer: B Explanation: Higher support density creates more material, increasing removal effort and powder consumption. Question 59. Which of the following is NOT a typical outcome of using a “checkerboard” hatching strategy? A) Reduced residual stress
Programmer Ultimate Exam
Explanation: Reuse count tracks how many cycles a powder batch has undergone, prompting testing or disposal. Question 63. To minimize distortion in a large flat plate, the programmer should consider: A) Increasing hatch spacing dramatically B) Using a spiral scanning pattern to equalize heat input C. Printing the plate upside down D. Removing all supports from the underside Answer: B Explanation: Spiral scanning distributes heat more uniformly across large surfaces, reducing warping. Question 64. Which of the following is a direct benefit of using “automated support generation” rules? A) Guarantees zero post-processing effort B) Speeds up the programming workflow while ensuring consistent support quality C. Eliminates the need for any manual support editing D. Reduces laser power requirements automatically Answer: B Explanation: Automated rules quickly produce baseline supports, improving efficiency while maintaining standards. Question 65. In the context of PBF, “powder bed temperature” is most critical for which material class? A) Aluminum alloys B) High-temperature nickel superalloys C. Polymers D. Low-melting point steels Answer: B Explanation: Nickel superalloys require precise pre-heat temperatures to avoid cracking and ensure proper melt pool behavior.
Programmer Ultimate Exam
Question 66. The “layer count” displayed after slicing is calculated by: A) Dividing part height by layer thickness and rounding up B. Multiplying laser power by scan speed C. Adding the number of supports to the number of contours D. Counting the number of support points only Answer: A Explanation: Total layers = part height / layer thickness (rounded up to the next whole number). Question 67. Which of the following support design considerations helps reduce the “sticking” of supports to the part surface? A) Increasing support density to maximum B) Using a small contact area (e.g., point supports) and adding a separation gap C. Aligning supports parallel to the laser scan direction D. Printing supports with a higher laser power than the part Answer: B Explanation: Small contact areas and a deliberate gap make support removal easier and reduce bonding. Question 68. When exporting to a .cl file, the programmer must ensure: A) The file includes color information for the part B) The correct machine configuration (e.g., laser count) is embedded C. The file size is less than 1 MB D. The file contains the original CAD assembly hierarchy Answer: B Explanation: .cl files are machine-specific and must contain the appropriate configuration data for successful execution. Question 69. The “recoater speed” parameter influences: A) The laser’s pulse frequency B) The time required to spread each powder layer and potential disturbance of delicate features C. The powder particle size distribution
