Ultimate Exam

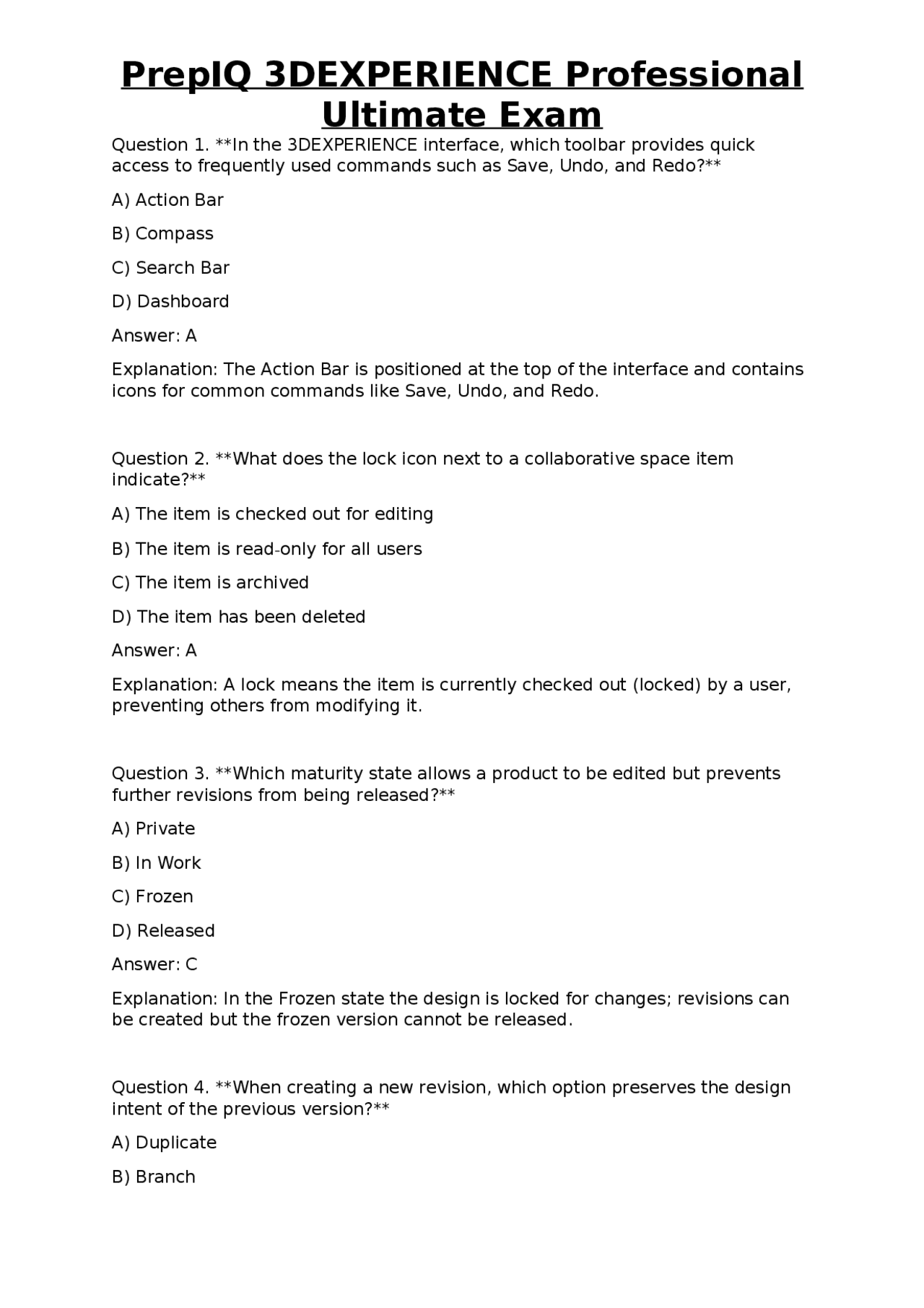

Question 1. In the 3DEXPERIENCE interface, which toolbar provides quick access to frequently used commands such as Save, Undo, and Redo? A) Action Bar B) Compass C) Search Bar D) Dashboard Answer: A Explanation: The Action Bar is positioned at the top of the interface and contains icons for common commands like Save, Undo, and Redo. Question 2. What does the lock icon next to a collaborative space item indicate? A) The item is checked out for editing B) The item is read-only for all users C) The item is archived D) The item has been deleted Answer: A Explanation: A lock means the item is currently checked out (locked) by a user, preventing others from modifying it. Question 3. Which maturity state allows a product to be edited but prevents further revisions from being released? A) Private B) In Work C) Frozen D) Released Answer: C Explanation: In the Frozen state the design is locked for changes; revisions can be created but the frozen version cannot be released. Question 4. When creating a new revision, which option preserves the design intent of the previous version? A) Duplicate B) Branch
Ultimate Exam
C) Overwrite D) Delete Answer: B Explanation: Branching creates a new line of development that retains the original design intent while allowing independent changes. Question 5. Which 3DSWYM feature enables real-time discussion of a specific part within a project? A) Community Feed B) Activity Stream C) Comment Thread on a Part D) Dashboard Widget Answer: C Explanation: Comment threads can be attached directly to a part, allowing team members to discuss that component in context. Question 6. In Sketcher, which constraint forces two lines to remain parallel regardless of other modifications? A) Coincident B) Concentric C) Parallel D) Tangent Answer: C Explanation: The Parallel constraint maintains a constant angle of zero degrees between the two selected lines. Question 7. What does the “Adaptive Sketch” option do when a sketch is placed on a face that later changes shape? A) It locks the sketch geometry permanently B) It automatically updates the sketch to follow the new face geometry C) It converts the sketch to a datum plane D) It disables the sketch until manually edited Answer: B
Ultimate Exam
Question 11. A rectangular pattern feature includes a “Direction 2” control. What does this control define? A) The spacing between instances in the first direction B) The total number of instances in the pattern C) The spacing and count in the second orthogonal direction D) The rotation angle of the pattern Answer: C Explanation: Direction 2 specifies the spacing and number of instances along the second axis of the pattern. Question 12. Which material property is automatically updated when the density of a material is changed in the model? A) Color B) Mass C) Texture D) Draft angle Answer: B Explanation: Mass is calculated from volume and density; changing density directly updates the part’s mass. Question 13. In an assembly, a “Rigid Sub-Assembly” behaves how? A) All its components can move independently B) The sub-assembly moves as a single solid body with no internal degrees of freedom C) It allows flexible mates within the sub-assembly only D) It automatically updates its constraints when components change Answer: B Explanation: A rigid sub-assembly is treated as a single solid entity; internal components do not move relative to each other. Question 14. What is the purpose of an “External Reference” (Xref) in a part file? A) To embed a copy of the referenced geometry permanently
Ultimate Exam
B) To link geometry from another part so that changes in the source update the dependent part automatically C) To create a backup of the part file D) To lock the part against any modifications Answer: B Explanation: Xrefs maintain a live link to the source geometry, ensuring that updates propagate to the dependent part. Question 15. During interference analysis, which result indicates a potential design issue? A) Zero clearance between mating faces B) Positive clearance values only C) Negative clearance (penetration) values D) No contact points detected Answer: C Explanation: Negative clearance means the bodies intersect, indicating interference that must be resolved. Question 16. A basic kinematic simulation in an assembly requires which type of constraint to define rotational motion? A) Coincident B) Parallel C) Revolute (or Pin) Mate D) Tangent Answer: C Explanation: Revolute mates allow one component to rotate around an axis relative to another component. Question 17. When generating a BOM, which attribute is typically used to calculate the total cost of the assembly? A Color B
Ultimate Exam
Question 20. Which operation would you use to remove a problematic region from a surface without affecting the surrounding geometry? A) Join B) Trim C) Thicken D) Offset Answer: B Explanation: Trim cuts away selected portions of a surface, leaving the rest unchanged. Question 21. The “Close Surface” command is primarily used for what purpose? A) Adding material thickness to a surface B) Converting an open surface into a watertight solid C) Creating a surface mesh for rendering D) Applying a texture to a surface Answer: B Explanation: Close Surface stitches edges together to form a sealed, solid-ready geometry. Question 22. **In sheet metal design, the K-Factor influences which calculation? ** A) Bend radius size B) Flat-pattern length of a bend C) Material thickness D) Draft angle Answer: B Explanation: K-Factor represents the position of the neutral axis within the material and is used to compute the developed length of a bend. Question 23. What is the effect of increasing the bend radius on a sheet metal part? A) It reduces material thickness B) It decreases the required K-Factor
Ultimate Exam
C) It reduces the risk of cracking during forming D) It automatically adds a draft angle Answer: C Explanation: A larger bend radius reduces strain on the material, lowering the likelihood of cracks during bending. Question 24. Which feature is used to create a hole that is automatically positioned relative to the nearest edge of a sheet metal wall? A) Blind Hole B) Counterbore C) Edge-Driven Hole D) Through Hole Answer: C Explanation: Edge-Driven Hole places the hole at a defined distance from the nearest edge, adapting to changes in the wall geometry. Question 25. When flattening a sheet metal part, which icon indicates that the model has a valid flat pattern? A) A broken chain link B) A green check mark C) A red X D) A yellow warning triangle Answer: B Explanation: The green check mark confirms that the part can be fully unfolded without errors. Question 26. In drafting, which view type automatically updates when the underlying 3D model is modified? A) Imported raster image B) Static 2D sketch C) Associative view D) Hand-drawn sketch Answer: C
Ultimate Exam
A) To apply textures and colors B) To define parametric rules, formulas, and checks that drive the component’s geometry C) To export the component to a neutral file format D) To create animation sequences Answer: B Explanation: The Knowledge Toolbar provides tools for creating parameters, formulas, and validation rules that control the component’s behavior. Question 31. **A PowerCopy feature is best described as which of the following? ** A) A 2D sketch replication tool B) A reusable 3D feature that can be inserted with parameter control into other parts C) A file-copy utility for project backup D) A rendering preset for visual styles Answer: B Explanation: PowerCopy captures a feature (or set of features) and allows it to be reused with editable parameters in other models. Question 32. When converting a standard fastener to a Smart Component, which attribute becomes editable by the end user? A) The fastener’s material only B) All geometry and key dimensions through exposed parameters C) Only the fastener’s color D) The file name of the component Answer: B Explanation: Smart Components expose parameters (e.g., length, thread size) that users can modify, updating geometry automatically. Question 33. Which of the following is NOT a valid reason to create a branch in the data lifecycle? A) To explore an alternative design concept without affecting the main line B) To correct a minor typo in a part name
Ultimate Exam
C) To develop a variant for a specific customer requirement D) To test a new material specification Answer: B Explanation: Minor name changes are better handled with a revision; branching is intended for substantial design divergence. Question 34. In the Compass navigation tool, clicking the “Home” icon performs which action? A) Returns the view to the default orientation and zoom level of the active document B) Opens the project’s home page in a browser C) Saves the current view as a bookmark D) Locks the current view for other users Answer: A Explanation: The Home icon resets the 3D view to the default orientation and zoom for the open document. Question 35. Which search filter would you use to locate all parts that are currently in the “Frozen” maturity state? A) Keyword: “Frozen” B) Status filter → Frozen C) Owner filter → Current user D) Date filter → Last week Answer: B Explanation: The Status filter lets you directly select items based on their maturity state, such as Frozen. Question 36. A “Lock/Unlock” status displayed as a padlock with a green check indicates what? A) The item is checked out by the current user and can be edited B) The item is read-only for all users C) The item is archived and cannot be restored D) The item has been deleted from the workspace Answer: A
Ultimate Exam
Question 40. Which social collaboration tool allows you to create a visual dashboard of key project metrics? A) 3DSWYM Community Feed B) Activity Stream C) Dashboard Builder D) Search Bar Answer: C Explanation: Dashboard Builder lets users assemble widgets showing metrics, timelines, and status indicators. Question 41. In Sketcher, the “Symmetry” constraint is applied between which entities? A) Two points only B) Two lines only C) Two sketches only D) A line or axis and a sketch entity, mirroring the entity across the line/axis Answer: D Explanation: Symmetry mirrors a selected entity across a chosen line or axis, maintaining equal distance on both sides. Question 42. When a sketch is fully constrained, what color does it typically display? A) Red B) Yellow C) Green D) Blue Answer: C Explanation: Fully constrained sketches turn green, indicating no degrees of freedom remain. Question 43. Which Boolean operation is equivalent to “Subtract” in many CAD systems? A) Add B) Remove
Ultimate Exam
C) Intersect D) Assemble Answer: B Explanation: Remove (or Subtract) deletes the volume of the second body from the first, creating a cavity. Question 44. A “Shell” operation applied to a solid part with a thickness of 5 mm will result in what? A) A solid block with increased mass B) A hollow part where walls are 5 mm thick, preserving external shape C) A surface model with no thickness D) A part that is completely removed Answer: B Explanation: Shell creates a uniform wall thickness (5 mm) by removing material from the interior while keeping the exterior geometry. Question 45. **In a rectangular pattern, what does the “Instances” field control? ** A) The total number of pattern repetitions in both directions combined B) The spacing between each copy C) The angle of rotation for each copy D) The direction vector of the pattern Answer: A Explanation: Instances defines how many copies are created across the defined pattern directions. Question 46. When assigning a material with a density of 7850 kg/m³ to a steel bracket, which property will automatically update? A) Color scheme B) Mass and weight based on the bracket’s volume C) Draft angle of flanges D) Number of faces in the model Answer: B
Ultimate Exam
Question 50. During a clearance check, a result of 0.02 mm is reported. How should this be interpreted? A) The parts are perfectly fitted with no clearance B) There is a 0.02 mm gap, which may be acceptable depending on tolerance requirements C) The parts are intersecting by 0.02 mm D) The analysis failed to run Answer: B Explanation: Positive clearance indicates a gap; 0.02 mm may be within acceptable manufacturing tolerances. Question 51. In a kinematic simulation, which tool defines the range of motion for a revolute joint? A) Motion Limits dialog B) Sketcher profile C) Material properties panel D) Draft analysis Answer: A Explanation: Motion Limits allow you to set minimum and maximum angles for a revolute joint. Question 52. When exporting a BOM to CSV, which column is essential for downstream ERP integration? A) Part color B) Unit price or cost code C) Sketch name D) View orientation Answer: B Explanation: ERP systems use the unit price (or cost code) to calculate purchase orders and inventory values. Question 53. Which wireframe element can be defined by three non-collinear points? A) Line
Ultimate Exam
B) Plane C) Helix D) Point Answer: B Explanation: A plane is uniquely defined by three points that are not on the same line. Question 54. A “Sweep” surface created with a circular profile and a linear guide results in which shape? A) Cylinder B) Cone C) Torus D) Helix Answer: A Explanation: Sweeping a circle along a straight line generates a cylindrical surface. Question 55. When performing a “Trim” operation on two intersecting surfaces, the result is: A) A single merged surface with no internal edges B) Two separate surfaces each missing the intersected portion C) A solid body automatically created D) An error if the surfaces are not planar Answer: B Explanation: Trim removes the intersecting region from each surface, leaving the remaining portions. Question 56. The “Thick Surface” feature requires which input to define the final solid? A) A material type B) Desired wall thickness value C) A color selection D) A draft angle
Ultimate Exam
Question 60. In drafting, which view type automatically displays hidden lines removed? A) Section view B) Hidden line removed (HLR) view C) Detail view D) Isometric view Answer: B Explanation: HLR view shows the model without hidden lines, improving clarity. Question 61. A “Leader” annotation is best used for which purpose? A) To attach a note to a specific geometry without a callout box B) To define a datum reference frame C) To create a dimension line D) To generate a section view automatically Answer: A Explanation: Leaders consist of a line and a text box, pointing to geometry for clarification. Question 62. When a drawing is set to “Associative” mode, what happens when the 3D model’s datum plane is moved? A) The drawing remains unchanged B) The associated view automatically updates to reflect the new datum plane position C) The drawing file crashes D) Only dimensions update, not geometry Answer: B Explanation: Associative mode keeps the view linked to the model, so any changes propagate. Question 63. Which Knowledge Toolbar function creates a rule that prevents a parameter from being set below a certain value? A) Formula editor
Ultimate Exam
B) Check rule (or Constraint) C) Parameter wizard D) Macro recorder Answer: B Explanation: Check rules enforce limits or conditions on parameters, issuing warnings or errors if violated. Question 64. A “User-Defined Feature” (UDF) differs from a PowerCopy in that: A) UDF can include logic and parameters, while PowerCopy is a simple geometry capture B) UDF is only for 2D sketches C) PowerCopy cannot be shared across projects D) UDF automatically creates a solid body Answer: A Explanation: UDFs can embed formulas, parameters, and conditional logic, whereas PowerCopy stores geometry without built-in intelligence. Question 65. Which of the following is a valid reason to lock a collaborative space item? A) To prevent any user from viewing the item B) To indicate that the item is under review and should not be modified until the lock is released C) To delete the item automatically after a set time D) To export the item as a PDF Answer: B Explanation: Locking signals that the item is being reviewed or edited and should not be altered by others. Question 66. In the Compass, which mouse action rotates the view around the center of the screen? A) Left-click drag B) Middle-click drag C) Right-click drag
