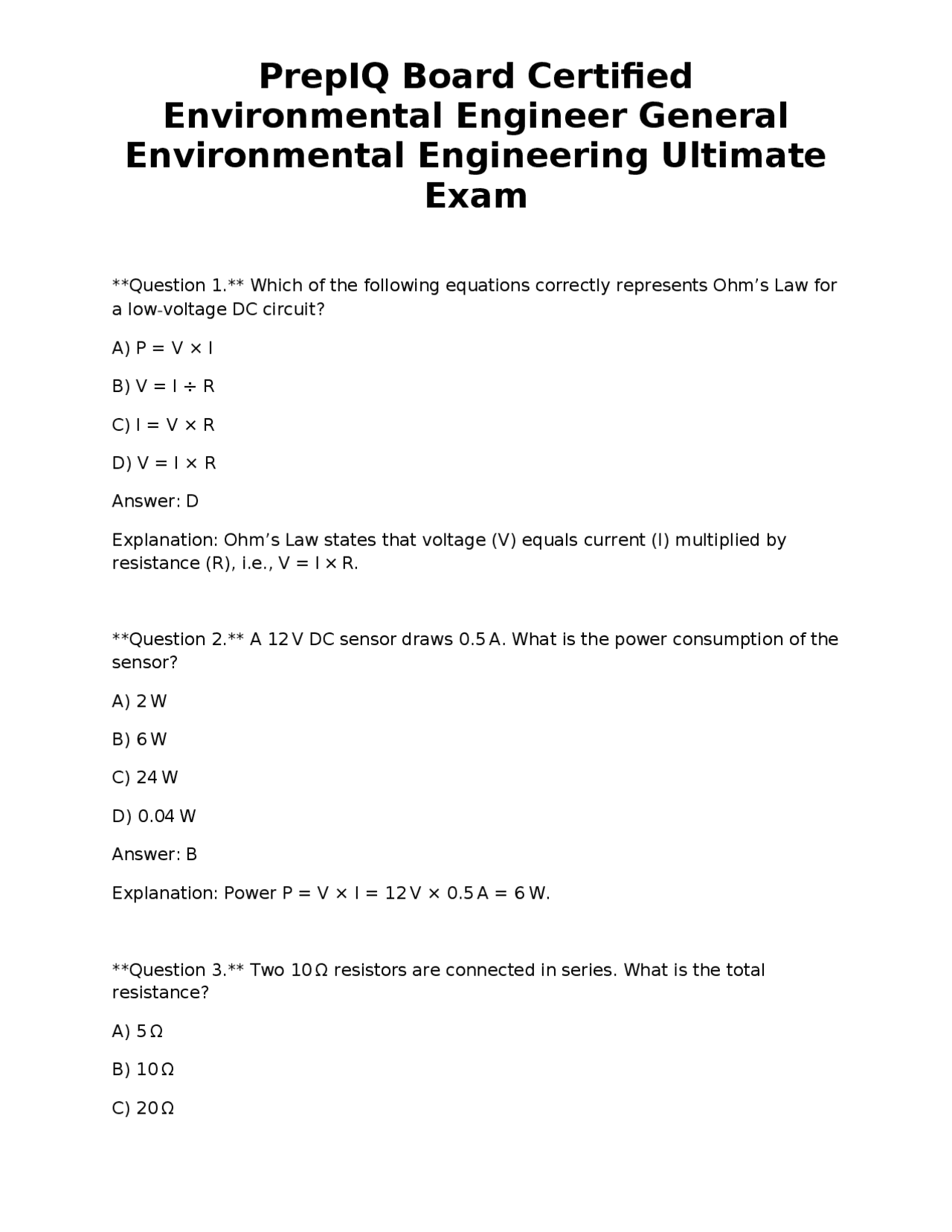

Environmental Engineer General
Environmental Engineering Ultimate
Exam
Question 1. Which of the following equations correctly represents Ohm’s Law for a low-voltage DC circuit? A) P = V × I B) V = I ÷ R C) I = V × R D) V = I × R Answer: D Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R), i.e., V = I × R. Question 2. A 12 V DC sensor draws 0.5 A. What is the power consumption of the sensor? A) 2 W B) 6 W C) 24 W D) 0.04 W Answer: B Explanation: Power P = V × I = 12 V × 0.5 A = 6 W. Question 3. Two 10 Ω resistors are connected in series. What is the total resistance? A) 5 Ω B) 10 Ω C) 20 Ω
Environmental Engineer General
Environmental Engineering Ultimate
Exam
D) 0 Ω
Answer: C Explanation: In series, resistances add: 10 Ω + 10 Ω = 20 Ω. Question 4. Two 10 Ω resistors are connected in parallel. What is the equivalent resistance? A) 5 Ω B) 10 Ω C) 20 Ω D) 0 Ω Answer: A Explanation: 1/R_eq = 1/10 + 1/10 = 2/10 → R_eq = 10/2 = 5 Ω. Question 5. A 120-ft run of 18-AWG copper wire supplies a 12 V sensor drawing 0.2 A. Which factor is most critical to check? A) Color of the insulation B) Voltage drop across the wire C) Number of conductors in the cable D) Whether the wire is plenum-rated Answer: B Explanation: Long low-voltage runs can suffer voltage drop; the installer must verify that the drop does not reduce the sensor’s voltage below its operating requirement.
Environmental Engineer General
Environmental Engineering Ultimate
Exam
C) Series connection of two identical loads D) Parallel connection of two identical loads Answer: B Explanation: Parallel power supplies share the same voltage but sum their current capacities. Question 9. When reading a floor plan, a “X” symbol with two arrows indicates what? A) Door contact B) Glass-break sensor C) Smoke detector D) Heat detector Answer: A Explanation: The “X” with arrows is the typical representation of a magnetic reed switch used on doors and windows. Question 10. A low-voltage alarm circuit uses a 24 V transformer. Which of the following is a permissible maximum voltage for a Class 2 circuit under NEC Article 725? A) 30 V B) 50 V C) 100 V D) 150 V Answer: A
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: Class 2 circuits are limited to 30 V rms (or 30 V dc) to reduce fire and shock hazards. Question 11. A PIR motion sensor is installed in a corridor with a ceiling height of 10 ft. Which mounting height provides optimal coverage? A) 2 ft above the floor B) 4 ft above the floor C) 6 ft above the floor D) 8 ft above the floor Answer: C Explanation: PIR sensors are most effective when mounted at roughly 6 ft, allowing the detection cone to cover the full height of a typical corridor. Question 12. Dual-technology motion sensors combine PIR with which other detection method? A) Ultrasonic B) Microwave (Doppler) C) Infrared temperature D) Acoustic Answer: B Explanation: Dual-technology sensors pair PIR with microwave (Doppler) to reduce false alarms.
Environmental Engineer General
Environmental Engineering Ultimate
Exam
C) The physical location of a battery bank D) The type of wiring conduit used Answer: B Explanation: A zone is a logical grouping of sensors or devices that are monitored together for alarm or trouble conditions. Question 16. In an alarm system, a “Normally Open” (N/O) loop will be triggered when which condition occurs? A) The circuit is broken B) The circuit is completed (closed) C) The power supply fails D) The control panel is reset Answer: B Explanation: An N/O loop is open during normal operation and closes (completes) when a sensor activates, causing a current flow that signals an alarm. Question 17. According to NFPA 72, what is the minimum sound pressure level (SPL) at 3 m for a fire alarm siren in a sleeping area? A) 65 dB B) 75 dB C) 85 dB D) 95 dB Answer: C
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: NFPA 72 requires a minimum of 85 dB SPL at 3 m for audible alarms in sleeping areas. Question 18. A strobe light used for visual notification must have a minimum flash rate of what value? A) 0.5 Hz B) 1 Hz C) 2 Hz D) 5 Hz Answer: B Explanation: NFPA 72 specifies a minimum flash rate of 1 Hz (one flash per second) for strobe devices. Question 19. Which type of fire alarm initiating device is most appropriate for detecting a rapid temperature rise in a kitchen? A) Smoke detector (photoelectric) B) Heat detector (rate-of-rise) C) Manual pull station D) Carbon monoxide detector Answer: B Explanation: Rate-of-rise heat detectors respond quickly to rapid temperature increases, making them suitable for kitchens.
Environmental Engineer General
Environmental Engineering Ultimate
Exam
B) To detect open or short circuits in device loops C) To provide remote access for users D) To reduce power consumption during standby Answer: B Explanation: Signal supervision monitors the integrity of the wiring loops, detecting open (cut) or shorted (ground fault) conditions. Question 23. Under NEC Article 725, Class 3 circuits are limited to a maximum voltage of: A) 30 V B) 50 V C) 100 V D) 150 V Answer: C Explanation: Class 3 circuits are limited to 100 V rms (or 120 V dc) per NEC Article 725. Question 24. Which NEC article governs the installation of fire alarm wiring methods? A) 300 B) 310 C) 760 D) 800 Answer: C
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: NEC Article 760 specifically addresses fire alarm systems, including wiring methods and power source limitations. Question 25. In NEC terminology, a “raceway” is defined as: A) A type of conduit that also serves as a grounding conductor B) Any enclosed channel designed to protect and route conductors C) Only a metal pipe used for high-voltage circuits D) A flexible cable used for outdoor installations Answer: B Explanation: A raceway is an enclosed channel—such as conduit, raceway, or cable tray—intended to protect and route electrical conductors. Question 26. Which type of cable is required for installation in a plenum space? A] THHN B] NM-B (Romex) C] PL-type (plenum-rated) D] UF-B Answer: C Explanation: Plenum spaces require cables with low smoke, low flame characteristics; PL-type (plenum-rated) cable meets this requirement. Question 27. What is the primary purpose of bonding in low-voltage alarm systems?
Environmental Engineer General
Environmental Engineering Ultimate
Exam
D) The local fire marshal only Answer: C Explanation: The TOR is the licensed professional who signs off on the design and installation, taking responsibility for code compliance. Question 30. Which document must be submitted to a Wyoming municipality before beginning an alarm system installation? A) Electrical Safety Data Sheet (ESDS) B) Permit application with detailed wiring diagrams C) Manufacturer’s warranty letter D) OSHA 10-hour training certificate Answer: B Explanation: Municipalities require a permit application that includes wiring diagrams and specifications to verify compliance before work can start. Question 31. OSHA requires that a ladder used for alarm system installation be placed on a stable surface with a maximum angle of: A) 45° B) 60° C) 75° D) 90° Answer: B
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: OSHA’s ladder safety standards recommend a 4:1 ratio, which translates to approximately a 75° angle; however, the maximum recommended angle for safe use is 60° to prevent tipping. Question 32. When handling lead-acid batteries for alarm backup power, which of the following practices is essential? A) Storing them in direct sunlight to keep them warm B) Wearing chemical-resistant gloves and eye protection C) Discharging them completely before storage D) Using a metal screwdriver to remove terminals Answer: B Explanation: Lead-acid batteries contain corrosive acid; proper PPE (gloves and eye protection) is required to prevent chemical burns. Question 33. The OSHA standard for fall protection requires a personal fall arrest system to be used when working at heights greater than: A) 4 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: OSHA mandates fall protection for work performed at heights of 6 ft or higher in general industry.
Environmental Engineer General
Environmental Engineering Ultimate
Exam
C) 24 in (60 cm) D) 36 in (90 cm) Answer: B Explanation: NEC 800.133 requires a minimum of 12 in separation between communication and power conductors to reduce interference. Question 37. Which of the following best describes a “Class 2” power-limited circuit? A) A circuit limited to 150 V and 10 A B) A circuit limited to 30 V and 5 A with a maximum power of 100 W C) A circuit limited to 50 V and 2 A only for lighting D) A circuit with no voltage limitation but limited to 2 A Answer: B Explanation: Class 2 circuits are limited to 30 V (rms) and 5 A, with a maximum power output of 100 W as defined by NEC. Question 38. In a dual-technology motion sensor, what is the primary advantage of requiring both PIR and microwave detection before triggering? A) Faster response time B) Lower power consumption C) Reduced false alarms caused by environmental factors D) Increased detection range Answer: C
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: Requiring concurrence of both technologies minimizes false alarms due to temperature changes, pets, or moving objects that might trigger only one sensor type. Question 39. A fire alarm control panel indicates a “trouble” condition on zone 3. Which of the following is the most likely cause? A) Battery is fully charged B) A device in zone 3 has been tampered with, opening the loop C) The panel is receiving a fire alarm signal D) The panel’s internal clock is out of sync Answer: B Explanation: “Trouble” typically signals a fault such as an open or short circuit; a tampered device that opens the loop would generate this condition. Question 40. Which of the following NEC articles specifically addresses the grounding of low-voltage signaling circuits? A) 250 B) 300 C) 725 D) 800 Answer: A Explanation: Article 250 covers grounding and bonding for all electrical systems, including low-voltage signaling circuits.
Environmental Engineer General
Environmental Engineering Ultimate
Exam
C) Must be the owner of the contracting firm D) Must complete a yearly refresher course on fire alarm codes only Answer: A Explanation: The TOR must be a licensed electrician with the requisite experience (typically 5 years) to sign off on installations. Question 44. In a low-voltage alarm system, why is a “pull-wire” used in conjunction with a magnetic reed switch on a door? A) To provide power to the switch B) To mechanically keep the contacts closed when the door is shut C) To amplify the signal to the control panel D) To act as a backup power source Answer: B Explanation: The pull-wire ensures the reed switch remains closed (contacts engaged) when the door is closed, preventing false alarms. Question 45. Which OSHA standard addresses the safe handling of lithium-ion batteries used for alarm system backup? A) 29 CFR 1910.1200 (Hazardous Materials) B) 29 CFR 1910.178 (Powered Industrial Trucks) C) 29 CFR 1910.305 (Electrical – General Requirements) D) 29 CFR 1910.331 (Electrical – Wiring Methods) Answer: A
Environmental Engineer General
Environmental Engineering Ultimate
Exam
Explanation: Lithium-ion batteries are considered hazardous materials; OSHA’s Hazard Communication Standard (1910.1200) covers labeling, handling, and training. Question 46. A fire alarm system requires a secondary power source that can sustain the system for 24 hours plus 5 minutes of alarm. If the system draws 1.2 A at 24 V, what minimum amp-hour (Ah) rating must the battery have? A) 24 Ah B) 30 Ah C) 36 Ah D) 48 Ah Answer: B Explanation: Energy needed = 24 V × 1.2 A × (24 h + 5 min/60) ≈ 24 V × 1.2 A × 24.083 h ≈ 693 Wh. At 24 V, Ah = Wh/V = 693/24 ≈ 28.9 Ah → round up to 30 Ah. Question 47. Under NEC Article 725, which of the following is prohibited for Class 1 circuits? A) Use of aluminum conductors B) Installation in conduit C) Use of power-limited devices D) Installation in residential dwellings Answer: C Explanation: Class 1 circuits are not power-limited; they can carry any voltage up to 600 V. Power-limited devices are reserved for Class 2 and Class 3 circuits.
