Developer Ultimate Exam

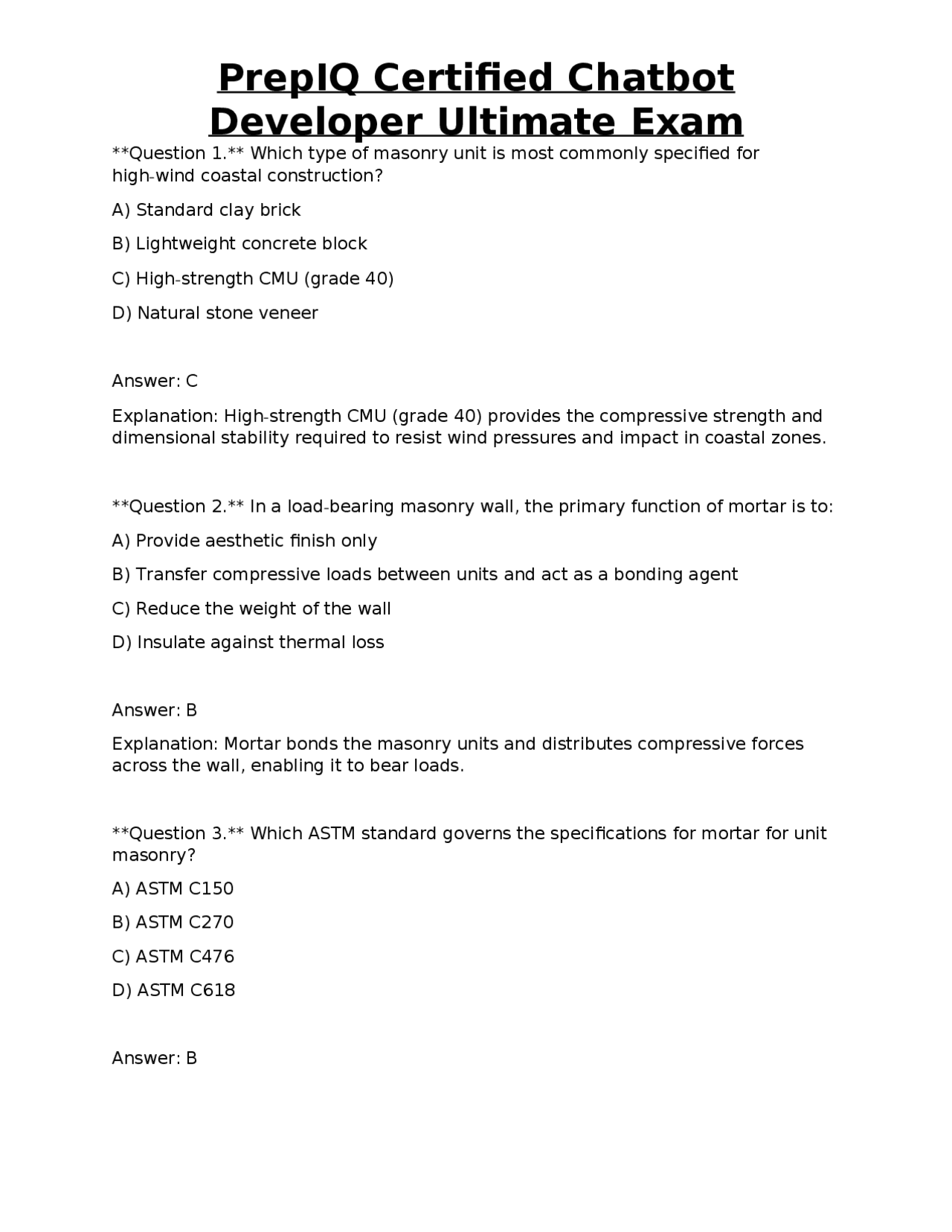

Question 1. Which type of masonry unit is most commonly specified for high-wind coastal construction? A) Standard clay brick B) Lightweight concrete block C) High-strength CMU (grade 40) D) Natural stone veneer Answer: C Explanation: High-strength CMU (grade 40) provides the compressive strength and dimensional stability required to resist wind pressures and impact in coastal zones. Question 2. In a load-bearing masonry wall, the primary function of mortar is to: A) Provide aesthetic finish only B) Transfer compressive loads between units and act as a bonding agent C) Reduce the weight of the wall D) Insulate against thermal loss Answer: B Explanation: Mortar bonds the masonry units and distributes compressive forces across the wall, enabling it to bear loads. Question 3. Which ASTM standard governs the specifications for mortar for unit masonry? A) ASTM C B) ASTM C C) ASTM C D) ASTM C Answer: B
Developer Ultimate Exam
Explanation: ASTM C270 outlines the requirements for mortar used in unit masonry, including composition and performance criteria. Question 4. A water-cement ratio of 0.45 in a mortar mix will most likely result in: A) Very high early strength but low durability B) Low workability and high shrinkage C) Balanced strength and durability with moderate workability D) Excessive bleeding and segregation Answer: C Explanation: A w/c ratio around 0.45 provides a good compromise between strength, durability, and workability for typical mortar applications. Question 5. When interpreting a set of structural drawings, the symbol “∏” most commonly denotes: A) A concrete footing B) A steel column C) A masonry lintel D) A pipe penetration Answer: A Explanation: The “∏” symbol is standard on many blueprints to represent a concrete footing. Question 6. To estimate the quantity of mortar required for a 500-ft² brick wall with a 3-in. mortar joint, you would primarily calculate: A) Wall volume multiplied by mortar density B) Number of bricks times mortar volume per joint C) Surface area of the wall divided by joint thickness D) Total length of mortar joints multiplied by joint cross-sectional area
Developer Ultimate Exam
C) Maximum dry density achievable at a given moisture content D) Soil permeability Answer: C Explanation: The Proctor test establishes the optimum moisture content and maximum dry density for soil compaction. Question 10. The minimum concrete cover required for #5 rebar in a coastal High-Velocity Hurricane Zone (HVHZ) according to ACI 318 is: A) 1 in. (25 mm) B) 1½ in. (38 mm) C) 2 in. (50 mm) D) 2½ in. (64 mm) Answer: C Explanation: ACI 318 mandates a minimum of 2 in. concrete cover for #5 rebar in severe exposure conditions such as HVHZ. Question 11. Which grade of Portland cement is best suited for rapid placement of concrete in cold weather? A) Type I B) Type II C) Type III D) Type V Answer: C Explanation: Type III cement has a higher early-strength rate, allowing faster placement and early load-bearing in cold conditions. Question 12. A “running bond” masonry pattern is characterized by:
Developer Ultimate Exam
A) Each course offset by half a unit width B) Vertically aligned joints in every course C) Alternating headers and stretchers in each course D) A diagonal arrangement of units Answer: A Explanation: In a running bond, each successive course is staggered by half the unit length, providing structural continuity. Question 13. The purpose of a “V-joint” in brickwork is to: A) Provide a decorative groove that sheds water B) Increase the wall’s compressive strength C) Reduce mortar usage D) Facilitate faster construction Answer: A Explanation: V-joints create a recessed groove that directs water away from the joint, improving durability. Question 14. When using epoxy-coated reinforcement in a marine environment, the primary benefit is: A) Increased ductility B) Reduced cost compared to galvanized steel C) Superior corrosion resistance in chloride-rich conditions D) Easier handling and installation Answer: C Explanation: Epoxy coating provides a barrier against chloride penetration, significantly enhancing corrosion resistance in marine settings.
Developer Ultimate Exam
Explanation: OSHA 29 CFR 1926.501 outlines fall protection requirements for construction sites. Question 18. A “low-lift” grout injection technique is typically used for: A) Filling large voids in structural footings B) Strengthening masonry columns C) Grouting beneath thin slabs where high pressure could cause uplift D) Anchoring steel reinforcement Answer: C Explanation: Low-lift grout applies lower pressure, minimizing the risk of lifting thin concrete slabs during injection. Question 19. When coordinating with the electrical trade for conduit installation in a concrete wall, the typical clearance required between conduit and reinforcement is: A) 1 in. (25 mm) B) 2 in. (50 mm) C) 3 in. (75 mm) D) No clearance required Answer: B Explanation: A 2-in. clearance prevents damage to conduit during concrete placement and allows proper concrete flow around reinforcement. Question 20. The primary function of a “stirrup” in reinforced concrete beams is to: A) Carry axial loads B) Resist shear forces C) Provide tensile reinforcement for flexure D) Anchor the beam to the foundation
Developer Ultimate Exam
Answer: B Explanation: Stirrups are closed-loop ties placed perpendicular to the beam axis to resist shear stresses. Question 21. A “stack bond” masonry pattern differs from a running bond because: A) Units are offset by half a unit width B) All vertical joints line up in each course C) It uses only header units D) It incorporates a diagonal pattern Answer: B Explanation: In a stack bond, each course is aligned directly above the previous, creating continuous vertical joints. Question 22. Which of the following aggregates is classified as “medium-weight”? A) Expanded shale B) Natural sand C) Perlite D) Lightweight pumice Answer: B Explanation: Natural sand has a specific gravity around 2.6, placing it in the medium-weight category. Question 23. The most appropriate method to protect freshly poured concrete from rapid drying in hot, windy conditions is: A) Apply a water-repellent sealant immediately B) Cover with wet burlap and plastic sheeting
Developer Ultimate Exam
A) 20 × bar diameter B) 30 × bar diameter C) 40 × bar diameter D) 50 × bar diameter Answer: B Explanation: ACI 318 requires a lap splice of at least 30 times the bar diameter for tension splices. Question 27. Which type of formwork material provides the highest reusability for repeated concrete pours? A) Plywood B) Steel C) Plastic D) Fiberglass Answer: B Explanation: Steel forms are durable, maintain dimensional accuracy, and can be reused many times without significant degradation. Question 28. The term “honeycombing” in concrete refers to: A) A decorative surface finish B) Air pockets and voids left after insufficient vibration C) A type of reinforcement layout D) The pattern of aggregate distribution Answer: B Explanation: Honeycombing is caused by inadequate consolidation, leaving voids that resemble a honeycomb.
Developer Ultimate Exam
Question 29. For a masonry wall subjected to seismic forces, the most effective reinforcement detail is: A) Horizontal joint reinforcement only B) Vertical reinforcement at each corner and at regular intervals C) No reinforcement; masonry alone is sufficient D) Reinforced concrete caps at the top Answer: B Explanation: Vertical reinforcement provides ductility and helps the wall resist lateral seismic loads. Question 30. Which of the following is a primary advantage of using Insulated Concrete Forms (ICF) for wall construction? A Answer: B Explanation: ICF walls combine structural concrete with continuous insulation, resulting in superior thermal performance and energy efficiency. Question 31. When estimating grout for a CMU wall with cells of 8 in. × 8 in. × 16 in., the volume of grout per cell is approximately: A) 0.055 ft³ B) 0.067 ft³ C) 0.083 ft³ D) 0.100 ft³ Answer: C Explanation: Convert cell dimensions to feet (0.667 ft × 0.667 ft × 1.333 ft) → volume ≈0.593 ft³ per cell; however only the void space (≈14 % of the cell) is filled, yielding ~0.083 ft³.
Developer Ultimate Exam
Question 35. In a concrete mix design, the purpose of adding an air-entraining admixture is to: A) Increase early strength B) Reduce water demand C) Improve freeze-thaw durability by creating microscopic air bubbles D) Accelerate setting time Answer: C Explanation: Air-entraining creates stable air voids that relieve internal pressure during freezing, enhancing durability. Question 36. The most appropriate method for compacting subgrade soil beneath a slab on grade is: A) Hand tamping B) Vibratory plate compactor C) Water jetting D) Rodding with a steel rod Answer: B Explanation: A vibratory plate compactor provides uniform density and is efficient for large areas. Question 37. When a masonry wall is required to support a lateral wind load, the primary design consideration is: A) The compressive strength of the units B) The bond strength of the mortar C) The wall’s shear capacity, often enhanced with vertical reinforcement D) The color of the bricks
Developer Ultimate Exam
Answer: C Explanation: Lateral loads generate shear forces; reinforcing the wall vertically and using proper mortar joints improves shear capacity. Question 38. According to OSHA, the minimum height for a guardrail system on scaffolding is: A) 36 in. B) 42 in. C) 48 in. D) 60 in. Answer: C Explanation: OSHA requires guardrails to be 42 in. to 54 in. high; the most common minimum is 48 in. Question 39. Which concrete curing method is most effective in preventing surface cracking for a slab exposed to rapid temperature changes? A) Air curing B) Plastic sheet curing C) Curing compound spray D) No curing; allow rapid drying Answer: B Explanation: Plastic sheet curing retains moisture and moderates temperature, reducing shrinkage cracking. Question 40. The term “rebar schedule” on a construction drawing refers to: A) The sequence of concrete pours B) A list of all reinforcement types, sizes, quantities, and locations C) The timeline for steel delivery D) The cost estimate for reinforcement
Developer Ultimate Exam
C) High-density concrete D) Self-consolidating concrete Answer: B Explanation: Air-entrained concrete resists freeze-thaw cycles, protecting footings in frost-prone soils. Question 44. In a brick veneer system, the purpose of the “cavity” between the veneer and the backup wall is to: A) Provide a space for insulation only B) Allow for drainage and prevent moisture accumulation behind the veneer C) Reduce the overall weight of the wall D) Serve as a decorative feature Answer: B Explanation: The cavity acts as a drainage plane, allowing moisture that penetrates the veneer to escape. Question 45. Which of the following is the correct minimum spacing between vertical reinforcement bars in a masonry wall to avoid concrete segregation? A) 4 in. B) 6 in. C) 8 in. D) 12 in. Answer: B Explanation: A 6-in. spacing promotes uniform concrete flow around the bars, reducing segregation risk. Question 46. The ASTM standard that specifies requirements for concrete mix design and proportioning is:
Developer Ultimate Exam
A) ASTM C
B) ASTM C
C) ASTM C
D) ASTM C
Answer: D Explanation: ASTM C192 outlines procedures for making and curing concrete test specimens, integral to mix design. Question 47. When installing a lintel over a masonry opening, the lintel must be: A) At least 1 in. longer than the opening on each side B) Exactly the width of the opening C) Embedded 6 in. into the masonry on each side D) Made of brick only Answer: A Explanation: Extending the lintel beyond the opening by at least 1 in. on each side ensures proper load transfer. Question 48. The primary function of a “dowel bar” in a concrete pavement joint is to: A) Provide vertical reinforcement B) Transfer loads across the joint while allowing slight movement C) Increase the joint’s aesthetic appeal D) Reduce the need for expansion joint material Answer: B Explanation: Dowel bars maintain alignment and transmit traffic loads across joints while accommodating thermal expansion.
Developer Ultimate Exam
Question 52. Which type of reinforcement anchor is typically used to attach a steel column to a concrete footing? A) Mechanical sleeve anchor B) Epoxy-grouted anchor C) Wedge-type anchor D) All of the above, depending on design Answer: D Explanation: All listed anchor types can be specified based on load requirements, installation conditions, and code compliance. Question 53. The minimum thickness of a concrete slab intended for a residential garage with a live load of 40 psf is: A) 3 in. B) 4 in. C) 5 in. D) 6 in. Answer: B Explanation: A 4-in. slab meets typical residential garage load requirements when properly reinforced. Question 54. In the context of concrete mix design, “SLUMP” primarily measures: A) Compressive strength B) Workability (consistency) of the fresh mix C) Air content D) Water-cement ratio
Developer Ultimate Exam
Answer: B Explanation: Slump test results indicate the flowability of fresh concrete. Question 55. The most effective way to prevent “cracking” due to temperature differentials in a concrete wall is to: A) Increase the water-cement ratio B) Use a low-heat cement (Type II) and provide proper joint spacing C) Apply a thick surface coating immediately after placement D) Reduce reinforcement Answer: B Explanation: Low-heat cements reduce thermal gradients, and control joints accommodate movement, both mitigating cracking. Question 56. When a concrete mix is placed in temperatures above 90 °F, the recommended action is to: A) Add a retarder admixture B) Increase the water-cement ratio C) Use hot water for mixing D) Reduce the amount of cement Answer: A Explanation: Retarders slow the setting time, preventing premature stiffening in hot weather. Question 57. The term “dry-pack” mortar refers to a mix that is: A) Fully hydrated before placement B) Mixed with minimal water to a stiff consistency for vertical applications C) Mixed with excessive water for increased flowability D) Used only for floor slabs
