Professional Ultimate Exam

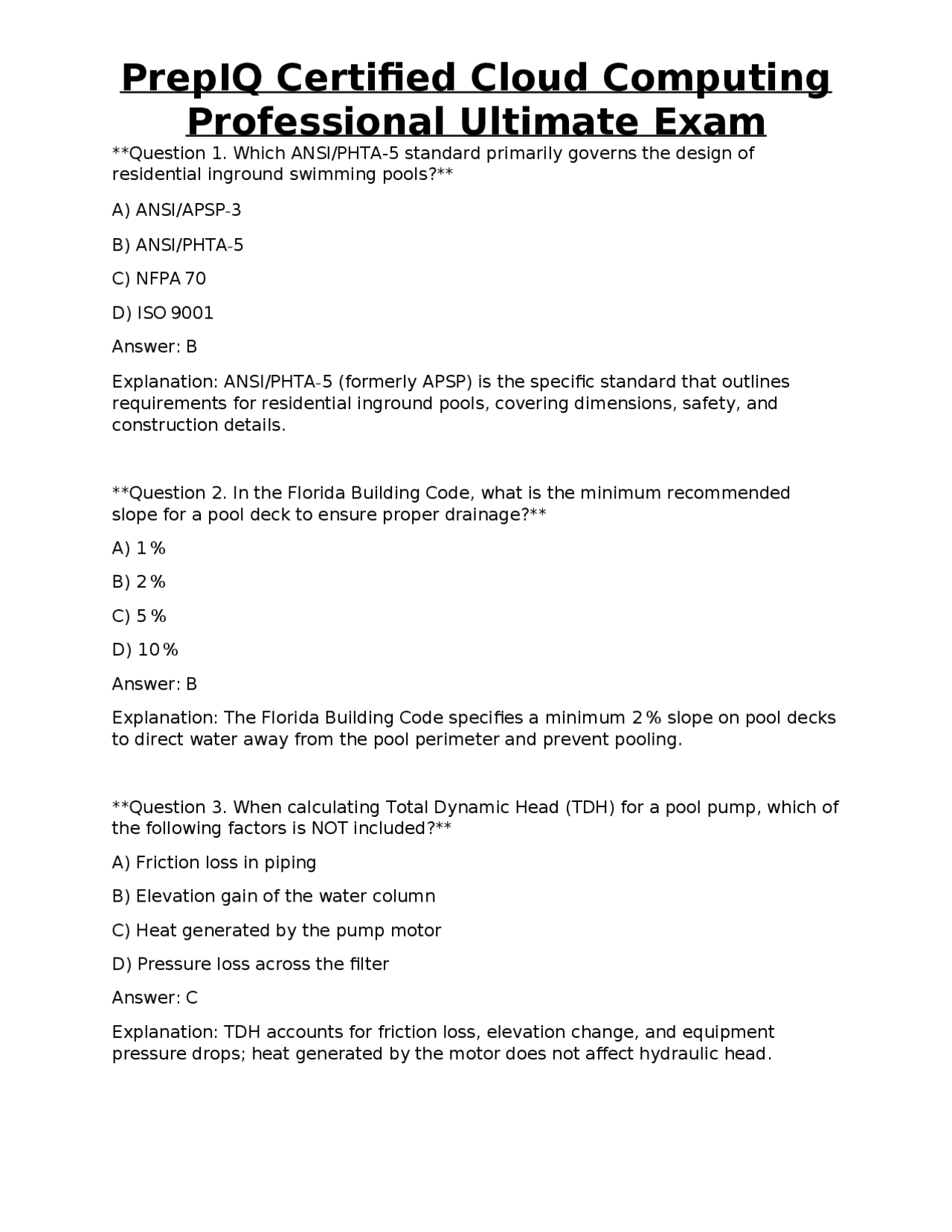

Question 1. Which ANSI/PHTA-5 standard primarily governs the design of residential inground swimming pools? A) ANSI/APSP- 3 B) ANSI/PHTA- 5 C) NFPA 70 D) ISO 9001 Answer: B Explanation: ANSI/PHTA-5 (formerly APSP) is the specific standard that outlines requirements for residential inground pools, covering dimensions, safety, and construction details. Question 2. In the Florida Building Code, what is the minimum recommended slope for a pool deck to ensure proper drainage? A) 1 % B) 2 % C) 5 % D) 10 % Answer: B Explanation: The Florida Building Code specifies a minimum 2 % slope on pool decks to direct water away from the pool perimeter and prevent pooling. Question 3. When calculating Total Dynamic Head (TDH) for a pool pump, which of the following factors is NOT included? A) Friction loss in piping B) Elevation gain of the water column C) Heat generated by the pump motor D) Pressure loss across the filter Answer: C Explanation: TDH accounts for friction loss, elevation change, and equipment pressure drops; heat generated by the motor does not affect hydraulic head.
Professional Ultimate Exam
Question 4. Which surveying instrument is most commonly used to establish a benchmark for pool perimeter layout? A) Theodolite B) Transit level C) Total station D) GPS receiver Answer: B Explanation: A transit level provides accurate vertical and horizontal reference points, making it ideal for establishing benchmarks for pool layout. Question 5. What is the primary purpose of a dewatering system during pool excavation in high-water-table areas? A) To increase soil compaction B) To lower the water table and keep the trench dry C) To accelerate concrete curing D) To provide a source of water for concrete mixing Answer: B Explanation: Dewatering removes groundwater from the excavation site, preventing instability and allowing safe concrete placement. Question 6. Under the Florida Trench Safety Act, what is the minimum protective system required for a trench deeper than 4 feet? A) Shoring only B) Sloping the trench walls at 1: C) Shielding (trench box) or sloping/shoring combination D) No protection if the trench is less than 6 feet wide Answer: C Explanation: For trenches deeper than 4 feet, the act requires either a protective shield, shoring, or sloping walls to prevent collapse.
Professional Ultimate Exam
Question 10. What is the minimum PSI pressure test required for a newly installed pool suction line before back-filling? A) 30 psi B) 50 psi C) 75 psi D) 100 psi Answer: B Explanation: The industry standard for pressure testing suction lines is 50 psi to verify integrity and detect leaks before covering. Question 11. Which type of pool filter provides the highest level of particle removal efficiency? A) Sand filter B) Cartridge filter C) Diatomaceous Earth (DE) filter D) Spin-down filter Answer: C Explanation: DE filters use diatomaceous earth media, capturing particles as small as 2–5 microns, outperforming sand and cartridge filters. Question 12. A self-priming pump differs from a flooded-suction pump primarily in its ability to: A) Operate at higher flow rates B) Start without water in the suction line C) Use less electricity D) Provide higher pressure heads Answer: B Explanation: Self-priming pumps can evacuate air and create suction without the suction line being filled with water, unlike flooded-suction pumps.
Professional Ultimate Exam
Question 13. Which heating method is most energy-efficient for a pool located in a sunny, warm climate? A) Natural-gas heater B) Propane heater C) Electric heat pump D) Solar heating system Answer: D Explanation: Solar heating captures free solar energy, making it the most efficient option in sunny climates, reducing operational costs. Question 14. A salt-chlorine generator produces chlorine through which chemical reaction? A) Electrolysis of sodium chloride B) Oxidation of calcium hypochlorite C) Photolysis of chlorine gas D) Thermal decomposition of sodium hypochlorite Answer: A Explanation: The generator electrolyzes dissolved NaCl (salt) to produce hypochlorous acid, which acts as chlorine. Question 15. According to ACI 506R, what is the recommended maximum distance between the shotcrete nozzle and the substrate? A) 4 in (100 mm) B) 6 in (150 mm) C) 8 in (200 mm) D) 12 in (300 mm) Answer: B Explanation: Maintaining a 6 in (150 mm) distance ensures proper material velocity and reduces rebound, promoting strong adhesion. Question 16. In shotcrete application, “rebound” refers to:
Professional Ultimate Exam
C) No grounding is required for motors D) Grounding through the pool’s main filter housing Answer: B Explanation: Motors must be grounded to a dedicated grounding electrode system to ensure a low-impedance fault path. Question 20. Low-voltage LED pool lights typically operate at what voltage? A) 12 V DC B) 24 V AC C) 120 V AC D) 240 V AC Answer: A Explanation: Most underwater LED fixtures are designed for 12 V DC to improve safety and simplify transformer requirements. Question 21. When installing perimeter tile, which type of adhesive is recommended for wet environments? A) Portland cement mortar B) Epoxy-based thin-set C) Latex-modified thin-set D) Standard polymer-modified thin-set Answer: B Explanation: Epoxy-based thin-set provides superior water resistance and bond strength in constantly wet conditions. Question 22. For a pool coping stone installation, the minimum recommended joint width is: A) 1 mm B) 2 mm C) 3 mm
Professional Ultimate Exam
D) 5 mm Answer: B Explanation: A 2 mm joint allows for slight movement and proper grout placement while minimizing water infiltration. Question 23. Which decking material offers the greatest resistance to freeze-thaw cycles in colder climates? A) Exposed aggregate concrete B) Natural stone pavers C) Acrylic overlay D) Wood decking Answer: B Explanation: Natural stone pavers are highly resistant to freeze-thaw stress because they have low porosity and high compressive strength. Question 24. When applying a pebble finish to a pool interior, the “Start-Up” chemical regimen must include a chlorine shock of at least: A) 1 ppm B) 3 ppm C) 5 ppm D) 10 ppm Answer: C Explanation: A 5 ppm chlorine shock helps to oxidize residual organics and set the new finish properly. Question 25. The Langelier Saturation Index (LSI) indicates water is: A) Under-saturated (corrosive) when the value is negative B) Over-saturated (scale-forming) when the value is negative C) Balanced when the value is +2. D) Unrelated to pH levels
Professional Ultimate Exam
Explanation: The VGB Act mandates either an SVRS or a dual-drain system to prevent entrapment injuries. Question 29. Under Florida Statute 515, the minimum height for a residential pool fence is: A) 3 ft (0.9 m) B) 4 ft (1.2 m) C) 4 ½ ft (1.37 m) D) 5 ft (1.5 m) Answer: C Explanation: The statute specifies a minimum of 4 ½ ft (1.37 m) for pool barriers to ensure child safety. Question 30. A self-closing, self-latching gate must close and latch from an open position within how many seconds? A) 5 seconds B) 10 seconds C) 15 seconds D) 20 seconds Answer: B Explanation: OSHA and pool safety codes require such gates to close and latch within 10 seconds to prevent accidental entry. Question 31. Which OSHA regulation specifically addresses fall protection for workers on a pool deck higher than 6 ft? A) 29 CFR 1926. B) 29 CFR 1926. C) 29 CFR 1926. D) 29 CFR 1926. Answer: B
Professional Ultimate Exam
Explanation: 29 CFR 1926.502 covers fall protection requirements for elevated work surfaces, including pool decks above 6 ft. Question 32. When installing a pool pump motor, the recommended practice for motor grounding is to: A) Connect the motor frame directly to the pool water B) Use a dedicated grounding conductor to the main service ground C) Rely on the pump’s internal grounding strap only D) Ground the motor to the nearest metal conduit Answer: B Explanation: A dedicated grounding conductor ensures a low-impedance path to the main service ground, meeting NEC requirements. Question 33. The primary purpose of a pool’s main drain is to: A) Supply water to the filtration system B) Provide a suction point for circulating water and assist in turnover C) Act as a decorative feature D) Release excess water during heavy rain Answer: B Explanation: The main drain creates a central suction point that helps achieve the required turnover rate and aids in debris removal. Question 34. In a pool’s hydraulic design, the turnover rate of 6 hours for a 20,000-gallon pool requires a flow rate of approximately: A) 500 gpm B) 555 gpm C) 600 gpm D) 666 gpm Answer: B Explanation: 20,000 gal ÷ 6 hr = 3,333 gal/hr; dividing by 60 min gives ≈ 55.5 gpm, but the correct conversion is 20,000 gal ÷ 6 hr = 3,333 gph → 55.5 gpm. Since the
Professional Ultimate Exam
Explanation: pH influences the solubility of calcium carbonate; maintaining pH in the 7.2-7.6 range helps prevent scaling. Question 38. In a pool’s electrical system, a “GFCI” device is required for which of the following? A) Main pump motor circuit only B) All equipment within 6 ft of the water surface C) Only the lighting circuit D) Only the heater circuit Answer: B Explanation: NEC 680.22 requires GFCI protection for all receptacles and equipment located within 6 ft of the water’s surface. Question 39. When installing a pool coping stone, the recommended joint type between stones is: A) Dry stack B) Mortar-filled joint C) Epoxy-filled joint D) Grouted joint with polymer-modified mortar Answer: D Explanation: A polymer-modified grout provides flexibility, water resistance, and durability for coping joints. Question 40. Which of the following best describes a “dual-drain” system? A) Two separate main drains spaced at least 10 ft apart B) A single drain with a built-in cover and a secondary overflow C) Two suction lines connected to the same drain D) A drain that can operate in both suction and overflow modes Answer: A Explanation: A dual-drain system uses two main drains positioned apart to meet VGB safety requirements, reducing entrapment risk.
Professional Ultimate Exam
Question 41. The most common cause of a “pump cavitation” noise in a pool circulation system is: A) Excessive flow rate exceeding pump capacity B) Low water temperature C) Air entrainment in the suction line D) High chlorine levels Answer: C Explanation: Air bubbles in the suction line cause cavitation, producing a characteristic noise and reducing pump efficiency. Question 42. For a pool with a surface area of 1,200 ft², what is the minimum recommended size of a set of 12-in-diameter pool skimmers to achieve proper surface water removal? A) One skimmer B) Two skimmers C) Three skimmers D) Four skimmers Answer: B Explanation: Industry guidelines suggest one 12-in skimmer per 600 ft² of surface, so a 1,200 ft² pool needs at least two skimmers. **Question 43. Which of the following is the primary function of a pool’s “sun shelf”? ** A) Provide a shallow lounging area and increase solar heating B) Act as a structural reinforcement for the pool wall C) Separate the filtration system from the main tank D) Serve as a drainage channel for overflow water Answer: A Explanation: Sun shelves create shallow zones that absorb sunlight, warming the water and offering a comfortable lounging surface.
Professional Ultimate Exam
Question 47. A pool’s “ORP” (Oxidation-Reduction Potential) meter primarily indicates: A) The concentration of free chlorine B) The water’s tendency to oxidize contaminants C) The pH level of the water D) The hardness of the water Answer: B Explanation: ORP measures the water’s ability to oxidize (break down) contaminants, providing a real-time indication of sanitization effectiveness. Question 48. The most common cause of a “suction entrapment” incident is: A) Over-sized skimmer basket B) Improperly covered main drain C) Low water level in the pool D) Use of a high-flow pump Answer: B Explanation: An uncovered or inadequately covered main drain can create a strong suction point that can trap a swimmer’s body part. Question 49. In the context of pool deck drainage, a “weep hole” is used to: A) Allow water to escape from beneath a coping stone B) Provide ventilation for the pool cavity C) Facilitate concrete curing by releasing moisture D) Connect the deck to the pool’s main drain system Answer: A Explanation: Weep holes allow water that penetrates the coping joint to escape, preventing water accumulation behind the stone. Question 50. Which of the following is the recommended minimum concrete compressive strength for a gunite pool shell?
Professional Ultimate Exam
A) 2,500 psi B) 3,000 psi C) 3,500 psi D) 4,000 psi Answer: C Explanation: A compressive strength of 3,500 psi provides sufficient durability and resistance to hydrostatic pressure for inground pools. Question 51. When using PVC Schedule 80 for a pool’s suction line, the main advantage over Schedule 40 is: A) Greater flexibility B) Higher pressure rating C) Lower cost D) Easier to cut and join Answer: B Explanation: Schedule 80 PVC has a thicker wall and can handle higher pressures, making it suitable for suction lines that experience greater vacuum forces. Question 52. The correct method for solvent welding PVC pipe joints includes all EXCEPT: A) Cleaning the pipe and fitting with a PVC primer B) Applying solvent cement evenly on both surfaces C) Swirling the pipe to distribute the cement D) Using a heat gun to melt the joint before assembling Answer: D Explanation: Heat guns are not used in PVC solvent welding; the process relies on solvent softening the polymer, not heat. Question 53. Which of the following is a required feature of a pool’s “automatic chemical feeder” to meet safety standards? A) Manual override button located at the pump room only
Professional Ultimate Exam
C) Permanent-split capacitor (PSC) motor D) Direct-drive brushless DC motor Answer: C Explanation: PSC motors are efficient, relatively quiet, and compatible with standard residential single-phase power. Question 57. The purpose of a “pressure gauge” installed on a pool’s suction line is to: A) Measure the flow rate of water returning to the pool B) Detect leaks in the return line C) Verify that the suction line maintains the required vacuum pressure D) Control the speed of the pump automatically Answer: C Explanation: A suction pressure gauge monitors the vacuum level, helping identify blockages or leaks in the suction side. Question 58. Which of the following is NOT a recommended practice when installing a pool’s lighting niche? A) Sealing the niche with a waterproof silicone sealant B) Using a metal-to-metal gasket without a sealant C) Installing a low-voltage transformer in a dry location D) Ensuring the fixture is rated for underwater use Answer: B Explanation: Metal-to-metal connections alone are insufficient; a waterproof sealant is required to prevent water ingress. Question 59. When applying a quartz pool finish, the typical thickness of the finish layer is: A) 1 mm B) 3 mm C) 5 mm
Professional Ultimate Exam
D) 7 mm Answer: C Explanation: Quartz finishes are usually applied at about 5 mm thickness to provide durability and a smooth surface. Question 60. The most common cause of “pump seal failure” in pool equipment is: A) Over-voltage on the motor B) Operating the pump at a flow rate significantly lower than design C) Using a mismatched impeller size D) Installing the pump upside down Answer: B Explanation: Low flow can cause the pump to run dry, leading to overheating and premature seal degradation. Question 61. In a pool’s filtration circuit, the term “backwash” refers to: A) Reversing flow to clean the filter media B) Adding chemicals to the water stream C) Increasing the pump speed temporarily D) Draining the pool completely for maintenance Answer: A Explanation: Backwashing reverses flow through the filter, flushing trapped debris out of the media. Question 62. Which of the following best describes the function of a “pressure tank” in a pool’s water circulation system? A) To store excess water for emergency use B) To maintain constant pressure and reduce pump cycling C) To increase water temperature before it reaches the heater D) To filter out fine particles before the main filter Answer: B
