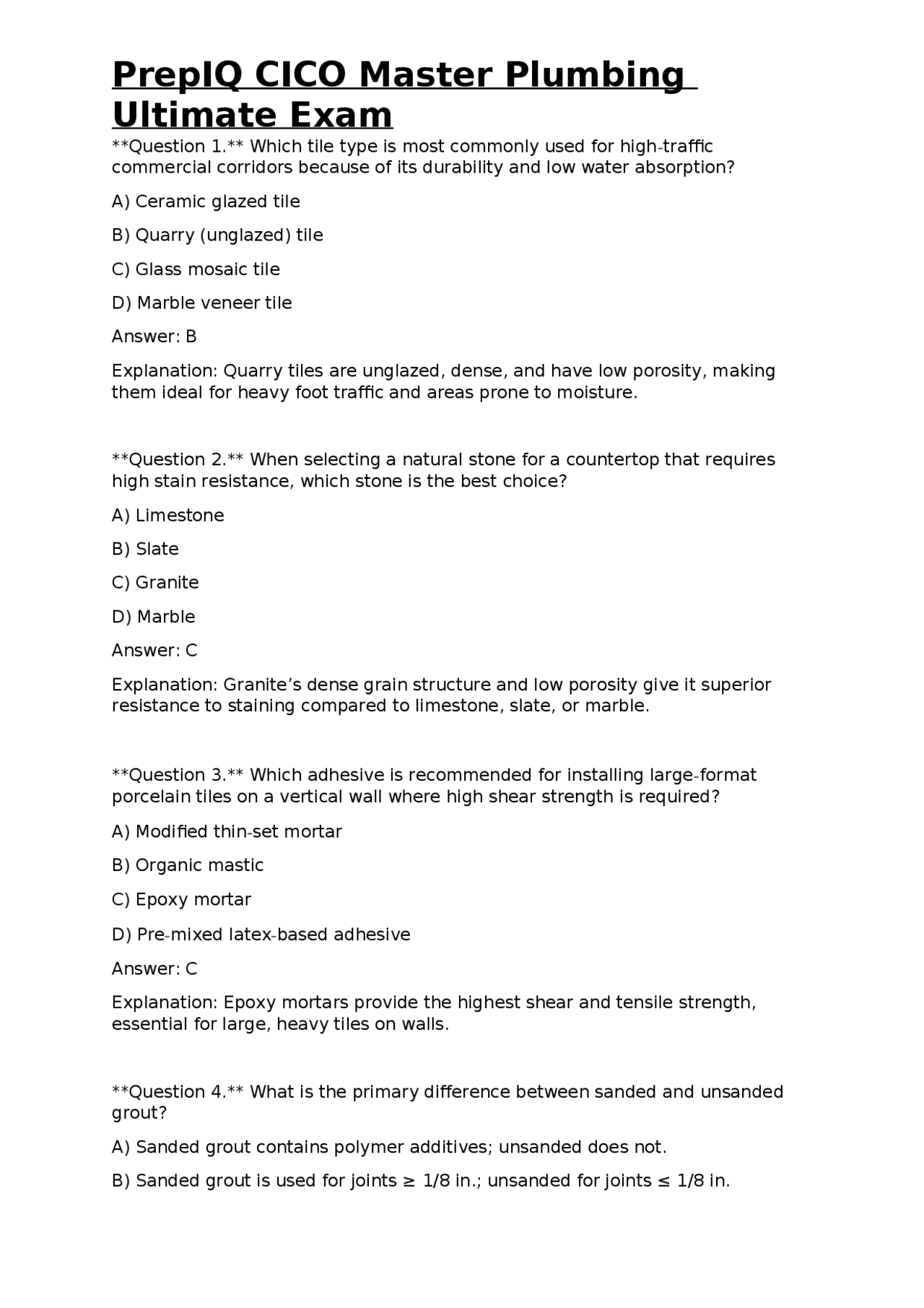

Ultimate Exam
Question 1. Which tile type is most commonly used for high-traffic commercial corridors because of its durability and low water absorption? A) Ceramic glazed tile B) Quarry (unglazed) tile C) Glass mosaic tile D) Marble veneer tile Answer: B Explanation: Quarry tiles are unglazed, dense, and have low porosity, making them ideal for heavy foot traffic and areas prone to moisture. Question 2. When selecting a natural stone for a countertop that requires high stain resistance, which stone is the best choice? A) Limestone B) Slate C) Granite D) Marble Answer: C Explanation: Granite’s dense grain structure and low porosity give it superior resistance to staining compared to limestone, slate, or marble. Question 3. Which adhesive is recommended for installing large-format porcelain tiles on a vertical wall where high shear strength is required? A) Modified thin-set mortar B) Organic mastic C) Epoxy mortar D) Pre-mixed latex-based adhesive Answer: C Explanation: Epoxy mortars provide the highest shear and tensile strength, essential for large, heavy tiles on walls. Question 4. What is the primary difference between sanded and unsanded grout? A) Sanded grout contains polymer additives; unsanded does not. B) Sanded grout is used for joints ≥ 1/8 in.; unsanded for joints ≤ 1/8 in.
Ultimate Exam
C) Unsanded grout cures faster than sanded grout. D) Sanded grout is only for outdoor installations. Answer: B Explanation: Sanded grout includes sand for structural strength in wider joints, while unsanded grout is for narrow joints to avoid scratching the tile. Question 5. In estimating tile material, which waste factor is most appropriate for a simple rectangular bathroom floor? A) 5% B) 10% C) 15% D) 25% Answer: A Explanation: Simple, straight-run layouts typically generate minimal waste; a 5% allowance covers breakage and trim. Question 6. On a blueprint, a dashed line with the note “TILE-LAYER TO BE PLACED 1/8 in. FROM WALL” indicates what? A) An expansion joint location B) A control line for tile layout C) A recessed niche dimension D) A slope requirement for drainage Answer: B Explanation: Dashed lines with distance notes are used to establish control lines that guide tile placement relative to walls. Question 7. When evaluating a wood subfloor for tile installation, which condition requires remediation before proceeding? A) Subfloor is 5/8 in. thick B) Joist spacing is 16 in. on center C) Presence of a 1/4 in. dip over a joist D) Subfloor is dry to the touch Answer: C
Ultimate Exam
Question 11. When installing a cement backer board over a concrete slab, what is the recommended minimum spacing of the backer board screws? A) 4 in. along the edges only B) 6 in. on center in the field, 8 in. along edges C) 8 in. on center in the field, 12 in. along edges D) 12 in. on center everywhere Answer: B Explanation: Screws spaced 6 in. on center in the field and 8 in. along edges provide sufficient attachment without overtightening. Question 12. Which waterproofing method is preferred for a shower stall with a tiled floor and walls? A) Applying a single coat of latex paint B) Using a sheet-membrane (e.g., Schluter-Kerdi) on walls and floor C) Installing a polyethylene vapor barrier under the mortar bed only D) Relying solely on epoxy grout for water resistance Answer: B Explanation: Sheet membranes create a continuous, puncture-resistant barrier that is ideal for wet areas. Question 13. For an exterior tiled patio in a freeze-thaw climate, which mortar characteristic is essential? A) High early-strength for rapid traffic B) Low flexural strength to prevent cracking C) Freeze-thaw durability with air-entrained cement D) Rapid drying to reduce moisture content Answer: C Explanation: Air-entrained cement mortars allow water to expand without damaging the bond during freeze-thaw cycles. Question 14. When cutting porcelain tile with a wet saw, what is the recommended blade speed to minimize chipping? A) Maximum RPM setting B) Low RPM with high water flow
Ultimate Exam
C) Medium RPM with minimal water D) Any speed; blade type is the only factor Answer: B Explanation: Lower RPM reduces heat and mechanical stress; abundant water cools the blade and reduces dust, preventing chip formation. Question 15. Which edge profile is most appropriate for a transition between a tiled hallway and a hardwood floor? A) Bullnose tile trim B) Aluminum jamb strip C) Wooden stair nosing D) Vinyl threshold strip Answer: B Explanation: Metal jamb strips provide a durable, low-profile transition and accommodate differential movement between tile and wood. Question 16. In a shower pan assembly, what is the purpose of a pre-sloped mortar bed beneath a flexible liner? A) To provide a decorative finish B) To direct water toward the drain C) To increase the pan’s structural strength D) To reduce the amount of liner needed Answer: B Explanation: The slope ensures water drains efficiently toward the shower drain, preventing pooling. Question 17. When installing a linear drain, how should the waterproofing membrane be terminated at the drain flange? A) Overlap the flange by 2 in. and seal with silicone B) Cut the membrane flush with the flange edge C) Fold the membrane under the flange and secure with a clamping ring D) Apply a separate sheet membrane over the flange only Answer: C
Ultimate Exam
Question 21. To restore a honed marble countertop that has become dull, which sequence of steps is correct? A) Clean → Apply acidic cleaner → Polish with a buffing pad B) Clean → Honing with 120-grit diamond → Seal with penetrating sealer C) Clean → Polish with a high-grit polishing compound → No seal needed D) Clean → Apply epoxy coating → Buff Answer: B Explanation: Honing with a fine-grit diamond restores surface flatness; sealing protects the marble from stains and etching. Question 22. Which cleaning agent is safest for routine maintenance of glazed ceramic tile in a residential bathroom? A) 10% bleach solution B) Straight vinegar C) pH-neutral, non-abrasive cleaner D) Ammonia-based floor cleaner Answer: C Explanation: pH-neutral cleaners effectively remove dirt without damaging glaze or grout, unlike acidic or alkaline agents. Question 23. Under MIOSHA, which piece of PPE is mandatory when cutting silica-containing tiles with a wet saw? A) Earplugs only B) Full-face respirator with P100 filter C) Safety glasses only D) Knee pads only Answer: B Explanation: Cutting silica generates respirable crystalline silica dust; a respirator with P100 filtration is required to protect workers. Question 24. What is the MIOSHA permissible exposure limit (PEL) for respirable crystalline silica over an 8-hour time-weighted average?
Ultimate Exam
A) 100 μg/m³ B) 50 μg/m³ C) 10 μg/m³ D) 5 μg/m³ Answer: C Explanation: The current OSHA PEL for respirable crystalline silica is 10 μg/m³ averaged over 8 hours. Question 25. Which of the following is NOT considered a hazardous material under MIOSHA for tile contractors? A) Lead-based paint B. Asbestos-containing floor tiles C. Portland cement D. Silica dust from tile cutting Answer: C Explanation: While cement can cause skin irritation, it is not classified as a hazardous material under MIOSHA like lead, asbestos, or silica. Question 26. When using a ladder to reach a high wall for tile installation, which safety practice is required by MIOSHA? A) Ladder can be placed on a slick surface if secured with sandbags B) Ladder must be inspected for defects before each use C) Ladder may be leaned at a 30° angle for stability D) A second worker must hold the ladder at all times Answer: B Explanation: MIOSHA mandates pre-use inspection of ladders to ensure they are free of defects that could cause failure. Question 27. What is the minimum number of first-aid kits required on a job site with ten tile installers working simultaneously? A) One kit per five workers B) One kit per ten workers C) Two kits total, regardless of crew size
Ultimate Exam
Explanation: The resin-to-hardener ratio directly affects the chemical reaction and thus the cure time of epoxy grout. Question 31. Which cement backer board is recommended for a wet-area wall that will receive a tile thickness of 1/4 in.? A) Standard 1/4 in. fiber-cement board B) 1/2 in. cement board with a polymer-modified coating C) 3/8 in. gypsum-based board D) 1/8 in. plywood panel Answer: B Explanation: A 1/2 in. cement board provides sufficient rigidity and moisture resistance for wet-area applications, and polymer modification improves bond with thin-set. Question 32. What is the primary purpose of an uncoupling membrane like Schluter-Ditra under tile? A) To increase the overall thickness of the floor assembly B) To allow independent movement between substrate and tile, preventing lippage C) To act as a waterproof barrier in dry areas D) To provide a decorative pattern under the tile Answer: B Explanation: Uncoupling membranes isolate tile from substrate movement, reducing the risk of cracks and lippage. Question 33. During a site evaluation, you discover a floor joist deflection of 1/64 in. per foot under load. According to TCNA, what action is required? A) No action; deflection is within acceptable limits B) Install a 1-in. thick cement board over the joists C) Reinforce joists to reduce deflection below 1/48 in. per foot D) Use a flexible mortar to accommodate movement Answer: A Explanation: TCNA permits floor deflection up to 1/48 in. per foot for tile installations; 1/64 in. is acceptable.
Ultimate Exam
Question 34. Which of the following is the correct procedure for sealing a newly polished marble floor? A) Apply a solvent-based sealer immediately after polishing B) Wait 24 hours, then apply a penetrating water-based sealer with a microfiber mop C) Use a wax finish for added shine D) No sealer is needed if the marble is polished Answer: B Explanation: Allowing the stone to breathe for 24 hours prevents trapping moisture; a penetrating water-based sealer protects without altering the finish. Question 35. When installing tile over a radiant heating system, what is the maximum allowable thickness of the mortar bed to ensure efficient heat transfer? A) 1/4 in. B) 1/2 in. C) 3/4 in. D) 1 in. Answer: A Explanation: Thinner mortar beds (¼ in.) reduce thermal resistance, allowing heat to pass more effectively from the radiant system to the tile surface. Question 36. Which type of grout is best suited for a floor with high chemical exposure, such as a laboratory setting? A) Unsanded cement grout B) Sanded cement grout C) Epoxy grout D) Polyurethane sealant Answer: C Explanation: Epoxy grout offers superior chemical resistance and low porosity, making it ideal for harsh environments.
Ultimate Exam
C) Installing tiles on a perfectly flat substrate D) Selecting a grout color that contrasts with the tile Answer: B Explanation: Inadequate mortar coverage leads to uneven support, causing the edge of a tile to be higher than the adjacent tile (lippage). Question 41. In a commercial kitchen backsplash, which grout type should be used to meet sanitary requirements? A) Unsanded Portland cement grout B) Epoxy grout with antimicrobial additives C) Sanded grout with polymer additive D) No grout; use tile spacers only Answer: B Explanation: Epoxy grout is non-porous and can be formulated with antimicrobial agents, meeting strict sanitary standards. Question 42. Which of the following statements about tile cutting safety is correct? A) Wet saws eliminate the need for eye protection. B) Dust masks are sufficient when cutting ceramic tile. C) Use a push stick to keep hands away from the blade. D) Cutting can be performed without water if the tile is glazed. Answer: C Explanation: A push stick keeps the operator’s hands at a safe distance from the moving blade, reducing injury risk. Question 43. When installing a ceramic tile floor in a climate with high humidity, which mortar additive helps reduce moisture-related expansion? A) Calcium chloride accelerator B) Latex polymer additive C) Rapid-set cement D) Sand reinforcement Answer: B
Ultimate Exam
Explanation: Latex polymers improve flexibility and bond strength, allowing the mortar to accommodate minor substrate movement due to humidity. Question 44. Which type of expansion joint profile is recommended for a tiled floor that meets a concrete slab expansion joint? A) Metal “U” profile with a silicone filler B) Wood strip with a bead of caulk C) Rigid PVC trim without filler D) No profile; the tile should be cut to the joint line Answer: A Explanation: A metal “U” profile with silicone accommodates movement and provides a seal at the interface of two substrates. Question 45. For a wall that will receive glass mosaic tile, what substrate preparation is required? A) Apply a thin-set directly over drywall B) Install a cement backer board with a waterproof membrane C) Use a plywood substrate painted with latex paint D) No preparation needed; glass tiles bond to any surface Answer: B Explanation: Glass mosaics require a stable, moisture-resistant substrate; cement board with waterproofing ensures proper adhesion and durability. Question 46. In a shower with a recessed niche, what is the recommended minimum depth of the niche to accommodate standard shampoo bottles? A) 2 in. B) 4 in. C) 6 in. D) 8 in. Answer: C Explanation: A 6-in. depth niche provides sufficient space for typical bathroom accessories while maintaining structural integrity.
Ultimate Exam
C) Chalk lines are more accurate than lasers. D) Laser levels are cheaper and easier to transport. Answer: B Explanation: Laser levels project straight, level lines across the room, allowing precise alignment in both directions without manual measurement. Question 51. Which tile installation method is best suited for a 3-in. thick stone slab floor over a concrete subfloor? A) Direct bonding with thin-set mortar only B) Installing a 1-in. uncoupling membrane, then thin-set C) Using a large-format mortar bed (medium-bed) at 3/8 in. thickness D) Applying a floating floor system with clip-on tiles Answer: C Explanation: Large-format mortars are formulated to support heavy stone slabs at a thicker bed, ensuring proper support and levelness. Question 52. In a commercial restroom, which type of grout should be used to meet accessibility (ADA) requirements for slip resistance? A) Epoxy grout with a smooth finish B) Sanded cement grout with a matte texture C) Unsanded grout with a high-gloss sealant D) No grout; use a solid surface material instead Answer: B Explanation: Sanded grout with a matte finish provides a textured surface that helps meet slip-resistance criteria. Question 53. What is the recommended method for sealing the grout lines of a newly tiled bathroom floor? A) Apply a silicone caulk over the grout B) Use a penetrating grout sealer applied with a roller, then wipe excess C) Paint the grout with latex paint D) No sealing is needed if epoxy grout is used Answer: B
Ultimate Exam
Explanation: Penetrating grout sealers protect against stains while allowing the grout to breathe; excess should be removed to avoid hazing. Question 54. Which of the following is a key factor in determining whether a tile can be installed over a radiant heated concrete slab? A) The slab’s surface temperature must be below 90°F during installation B. The slab must be covered with a polyethylene vapor barrier C) The tile must be at least 3/8 in. thick D) The slab must be pre-heated to at least 150°F before tiling Answer: A Explanation: Installing over a hot slab can cause premature curing or cracking of the mortar; the surface should be cool (below 90°F) for proper bonding. Question 55. When installing a tile floor in a region prone to earthquakes, which substrate preparation enhances tile performance? A) Use of a flexible foam underlayment only B) Installation of an uncoupling membrane with a reinforced perimeter C) Applying a single coat of latex paint to the concrete slab D) Skipping backer board to reduce layer thickness Answer: B Explanation: Uncoupling membranes isolate tile from substrate movement, reducing cracking during seismic activity. Question 56. Which of the following is the correct order of steps when installing a linear drain in a wet room? A) Install the drain, apply waterproof membrane, then backfill with mortar B) Apply waterproof membrane, cut the membrane to fit the drain, install the drain, then backfill C) Lay the mortar bed, set the drain, then apply membrane over the entire floor D) Install the membrane, then the drain, and finally the tile Answer: B Explanation: The membrane must be installed first; it is cut to accommodate the drain, which is then set, and the surrounding mortar bed is built up.
Ultimate Exam
B) To allow for differential movement of the substrate without cracking the tile or grout C) To secure the tile to the subfloor with mechanical fasteners D) To serve as a permanent seam for future tile removal Answer: B Explanation: Control joints relieve stress caused by substrate movement, preventing cracks in tile and grout. Question 61. In a tile installation, what is the recommended maximum deviation from level for a tile edge when using a 1/8 in. grout joint? A) 1/64 in. B) 1/32 in. C) 1/16 in. D) 1/8 in. Answer: B Explanation: A deviation of 1/32 in. ensures a smooth transition between tiles with a narrow grout joint, maintaining a level surface. Question 62. Which type of backer board is most suitable for a wall that will be tiled with large-format porcelain tiles in a wet area? A) 1/4 in. gypsum board with waterproof paint B) 1/2 in. cement backer board with polymer-modified thin-set C) 3/8 in. fiber-cement board without waterproofing D) 5/8 in. plywood with a coat of latex sealant Answer: B Explanation: Cement backer board provides a stable, moisture-resistant substrate; polymer-modified thin-set ensures proper adhesion for large tiles. Question 63. When applying a silicone sealant at the intersection of a tiled wall and a glass shower door, what is the proper technique to ensure a watertight seal? A) Apply a thick bead and smooth with a finger B) Use a backer rod, then apply sealant and tool the joint C) Apply sealant only after the grout has fully cured
Ultimate Exam
D) No sealant is needed if the tiles are properly installed Answer: B Explanation: Inserting a backer rod controls sealant depth and shape; tooling creates a smooth, concave seal that directs water away. Question 64. Which of the following is a common cause of grout discoloration in a tiled floor? A) Using a grout color that is too dark B) Exposure to UV light causing pigment fade C) Application of a wax polish over the grout D. All of the above Answer: D Explanation: All listed factors can lead to grout discoloration: dark colors may appear uneven, UV light can fade pigments, and wax can trap stains. Question 65. For a residential kitchen floor, which tile thickness provides a good balance between durability and ease of installation? A) 1/8 in. B) 3/16 in. C) 1/4 in. D) 3/8 in. Answer: C Explanation: A 1/4-in. thickness offers sufficient strength for residential traffic while remaining manageable for installers. Question 66. When using a laser level to set a tile layout, what is the recommended procedure to avoid “laser drift” over long distances? A) Keep the laser on continuously for the entire job B) Re-level the device every 20 ft. and verify with a tape measure C) Use a chalk line in addition to the laser D) No special procedure; laser drift is negligible Answer: B Explanation: Periodic re-leveling ensures the laser remains accurate over longer spans, preventing cumulative errors.
