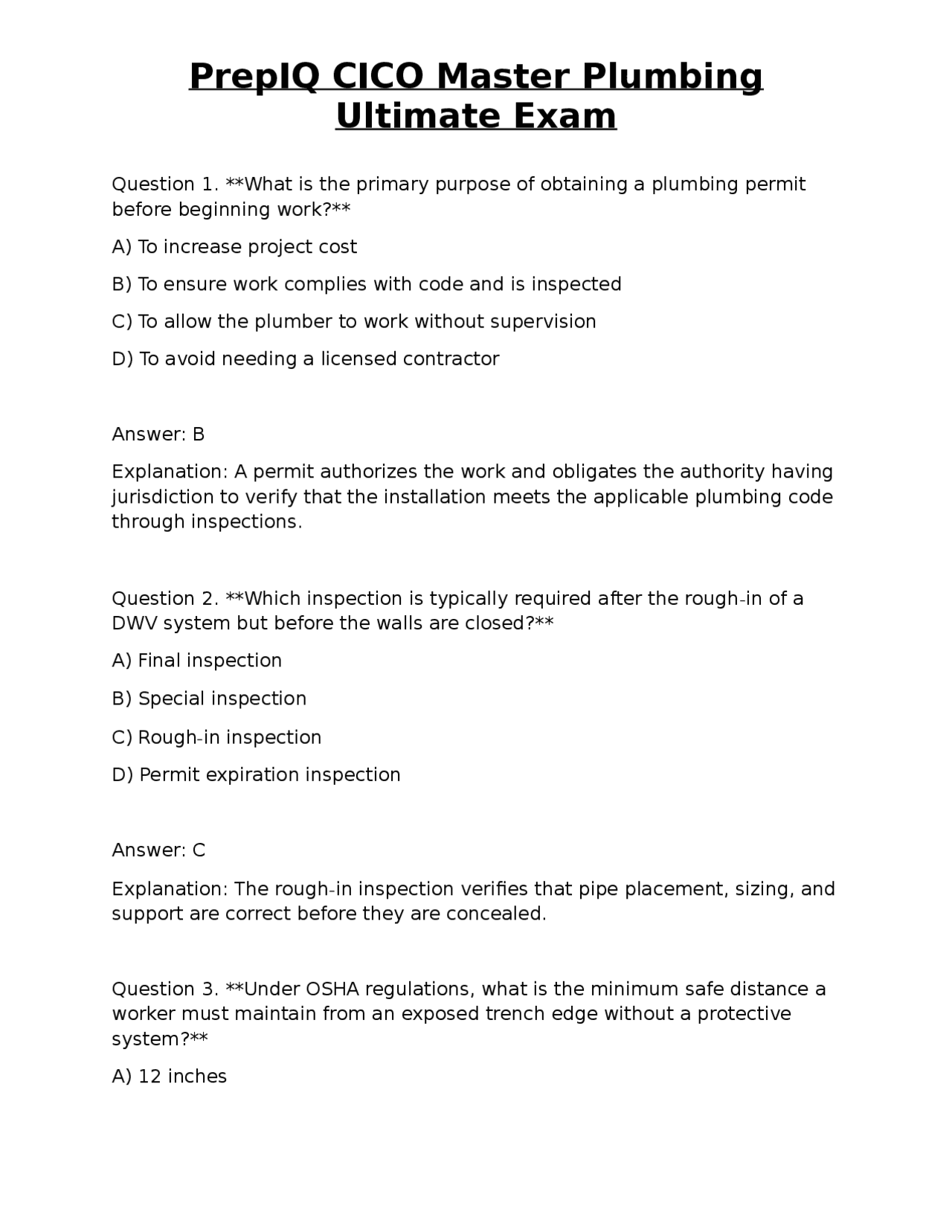

Ultimate Exam
Question 1. What is the primary purpose of obtaining a plumbing permit before beginning work? A) To increase project cost B) To ensure work complies with code and is inspected C) To allow the plumber to work without supervision D) To avoid needing a licensed contractor Answer: B Explanation: A permit authorizes the work and obligates the authority having jurisdiction to verify that the installation meets the applicable plumbing code through inspections. Question 2. Which inspection is typically required after the rough-in of a DWV system but before the walls are closed? A) Final inspection B) Special inspection C) Rough-in inspection D) Permit expiration inspection Answer: C Explanation: The rough-in inspection verifies that pipe placement, sizing, and support are correct before they are concealed. Question 3. Under OSHA regulations, what is the minimum safe distance a worker must maintain from an exposed trench edge without a protective system? A) 12 inches
Ultimate Exam
B) 24 inches C) 36 inches D) 48 inches Answer: B Explanation: OSHA requires a minimum of 24 inches of protective barrier (e.g., a guardrail) when a protective system such as shoring is not used. Question 4. When entering a confined space for pipe repair, which of the following is NOT a required safety measure? A) Atmospheric testing for oxygen and hazardous gases B) Continuous ventilation throughout the entry C) Wearing a hard hat only D) Having a rescue plan in place Answer: C Explanation: A hard hat alone is insufficient; proper respiratory protection, monitoring, ventilation, and a rescue plan are mandatory for confined-space entry. Question 5. Which piece of personal protective equipment (PPE) is required when cutting copper pipe with a torch? A) Ear plugs only B) Safety glasses, flame-resistant clothing, and gloves C) Steel-toe boots only D) Respirator only Answer: B
Ultimate Exam
Question 8. What is the maximum number of apprentices a master plumber may directly supervise on a residential project according to most state regulations? A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: Many jurisdictions require a ratio of one master plumber to two apprentices, ensuring adequate supervision. Question 9. According to the ADA, the minimum clear floor space required in front of a water-closet for wheelchair maneuverability is: A) 30 inches by 48 inches B) 36 inches by 48 inches C) 30 inches by 30 inches D) 48 inches by 60 inches Answer: B Explanation: The ADA specifies a clear floor space of at least 36 in. wide and 48 in. deep for a forward-facing water-closet. Question 10. A fixture’s mounting height for a lavatory in a public restroom must be at least: A) 30 inches above the floor B) 34 inches above the floor C) 38 inches above the floor
Ultimate Exam
D) 42 inches above the floor Answer: C Explanation: The ADA requires lavatory rim height to be not less than 38 inches for wheelchair accessibility. Question 11. What does the term “Developed Length” refer to in pipe sizing calculations? A) The straight length of pipe only B) The total length of pipe including fittings, expressed as equivalent straight pipe C) The length of pipe after expansion due to temperature D) The length of pipe measured from the source to the fixture Answer: B Explanation: Developed length converts all fittings to an equivalent length of straight pipe to account for friction losses. Question 12. A “Critical Level” in a vent system is defined as: A) The maximum pressure a pipe can withstand before bursting B) The highest point in a vent where the pipe must be located C) The minimum slope required for a horizontal vent pipe D) The point in a sewer where the flow velocity is greatest Answer: B Explanation: Critical level is the highest point a vent pipe may reach relative to the fixture it serves, ensuring proper venting.
Ultimate Exam
Answer: C Explanation: The code requires a protective sleeve (minimum 1-inch thick) to guard the pipe from damage during slab placement. Question 16. Which joining method is NOT permitted for PVC pipe in a DWV system? A) Solvent cement B) Mechanical compression fittings C) Soldering with a torch D) Threaded couplings Answer: C Explanation: PVC cannot be soldered; soldering is only for copper and certain metal pipes. Question 17. The minimum pressure required for a water-supply system air-test on a DWV system is: A) 5 psi B) 10 psi C) 15 psi D) 20 psi Answer: B Explanation: The I-P code requires a minimum of 10 psi for an air-test of a DWV system.
Ultimate Exam
Question 18. During a water-supply system pressure test, the system must hold the test pressure for at least: A) 5 minutes B) 10 minutes C) 15 minutes D) 30 minutes Answer: C Explanation: The code requires the system to hold pressure for a minimum of 15 minutes to verify integrity. Question 19. Which of the following is considered a “high-hazard” situation requiring a Reduced Pressure Zone (RPZ) assembly? A) A single-family home garden hose bib B) A fire sprinkler system C) A residential dishwashing sink D) A toilet flush valve Answer: B Explanation: Fire sprinkler systems are classified as high-hazard because any contamination could affect life-safety systems, thus requiring RPZ protection. Question 20. When calculating Water Supply Fixture Units (WFU) for a commercial kitchen, which fixture carries the highest unit value? A) Hand sink (0.5 WFU) B) Dishwasher (4.0 WFU) C) Drinking fountain (0.5 WFU) D) Ice machine (1.5 WFU)
Ultimate Exam
Question 23. For a gas-fired water heater, the required clearance from the top of the unit to any combustible material is: A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: C Explanation: The code mandates a minimum 24-inch clearance above the water heater to prevent heat damage. Question 24. Which of the following is the correct discharge pipe material for a Temperature & Pressure (T&P) relief valve on a water heater? A) Copper pipe with soldered joints B) PVC Schedule 40, not exceeding 50 psi rating C) Galvanized steel pipe with threaded joints only D) Any material as long as the pipe is 2-inch diameter Answer: B Explanation: The I-P code permits PVC Schedule 40 for T&P valve discharge, provided the pressure rating matches the system (commonly 50 psi). Question 25. In a hot-water recirculation system, the minimum pipe size for the loop serving a 2-story building is: A) ½-inch B) ¾-inch C) 1-inch
Ultimate Exam
D) 1-½-inch Answer: C Explanation: Recirculation loops typically require at least 1-inch pipe to provide adequate flow and minimize pressure loss in multi-story applications. Question 26. A booster pump is most appropriately selected when: A) The building’s static pressure is already above 80 psi B) The water supply source is a municipal main with sufficient pressure C) The demand exceeds the capacity of the existing supply line D) The system only serves a single fixture Answer: C Explanation: Booster pumps are installed to increase flow when the existing supply cannot meet demand. Question 27. What is the minimum required freeboard for a pressure tank used in a domestic water system? A) 1 inch B) 2 inches C) 4 inches D) 6 inches Answer: B Explanation: The code requires at least 2 inches of freeboard to allow for expansion and prevent waterlogging of the tank’s air cushion.
Ultimate Exam
C. Double-fixture trap serving two fixtures D. Bottle trap for a floor drain Answer: B Explanation: S-traps are prohibited because they can become air-locked, breaking the trap seal. Question 31. The minimum spacing between cleanouts on a building drain should not exceed: A) 50 feet B) 75 feet C) 100 feet D) 150 feet Answer: C Explanation: The code limits cleanout spacing to a maximum of 100 feet on building drains to ensure accessibility for maintenance. Question 32. A grease interceptor must be installed at least how many feet downstream of a food-service sink? A) 2 feet B) 5 feet C) 10 feet D) 15 feet Answer: B Explanation: The I-P code requires a minimum of 5 feet between the sink and the interceptor to allow proper flow and prevent premature clogging.
Ultimate Exam
Question 33. For an indirect waste receptor serving a commercial dishwasher, the required air gap between the waste pipe and the receptor is: A) 1 inch B) 2 inches C) 3 inches D) 4 inches Answer: B Explanation: Indirect waste must have a minimum 2-inch air gap to prevent backflow into the dishwasher. Question 34. When a vent pipe terminates on a roof, the minimum required height above the roof surface is: A) 12 inches B) 18 inches C) 24 inches D) 30 inches Answer: B Explanation: The code mandates at least 18 inches above the roof surface to prevent rainwater entry and ensure proper venting. Question 35. A Wet Vent may be used to vent which combination of fixtures? A) Two water closets and one lavatory on the same stack B) One kitchen sink and one bathroom sink on separate branches
Ultimate Exam
Explanation: Radiographic or other chemically hazardous wastes are classified as special waste and must be collected in a dedicated sump. Question 38. The minimum number of water closets required in a restaurant with a seating capacity of 150 is: A) 2 B) 3 C) 4 D) 5 Answer: B Explanation: According to the I-P code, restaurants require one water closet per 50 seats; 150 seats therefore need three fixtures. Question 39. For an accessible lavatory, the maximum distance from the rim of the sink to the nearest side wall must be: A) 18 inches B) 24 inches C) 30 inches D) 36 inches Answer: B Explanation: The ADA requires a minimum clear space of 24 inches from the sink rim to the nearest side wall for wheelchair access. Question 40. A drinking fountain must be installed so that the spout is no higher than: A) 30 inches above the floor
Ultimate Exam
B) 36 inches above the floor C) 42 inches above the floor D) 48 inches above the floor Answer: B Explanation: The ADA specifies that the highest point of a drinking fountain spout shall not exceed 36 inches. Question 41. Which of the following is the correct minimum clear floor space for a wheelchair-accessible laundry sink? A) 30 inches by 48 inches B) 36 inches by 48 inches C) 42 inches by 60 inches D) 48 inches by 60 inches Answer: B Explanation: The ADA requires a minimum clear floor space of 36 × 48 inches for wheelchair approach to a sink. Question 42. When installing a floor drain in a commercial kitchen, priming is required if the drain is expected to be unused for more than: A) 24 hours B) 48 hours C) 72 hours D) 7 days Answer: B
Ultimate Exam
B) Made of stainless steel only C) Listed for the specific fuel type and size D) Secured with a pipe wrench Answer: C Explanation: Flexible connectors must be listed (UL-rated) for the fuel type and pipe size they serve; length and material are secondary to certification. Question 46. Combustion air for a gas-fired water heater installed in a confined space must be provided by: A) A dedicated mechanical blower only B) Openings totaling at least 1 sq ft per 1,000 Btu/hr of input C) A 4-inch vent pipe to the outdoors D) No special provision if the heater is electric Answer: B Explanation: The code requires openings to the outdoors that together equal at least 1 sq ft per 1,000 Btu/hr of the appliance’s input for natural ventilation. Question 47. What is the minimum required clearance between a gas-type vent pipe and any combustible material? A) 1 inch B) 2 inches C) 4 inches D) 6 inches Answer: C
Ultimate Exam
Explanation: Gas vent pipes must maintain at least a 4-inch clearance from combustible surfaces to prevent heat damage. Question 48. When a single vent serves multiple gas appliances, the vent size must be: A) The same size as the largest appliance’s vent B) Increased by 25 % over the largest appliance vent size C) Determined by the total BTU input of all appliances D) No larger than 3 inches in diameter Answer: C Explanation: The vent must be sized based on the combined BTU input of all appliances sharing the vent. Question 49. In a plumbing plan, the symbol “⎔” most commonly represents: A) A shut-off valve B) A water closet C) A vent pipe D) A cleanout Answer: B Explanation: The standard fixture symbol for a water closet (toilet) is a stylized “⎔”. Question 50. On a plumbing legend, the notation “PVC-DWV-SCH40” indicates: A) A pressure-rated pipe for water supply
