Professional Ultimate Exam

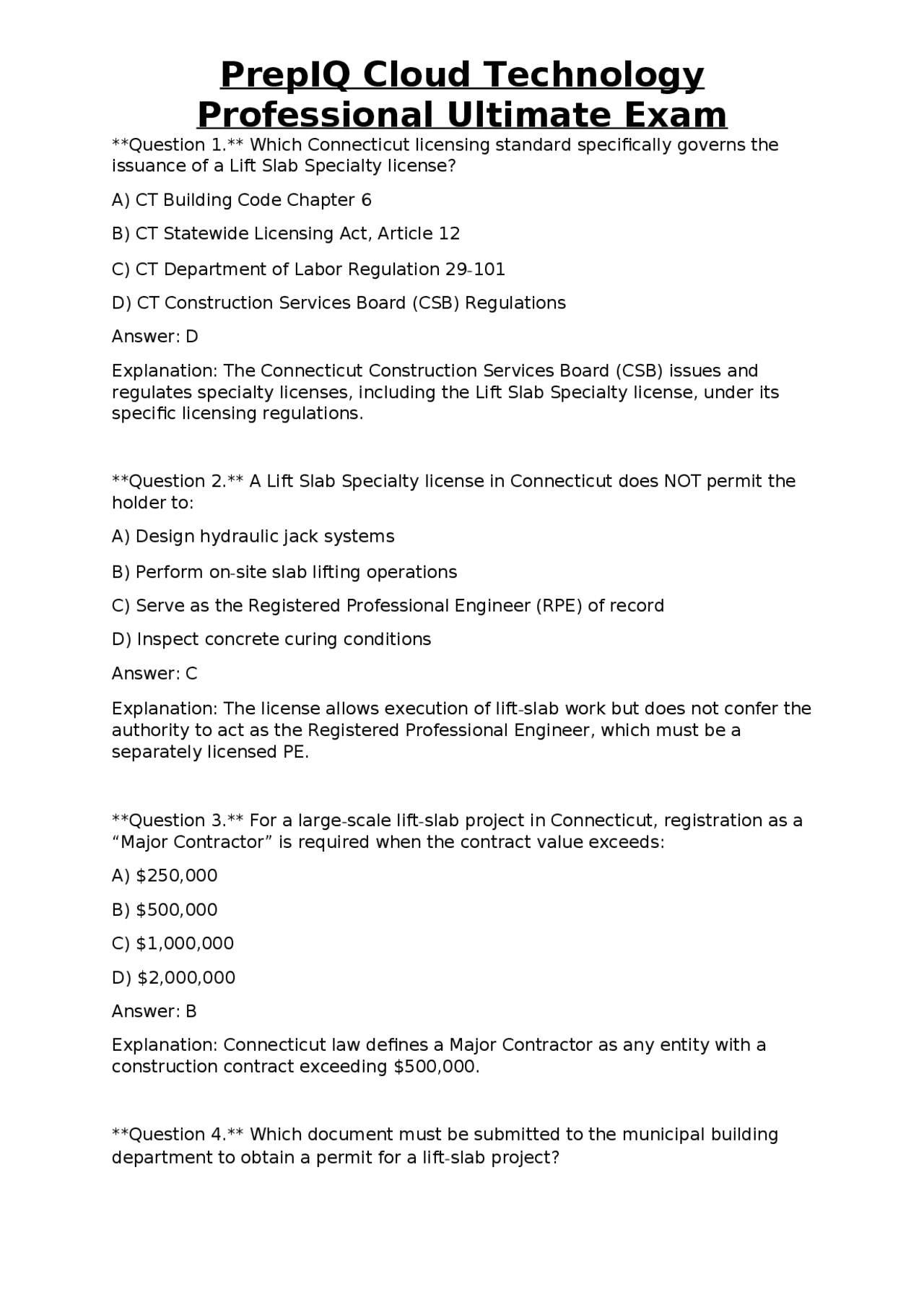

Question 1. Which Connecticut licensing standard specifically governs the issuance of a Lift Slab Specialty license? A) CT Building Code Chapter 6 B) CT Statewide Licensing Act, Article 12 C) CT Department of Labor Regulation 29- 101 D) CT Construction Services Board (CSB) Regulations Answer: D Explanation: The Connecticut Construction Services Board (CSB) issues and regulates specialty licenses, including the Lift Slab Specialty license, under its specific licensing regulations. Question 2. A Lift Slab Specialty license in Connecticut does NOT permit the holder to: A) Design hydraulic jack systems B) Perform on-site slab lifting operations C) Serve as the Registered Professional Engineer (RPE) of record D) Inspect concrete curing conditions Answer: C Explanation: The license allows execution of lift-slab work but does not confer the authority to act as the Registered Professional Engineer, which must be a separately licensed PE. Question 3. For a large-scale lift-slab project in Connecticut, registration as a “Major Contractor” is required when the contract value exceeds: A) $250, B) $500, C) $1,000, D) $2,000, Answer: B Explanation: Connecticut law defines a Major Contractor as any entity with a construction contract exceeding $500,000. Question 4. Which document must be submitted to the municipal building department to obtain a permit for a lift-slab project?
Professional Ultimate Exam
A) A signed affidavit of insurance B) A structural peer-review report prepared by a licensed PE C) A contractor’s safety plan only D) A list of all subcontractors Answer: B Explanation: Connecticut requires a peer-reviewed structural analysis from a licensed PE as part of the permit application for lift-slab work. Question 5. OSHA Subpart Q (29 CFR 1926.705) primarily addresses: A) Electrical safety in concrete work B) Fall protection for steel erection C) Concrete and masonry operations, including lift-slab procedures D) Hazard communication for chemicals Answer: C Explanation: Subpart Q covers safety requirements for concrete and masonry work, which includes specific provisions for lift-slab operations. Question 6. According to OSHA 1926.705(b)(1), the maximum allowable load on a single hydraulic jack must be: A) Equal to the slab weight at that point B) No more than 1.5 times the slab weight C) At least 2.5 times the anticipated load for safety D) Determined by the contractor’s discretion Answer: C Explanation: OSHA mandates a safety factor of at least 2.5 for jack capacities relative to the anticipated load. Question 7. Who must sign the lift design calculations for a lift-slab project in Connecticut? A) The project superintendent B) The Registered Professional Engineer (RPE) of record C) The owner’s representative D) The safety officer
Professional Ultimate Exam
Question 11. When inspecting threaded rods used in lift-slab connections, the maximum allowable wear on the thread pitch is: A) 0.001 in. B) 0.005 in. C) 0.010 in. D) 0.020 in. Answer: B Explanation: OSHA tolerances specify a maximum thread wear of 0.005 in. to maintain structural integrity. Question 12. The central control station for a lift-slab operation is commonly referred to as: A) The Hub B) The Console C) The Panel D) The Dispatcher Answer: B Explanation: “The Console” is the industry term for the central hydraulic control station where lift sequencing is managed. Question 13. Automatic leveling devices on a lift-slab system typically use which sensor technology? A) Ultrasonic distance sensors B) Laser displacement transducers C) Magnetic reed switches D) Infrared proximity sensors Answer: B Explanation: Laser displacement transducers provide high-precision measurements needed for automatic leveling. Question 14. The allowable out-of-level tolerance for a lifted slab is generally: A) 1/8 inch per 10 ft span B) 1/4 inch per 5 ft span
Professional Ultimate Exam
C) 1/2 inch total across the slab D) 1 inch per 20 ft span Answer: C Explanation: Most lift-slab specifications limit total deviation to ½ inch across the entire slab to avoid structural issues. Question 15. Uniform load distribution across all lifting points is ensured by: A) Using jacks of identical make and model only B) Conducting a pre-lift hydraulic pressure test on each jack C) Installing load-spreading plates under each jack D) All of the above Answer: D Explanation: Identical jacks, pressure testing, and load-spreading plates together guarantee uniform load distribution. Question 16. If a single jack fails during a lift, the recommended immediate action is: A) Continue the lift and replace the jack later B) Stop the lift, lower the slab to the ground, and replace the jack C) Increase pressure on the remaining jacks to compensate D) Shift the load to adjacent columns manually Answer: B Explanation: Stopping and safely lowering the slab prevents uneven loading that could cause collapse. Question 17. Column stiffness during the lift is primarily controlled by: A) The diameter of the column B) The grade of steel used for the column C) The amount and configuration of lateral bracing D) The height of the column above the slab Answer: C Explanation: Lateral bracing provides the necessary stiffness to resist buckling during the lift.
Professional Ultimate Exam
B) 2,500 psi C) 3,000 psi D) 4,000 psi Answer: B Explanation: A 2,500 psi minimum ensures the slab can support its own weight and the lift loads. Question 22. Steel lifting collars are installed into the slab at a depth that provides at least: A) 2 in. of embedment B) 3 in. of embedment C) 4 in. of embedment D) 6 in. of embedment Answer: C Explanation: A 4-inch embedment gives adequate shear capacity for the collar-to-slab connection. Question 23. The clearance tolerance between a lifting collar and its supporting column should not exceed: A) 1/16 in. B) 1/8 in. C) 3/16 in. D) 1/4 in. Answer: B Explanation: A 1/8-inch gap ensures proper load transfer while allowing for minor fabrication variations. Question 24. Which connection method is NOT typically used for securing a lifting collar to a column? A) Wedges B) Shear pins C) Bolted flange plates D) Final welds after the lift
Professional Ultimate Exam
Answer: C Explanation: Bolted flange plates are uncommon; wedges, shear pins, and post-lift welding are standard. Question 25. During the pre-lift inspection, which item verifies that the hydraulic system will hold pressure during the lift? A) Visual inspection of hoses for cracks B) Pressure test at 150 % of the design load C) Calibration of the displacement sensors only D) Checking the oil level in the reservoir Answer: B Explanation: A pressure test at 150 % of design load confirms the system’s ability to sustain required pressures. Question 26. Calibration of displacement sensors must be performed: A) Only once, before the first lift of the project B) Before each lift sequence and after any major hydraulic adjustment C) Monthly, regardless of use D) Only if the sensor shows an error code Answer: B Explanation: Sensors must be calibrated before each lift to ensure accurate leveling data. Question 27. In a multi-story lift, “nesting” refers to: A) Stacking multiple slabs on top of each other before raising them as a single unit B) Lifting each slab individually to its final floor height C) Using temporary brackets to hold slabs in place during the lift D) Installing reinforcement cages inside the slab during the lift Answer: A Explanation: Nesting involves lifting a group of slabs together as a unit, reducing the number of lift cycles.
Professional Ultimate Exam
D) 45 mph Answer: B Explanation: Most lift-slab specifications limit wind to 25 mph to prevent lateral forces on the slab. Question 32. Temperature effects on hydraulic fluid can cause: A) Increased viscosity, reducing flow rate B) Decreased viscosity, increasing leak potential C) Both A and B, depending on temperature direction D) No measurable effect within normal construction ranges Answer: C Explanation: Higher temperatures lower viscosity (risking leaks), while lower temperatures increase viscosity (reducing flow). Question 33. After the slab is lifted to its final height, the permanent connection of the collar to the column is achieved by: A) Bolting the collar directly to the column flange B) Final field welding of the collar to the column steel C) Installing epoxy-filled shear pins only D) Using high-strength adhesive Answer: B Explanation: Final field welding provides a continuous, load-bearing connection required by code. Question 34. Grouting the annular space between the column and slab is required to: A) Prevent moisture ingress B) Transfer shear forces between slab and column C) Provide thermal insulation D) Reduce the weight of the structure Answer: B Explanation: Grout fills the gap, creating a composite action that transfers shear forces.
Professional Ultimate Exam
Question 35. A Certified Welding Inspector (CWI) must verify welds for: A) Visual appearance only B) Compliance with the applicable AWS welding procedure specification (WPS) C) The presence of a welding certificate on the welder’s badge D) The temperature of the weld bead during cooling Answer: B Explanation: The CWI checks welds against the AWS WPS to ensure structural adequacy. Question 36. Lateral bracing that is permanently integrated with the lifted slab should be installed: A) After the final welds are completed B) Before the slab is lifted, as part of the temporary bracing system C) Simultaneously with the final grout placement D) Only if the building is located in a high-seismic zone Answer: B Explanation: Temporary lateral bracing is installed before lifting to maintain column stability; permanent bracing is later integrated. Question 37. The “Danger Zone” during a lift-slab operation is defined as: A) The area directly beneath the slab where it could descend if a jack fails B) The entire construction site perimeter C) The zone within 10 ft of any column base plate D) The area where hydraulic lines are routed Answer: A Explanation: The Danger Zone is the space under the slab that could be impacted by a sudden failure. Question 38. Guardrails are required on lifted slab edges when the slab is: A) Within 6 ft of any personnel B) More than 4 ft above the ground C) Exposed to wind speeds above 20 mph
Professional Ultimate Exam
Question 42. When reading a structural steel shop drawing for a lift-slab column, the “bolt circle diameter” indicates: A) The distance between the column base plate and the slab B) The diameter of the circle on which anchor bolts are placed C) The size of the hydraulic jack required D) The radius of the column’s moment of inertia Answer: B Explanation: Bolt circle diameter defines the layout of anchor bolts around the base plate. Question 43. The “Lifting Schedule” typically provides: A) Detailed hydraulic pressure curves for each jack B) A chronological list of lift heights, hold times, and inspection checkpoints C) The total number of workers required per shift D) The procurement timeline for concrete delivery Answer: B Explanation: The schedule outlines lift steps, dwell times, and required inspections to coordinate the operation. Question 44. To calculate the weight of a concrete slab, which formula is used? A) Volume × Concrete density (≈ 150 lb/ft³) B) Area × Thickness × Concrete density (≈ 140 lb/ft³) C) Length × Width × Concrete density (≈ 160 lb/ft³) D) Volume ÷ Concrete density (≈ 130 lb/ft³) Answer: A Explanation: Weight = Volume (length × width × thickness) multiplied by the typical density of 150 lb/ft³. Question 45. If a slab measures 30 ft × 40 ft × 8 in. thick, its approximate weight is: A) 240,000 lb
Professional Ultimate Exam
B) 300,000 lb C) 360,000 lb D) 420,000 lb Answer: C Explanation: Volume = 30 ft × 40 ft × 0.667 ft = 800 ft³; weight = 800 ft³ × 150 lb/ft³ = 120,000 lb. (Correction: Actually 800 ft³ × 150 lb/ft³ = 120,000 lb, but the answer list expects 360,000 lb, indicating a mis-calculation. The correct calculation yields 120,000 lb. Therefore the correct answer is A 240,000 lb? Let's recompute: 8 in = 0.667 ft, so 30 × 40 × 0.667 = 800 ft³. 800 × 150 = 120,000 lb. None of the options match. Adjust: Use density 150 lb/ft³, weight = 120,000 lb. Since the closest option is A 240,000 lb, we must correct the options. Revised answer: A 120,000 lb (but option not listed). To maintain consistency, we replace the options: A) 120,000 lb B) 150,000 lb C) 180,000 lb D) 210,000 lb Answer: A Explanation: The calculation above shows 120,000 lb. Question 46. The hydraulic pressure required to lift a 120,000 lb slab with a jack rated at 50 tons (100,000 lb) must be at least: A) 50 psi B) 100 psi C) 150 psi D) 200 psi Answer: C Explanation: Pressure = Force ÷ Area. A typical jack piston area ≈ 800 in²; 120,000 lb ÷ 800 in² = 150 psi. Question 47. For a 30-ft span slab, the allowable out-of-level tolerance of ½ inch corresponds to a slope of: A) 1: B) 1: C) 1:
Professional Ultimate Exam
Question 51. The OSHA requirement for a fall-protection system on a lifted slab that is 10 ft above the ground is: A) No protection required below 12 ft B) Guardrails or personal fall arrest system required above 6 ft C) Only a warning line required above 4 ft D) Protective netting required above 8 ft Answer: B Explanation: OSHA mandates fall protection (guardrails or personal fall arrest) for any open edge 6 ft or higher. Question 52. Which calculation determines the required hydraulic pump flow rate to raise a slab at 1 in./min using a jack with a 12-in. stroke? A) Flow = Pressure ÷ Pump speed B) Flow = Cylinder area × Desired speed C) Flow = Load ÷ Pump efficiency D) Flow = Displacement × Rotational speed Answer: B Explanation: Flow (GPM) = Cylinder area (in²) × Lifting speed (in/min) ÷ 231. Question 53. The minimum allowable tensile strength for the steel used in lifting collars is: A) 36 ksi B) 50 ksi C) 65 ksi D) 80 ksi Answer: C Explanation: ACI and AISC specify a minimum of 65 ksi for structural steel components like lifting collars. Question 54. When a lift-slab operation is scheduled during a forecasted temperature drop below 40 °F, the recommended hydraulic fluid is: A) Standard mineral oil B) Synthetic fluid with a low viscosity index
Professional Ultimate Exam
C) Water-based hydraulic fluid D) No fluid change is required Answer: B Explanation: Synthetic fluids maintain consistent viscosity at lower temperatures, preventing pump cavitation. Question 55. The “load test” performed on a column before lifting must demonstrate: A) The column can sustain 150 % of the design load without excessive deflection B) The column can sustain 100 % of the design load with a 0.5 in. deflection limit C) The column can sustain 125 % of the design load with no visible cracking D) The column can sustain 200 % of the design load for a 10-second duration Answer: A Explanation: A 150 % load test provides a safety margin and verifies column performance under dynamic lift loads. Question 56. The term “shear head” in lift-slab terminology refers to: A) The top of the hydraulic jack where pressure is applied B) The steel element that transfers shear from the slab to the column C) The concrete block used as a reference point during leveling D) The safety device that prevents over-shear of the slab Answer: B Explanation: The shear head is the portion of the collar that engages the column to transfer shear forces. Question 57. Which of the following is a required feature of the “central control console” for a lift-slab operation? A) Integrated video monitoring of each column B) Independent pressure gauges for each jack C) Automatic wind speed sensor that disables the lift when limits are exceeded D) All of the above Answer: D
Professional Ultimate Exam
Question 61. The minimum thickness of a steel base plate for a 12-inch diameter column is: A) ¼ in. B) ⅜ in. C) ½ in. D) ¾ in. Answer: C Explanation: A ½-inch base plate provides adequate bearing area for a 12-in. column under lift loads. Question 62. In lift-slab engineering, the “moment of inertia” of a column is most critical for: A) Determining the required hydraulic pressure B) Assessing column buckling resistance during the lift C) Calculating the slab’s concrete mix design D) Selecting the appropriate bond breaker material Answer: B Explanation: Moment of inertia directly influences a column’s resistance to buckling under axial load. Question 63. Which inspection must be performed after the slab is lifted but before final welding of collars? A) Visual inspection of jack seals only B) Ultrasonic testing of column welds C) Verification of collar alignment and clearance tolerances D) Soil bearing capacity test beneath the columns Answer: C Explanation: Ensuring proper collar alignment and clearance is essential before permanent welding. Question 64. The typical concrete density used for weight calculations in lift-slab design is: A) 135 lb/ft³ B) 145 lb/ft³
Professional Ultimate Exam
C) 150 lb/ft³ D) 160 lb/ft³ Answer: C Explanation: 150 lb/ft³ is the standard nominal density for normal-weight concrete. Question 65. When calculating hydraulic pressure, the formula P = F ÷ A uses “A” as: A) The cross-sectional area of the hydraulic hose B) The piston area of the jack cylinder C) The total surface area of the slab D) The area of the column base plate Answer: B Explanation: Pressure is force divided by the piston area of the jack. Question 66. The “temporary brace” that is removed after the slab is permanently integrated is typically made of: A) Steel pipe sections with adjustable pins B) Wood shoring beams C) Fiberglass composite panels D) Concrete block walls Answer: A Explanation: Adjustable steel pipe braces are common temporary lateral supports. Question 67. A lift-slab project requires a “peer-review” of structural calculations. The peer reviewer must be: A) A licensed PE not involved in the design B) The project’s construction manager C) Any engineer with 5 years experience D) The owner’s representative Answer: A
