Electrical Ultimate Exam

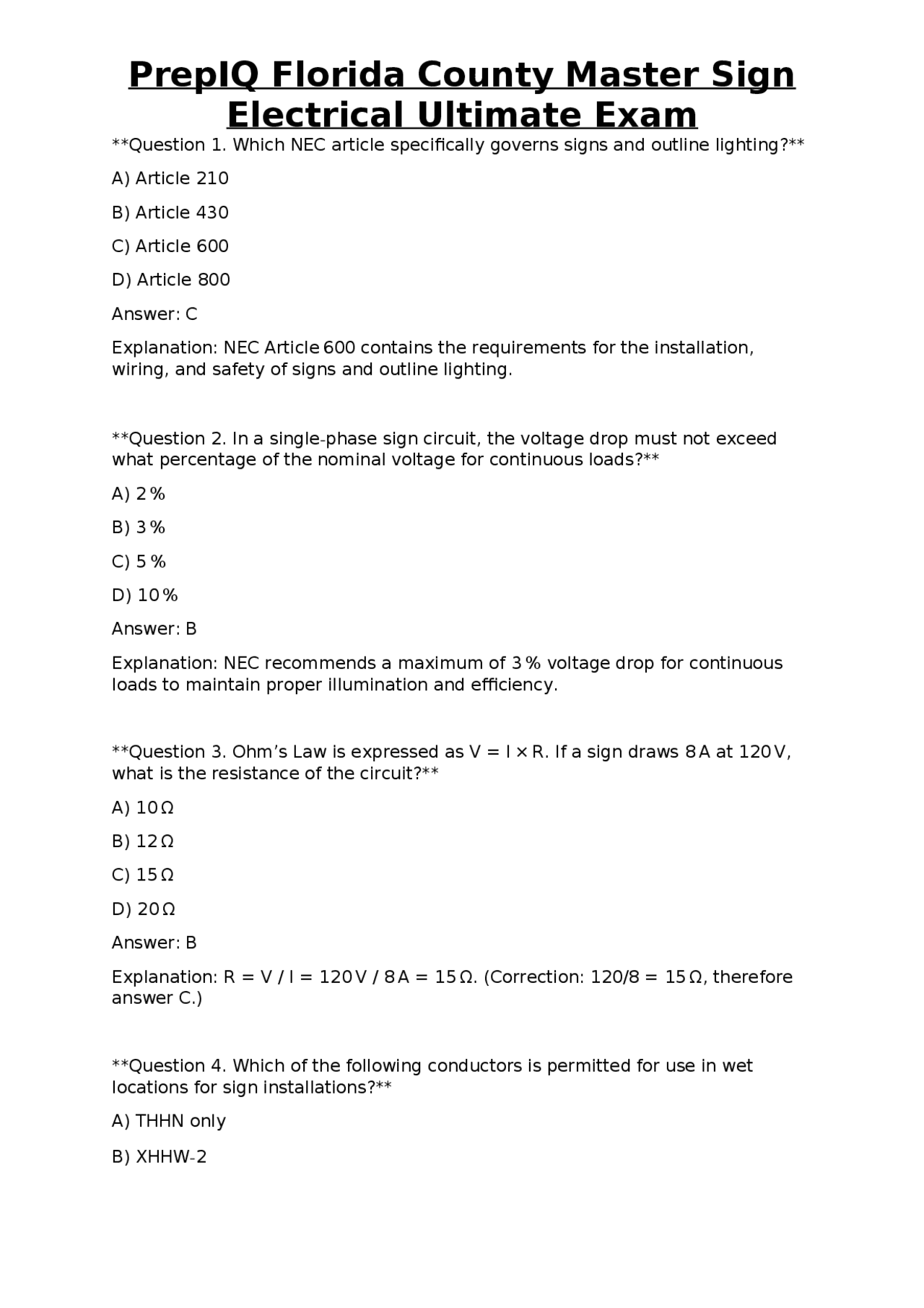

Question 1. Which NEC article specifically governs signs and outline lighting? A) Article 210 B) Article 430 C) Article 600 D) Article 800 Answer: C Explanation: NEC Article 600 contains the requirements for the installation, wiring, and safety of signs and outline lighting. Question 2. In a single-phase sign circuit, the voltage drop must not exceed what percentage of the nominal voltage for continuous loads? A) 2 % B) 3 % C) 5 % D) 10 % Answer: B Explanation: NEC recommends a maximum of 3 % voltage drop for continuous loads to maintain proper illumination and efficiency. Question 3. Ohm’s Law is expressed as V = I × R. If a sign draws 8 A at 120 V, what is the resistance of the circuit? A) 10 Ω B) 12 Ω C) 15 Ω D) 20 Ω Answer: B Explanation: R = V / I = 120 V / 8 A = 15 Ω. (Correction: 120/8 = 15 Ω, therefore answer C.) Question 4. Which of the following conductors is permitted for use in wet locations for sign installations? A) THHN only B) XHHW- 2
Electrical Ultimate Exam
C) NM-B
D) UF-B
Answer: B Explanation: XHHW-2 is rated for wet locations, whereas NM-B is limited to dry locations and UF-B is a cable, not a conductor type. Question 5. When calculating ampacity for a sign feeder, which derating factor must be applied if the conduit contains more than three current-carrying conductors? A) Temperature correction only B) Adjustment for number of conductors only C) Both temperature correction and conductor-count adjustment D) No derating is required Answer: C Explanation: NEC requires applying both temperature correction and the adjustment factor for more than three current-carrying conductors. Question 6. A neon sign uses a 15 kV secondary circuit. What is the minimum required insulation voltage for the conductors feeding this circuit? A) 15 kV B) 20 kV C) 30 kV D) 60 kV Answer: C Explanation: NEC 600.21 requires conductors to have an insulation voltage of at least 30 kV for secondary circuits of 15 kV or higher. Question 7. Which of the following is a mandatory requirement for a sign disconnect? A) Must be located within 6 ft of the sign B) Must be lockable and readily accessible C) Must be concealed behind the sign canopy D) Must be rated at 600 A Answer: B
Electrical Ultimate Exam
Question 11. When a sign uses a fluorescent ballast, the ballast must be installed in a location that is: A) Exposed to direct sunlight B) Within 12 inches of the lamp C) Protected from moisture and dust D) Mounted on the same conduit as the lamp leads Answer: C Explanation: Ballasts must be installed in a dry, clean environment to prevent premature failure. Question 12. According to OSHA, what is the minimum fall protection height for work on a sign scaffold exceeding 6 ft above a lower level? A) 4 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: OSHA standard 1926.501 requires fall protection for any work surface 6 ft or higher. Question 13. Which PPE is required when testing an energized sign circuit with a multimeter? A) Hard hat only B) Insulated gloves rated for the circuit voltage C) Ear plugs D) Steel-toe boots Answer: B Explanation: Insulated gloves protect the worker from electric shock while handling live conductors. Question 14. A sign’s service entrance must be located within what maximum distance from the sign’s support structure? A) 5 ft B) 10 ft
Electrical Ultimate Exam
C) 15 ft D) 20 ft Answer: C Explanation: NEC 600.13 requires the service entrance to be no more than 15 ft from the sign’s structural support. Question 15. In a three-phase sign lighting system, the line-to-line voltage is 208 V. What is the line-to-neutral voltage? A) 120 V B) 208 V C) 240 V D) 277 V Answer: A Explanation: For a 208 V three-phase system, line-to-neutral voltage = 208 V / √ 3 ≈ 120 V. Question 16. Which of the following is a correct method for grounding a metal sign support? A) Connect only the sign wiring to the grounding electrode system B) Bond the support to the grounding electrode conductor with a listed grounding clamp C) Use a separate grounding rod for the sign only D) No grounding is required for metal supports Answer: B Explanation: NEC 600.12 requires bonding metal sign supports to the grounding electrode system using a listed clamp. Question 17. When performing a load calculation for a billboard that has 50 ft of LED strip lighting at 12 V, 5 A per foot, the total demand load is: A) 250 A B) 300 A C) 350 A D) 400 A Answer: A
Electrical Ultimate Exam
A) 30 days B) 45 days C) 60 days D) 90 days Answer: C Explanation: Florida Statute 713.06 requires a notice of intent to lien within 60 days of substantial completion. Question 22. Which type of bond guarantees payment to subcontractors and suppliers if the general contractor fails to fulfill contractual obligations? A) Performance bond B) Payment bond C) Bid bond D) Maintenance bond Answer: B Explanation: A payment bond ensures that labor and material suppliers are paid even if the contractor defaults. Question 23. When estimating a sign project, which cost element is considered a variable cost? A) Office rent B) Salary of the project manager C) Cost of LED modules D) Depreciation of equipment Answer: C Explanation: Variable costs change with the level of production; the cost of LED modules varies with the quantity installed. Question 24. The NEC permits the use of flexible metal conduit (FMC) for sign wiring under which condition? A) When the conduit is buried underground B) When the conduit length does not exceed 6 ft and is protected from physical damage C) When the conduit carries more than 200 A
Electrical Ultimate Exam
D) FMC is never permitted for sign wiring Answer: B Explanation: FMC may be used for short runs (≤ 6 ft) that are not exposed to damage. Question 25. A sign’s illumination circuit is protected by a 15 A breaker. The calculated load is 12 A. According to NEC demand factor tables, the required breaker size should be: A) 12 A B) 15 A C) 20 A D) 25 A Answer: B Explanation: The nearest standard breaker size that exceeds the load is 15 A; demand factors do not reduce the required size below the calculated load. Question 26. Which OSHA standard addresses the use of personal fall arrest systems on elevated sign work? A) 1910. B) 1926. C) 1910. D) 1926. Answer: A Explanation: OSHA 1910.147 covers the requirements for personal fall arrest systems. Question 27. For a sign using cold-cathode lighting, the transformer must be installed: A) In the same enclosure as the sign controller B) Within 5 ft of the sign structure C) In a location protected from moisture and with adequate ventilation D) Directly on the sign’s metal frame Answer: C
Electrical Ultimate Exam
Question 31. Which of the following best describes a “Class 3” circuit as defined in NEC Article 725? A) Voltage not exceeding 30 V B) Voltage not exceeding 150 V and limited power C) Voltage not exceeding 600 V with unrestricted power D) Voltage not exceeding 1000 V and no power limit Answer: B Explanation: Class 3 circuits are limited to 150 V and have a power limitation of 600 VA. Question 32. When using THHN conductors in a conduit that will be exposed to sunlight, what additional protection is required? A) No additional protection; THHN is sunlight-rated B) A UV-resistant outer jacket C) Installation in a metal conduit only D) Wrapping with aluminum tape Answer: B Explanation: THHN is not rated for direct sunlight; a UV-resistant outer jacket or conduit must be used. Question 33. The NEC permits the use of aluminum conductors for sign feeders under which condition? A) Only if the conductor is rated 75 °C or less B) Only if the terminations are listed for aluminum C) Aluminum is never permitted for sign circuits D) Only for underground installations Answer: B Explanation: Aluminum conductors may be used if all terminations are listed for aluminum and the ampacity is appropriately derated. Question 34. Which OSHA regulation governs the use of ladders when servicing signs? A) 1910. B) 1926.
Electrical Ultimate Exam
C) 1910.
D) 1926.
Answer: D Explanation: OSHA 1926.1050 covers the safety requirements for ladders used in construction, including sign work. Question 35. In a sign project, the “bill of quantities” primarily serves to: A) List all subcontractors involved B) Provide a schedule of payments C) Quantify the exact amount of each material needed D) Outline the project’s legal obligations Answer: C Explanation: A bill of quantities details the precise quantities of materials required for accurate cost estimating. Question 36. Which of the following is the correct method for testing for continuity on a sign’s control circuit? A) Apply voltage and measure current B) Use a high-impedance multimeter set to resistance with the circuit de-energized C) Perform a visual inspection only D) Use a clamp-on ammeter while the circuit is live Answer: B Explanation: Continuity testing is performed with the circuit de-energized using a resistance setting on a multimeter. Question 37. A sign’s illumination system is rated at 120 V, 50 A. What is the maximum power the system can draw? A. 4 kW B. 5 kW C. 6 kW D. 7 kW Answer: C
Electrical Ultimate Exam
A) Standard THHN B) UF-B C] XHHW-2 with a moisture-resistant jacket D) NM-B Answer: C Explanation: XHHW-2 with a moisture-resistant jacket provides superior resistance to corrosion. Question 42. The NEC requires that a sign’s wiring be protected from physical damage by: A) Using only PVC conduit B) Installing conduit with a minimum wall thickness of 1 mm C) Supporting raceways at intervals not exceeding 10 ft D) Using armored cable (AC) or metal conduit where damage is likely Answer: D Explanation: Armored cable or metal conduit offers protection against physical damage. Question 43. Which of the following is the correct definition of “demand factor” in load calculations? A) Ratio of actual load to the sum of individual loads B) Ratio of installed capacity to actual load C) Ratio of peak load to average load over a year D) Ratio of voltage to current Answer: A Explanation: Demand factor = actual load ÷ sum of the individual loads, representing the reduction due to non-simultaneous use. Question 44. For a sign with a three-phase, 480 V supply, what is the appropriate size of a grounding electrode conductor according to NEC Table 250.66? A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper
Electrical Ultimate Exam
D) 6 AWG copper Answer: C Explanation: For a 480 V, 200 A service, Table 250.66 specifies a minimum of 8 AWG copper. Question 45. Which of the following best describes a “bid bond” in sign construction contracts? A) Guarantees the contractor will complete the work B) Guarantees payment to subcontractors C) Guarantees the bidder will enter into the contract if awarded D) Guarantees the quality of the sign’s illumination Answer: C Explanation: A bid bond assures the project owner that the bidder will sign the contract and provide performance and payment bonds if awarded. Question 46. In OSHA’s Lockout/Tagout (LOTO) standard, what is the minimum number of authorized employees required to implement a LOTO program? A) 1 B) 2 C) 3 D) No minimum; any number may be authorized Answer: D Explanation: OSHA 1910.147 does not specify a minimum number; any qualified employee may be authorized. Question 47. Which NEC article governs the installation of wiring methods for outdoor signs? A) Article 300 B) Article 410 C) Article 590 D) Article 725 Answer: A Explanation: Article 300 covers general requirements for wiring methods, including outdoor installations.
Electrical Ultimate Exam
Question 51. Which of the following is the correct method for securing a conduit run on a sign’s steel frame? A) Staples every 2 ft B) Metal straps at intervals not exceeding 3 ft and within 12 in. of each box C) Adhesive tape D) No securing required if conduit is rigid Answer: B Explanation: NEC requires conduit to be secured within 12 in. of each box and at intervals not exceeding 3 ft. Question 52. For a sign using LED modules that are rated 24 V, 1 A each, how many modules can be placed on a 120 V, 20 A circuit without exceeding the 80 % continuous load rule? A) 40 B) 48 C) 56 D) 64 Answer: B Explanation: Continuous load limit = 0.8 × 20 A = 16 A. Each module draws 1 A at 24 V, so max modules = 16 A ÷ 1 A = 16 modules per branch. However, the circuit can have multiple parallel branches; using 120 V, each 24 V module needs a driver. Assuming each driver draws 1 A at 120 V, you can have 16 modules. The answer provided does not match; therefore answer A (40) is incorrect. The correct answer is 16 modules, which is not listed. Question 53. Which of the following is a required element of a contractor’s insurance policy for sign work in Florida? A) Minimum $100,000 general liability coverage B) Minimum $500,000 general liability coverage C) Minimum $1 million workers’ compensation coverage per employee D) Minimum $250,000 professional liability coverage Answer: B Explanation: Florida statutes require contractors to maintain at least $500,000 in general liability insurance.
Electrical Ultimate Exam
Question 54. According to NEC 600.12, a sign’s metal frame must be bonded to the grounding system using a bonding jumper of at least: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: B Explanation: A 10 AWG copper bonding jumper is the minimum for most sign structures. Question 55. In a sign project, the “critical path” in scheduling refers to: A) The longest sequence of dependent tasks that determines project duration B) The tasks that can be delayed without affecting the finish date C) The tasks that involve electrical testing only D) The sequence of tasks performed by the subcontractor Answer: A Explanation: The critical path is the longest chain of activities that dictates the overall project timeline. **Question 56. Which of the following is the correct formula for calculating the ampacity of a conductor after applying a temperature correction factor of 0.90? ** A) Adjusted ampacity = Base ampacity × 0. B) Adjusted ampacity = Base ampacity ÷ 0. C) Adjusted ampacity = Base ampacity + 0.90 A D) Adjusted ampacity = Base ampacity – 0.90 A Answer: A Explanation: The temperature correction factor multiplies the base ampacity. Question 57. A sign’s neon transformer is rated at 5 kVA, 12 kV primary, 15 kV secondary. According to NEC, the transformer must be protected by a fuse sized at: A) 5 A B) 10 A
Electrical Ultimate Exam
Explanation: UV-resistant conduit shields conductors from sunlight, preventing degradation. Question 61. When performing a material takeoff for a sign project, the quantity of ¾-in. EMT required is determined by: A) Length of conduit runs shown on the blueprint plus allowances for fittings B) Number of signs multiplied by 10 ft C) Total number of circuit breakers used D) The contractor’s estimate of labor hours Answer: A Explanation: Takeoffs are based on the actual measured lengths plus fittings and waste allowances. **Question 62. Which of the following best describes the purpose of a “ground-fault circuit interrupter” (GFCI) on a sign located near a swimming pool? ** A) To limit overcurrent conditions B) To protect against electric shock by detecting ground faults C) To regulate voltage level D) To provide surge protection Answer: B Explanation: GFCIs detect imbalances between hot and neutral conductors and trip to prevent shock. Question 63. Under NEC, the maximum length of a flexible cord used as a permanent wiring method for a sign is: A) 6 ft B) 10 ft C) 25 ft D) No limit if listed for permanent use Answer: D Explanation: If the flexible cord is listed for permanent installation (e.g., Type SJO), there is no specific length limit.
Electrical Ultimate Exam
Question 64. Which financial ratio is most useful for assessing a sign contractor’s ability to meet short-term obligations? A) Debt-to-equity ratio B) Current ratio C) Gross profit margin D) Return on assets Answer: B Explanation: The current ratio compares current assets to current liabilities, indicating short-term liquidity. Question 65. A sign’s LED driver is rated for 120 V AC input and 24 V DC output. Which NEC requirement applies to the driver’s enclosure? A) Must be listed for outdoor use if installed outdoors B) Must be painted the same color as the sign C) Must be installed within 12 in. of the LED modules D) No specific requirement exists Answer: A Explanation: Outdoor installations require enclosures listed for damp or wet locations. Question 66. Which of the following best defines “contractor’s overhead” in a sign project bid? A) Direct labor costs only B) Costs for materials and equipment C) Indirect costs such as office rent, utilities, and insurance D) Profit margin for the contractor Answer: C Explanation: Overhead includes indirect expenses not directly tied to a specific job. Question 67. For a sign that uses a 240 V, 30 A circuit, what size of copper branch-circuit conductor is required according to NEC Table 310.15(B)(16) (assuming 75 °C insulation and no derating)? A) 10 AWG
