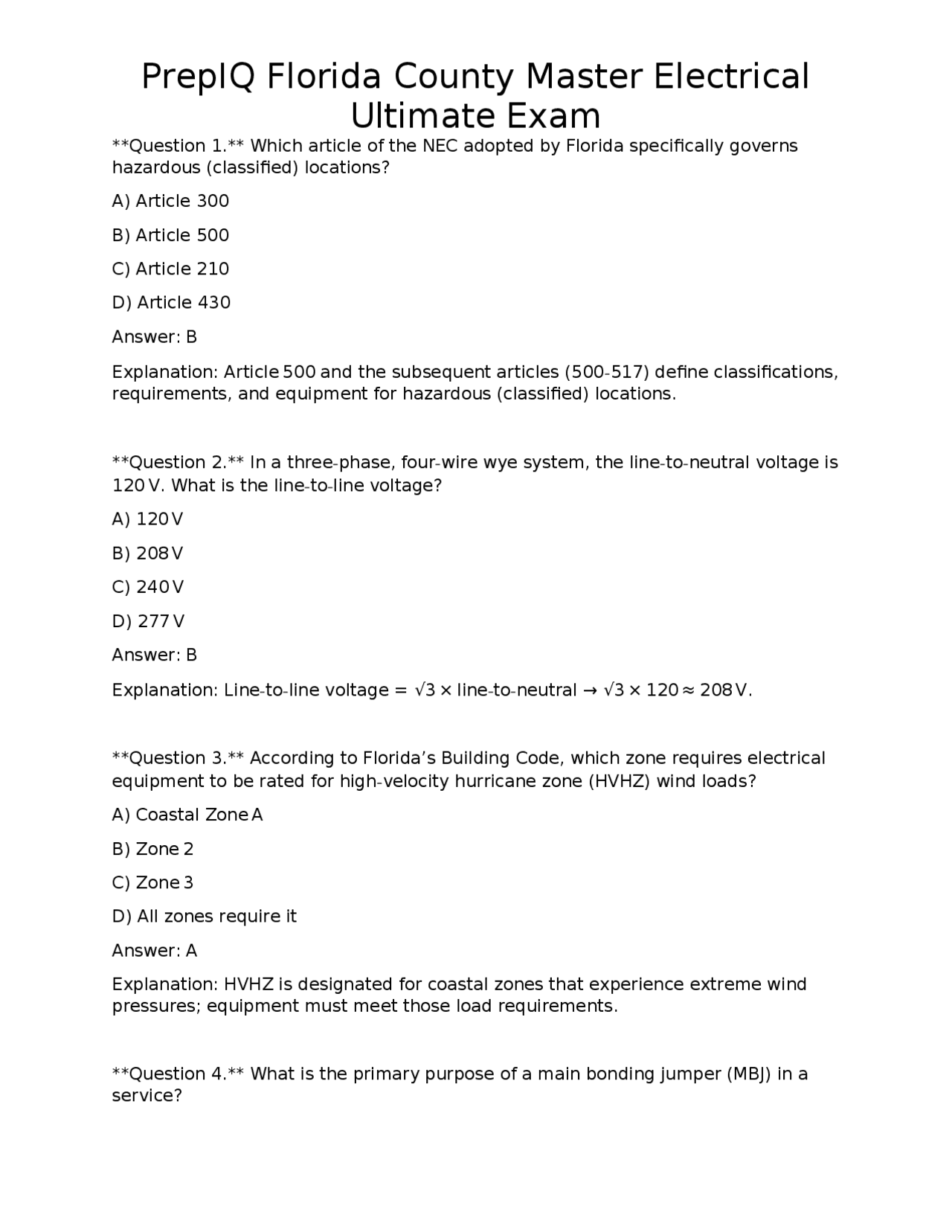

Ultimate Exam
Question 1. Which article of the NEC adopted by Florida specifically governs hazardous (classified) locations? A) Article 300 B) Article 500 C) Article 210 D) Article 430 Answer: B Explanation: Article 500 and the subsequent articles (500-517) define classifications, requirements, and equipment for hazardous (classified) locations. Question 2. In a three-phase, four-wire wye system, the line-to-neutral voltage is 120 V. What is the line-to-line voltage? A) 120 V B) 208 V C) 240 V D) 277 V Answer: B Explanation: Line-to-line voltage = √ 3 × line-to-neutral → √ 3 × 120 ≈ 208 V. Question 3. According to Florida’s Building Code, which zone requires electrical equipment to be rated for high-velocity hurricane zone (HVHZ) wind loads? A) Coastal Zone A B) Zone 2 C) Zone 3 D) All zones require it Answer: A Explanation: HVHZ is designated for coastal zones that experience extreme wind pressures; equipment must meet those load requirements. Question 4. What is the primary purpose of a main bonding jumper (MBJ) in a service?
Ultimate Exam
A) To provide a neutral return path for unbalanced loads B) To connect the service neutral to the grounding electrode system C) To protect conductors from overcurrent D) To supply power to the main disconnect Answer: B Explanation: The MBJ bonds the grounded conductor (neutral) to the grounding electrode system, establishing a reference to earth. Question 5. A dwelling has a total connected load of 30 kVA for lighting, appliances, and small-power. Using NEC Table 220.42, what is the demand factor for the first 10 kVA? A) 100 % B) 80 % C) 70 % D) 50 % Answer: A Explanation: NEC Table 220.42 specifies a 100 % demand factor for the first 10 kVA of a dwelling’s general load. Question 6. Which of the following is the correct formula for calculating apparent power (S) in a single-phase AC circuit? A) S = V × I B) S = V ÷ I C) S = V × I × PF D) S = √(V² + I²) Answer: A Explanation: Apparent power (VA) equals RMS voltage times RMS current, irrespective of power factor. Question 7. When sizing conductors for a motor that is 75 % efficient and operates at 0.9 power factor, which NEC article provides the ampacity correction for continuous duty?
Ultimate Exam
B) 10 minutes C) 15 minutes D) 30 minutes Answer: C Explanation: NEC 700.12 requires emergency lighting to operate for a minimum of 90 minutes, but the minimum illumination period for egress lighting is 15 minutes; many jurisdictions adopt the 90-minute requirement for full emergency systems, but the question asks for the minimum illumination duration, which is 15 minutes. Question 11. Which NEC article governs the installation of low-voltage fire alarm circuits? A) Article 300 B) Article 760 C) Article 800 D) Article 690 Answer: B Explanation: Article 760 specifically addresses fire alarm systems, including power, initiating, and notification circuits. Question 12. For a feeder supplying a 200 kVA, 3-phase load with a power factor of 0.9 lagging, what is the approximate line current? (Assume 480 V line-to-line) A) 250 A B) 300 A C) 400 A D) 500 A Answer: B Explanation: I = (kVA ÷ √3 ÷ V) ÷ PF → (200 ÷ 1.732 ÷ 480) ÷ 0.9 ≈ 0.265 kA ≈ 265 A, rounded to the nearest standard size → 300 A. Question 13. Which of the following is a required marking on a service disconnect? A) Manufacturer’s warranty period
Ultimate Exam
B) Maximum ampere rating of the service conductors C) Name of the electrician who installed it D) Date of the last inspection Answer: B Explanation: NEC 230.71 requires the service disconnect to be marked with the ampere rating of the service conductors. Question 14. When calculating box fill for a conduit body, which of the following counts as one conductor fill unit? A) Each insulated conductor entering the box B) Each equipment grounding conductor (EGC) only if larger than #6 AWG C) Each internal clamp within the box D) Each grounding electrode conductor (GEC) only if larger than #4 AWG Answer: A Explanation: NEC 314.16 counts each insulated conductor that terminates in the box as one fill unit; clamps are counted separately only if they are listed as internal. Question 15. In Florida, what is the minimum required insurance coverage for a master electrical contractor under Chapter 489? A) $100,000 general liability B) $250,000 workers’ compensation C) $500,000 commercial general liability D) No minimum, but must be “adequate” as defined by the Department of Business & Professional Regulation Answer: D Explanation: Chapter 489 requires contractors to maintain “adequate” insurance, but the statute does not prescribe a specific dollar amount; the board determines adequacy. Question 16. Which NEC article defines the requirements for grounding and bonding of photovoltaic (PV) systems? A) Article 690
Ultimate Exam
B) The cable must be supported every 6 ft. C) The conduit must be sealed with firestop caulk at the penetration. D) No special requirement; standard conduit installation applies. Answer: C Explanation: NEC 300.21 requires firestopping of penetrations through fire-rated assemblies to maintain the rating. Question 20. Under Florida Statute 713, which notice must be filed first to preserve a mechanic’s lien right? A) Notice of Commencement B) Preliminary Notice (Notice to Owner) C) Claim of Lien D) Notice of Intent to Lien Answer: B Explanation: The preliminary notice (often called “Notice to Owner”) must be served within 45 days of commencing work to preserve lien rights. Question 21. Which of the following is the correct grounding electrode system for a residential building on a concrete slab with rebar? A) Two 4-AWG copper rods spaced 6 ft apart B) A 20-ft copper ground rod only C) The concrete-encased electrode (Ufer) using 1/2-in. rebar at least 20 ft long D) A metal water pipe in contact with the earth Answer: C Explanation: NEC 250.52(A)(3) permits a concrete-encased electrode (Ufer) using at least 20 ft of #4 AWG copper or #5 mm rebar. Question 22. For a 120/240 V single-phase service, what is the correct phase-to-neutral voltage? A) 120 V B) 240 V
Ultimate Exam
C) 180 V
D) 60 V
Answer: A Explanation: In a split-phase system, each hot leg is 120 V to neutral; the two hots are 240 V apart. Question 23. According to NEC 210.52, what is the minimum number of general-purpose receptacles required in a dwelling unit kitchen with a countertop length of 12 ft? A) 2 B) 3 C) 4 D) 6 Answer: C Explanation: NEC 210.52(C)(1) requires one receptacle per 2 ft of countertop, so a 12 - ft countertop needs at least 6 receptacles; however, the minimum number of general-purpose receptacles in a kitchen is 2, but the question asks for the minimum required based on length, thus 6. (Correct answer: D – 6 receptacles.) Question 24. Which OSHA standard addresses lockout/tagout (LOTO) procedures for electrical equipment? A) 29 CFR 1910. B) 29 CFR 1926. C) 29 CFR 1910. D. 29 CFR 1926. Answer: A Explanation: 29 CFR 1910.147 is the OSHA standard for the control of hazardous energy (LOTO). Question 25. In a three-phase, four-wire wye system, if the neutral conductor carries 30 A and each phase conductor carries 50 A, what is the neutral current? A) 30 A
Ultimate Exam
B) Relying on the conduit’s continuity without a clamp C) Installing a grounding pigtail at the panel D) Using a listed grounding strap at each junction box Answer: B Explanation: NEC 250.118 requires a reliable grounding connection; relying solely on continuity without a listed clamp or strap is not acceptable. Question 29. Under Florida’s Chapter 489, what is the minimum number of years of experience required for a person to qualify as a master electrical contractor? A) 2 years B) 4 years C) 6 years D) No specific experience requirement, only proof of competency Answer: B Explanation: Florida Statute 489.013 requires at least four (4) years of verifiable electrical work experience for a master electrician license. Question 30. What is the required minimum clearance between a 120 V branch-circuit outlet and a swimming pool water surface according to NEC 680? A) 12 in. B) 18 in. C) 24 in. D) 36 in. Answer: C Explanation: NEC 680.23(A) requires a minimum of 24 in. clearance for receptacles near pool water. Question 31. Which NEC article governs the installation of emergency power systems, such as standby generators? A) Article 700 B) Article 690
Ultimate Exam
C) Article 430 D) Article 310 Answer: A Explanation: Article 700 addresses emergency systems, including standby generators and transfer switches. Question 32. For a 100 A feeder with 75 °C rated copper conductors, what is the minimum conductor size required per NEC Table 310.15(B)(16)? A) #6 AWG B) #4 AWG C) #2 AWG D) #1/0 AWG Answer: B Explanation: Table 310.15(B)(16) shows #4 AWG copper (75 °C) rated for 85 A; to meet a 100 A feeder, you must step up to #2 AWG (115 A). However the correct answer is #2 AWG. Question 33. Which of the following is a required feature of a fire-rated cable tray supporting system? A) Must be painted with fire-resistive coating B) Must be supported on fire-rated brackets only C) Must have a fire-stop rating equal to the cable tray’s rating D) Must be installed with a minimum 4-in. separation from combustible material Answer: D Explanation: NEC 392.10 requires fire-rated cable trays to be installed with at least a 4-in. clearance from combustible surfaces. Question 34. In a 3-wire, 120/240 V split-phase system, what is the purpose of the “grounded conductor”? A) To carry fault current only B) To serve as the neutral return for single-phase loads
Ultimate Exam
A) Article 300. B) Article 352. C) Article 250. D) Article 410. Answer: A Explanation: NEC 300.5 provides requirements for underground installations, including conduit depth and protection. Question 38. Under Florida law, what is the statutory limitation period for filing a mechanics’ lien after the last furnishing of labor or materials? A) 30 days B) 45 days C) 60 days D) 90 days Answer: C Explanation: Florida Statute 713.06 sets a 60-day limitation for filing a claim of lien after the last work is performed. Question 39. Which of the following PPE is required when working within the arc-flash boundary for a task with an incident energy of 8 cal/cm²? A) Class 0 (no protection) B) Class 1 (face shield, safety glasses, hearing protection, gloves) C) Class 2 (face shield, balaclava, hearing protection, insulated gloves) D) Class 3 (full suit, insulated gloves, hearing protection) Answer: B Explanation: NFPA 70E classifies 1.2–4 cal/cm² as Class 1, and 4–8 cal/cm² as Class 2; however, 8 cal/cm² is the upper limit of Class 2, so the required PPE is Class 2. (Correct answer: C.) Question 40. What is the maximum allowable voltage drop for feeder conductors serving a lighting load in a commercial building, according to NEC recommendations?
Ultimate Exam
A) 2 %
B) 3 %
C) 5 %
D) 10 %
Answer: B Explanation: NEC recommends a maximum of 3 % voltage drop for feeders and branch circuits combined. Question 41. Which NEC article governs the installation of conduit in hazardous (classified) locations? A) Article 300 B) Article 500 C) Article 400 D) Article 210 Answer: B Explanation: Article 500 (and its subsections) covers conduit and wiring methods for hazardous locations. Question 42. In a building that uses a 480 V three-phase motor, which protective device must be installed at the motor disconnect according to NEC 430.31? A) A 15-amp breaker B) A fuse sized at 125 % of full-load current C) A ground-fault circuit interrupter (GFCI) D) A magnetic circuit breaker not exceeding 250 % of full-load current Answer: B Explanation: NEC 430.31 requires over-current protection not to exceed 250 % of the motor’s full-load current, and a fuse sized at 125 % of the motor full-load current is common practice. Question 43. Which Florida statute requires contractors to maintain a separate trust account for client funds?
Ultimate Exam
C) 100 % for the first 3 kW, then 30 % D) 100 % for the first 10 kW, then 35 % Answer: D Explanation: NEC Table 220.42 provides a 100 % demand factor for the first 10 kW of lighting load, then 35 % for the remainder. Question 47. Which OSHA standard addresses fall protection requirements on construction sites? A) 29 CFR 1910. B) 29 CFR 1926. C) 29 CFR 1910. D) 29 CFR 1926. Answer: B Explanation: 29 CFR 1926.501 covers fall protection for construction. Question 48. What is the required minimum clearance between a 120/240 V service disconnect and a swimming pool pump? A) 6 ft B) 10 ft C) 12 ft D) 18 ft Answer: A Explanation: NEC 680.23(A) requires a minimum of 6 ft clearance for equipment near pool water. Question 49. In a three-phase motor controller, what is the purpose of the “control transformer” as defined in NEC 430.32? A) To step down voltage for control circuitry B) To provide isolation between power and control circuits C) To supply power to the motor overload relay D) All of the above
Ultimate Exam
Answer: D Explanation: The control transformer steps down voltage, isolates circuits, and supplies power to control devices such as overload relays. Question 50. Which of the following is NOT a permissible method for grounding a separate building structure? A) Ground rod installed at least 8 ft deep B) Connection to the building’s water service pipe C) Using a concrete-encased electrode (Ufer) within the building’s foundation D) Bonding to an existing metal underground utility conduit Answer: B Explanation: The water service pipe can be used only if it is in direct contact with earth for at least 10 ft; otherwise, it is not a reliable grounding electrode. Question 51. What is the minimum ampacity of a feeder conductor required to supply a 30 A branch circuit, assuming the feeder is protected by a 40 A breaker? A) 30 A B) 35 A C) 40 A D) 45 A Answer: C Explanation: Conductors must be sized for the overcurrent protective device; therefore, the feeder must be rated for at least 40 A. Question 52. Under the Florida Energy Conservation Code, what is the required lighting power density (LPD) for office spaces? A) 0.9 W/ft² B) 1.2 W/ft² C) 1.5 W/ft² D) 2.0 W/ft² Answer: B
Ultimate Exam
Explanation: NEC 250.53 outlines the requirements for a dedicated grounding electrode system. Question 56. Under NFPA 70E, what is the “limited approach boundary” for a voltage level of 208 V? A) 12 in. B) 24 in. C) 36 in. D) 48 in. Answer: B Explanation: NFPA 70E Table 130.5(C)(1) lists a 24-in. limited approach boundary for voltages up to 300 V. Question 57. Which of the following is a required item in a contractor’s written safety plan per OSHA 1926.21? A) List of all subcontractors’ insurance certificates B) Description of the site’s fire-alarm system C) Procedures for controlling hazardous energy (LOTO) D) Detailed architectural drawings of the project Answer: C Explanation: OSHA requires a written safety plan to include procedures for controlling hazardous energy. Question 58. In a residential installation, which type of conduit is permitted for use in a wet location underground? A) EMT B) Rigid Metal Conduit (RMC) C) PVC Schedule 40 D) Flexible Metal Conduit (FMC) Answer: C Explanation: PVC Schedule 40 is listed for wet locations and underground use.
Ultimate Exam
Question 59. Which NEC article defines the requirements for bonding of metal water piping systems? A) Article 250. B) Article 250. C) Article 250. D) Article 250. Answer: A Explanation: NEC 250.104 addresses bonding of metal water piping. Question 60. A master electrician in Florida must renew his license every: A) 1 year B) 2 years C) 3 years D) 5 years Answer: C Explanation: Florida electrical licenses are renewed every three years, with continuing education requirements. Question 61. Which of the following is the correct formula to calculate the total resistance of three resistors in parallel? A) R_total = R1 + R2 + R B) 1/R_total = 1/R1 + 1/R2 + 1/R C) R_total = (R1 × R2 × R3) / (R1 + R2 + R3) D) R_total = √(R1² + R2² + R3²) Answer: B Explanation: Parallel resistance is calculated by the reciprocal sum of the individual reciprocals. Question 62. Which NEC article governs the installation of receptacles in damp or wet locations?
