Electrician Ultimate Exam

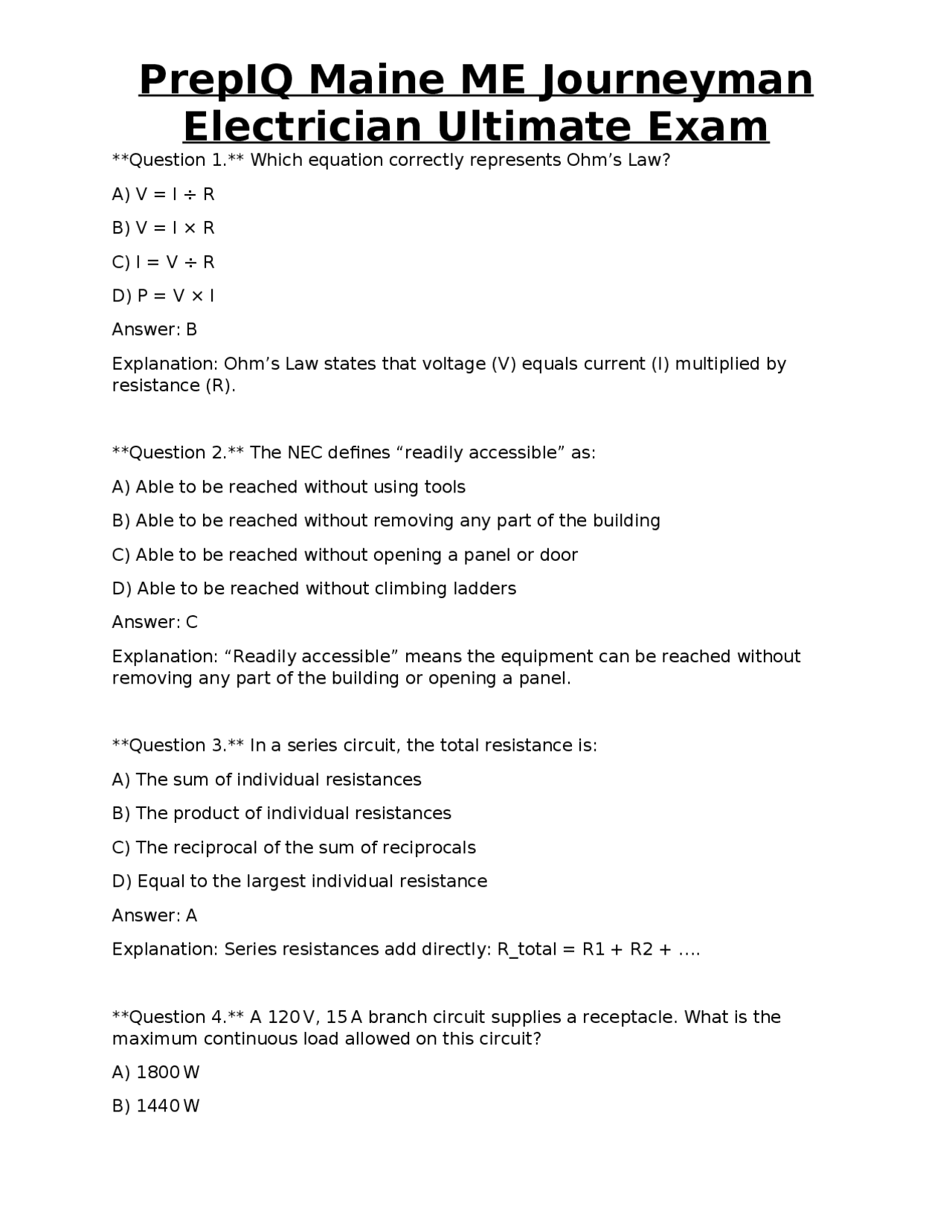

Question 1. Which equation correctly represents Ohm’s Law? A) V = I ÷ R B) V = I × R C) I = V ÷ R D) P = V × I Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 2. The NEC defines “readily accessible” as: A) Able to be reached without using tools B) Able to be reached without removing any part of the building C) Able to be reached without opening a panel or door D) Able to be reached without climbing ladders Answer: C Explanation: “Readily accessible” means the equipment can be reached without removing any part of the building or opening a panel. Question 3. In a series circuit, the total resistance is: A) The sum of individual resistances B) The product of individual resistances C) The reciprocal of the sum of reciprocals D) Equal to the largest individual resistance Answer: A Explanation: Series resistances add directly: R_total = R1 + R2 + …. Question 4. A 120 V, 15 A branch circuit supplies a receptacle. What is the maximum continuous load allowed on this circuit? A) 1800 W B) 1440 W
Electrician Ultimate Exam
C) 1200 W
D) 1500 W
Answer: B Explanation: Continuous load must not exceed 80 % of the circuit rating: 120 V × 15 A × 0.8 = 1440 W. Question 5. Which NEC article defines “accessible”? A) Article 100 B) Article 110 C) Article 210 D) Article 250 Answer: A Explanation: Article 100 provides definitions for terms used throughout the NEC, including “accessible”. Question 6. According to NEC 110.26, the working space in front of a panelboard must be at least:** A) 30 in. wide, 36 in. deep, 6 ft. high B) 30 in. wide, 30 in. deep, 6 ft. high C) 36 in. wide, 30 in. deep, 6 ft. high D) 36 in. wide, 36 in. deep, 8 ft. high Answer: C Explanation: NEC 110.26 requires a minimum working space of 30 in. wide, 36 in. deep, and 6 ft. high, measured from the front of the equipment. Question 7. A multi-wire branch circuit supplies two 120 V circuits sharing a neutral. What is the minimum size of the neutral conductor for a 20 A circuit? A) 12 AWG copper B) 10 AWG copper C) 14 AWG copper
Electrician Ultimate Exam
Answer: C Explanation: NEC Table 250.66 indicates an 8 AWG copper GEC for a 100 A service. Question 11. The main bonding jumper (MBJ) in a residential service must be:** A) Larger than the service conductors B) Same size as the service neutral C) At least 1/0 AWG copper D) No larger than the smallest service conductor Answer: B Explanation: The MBJ must be the same size as the service neutral conductor (NEC 250.102). Question 12. Which article governs the installation of service-entrance conductors? A) Article 210 B) Article 230 C) Article 250 D) Article 300 Answer: B Explanation: Article 230 covers service-entrance conductors, service equipment, and disconnecting means. Question 13. When bundling more than three current-carrying conductors in a raceway, which factor must be applied to ampacity? A) 0.8 for 4-6 conductors B) 0.7 for 4-6 conductors C) 0.9 for 4-6 conductors D) No adjustment needed Answer: A
Electrician Ultimate Exam
Explanation: NEC Table 310.15(B)(3)(a) requires a 0.8 adjustment factor for 4- 6 current-carrying conductors. Question 14. The ampacity of a 75 °C rated 12 AWG copper conductor in 30 °C ambient temperature is:** A) 20 A B) 25 A C) 30 A D) 35 A Answer: B Explanation: At 30 °C, the correction factor is 1.0; 12 AWG copper at 75 °C is rated 25 A (NEC Table 310.15(B)(16)). Question 15. Which conduit type is permitted in a wet location for a feeder? A) EMT B) RMC C) PVC (Schedule 40) D) Flexible metal conduit (FMC) Answer: C Explanation: PVC conduit is approved for wet locations; EMT and FMC are not. Question 16. The maximum fill for a raceway with more than two conductors is:** A) 40 % of internal cross-sectional area B) 31 % of internal cross-section area C) 53 % of internal cross-section area D) 25 % of internal cross-section area Answer: B Explanation: NEC 300.22 requires a maximum of 31 % fill when three or more conductors occupy a raceway.
Electrician Ultimate Exam
Question 20. A receptacle installed in a bathroom must be protected by a GFCI with a minimum rating of:** A) 15 A, 125 V B) 20 A, 125 V C) 15 A, 250 V D) 20 A, 250 V Answer: B Explanation: NEC 210.8(A)(1) requires a 20-amp, 125-volt GFCI for bathroom receptacles. Question 21. The minimum height for a wall-mounted luminaire in a residential hallway is:** A) 6 ft. above the floor B) 7 ft. above the floor C) 8 ft. above the floor D) No minimum height specified Answer: D Explanation: NEC does not specify a minimum mounting height for general-purpose luminaires in hallways. Question 22. Which of the following is considered a “tamper-resistant” receptacle? A) One with a recessed grounding slot B) One with internal shutters that block insertion of foreign objects C) One with a child-proof toggle switch D) One that is GFCI-protected Answer: B Explanation: Tamper-resistant receptacles have internal shutters that prevent insertion of objects other than a plug.
Electrician Ultimate Exam
Question 23. The required disconnecting means for a 30-A, 240-V water heater must be located within:** A) 6 ft. of the appliance B) 10 ft. of the appliance C) 3 ft. of the appliance D) No specific distance; only on the same circuit Answer: A Explanation: NEC 422.31 requires the disconnect for a water heater to be within sight or not more than 6 ft. away. Question 24. For a 120/240-V, 30 kVA single-phase transformer, the maximum overcurrent protection for the secondary must not exceed:** A) 125 % of the full-load current B) 150 % of the full-load current C) 110 % of the full-load current D) 100 % of the full-load current Answer: A Explanation: NEC 450.3(B) permits secondary overcurrent protection up to 125 % of the transformer’s full-load current. Question 25. A motor rated 5 HP, 230 V, 3-phase, 60 Hz requires a branch-circuit breaker sized at:** A) 25 A B) 30 A C) 35 A D) 40 A Answer: B Explanation: NEC 430.22 uses 250 % of the motor full-load current. A 5 HP motor draws about 11 A; 250 % = 27.5 A, rounded up to the next standard size, 30 A.
Electrician Ultimate Exam
B) Ground rod and metal water pipe C) Ground rod, metal water pipe, and concrete-encased electrode if present D) No grounding electrode required Answer: C Explanation: NEC 250.32 requires at least one grounding electrode; a concrete-encased electrode (Ufer) may be used if present, in addition to a ground rod or metal water pipe. Question 30. A swimming pool pump motor must be protected by a GFCI at what rating? A) 15 A, 120 V B) 20 A, 240 V C) 30 A, 240 V D) 15 A, 250 V Answer: B Explanation: NEC 680.22 requires a 20-amp, 125/250-volt GFCI for pool pump motors. Question 31. The minimum size of a grounding electrode conductor for a 200 A service using copper is:** A) 6 AWG B) 4 AWG C) 2 AWG D) 1/0 AWG Answer: B Explanation: NEC Table 250.66 lists 4 AWG copper for a 200 A service. Question 32. According to NEC 210.52(A), how many general-purpose receptacles are required in a dwelling’s kitchen countertop space of 12 ft. long? A) 2 B) 3
Electrician Ultimate Exam
C) 4
D) 5
Answer: B Explanation: NEC requires one receptacle per 2 ft of countertop space, so 12 ft ÷ 2 ft = 6, but receptacles are counted at each end, resulting in a minimum of 3 receptacles. Question 33. Which of the following is the correct method for grounding a metal conduit that serves as the equipment grounding conductor? A) No grounding required if conduit is continuous B) Connect a grounding clamp at each box C) Use a grounding screw at the service panel only D) Install a separate grounding wire inside the conduit Answer: B Explanation: NEC 250.118 requires grounding clamps at each box where the conduit is used as the EGC. Question 34. The NEC permits the use of a single-pole breaker to protect a multi-wire branch circuit only if:** A) The breaker is GFCI-type B) The breaker has a common trip handle C) The circuit is rated 15 A or less D) The neutral is larger than the ungrounded conductors Answer: B Explanation: A common-trip breaker ensures simultaneous disconnect of all ungrounded conductors in a multi-wire branch circuit. Question 35. In a commercial building, the minimum lighting load per square foot for office space is:** A) 0.5 W/ft² B) 1.0 W/ft²
Electrician Ultimate Exam
C) 12 AWG copper D) 6 AWG copper Answer: A Explanation: NEC 210.23(A)(2) permits 10 AWG copper for a 30 A dryer circuit. Question 39. Which article addresses the installation of luminaires in wet locations? A) Article 210 B) Article 410 C) Article 430 D) Article 500 Answer: B Explanation: Article 410 covers luminaires, including requirements for wet locations. Question 40. A flexible metal conduit (FMC) must be supported within how many feet of a box? A) 2 ft B) 3 ft C) 4 ft D) 6 ft Answer: C Explanation: NEC 376.30 requires FMC to be supported within 4 ft of each termination. Question 41. The minimum conduit fill for a single-conductor raceway (e.g., a single THHN) is:** A) 20 % B) 30 % C) 40 % D) 50 %
Electrician Ultimate Exam
Answer: C Explanation: NEC 358.12 permits a maximum of 40 % fill for a single conductor in a raceway. Question 42. According to NEC 210.24, a branch circuit supplying a single receptacle outlet must be rated at:** A) The load of the receptacle only B) 125 % of the receptacle load C) 150 % of the receptacle load D) No minimum rating, as long as the receptacle is rated for the circuit Answer: D Explanation: A single receptacle may be supplied by a circuit sized for the receptacle’s rating; no additional demand factor is required. Question 43. In a commercial kitchen, the required rating for a receptacle supplying a dishwasher is:** A) 15 A, 125 V B) 20 A, 125 V C) 30 A, 250 V D) 20 A, 250 V Answer: C Explanation: NEC 210.8(B)(2) requires a 30-amp, 250-volt receptacle for a dishwasher in a commercial kitchen. Question 44. The NEC defines “continuous load” as a load that:** A) Operates for more than 3 hours continuously B) Operates for more than 1 hour continuously C) Operates intermittently throughout the day D) Operates only during peak demand periods Answer: A
Electrician Ultimate Exam
Answer: B Explanation: NEC 210.8(A)(2) requires all 125-V, 15- and 20-A receptacles in garages to be GFCI-protected. Dedicated EV chargers have separate requirements. Question 48. The minimum ampacity for a feeder supplying a 100 A panelboard in a commercial building is:** A) 80 A B) 100 A C) 125 A D) 150 A Answer: B Explanation: The feeder must be sized for at least the rating of the load it serves; thus 100 A. Question 49. In a fire alarm system, the standby power source must be capable of supplying the circuit for at least:** A) 30 minutes B) 60 minutes C) 90 minutes D) 120 minutes Answer: B Explanation: NEC 760.41 requires standby power to sustain fire alarm circuits for a minimum of 60 minutes. Question 50. Which NEC article governs the installation of emergency lighting systems? A) Article 210 B) Article 700 C) Article 720 D) Article 760 Answer: B
Electrician Ultimate Exam
Explanation: Article 700 covers emergency systems, including exit and emergency lighting. Question 51. The required clearance in front of a panelboard on a roof is:** A) 3 ft. B) 4 ft. C) 6 ft. D) No specific clearance required Answer: C Explanation: NEC 110.26 requires a minimum of 6 ft. working clearance in front of equipment, whether on a floor or roof. Question 52. A 3-phase, 480 V motor has a full-load current of 30 A. What is the minimum size of the overload protection device? A) 30 A B) 45 A C) 60 A D) 75 A Answer: B Explanation: Overload protection must be set between 115 % and 125 % of the motor’s full-load current. 30 A × 1.5 = 45 A (NEC 430.32). The nearest standard size is 45 A. Question 53. Which type of grounding electrode is considered a “ground ring”? A) A metal rod driven vertically B) A horizontal conductor encircling the building foundation C) A concrete-encased electrode D) A metal water pipe Answer: B Explanation: A ground ring is a horizontal grounding electrode that encircles the building, usually buried 2 ft deep.
Electrician Ultimate Exam
Question 57. The NEC permits the use of a single-pole breaker for a 120/240-V, 2 - wire feeder to a subpanel only if:** A) The feeder includes a neutral conductor B) The feeder is protected by a GFCI breaker C) The subpanel has a separate ground bar D) The breaker is listed for multi-wire circuits Answer: A Explanation: A 120/240-V, 2-wire feeder must include a neutral (grounded conductor) to supply both legs; a single-pole breaker can protect the ungrounded conductor. Question 58. Which of the following is NOT a permitted method for connecting a grounding electrode conductor to a concrete-encased electrode? A) Exothermic welding B) Listed clamp C) Soldered connection D) Direct burial without a clamp Answer: C Explanation: Soldered connections are not permitted for grounding electrodes; only listed clamps, exothermic welding, or irreversible compression connectors are allowed. Question 59. The minimum size of a grounding electrode conductor for a 600 A service using copper is:** A) 2/0 AWG B) 3/0 AWG C) 4/0 AWG D) 250 kcmil Answer: C Explanation: NEC Table 250.66 lists 4/0 AWG copper for a 600 A service.
