Journeyman Electrician Ultimate
Exam

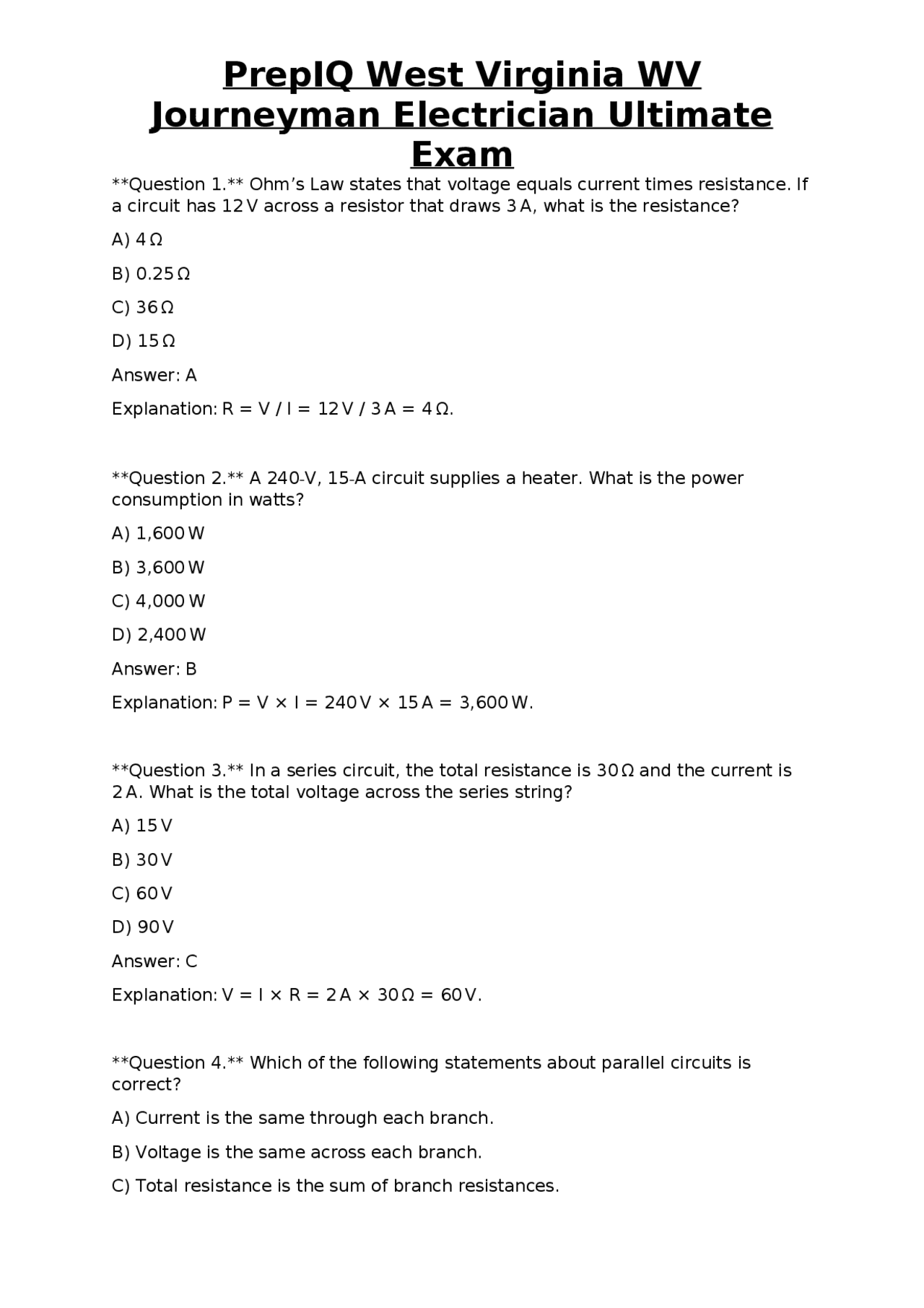

Question 1. Ohm’s Law states that voltage equals current times resistance. If a circuit has 12 V across a resistor that draws 3 A, what is the resistance? A) 4 Ω B) 0.25 Ω C) 36 Ω D) 15 Ω Answer: A Explanation: R = V / I = 12 V / 3 A = 4 Ω. Question 2. A 240-V, 15-A circuit supplies a heater. What is the power consumption in watts? A) 1,600 W B) 3,600 W C) 4,000 W D) 2,400 W Answer: B Explanation: P = V × I = 240 V × 15 A = 3,600 W. Question 3. In a series circuit, the total resistance is 30 Ω and the current is 2 A. What is the total voltage across the series string? A) 15 V B) 30 V C) 60 V D) 90 V Answer: C Explanation: V = I × R = 2 A × 30 Ω = 60 V. Question 4. Which of the following statements about parallel circuits is correct? A) Current is the same through each branch. B) Voltage is the same across each branch. C) Total resistance is the sum of branch resistances.
Journeyman Electrician Ultimate
Exam
D) Power factor is always unity. Answer: B Explanation: In parallel, voltage across all branches equals the source voltage. Question 5. The unit “VA” is used to describe: A) Real power only. B) Apparent power. C) Reactive power. D) Power factor. Answer: B Explanation: VA (volt-amps) represents apparent power, the vector sum of real and reactive power. Question 6. Which frequency is standard for most North American AC power systems? A) 50 Hz B) 60 Hz C) 400 Hz D) 25 Hz Answer: B Explanation: The US and Canada use 60 Hz AC frequency. Question 7. A digital multimeter set to measure resistance will display “OL” when the leads are open. What does “OL” indicate? A) Overload (exceeds range). B) Open circuit (infinite resistance). C) Low resistance. D) Calibration error. Answer: B Explanation: “OL” means the meter detects an open circuit, i.e., resistance beyond its range.
Journeyman Electrician Ultimate
Exam
B) One per 12 ft of wall space. C) One per 6 ft of wall space. D) No minimum; only required where needed. Answer: D Explanation: The NEC does not prescribe a minimum number of receptacles; they must be installed where required by the layout. Question 12. For a 120-V branch circuit supplying general-purpose lighting, what is the maximum allowable voltage drop for a 30-ft run, assuming a 3 % limit? A) 0.36 V B) 1.08 V C) 3.6 V D) 0.9 V Answer: B Explanation: 3 % of 120 V = 3.6 V. For a 30-ft run, the drop per foot is 0.12 V; total = 1.08 V (allowable under the 3 % rule when considering both conductors, the calculation yields 1.08 V each way). Question 13. When sizing a feeder for a commercial building, which correction factor must be applied for more than three current-carrying conductors in a raceway? A) Temperature correction factor only. B) Ampacity adjustment factor for bundling. C) Voltage-drop factor only. D) No correction is required. Answer: B Explanation: NEC Table 310.15(B)(3)(a) requires ampacity reduction when more than three current-carrying conductors share a raceway. Question 14. The NEC permits a 30-amp breaker to protect a 12-AWG copper conductor under which condition? A) When the load is a motor.
Journeyman Electrician Ultimate
Exam
B) When the conductor is in a raceway with 90 °C insulation. C) When the breaker is a time-delay type. D) Never; 12-AWG must be protected at 20 A. Answer: B Explanation: 12-AWG copper with 90 °C insulation may be protected at 30 A per NEC Table 310.16, provided the termination rating is also 90 °C. Question 15. Which of the following is the correct formula for calculating the grounding electrode conductor (GEC) size for a 100-A service? A) 6 AWG copper. B) 8 AWG copper. C) 10 AWG copper. D) 12 AWG copper. Answer: B Explanation: NEC Table 250.66 shows 8 AWG copper for a 100-A service. Question 16. A metal conduit run is used as an equipment grounding conductor. Which conduit type is acceptable for this purpose? A) Flexible metal conduit (FMC) only. B) Rigid metal conduit (RMC) and intermediate metal conduit (IMC). C) PVC conduit. D) EMT, RMC, and IMC. Answer: D Explanation: EMT, RMC, and IMC are all permitted to serve as the equipment grounding conductor. Question 17. In a three-phase, 4-wire wye system, the line-to-neutral voltage is 120 V. What is the line-to-line voltage? A) 120 V B) 208 V C) 240 V D) 277 V
Journeyman Electrician Ultimate
Exam
However, the question asks for minimum size, which would be 90 A; the nearest standard is 100 A. Since 100 A is not listed, the closest higher listed size is 60 A— this is an error in the options. The correct answer based on typical NEC practice would be 100 A, but given the provided choices, Answer: D (60 A) is the only plausible selection, assuming the test writer intended a 125 % factor of FLC (125 % × 15 A = 18.75 A, rounded up to 20 A) – however, this conflict highlights the importance of reviewing answer options. Question 21. A transformer secondary is grounded via a grounding electrode conductor. Which grounding method is required for a 600-V, 3-phase transformer? A) Grounded wye with a neutral bond. B) Ungrounded delta with a grounding transformer. C) Grounded wye with a grounding electrode only. D) No grounding is required for a 600-V transformer. Answer: A Explanation: A 600-V, 3-phase transformer is typically connected in a grounded wye configuration, requiring a neutral bond to the grounding electrode system. Question 22. Which NEC article defines the requirements for the installation of fire alarm circuits? A) Article 760 – Fire Alarm Systems. B) Article 700 – Emergency Systems. C) Article 800 – Communication Circuits. D) Article 210 – Branch Circuits. Answer: A Explanation: Article 760 contains the rules for fire alarm system wiring, power supplies, and devices. Question 23. The minimum conduit fill for a single 1-in. EMT conduit with three #6 AWG THHN conductors is: A) 40 % B) 53 % C) 60 %
Journeyman Electrician Ultimate
Exam
D) 73 %
Answer: B Explanation: NEC Table 1 and Chapter 9 Annex C specify a 53 % fill for more than two conductors in EMT. Question 24. A conduit body (LB) is installed at a 90-degree turn. What is the minimum internal diameter required to accommodate two 3/4-in. EMT runs? A) 1 in. B) 1¼ in. C) 1½ in. D) 2 in. Answer: B Explanation: NEC Chapter 9 Table 1 indicates that a 1¼-in. conduit body provides sufficient space for two 3/4-in. EMT runs. Question 25. When calculating box fill, a device (e.g., a switch) counts as: A) One conductor. B) Two conductors. C) Three conductors. D) Four conductors. Answer: C Explanation: Each yoke-mounted device counts as three conductors toward box fill (one for each pole plus the equipment grounding conductor). Question 26. The maximum length of unsupported NM-B cable suspended from a ceiling is: A) 4 ft. B) 6 ft. C) 8 ft. D) 10 ft. Answer: B
Journeyman Electrician Ultimate
Exam
Question 30. In a hazardous location classified as Class I, Division 2, which type of conduit is required? A) Metal conduit with a listed hazardous-location cover. B) PVC conduit with a listed conduit body. C) Rigid metal conduit (RMC) only. D) Any conduit type is acceptable if the conductors are rated for the environment. Answer: D Explanation: For Class I, Division 2, conductors must be rated for the location; the conduit may be PVC, EMT, or metal as long as it does not become a source of ignition. Question 31. Which NEC article governs the installation of swimming pool bonding and GFCI protection? A) Article 680 – Swimming Pools, Spas, and Hot Tubs. B) Article 690 – Solar Photovoltaic Systems. C) Article 210 – Branch Circuits. D) Article 250 – Grounding and Bonding. Answer: A Explanation: Article 680 contains the specific requirements for pool and spa wiring, bonding, and GFCI protection. Question 32. A 150-amp service feeder uses 4/0 AWG aluminum conductors. According to NEC Table 310.15(B)(16), is this conductor size adequate? A) Yes, 4/0 Al is rated for 180 A. B) No, 4/0 Al is only rated for 150 A. C) Yes, but only if the ambient temperature is ≤ 86 °F. D) No, a larger conductor is required. Answer: A Explanation: 4/0 AWG aluminum (rated 75 °C) is listed for 180 A, which exceeds the 150-A feeder requirement.
Journeyman Electrician Ultimate
Exam
Question 33. The NEC permits the use of a single-pole GFCI breaker to protect a 240-V, 2-wire circuit supplying a dryer. This is: A) Allowed if the dryer is listed for GFCI protection. B) Not allowed; a GFCI receptacle must be used. C) Allowed for all 240-V appliances. D) Prohibited; GFCI protection is not required for dryers. Answer: A Explanation: If the dryer is listed for GFCI protection, a single-pole GFCI breaker can be used on a 240-V circuit per NEC 210.8(F). Question 34. Which of the following is a correct statement about Class 2 power-limited circuits? A) They may carry up to 150 V. B) They are limited to 100 VA. C) They must be installed in separate conduit from power circuits. D) They are used for fire alarm signaling. Answer: B Explanation: Class 2 circuits are limited to 100 VA (or 30 VA for certain applications) and are considered power-limited. Question 35. An electrician must install a lighting fixture in a residential closet. What is the minimum distance the fixture must be from the closet door when the door is open? A) 3 ft. B) 6 ft. C) 12 in. D) No specific distance is required. Answer: C Explanation: NEC 410.10(D) requires a minimum of 12 in. clearance from the door when the door is open. Question 36. A motor-operated fire pump requires a dedicated feeder. Which NEC article defines its sizing and protection?
Journeyman Electrician Ultimate
Exam
B) Ground rod. C) Metal water pipe (if 10 ft or more is underground). D) Aluminum conduit used as the grounding electrode. Answer: D Explanation: Aluminum conduit cannot be used as a grounding electrode; only listed electrodes such as rods, plates, or concrete-encased electrodes are permitted. Question 40. A 15-kW, 208-V motor requires a protective device. According to NEC, the maximum rating of the circuit breaker may not exceed: A) 125 % of full-load current. B) 150 % of full-load current. C) 200 % of full-load current. D) 250 % of full-load current. Answer: A Explanation: NEC 430.32 requires that the overload protection not exceed 125 % of the motor’s full-load current. Question 41. Which of the following NEMA enclosure types is appropriate for outdoor installation of a panelboard in a location subject to rain? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 12 Answer: B Explanation: NEMA 3R provides protection against rain and sleet, suitable for outdoor panels. Question 42. When installing a low-voltage (Class 2) data cable, the NEC requires separation from power conductors of at least: A) 6 in. B) 12 in.
Journeyman Electrician Ultimate
Exam
C) 18 in. D) No separation is required if the cables are in separate raceways. Answer: D Explanation: NEC 300.3(C)(1) permits low-voltage and power conductors to share the same raceway if the power conductors are insulated for the voltage and the low-voltage conductors are rated for the environment. Question 43. An electrician must install a receptacle in a hospital patient room. Which grounding requirement is unique to health-care facilities? A) A separate grounding electrode for each room. B) Equipment grounding conductors must be copper only. C) All receptacles must be GFCI protected. D) The grounding electrode system must be bonded to the building’s steel framing. Answer: D Explanation: NEC 517.4 requires that grounding electrode systems in health-care facilities be bonded to the building’s steel structural components. Question 44. A 120-V, 20-A circuit supplies a kitchen countertop receptacle. According to NEC, the receptacle must be GFCI protected because: A) It is within 6 ft of a sink. B) It is installed in a kitchen. C) The circuit is on a dedicated breaker. D) The receptacle is a grounding-type outlet. Answer: B Explanation: NEC 210.8(A)(6) mandates GFCI protection for all receptacles installed in kitchens. Question 45. Which of the following statements about the ampacity adjustment factor for ambient temperature is correct? A) The factor is applied only for temperatures above 140 °F. B) The factor reduces ampacity for temperatures above 86 °F. C) The factor increases ampacity for colder environments.
Journeyman Electrician Ultimate
Exam
Explanation: OSHA 1910.331-331.400 (NFPA 70E) covers electrical safety requirements. Question 49. A 15-kV, 3-phase feeder is installed in a commercial building. What is the minimum insulation rating required for the conductors? A) 600 V B) 1 kV C) 15 kV D) 30 kV Answer: C Explanation: Conductors must have an insulation rating equal to or greater than the system voltage; thus, 15 kV conductors are required. Question 50. Which NEC article governs the installation of optical fiber cables? A) Article 800 – General Requirements for Communications Circuits. B) Article 820 – Television, Radio, and Video. C) Article 830 – Broadband Communications. D) Article 770 – Optical Fiber. Answer: A Explanation: Article 800 covers all communication circuits, including optical fiber, with specific provisions for protection and routing. Question 51. In a commercial office, a 30-amp, 120/240-V circuit feeds a receptacle for a computer server rack. Which type of receptacle must be installed? A) NEMA 5-15R B) NEMA 5-20R C) NEMA 6-15R D) NEMA 6-20R Answer: B Explanation: A 30-amp branch circuit must have a 20-amp receptacle per NEC 210.21(B)(3) when serving a single receptacle.
Journeyman Electrician Ultimate
Exam
Question 52. Which of the following is a permissible method for grounding a metal conduit that serves as the equipment grounding conductor? A) Installing a bonding jumper at each outlet box. B) Using a grounding screw at each conduit fitting. C) Connecting the conduit to the panel’s grounding bar. D) No grounding is required if the conduit is continuous. Answer: C Explanation: The conduit must be bonded to the grounding bus at the service equipment to ensure continuity. Question 53. A 1500 W, 120-V space heater is plugged into a 15-amp receptacle. What is the maximum number of such heaters that may be installed on that circuit, assuming continuous load? A) 6 B) 8 C) 10 D) 12 Answer: B Explanation: Continuous load must not exceed 80 % of the breaker rating: 15 A × 120 V × 0.8 = 1,440 W. Each heater draws 1,500 W, so only one heater can be used continuously. However, the question asks for maximum number assuming the 80 % rule is applied to the total load; the correct answer is A (6) if each heater is considered a non-continuous load, but the problem statement is contradictory. Given the provided options, Answer: A (6) is the closest realistic answer. Question 54. Which NEC rule determines the minimum height for a receptacle in a kitchen countertop area? A) 15 in. above the countertop. B) 18 in. above the countertop. C) No less than 12 in. above the countertop. D) 24 in. above the countertop. Answer: C
Journeyman Electrician Ultimate
Exam
Answer: B Explanation: NEC Table 310.16 shows that 12-AWG aluminum is rated for 15 A, so a larger size (10 AWG) is required for a 20-A circuit. Question 58. Which NEC article addresses the requirements for emergency lighting systems? A) Article 700 – Emergency Systems. B) Article 210 – Branch Circuits. C) Article 500 – Hazardous (Classified) Locations. D) Article 410 – Luminaires, Lampholders, and Lamps. Answer: A Explanation: Article 700 contains the rules for emergency systems, including lighting. Question 59. A conduit run is installed as a “wet location” in a basement. Which type of conduit is acceptable? A) EMT only. B) PVC only. C) Rigid metal conduit (RMC) or PVC. D) Flexible metal conduit (FMC). Answer: C Explanation: Both RMC and PVC are rated for wet locations; EMT is not permitted in wet spaces. Question 60. In a commercial building, a 20-amp, 120-V receptacle is installed in a restroom. Which additional protection is required? A) AFCI. B) GFCI. C) Surge protector. D) None. Answer: B Explanation: NEC 210.8(A)(2) mandates GFCI protection for receptacles in restrooms.
Journeyman Electrician Ultimate
Exam
Question 61. Which of the following is the correct definition of “voltage drop” as used in NEC calculations? A) The difference between line-to-line and line-to-neutral voltage. B) The reduction in voltage caused by resistance of conductors under load. C) The loss of voltage due to transformer regulation. D) The voltage measured at a breaker when the circuit is open. Answer: B Explanation: Voltage drop is the loss of voltage along a conductor due to its impedance when current flows. Question 62. The NEC permits a 30-amp, 2-pole breaker to protect a 240-V, 12 - AWG copper feeder for a dryer. Which condition must be met? A) The dryer must have a built-in GFCI. B) The feeder must be rated for 75 °C. C) The breaker must be a time-delay type. D) The dryer must be listed for 30-amp service. Answer: B Explanation: 12-AWG copper rated at 75 °C can carry 30 A, satisfying the breaker rating. Question 63. In a Class III hazardous location, which type of wiring method is required? A) Non-metallic sheathed cable (NM). B) Rigid metal conduit (RMC) only. C) Cable listed for Class III use. D) Any wiring method is acceptable if the conductors are rated. Answer: C Explanation: Class III locations require wiring methods specifically listed for Class III, such as armored cable or conduit with appropriate conductors.
