Lineman Electrician Ultimate Exam

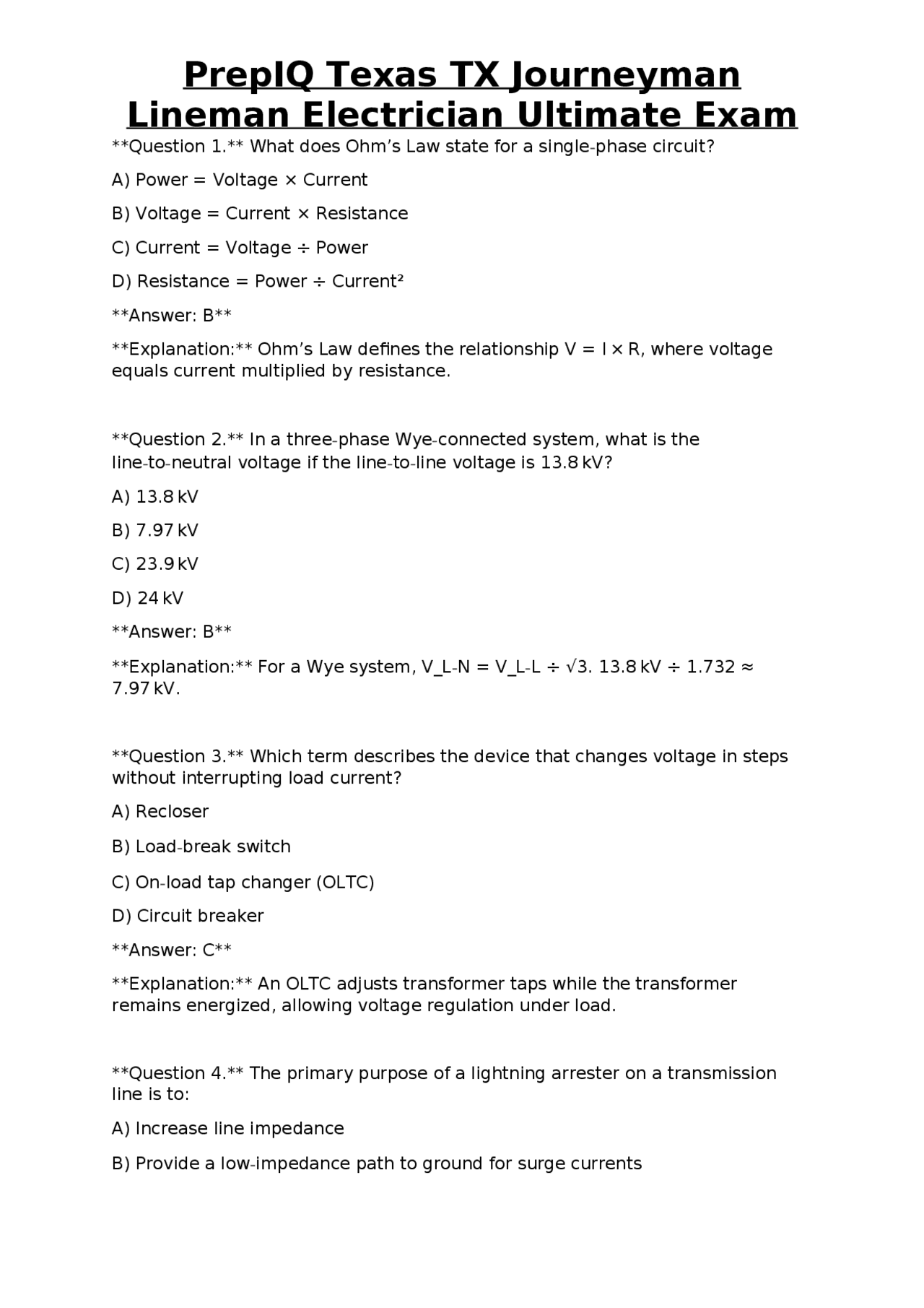

Question 1. What does Ohm’s Law state for a single-phase circuit? A) Power = Voltage × Current B) Voltage = Current × Resistance C) Current = Voltage ÷ Power D) Resistance = Power ÷ Current² Answer: B Explanation: Ohm’s Law defines the relationship V = I × R, where voltage equals current multiplied by resistance. Question 2. In a three-phase Wye-connected system, what is the line-to-neutral voltage if the line-to-line voltage is 13.8 kV? A) 13.8 kV B) 7.97 kV C) 23.9 kV D) 24 kV Answer: B Explanation: For a Wye system, V_L-N = V_L-L ÷ √3. 13.8 kV ÷ 1.732 ≈ 7.97 kV. Question 3. Which term describes the device that changes voltage in steps without interrupting load current? A) Recloser B) Load-break switch C) On-load tap changer (OLTC) D) Circuit breaker Answer: C Explanation: An OLTC adjusts transformer taps while the transformer remains energized, allowing voltage regulation under load. Question 4. The primary purpose of a lightning arrester on a transmission line is to: A) Increase line impedance B) Provide a low-impedance path to ground for surge currents
Lineman Electrician Ultimate Exam
C) Reduce conductor sag D) Balance phase currents Answer: B Explanation: Lightning arresters divert high-energy surge currents to ground, protecting equipment from over-voltage. Question 5. According to OSHA 29 CFR 1910.269, the minimum approach distance (MAD) for a 15 kV line under normal conditions is: A) 6 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: OSHA tables list 10 ft as the MAD for voltages from 15 kV to 30 kV when the line is not de-energized. Question 6. Which of the following best defines a “feeder” in a distribution system? A) The main transmission line from the generating station B) A low-voltage circuit that supplies a substation C) A medium-voltage line that carries power from a substation to distribution transformers D) The service drop to a customer’s premises Answer: C Explanation: Feeders are medium-voltage conductors that distribute power from substations to local transformers. Question 7. In an ACSR (Aluminum Conductor Steel Reinforced) conductor, the steel core primarily provides: A) Electrical conductivity B) Mechanical strength and reduced sag C) Corrosion resistance D) Improved thermal expansion Answer: B
Lineman Electrician Ultimate Exam
Question 11. The voltage drop on a 400-ft copper feeder supplying 120 A at 12 kV (3-phase) is approximately: A) 0.5 % B) 1.2 % C) 2.5 % D) 4.0 % Answer: B Explanation: Using ΔV = √3 × I × R × L, with copper resistance ≈0.000321 Ω/ft, ΔV ≈ 144 V, which is 1.2 % of 12 kV. Question 12. In a Delta-Delta transformer bank, the line-to-line voltage on the secondary side is: A) Equal to the primary line-to-line voltage. B) 1.732 times the primary line-to-line voltage. C) 0.577 times the primary line-to-line voltage. D) Determined by the tap changer only. Answer: A Explanation: Delta-Delta connections maintain the same line-to-line voltage ratio as the turns ratio; if the turns ratio is 1:1, voltages are equal. Question 13. Which NESC rule governs the minimum clearance between a grounded conductor and a building? A) Rule 130- 1 B) Rule 150- 2 C) Rule 208- 2 D) Rule 286- 1 Answer: B Explanation: NESC Rule 150-2 specifies minimum clearances for grounded conductors from structures. Question 14. The correct sequence for a “Lockout/Tagout” (LOTO) on a pole-mounted recloser is: A) Remove power, tag, lock, test voltage, remove the lock.
Lineman Electrician Ultimate Exam
B) Test voltage, lock, tag, de-energize, verify isolation. C) De-energize, verify isolation, apply lock, apply tag, test for absence of voltage. D) Apply tag, lock, de-energize, verify isolation. Answer: C Explanation: LOTO requires de-energizing, confirming isolation, then applying lock and tag, followed by a final voltage test. Question 15. Which calculation determines the required size of a transformer for a commercial load of 800 kW at a power factor of 0.9? A) KVA = kW ÷ PF B) KVA = kW × PF C) KVA = √(kW² + (kW × PF)²) D) KVA = kW ÷ √PF Answer: A Explanation: Apparent power KVA = Real power kW ÷ Power Factor. 800 kW ÷ 0.9 ≈ 889 KVA. Question 16. In Texas Administrative Code Chapter 73, which of the following is a required continuing education (CE) activity for a journeyman lineman? A) One 8-hour safety refresher every two years B) Ten hours of CE annually, including at least 2 hours of safety training C) No CE is required after initial licensure D) Only classroom courses count; on-the-job training does not. Answer: B Explanation: Texas requires 10 hours of CE each year for journeyman electricians, with a minimum of 2 hours dedicated to safety. Question 17. The term “dead-ending” a conductor refers to: A) Connecting a conductor to a dead-end terminal block after tensioning. B) Terminating a line at a transformer without a load. C) Cutting a conductor and leaving it unused. D) Installing a conductor on a pole without a cross-arm. Answer: A
Lineman Electrician Ultimate Exam
A) It isolates a faulted section after a recloser opens. B) It continuously monitors voltage on all phases. C) It provides a permanent open circuit for maintenance. D) It steps voltage up for long-distance transmission. Answer: A Explanation: A sectionalizer counts recloser operations and opens after a set number, isolating the faulted segment. Question 22. The “tap changer” on a distribution transformer is most effective for correcting which condition? A) Over-current B) Under-voltage during peak load C) Phase imbalance D) Harmonic distortion Answer: B Explanation: Tap changers adjust voltage to compensate for load-induced voltage drops, maintaining proper service voltage. Question 23. In underground cable installations, the term “pull-through” refers to: A) A method of installing conduit without trenching. B) Pulling a cable through existing conduit using a pulling lubricant and a winch. C) Cutting and splicing cable inside a vault. D) Laying cable on a tray system. Answer: B Explanation: Pull-through is the process of feeding cable through conduit, often with lubricant and mechanical assistance. Question 24. Which OSHA standard specifically addresses electric power generation, transmission, and distribution? A) 1910. B) 1910. C) 1926.
Lineman Electrician Ultimate Exam
D) 1910.
Answer: B Explanation: OSHA 1910.269 is the standard for electric power generation, transmission, and distribution safety. Question 25. The “phase rotation” for a three-phase system is identified by: A) Measuring line-to-line voltage only. B) Observing the sequence of A-B-C or A-C-B using a phase rotation meter. C) Checking the polarity markings on transformers. D) Determining the size of conductors. Answer: B Explanation: Phase rotation meters detect the order of phase sequence, which is critical for proper motor operation. Question 26. Which factor most directly influences conductor sag on an overhead line? A) Conductor color B) Ambient temperature C) Insulator length D) Pole material Answer: B Explanation: Higher temperatures cause conductors to expand, increasing sag; colder temperatures reduce sag. Question 27. A “sectionalizing switch” differs from a “recloser” in that it: A) Operates automatically after a fault. B) Requires manual operation to open or close. C) Provides voltage regulation. D) Is installed only on underground systems. Answer: B Explanation: Sectionalizing switches are manually operated devices used to isolate sections of a feeder.
Lineman Electrician Ultimate Exam
C) Tools that generate heat for splicing. D) Any tool used in a substation. Answer: B Explanation: Hot line tools are specially insulated and rated to allow work on live conductors safely. Question 32. Which of the following statements about a “delta-wye” transformer bank is true? A) It provides a neutral on the primary side. B) It eliminates the need for a grounding transformer. C) It reduces line-to-ground voltage on the wye side. D) It cannot be used for three-phase motors. Answer: C Explanation: The wye side offers a neutral and lower line-to-ground voltage (V_L-N = V_L-L ÷ √3). Question 33. The minimum pole height for a 115-kV line crossing a roadway with a 20-ft vertical clearance is: A) 45 ft B) 55 ft C) 65 ft D) 75 ft Answer: C Explanation: Adding required clearances, hardware, and sag allowances typically results in a minimum pole height of about 65 ft for 115-kV over a road. Question 34. Which test is used to verify the integrity of an underground high-voltage cable termination? A) Megger insulation resistance test B) Continuity test with a multimeter C) Voltage-dip test D) Visual inspection only Answer: A
Lineman Electrician Ultimate Exam
Explanation: A Megger applies a high DC voltage to measure insulation resistance, confirming proper termination. Question 35. In a three-phase, four-wire system, the neutral conductor carries: A) Only balanced load current. B) The vector sum of the three phase currents. C) No current under any condition. D) The same current as each phase. Answer: B Explanation: The neutral carries the unbalanced component, which is the vector sum of the three phase currents. Question 36. The primary advantage of using a “sectionalizer” in an automated distribution network is: A) Faster restoration after permanent faults. B) Ability to isolate a faulted section without manual crews. C) Reducing line losses during normal operation. D) Providing voltage regulation. Answer: B Explanation: Sectionalizers isolate faults automatically after a set number of recloser trips, reducing the need for manual intervention. Question 37. When calculating mechanical loading on a guy wire, the dominant force component is: A) Axial tension due to pole weight. B) Lateral wind load on the wire. C) Thermal expansion of the wire. D) Electrical current in the wire. Answer: B Explanation: Wind pressure creates lateral loads that produce tension in the guy wire; this is the primary design consideration.
Lineman Electrician Ultimate Exam
C) Presence of a tension-adjusting device. D) Balanced tension on both sides of the pole. Answer: D Explanation: A dead-end pole has tension only on one side; the other side is terminated, so tension is not balanced. Question 42. The standard frequency for utility power in the United States is: A) 50 Hz B) 60 Hz C) 55 Hz D) 65 Hz Answer: B Explanation: U.S. power systems operate at 60 Hz. Question 43. In a “Wye-Delta” transformer, the primary is Wye-connected and the secondary is Delta-connected. This configuration is commonly used to: A) Provide a neutral on the load side. B) Reduce line-to-ground voltage on the primary side. C) Allow three-phase motor starting with reduced starting current. D) Eliminate harmonics on the secondary. Answer: C Explanation: Wye-Delta banks reduce starting current for motors and provide a path for third-harmonic currents. Question 44. Which of the following best describes the “ampacity” of a conductor? A) The maximum voltage it can carry. B) The maximum current it can safely carry continuously. C) The resistance per foot at 20 °C. D) The minimum breaking capacity. Answer: B Explanation: Ampacity is the continuous current rating of a conductor under specified conditions.
Lineman Electrician Ultimate Exam
Question 45. The primary reason for installing a “phase-to-ground” fault indicator on a feeder is to: A) Detect open-circuit conditions. B) Locate the exact point of a ground fault quickly. C) Measure line voltage. D) Provide power factor correction. Answer: B Explanation: Fault indicators signal the presence and approximate location of a ground fault, aiding rapid response. Question 46. When using a hot stick to operate a 12 kV line, the minimum insulation rating of the stick must be: A) 12 kV B) 15 kV C) 20 kV D) 30 kV Answer: C Explanation: OSHA requires hot sticks to be rated at least 1.5 times the line voltage; 12 kV × 1.5 = 18 kV, so a 20 kV stick meets the requirement. Question 47. The “kiss-off” distance for a 69-kV line when using a bucket truck is: A) 10 ft B) 12 ft C) 15 ft D) 20 ft Answer: C Explanation: OSHA’s MAD tables list 15 ft for 69-kV under normal conditions. Question 48. In a three-phase system, the total apparent power (S) is calculated by: A) S = √3 × V_L-L × I_L
Lineman Electrician Ultimate Exam
Explanation: No-load loss occurs in the core due to magnetic hysteresis and eddy currents, independent of load. Question 52. Which of the following is a requirement for a “qualified person” under OSHA 1910.269? A) Must have a high-school diploma only. B) Must be trained and certified to work on or near energized equipment. C) Must be a licensed electrician in any state. D) Must have a minimum of 10 years experience. Answer: B Explanation: OSHA defines a qualified person as one who has received training and demonstrated competence in the specific tasks. Question 53. The purpose of a “sectionalizer” count setting is to: A) Determine how many times a recloser may operate before the sectionalizer opens. B) Set the voltage regulation level. C) Adjust the timing of a recloser. D) Measure line current. Answer: A Explanation: The count setting specifies how many recloser trips trigger the sectionalizer to open and isolate the fault. Question 54. Which of the following is the correct method for grounding a de-energized 69-kV line for maintenance? A) Attach a single ground rod at one end. B) Use a series of ground rods spaced no more than 30 ft apart along the entire length. C) Install a ground mat beneath the conductor. D) No grounding is required if the line is de-energized. Answer: B Explanation: Multiple grounding points ensure equal potential along the entire line, preventing step-potential hazards.
Lineman Electrician Ultimate Exam
Question 55. The “phase conductor” of a 4-wire 120/240 V service is typically identified by: A) Red, Black, and White colors. B) All three conductors are white. C) Two hot conductors (black and red) and one neutral (white). D) Green for all three conductors. Answer: C Explanation: Standard color code: black and red for hots, white for neutral; green for grounding. Question 56. In a “Delta-Open Delta” transformer configuration, the third transformer is used to: A) Provide a neutral point. B) Supply the missing phase during unbalanced loads. C) Reduce voltage on the secondary side. D) Increase fault current capability. Answer: B Explanation: Open Delta uses two transformers to supply three phases; the third transformer can be added to improve balance and capacity. Question 57. The “ground-fault indicator” on a recloser typically uses which type of detection? A) Thermal sensing B) Magnetic flux detection of unbalanced current C) Optical fiber monitoring D) Acoustic emission detection Answer: B Explanation: Ground-fault indicators detect the magnetic field produced by unbalanced (zero-sequence) current. Question 58. Which of the following is a primary factor in determining the required size of a pole for a 115-kV line? A) Conductor color B) Wind loading and ice accumulation
Lineman Electrician Ultimate Exam
Question 62. The term “sag-tension curve” is used to describe: A) The relationship between conductor sag and temperature. B) The relationship between conductor tension and voltage drop. C) The relationship between conductor weight and pole height. D) The relationship between conductor sag and tension. Answer: D Explanation: The sag-tension curve plots sag versus tension for a given span and conductor type. Question 63. Which test is used to verify the polarity of a three-phase transformer bank? A) Megger insulation test B) Polarity (dot) test using a low-voltage source and voltmeter C) Resistance measurement with a bridge D) No-load loss test Answer: B Explanation: A low-voltage source is applied to one winding and the voltage on the other winding is measured; correct polarity shows additive voltage. Question 64. A “sectionalizer” is required on a distribution line when: A) The line length exceeds 5 mi. B) The line carries more than 500 A. C) The line has a recloser and frequent transient faults. D) The line is underground. Answer: C Explanation: Sectionalizers work with reclosers to isolate transient faults, improving reliability. Question 65. Which of the following is a key advantage of using an “underground” cable over an overhead line? A) Lower installation cost. B) Reduced exposure to weather-related outages.
Lineman Electrician Ultimate Exam
C) Higher current-carrying capacity per conductor size. D) Easier visual inspection. Answer: B Explanation: Underground cables are protected from wind, ice, and vegetation, reducing outage frequency. Question 66. The “ground-potential rise” (GPR) during a fault is primarily a concern for: A) Low-voltage residential customers. B) Workers near the fault location. C) Transformers on the same bus. D) The neutral conductor only. Answer: B Explanation: GPR creates hazardous step and touch voltages for personnel near the fault. Question 67. In Texas, the renewal period for a journeyman lineman license is: A) Every 2 years B) Every 3 years C) Every 5 years D) Annually Answer: B Explanation: Texas requires journeyman licenses to be renewed every three years, with CE credits. Question 68. Which of the following devices automatically restores power after a temporary fault without human intervention? A) Fuse B) Recloser C) Sectionalizer D) Ground fault indicator Answer: B
