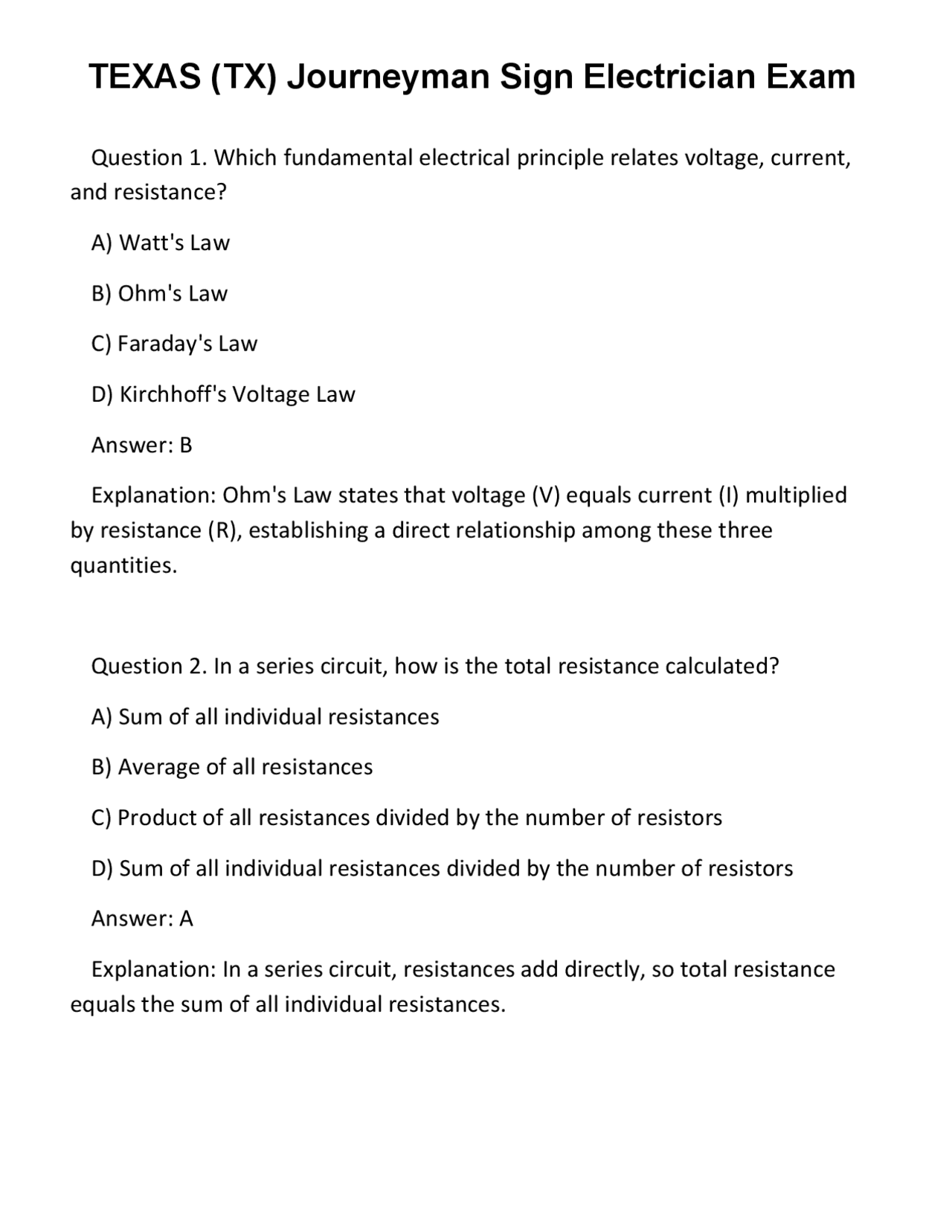

Question 1. Which fundamental electrical principle relates voltage, current, and resistance? A) Watt's Law B) Ohm's Law C) Faraday's Law D) Kirchhoff's Voltage Law Answer: B Explanation: Ohm's Law states that voltage (V) equals current (I) multiplied by resistance (R), establishing a direct relationship among these three quantities. Question 2. In a series circuit, how is the total resistance calculated? A) Sum of all individual resistances B) Average of all resistances C) Product of all resistances divided by the number of resistors D) Sum of all individual resistances divided by the number of resistors Answer: A Explanation: In a series circuit, resistances add directly, so total resistance equals the sum of all individual resistances.
Question 3. Which of the following best describes the primary difference between AC and DC power? A) AC flows in one direction; DC alternates direction. B) DC flows in one direction; AC alternates direction. C) AC is used only in residential wiring; DC only in industrial. D) AC has constant voltage; DC varies voltage periodically. Answer: B Explanation: Direct current (DC) flows in one constant direction, while alternating current (AC) periodically reverses direction. Question 4. What is the SI unit of electrical power? A) Volt B) Ohm C) Watt D) Ampere Answer: C Explanation: The watt (W) is the SI unit of electrical power, representing the rate of energy transfer. Question 5. Which component principles are based on the interaction of magnetic fields and electric currents?
B) Insulated gloves and arc-rated clothing C) Hard hat only D) Steel-toed boots only Answer: B Explanation: Arc-flash hazards require specialized PPE such as insulated gloves and arc-rated clothing to protect against high-temperature arcs. Question 8. According to NEC Article 100, what is an "electric sign"? A) Any device that displays information electrically B) An electrically powered display used for advertising or identification C) A lighting fixture used for general illumination D) Any electrical device attached to a building exterior Answer: B Explanation: An electric sign is defined as a device that uses electricity to display information, typically for advertising or identification. Question 9. In designing a branch circuit for a sign, what is the primary consideration for overcurrent protection? A) The total length of the circuit B) The load current and conductor ampacity
C) The type of sign material used D) The color of the conductors Answer: B Explanation: Overcurrent protection must match the load current and conductor ampacity to prevent overheating and hazards. Question 10. What distinguishes a dedicated branch circuit from a general- purpose circuit? A) It supplies multiple types of loads. B) It supplies only one specific load or device. C) It has no overcurrent protection. D) It is always connected directly to the main service panel. Answer: B Explanation: A dedicated circuit supplies only one device or load, ensuring that device receives an appropriate level of protection and power. Question 11. How are feeders different from branch circuits? A) Feeders supply power from the main panel to subpanels or large loads, while branch circuits supply final loads. B) Feeders are always larger in size than branch circuits. C) Feeders are only used in industrial settings.
D) Diode Answer: B Explanation: Fuses and circuit breakers are overcurrent protective devices that prevent excessive current from damaging conductors and equipment. Question 14. What is the primary purpose of grounding electrode systems? A) To provide a low-resistance path to earth for fault currents B) To increase the voltage of the system C) To prevent electromagnetic interference D) To improve power factor Answer: A Explanation: Grounding electrodes establish a path to earth for fault currents, reducing shock hazards and stabilizing voltage levels. Question 15. Which conductor material is most commonly used in sign wiring due to its excellent conductivity? A) Copper B) Aluminum C) Steel D) Bronze
Answer: A Explanation: Copper is widely used because of its high electrical conductivity, durability, and flexibility. Question 16. When calculating conductor ampacity, which factor does NOT need to be considered? A) Conductor insulation temperature rating B) Ambient temperature C) Number of conductors in a raceway D) The color of the conductor Answer: D Explanation: The color of the conductor does not influence its ampacity; insulation temperature rating, ambient temperature, and grouping are critical factors. Question 17. What is the purpose of a junction box in electrical wiring? A) To connect multiple conductors and protect splices B) To increase voltage C) To serve as a transformer housing D) To act as a circuit breaker Answer: A
Explanation: Box fill calculations depend on the number and size of conductors and splices to ensure proper capacity and safety. Question 20. Which device is used to control the operation of a motor in a sign system? A) Contactors and motor control circuits B) Circuit breaker only C) Resistors D) Light switch Answer: A Explanation: Contactors and motor control circuits enable starting, stopping, and protection of motors used in signs. Question 21. What is a key NEC requirement for installing neon signs? A) Use of high-voltage insulated conductors and proper grounding B) Only AC power supply C) No overcurrent protection needed D) No special clearance required from combustible materials Answer: A Explanation: Neon signs operate at high voltage, requiring proper insulation, grounding, and adherence to clearance and safety standards.
Question 22. In sign wiring, what is the primary function of a ballast? A) To limit current and provide starting voltage for certain lamps B) To convert AC to DC C) To switch circuits on and off D) To provide overcurrent protection Answer: A Explanation: Ballasts regulate current flow and provide the necessary voltage to start and operate certain types of lamps like fluorescent and neon. Question 23. Which of the following is a common application of transformers in sign systems? A) To step down high-voltage input to a lower voltage suitable for sign components B) To convert AC to DC directly C) To switch circuits on and off automatically D) To provide overcurrent protection Answer: A Explanation: Transformers reduce high-voltage supply to lower levels suitable for sign illumination components.
Question 26. What is a primary consideration when installing a sign in a location prone to physical damage? A) Providing physical protection such as barriers or enclosures B) Increasing conductor size C) Installing additional transformers D) Using only flexible wiring Answer: A Explanation: Protecting signs from physical damage involves barriers, enclosures, or placement strategies to ensure durability and safety. Question 27. Which wiring method is most suitable for flexible connections in signs? A) Flexible cords and cables approved for sign use B) Rigid conduit only C) Underground direct burial cable D) Open wiring on surfaces Answer: A Explanation: Flexible cords are designed for temporary or movable connections in signs, provided they meet NEC approval.
Question 28. What is the main safety concern when working with high- voltage neon sign systems? A) Risk of electric shock and arcing, requiring protective enclosures and insulation B) Overloading circuit breakers C) Excessive heat generation D) Overvoltage from the power source Answer: A Explanation: High-voltage neon systems pose shock and arcing hazards, necessitating proper insulation and protective barriers. Question 29. When mounting a transformer for a sign, what is an NEC requirement? A) Mount the transformer in a well-ventilated, accessible location, and within the enclosure’s temperature rating B) Mount directly to combustible materials without clearance C) Enclose in a sealed, inaccessible box D) Mount on the ground only Answer: A Explanation: Transformers must be installed in accessible locations with adequate clearance and ventilation to ensure safe operation.
Question 32. In a sign installation, what is the typical minimum clearance from combustible materials? A) 12 inches B) 6 inches C) 24 inches D) 36 inches Answer: A Explanation: NEC generally requires at least 12 inches clearance from combustible materials for signs, but local codes may vary. Question 33. Which sign component must be properly marked to indicate its electrical rating and safety information? A) Sign enclosure and wiring components B) The external mounting hardware C) The paint color of the sign D) The sign's decorative features Answer: A Explanation: All electrical components, including enclosures and wiring, must be properly marked for safety and compliance. Question 34. When installing a neon sign, which is a critical safety measure?
A) Proper grounding and insulation of high-voltage circuits B) Using only low-voltage wiring C) Avoiding grounding to prevent ground loops D) Installing in enclosed, unventilated spaces only Answer: A Explanation: Proper grounding and insulation of high-voltage neon systems prevent shock hazards and ensure safety. Question 35. What is the purpose of a ballast in fluorescent sign lighting? A) To limit current and provide necessary starting voltage B) To convert AC to DC C) To act as a fuse D) To regulate the temperature of the lamp Answer: A Explanation: Ballasts control current flow and provide the starting voltage needed for fluorescent lamps in signs. Question 36. Which NEC article covers the installation requirements for outline lighting? A) Article 600
C) Electrical symbol legend and scale ruler D) Wire stripper Answer: C Explanation: Understanding electrical symbols and blueprints requires a symbol legend and scale for accurate interpretation. Question 39. How does a step-down transformer in a sign system affect current and voltage? A) Voltage decreases, current increases proportionally B) Voltage increases, current decreases proportionally C) Both voltage and current decrease D) Both voltage and current increase Answer: A Explanation: A step-down transformer reduces voltage while increasing current proportionally, based on the turns ratio. Question 40. Which is a key consideration when using flexible cords in outdoor sign installations? A) They must be rated for outdoor use and protected from physical damage B) They should be unprotected and run openly C) They are not permitted in sign wiring
D) They can be used without overcurrent protection Answer: A Explanation: Outdoor-rated flexible cords must be protected from damage and suitable for environmental exposure. Question 41. Which type of conductor insulation is most suitable for wet or damp sign locations? A) UF (Underground Feeder) cable insulation B) NM cable insulation C) Thermoplastic conduit insulation D) PVC conduit Answer: A Explanation: UF cable is designed for wet or underground locations, suitable for damp outdoor sign environments. Question 42. When performing conduit fill calculations, what is the maximum number of conductors allowed in a 1/2-inch conduit according to NEC? A) 9 conductors of #12 AWG B) 12 conductors of #14 AWG C) 6 conductors of #10 AWG D) 15 conductors of #16 AWG
