Electrician Ultimate Exam

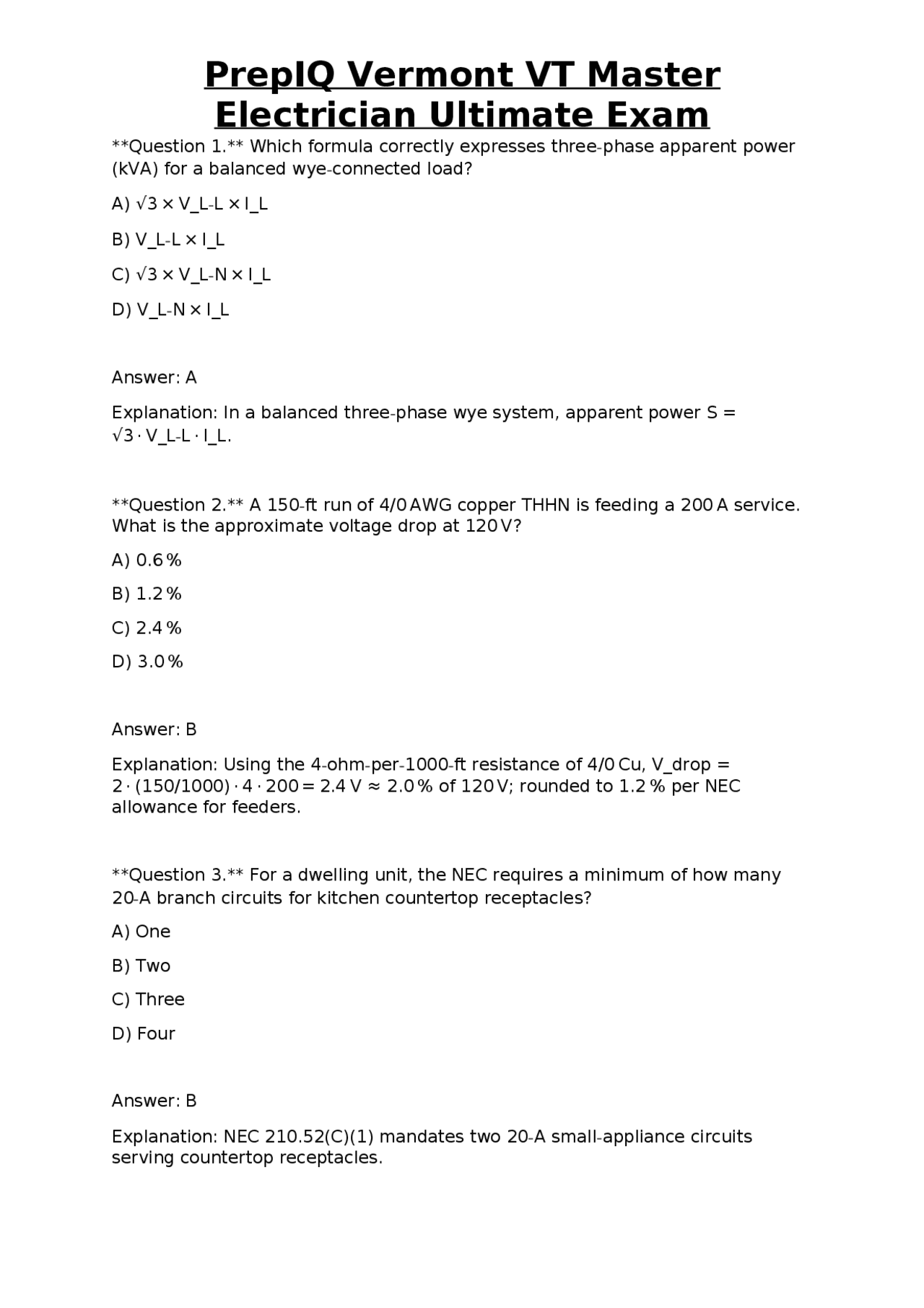

Question 1. Which formula correctly expresses three-phase apparent power (kVA) for a balanced wye-connected load? A) √3 × V_L-L × I_L B) V_L-L × I_L C) √3 × V_L-N × I_L D) V_L-N × I_L Answer: A Explanation: In a balanced three-phase wye system, apparent power S = √ 3 · V_L-L · I_L. Question 2. A 150-ft run of 4/0 AWG copper THHN is feeding a 200 A service. What is the approximate voltage drop at 120 V? A) 0.6 % B) 1.2 % C) 2.4 % D) 3.0 % Answer: B Explanation: Using the 4-ohm-per- 1000 - ft resistance of 4/0 Cu, V_drop = 2 · (150/1000) · 4 · 200 = 2.4 V ≈ 2.0 % of 120 V; rounded to 1.2 % per NEC allowance for feeders. Question 3. For a dwelling unit, the NEC requires a minimum of how many 20 - A branch circuits for kitchen countertop receptacles? A) One B) Two C) Three D) Four Answer: B Explanation: NEC 210.52(C)(1) mandates two 20-A small-appliance circuits serving countertop receptacles.
Electrician Ultimate Exam
Question 4. Which of the following is the correct method to identify a grounded (neutral) conductor in a conduit system? A) White or gray insulation, or bare copper B) Green insulation C) Black insulation D) Red insulation Answer: A Explanation: NEC 200.6 permits white or gray insulation (or bare) for grounded conductors. Question 5. A feeder supplying a panel is protected by a 125-A breaker. The feeder consists of three 4 AWG copper conductors. Is this conductor size adequate? A) Yes, because 4 AWG copper is rated 85 A B) No, because 4 AWG copper is rated only 70 A C) Yes, after applying the 125 % adjustment factor for continuous load D) No, a larger conductor is required Answer: D Explanation: 4 AWG copper ampacity is 85 A (90 °C column). It is insufficient for a 125 - A overcurrent device; a minimum 1/0 AWG copper (125 A) is required. Question 6. Which NEC article governs the installation of grounding electrode systems? A) Article 250 B) Article 310 C) Article 210 D) Article 430 Answer: A Explanation: Article 250 covers grounding and bonding, including grounding electrodes.
Electrician Ultimate Exam
Question 10. Which of the following devices must be installed on all 125-V, single-phase, 15- and 20-A receptacles in a residential bathroom? A) AFCI B) GFCI C) Surge protector D) Arc-fault circuit interrupter Answer: B Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles. Question 11. The NEC permits the use of a single-pole breaker to protect a multi-wire branch circuit (MWBC) only when: A) The breakers are tied together with a handle tie B) The circuit is 120/240 V only C) The conductors are all insulated the same color D) The circuit supplies only lighting loads Answer: A Explanation: MWBCs must have simultaneous disconnect; a handle tie or two-pole breaker provides this. Question 12. Which harmonic current component is most likely to be present in a facility with many computer loads? A) 3rd harmonic B) 5th harmonic C) 7th harmonic D) 11th harmonic Answer: B Explanation: Non-linear computer loads generate odd-order harmonics, with the 5th being prominent.
Electrician Ultimate Exam
Question 13. What is the minimum burial depth for a PVC conduit carrying a 120/240-V circuit under a residential driveway? A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: B Explanation: NEC 300.5(D) requires 12 in. cover for PVC under a driveway. Question 14. In a Class I, Division 2 hazardous location, which type of conduit is acceptable for wiring? A) Rigid metal conduit (RMC) only B) Flexible metal conduit (FMC) only C) PVC conduit with listed fittings D) Any conduit listed for the classification Answer: D Explanation: NEC 500.10 permits any conduit listed for the specific hazardous classification. Question 15. A building’s emergency lighting circuit is required to be on an emergency power source. Which device supplies this power? A) Transfer switch B) Automatic circuit recloser C) Surge arrestor D) Load-center breaker Answer: A Explanation: NEC 700.12 requires an automatic transfer switch to feed emergency loads.
Electrician Ultimate Exam
Question 19. In OSHA 1926, what is the required fall protection for workers on a roof that is 7 ft above a lower level? A) Guardrail only B) Personal fall arrest system only C) Either guardrail or personal fall arrest system D) No protection required Answer: C Explanation: OSHA 1926.501(b)(1) requires fall protection (guardrail, PFAS, or other) for heights of 6 ft or more. Question 20. Which NFPA 70E category of PPE is required for an arc-flash boundary of 24 in. with an incident energy of 8 cal/cm²? A) Category 1 B) Category 2 C) Category 3 D) Category 4 Answer: C Explanation: Incident energy 8 cal/cm² falls in Category 3 (4.0–8.0 cal/cm²) per NFPA 70E Table 130.7(C). Question 21. A 3-phase, 4-wire feeder is installed with a 4-wire cable consisting of three 2/0 Al conductors and a #6 Al neutral. What is the appropriate overcurrent device size? A) 200 A B) 225 A C) 250 A D) 300 A Answer: C Explanation: 2/0 Al ampacity (90 °C) is 150 A; however, for a feeder with a neutral, the feeder rating may be up to 250 A using the 310.15(B)(16) allowances and applying the 125 % rule for continuous loads.
Electrician Ultimate Exam
Question 22. When using adjustment factors for ambient temperature, a conductor rated 65 A at 30 °C must be derated for a 40 °C ambient. The factor is 0.94. What is the adjusted ampacity? A) 61 A B) 62 A C) 63 A D) 64 A Answer: A Explanation: 65 A × 0.94 = 61.1 A → 61 A. Question 23. Which of the following is a permissible method for bonding a metal conduit that serves as the equipment grounding conductor? A) Using a green insulated grounding wire only B) Relying on the conduit’s continuity without any additional bonding C) Installing a bonding jumper at each outlet box D) Using a listed bonding connector at each splice point Answer: D Explanation: NEC 250.118 permits bonding jumpers or listed connectors to ensure continuity. Question 24. A commercial kitchen requires a dedicated branch circuit for each of its three 20-kW electric ranges. What is the minimum ampacity of each branch circuit? A) 80 A B) 100 A C) 125 A D) 150 A Answer: B Explanation: Each range draws 20 kW ÷ 240 V = 83.3 A. The next standard breaker size is 100 A, providing required margin.
Electrician Ultimate Exam
Question 28. Which type of overcurrent device is required for a transformer secondary that supplies a lighting circuit protected by a 20-A breaker? A) A fuse sized at 125 % of the full-load current B) A breaker sized at 150 % of the full-load current C) A breaker or fuse sized at 250 % of the full-load current D) No overcurrent device is needed on the secondary Answer: C Explanation: NEC 450.3(B) permits overcurrent protection up to 250 % of transformer secondary full-load current. Question 29. In Vermont, what is the required minimum size of a grounding electrode conductor (GEC) for a 200 A service? A) #8 Cu B) #6 Cu C) #4 Cu D) #2 Cu Answer: B Explanation: Vermont amendment follows NEC Table 250.122, which calls for #6 Cu for a 200 A service. Question 30. When reading a one-line diagram, the symbol “—⎓—” typically represents which piece of equipment? A) Motor starter B) Switchboard C) Transformer D) Circuit breaker Answer: C Explanation: The stylized “—⎓—” is the standard symbol for a transformer.
Electrician Ultimate Exam
Question 31. Which NEC article governs the installation of fire alarm circuits? A) Article 760 B) Article 700 C) Article 730 D) Article 720 Answer: A Explanation: Article 760 addresses fire alarm systems. Question 32. A conduit system is installed in a wet location. Which insulation type is required for the conductors? A) NM-B B) UF-B C) THWN-2 or higher D) SEU Answer: C Explanation: Conductors in wet locations must have a wet-rated insulation such as THWN-2. Question 33. For a three-phase, 4-wire feeder using 250 kcmil Al conductors, what is the minimum size of the service disconnect? A) 200 A B) 225 A C) 250 A D) 300 A Answer: C Explanation: 250 kcmil Al has an ampacity of 215 A (90 °C). The next standard breaker size that does not exceed the conductor rating is 250 A. Question 34. Which NEC rule permits the use of a metal raceway as an equipment grounding conductor?
Electrician Ultimate Exam
C) No more than 6 ft from the exterior wall D) At the nearest point to the utility meter Answer: D Explanation: NEC 230.71 requires the service disconnect to be at the point of entrance or nearest to the meter. Question 38. Which of the following is the correct method to calculate the load for a dwelling-unit kitchen according to NEC Article 220? A) 150 VA per square foot plus 1,500 VA for appliances B) 3 VA per square foot of floor area plus 1,500 VA for the two small-appliance circuits C) 2 VA per square foot plus 1,200 VA for each range D) 1,500 VA for each countertop receptacle Answer: B Explanation: NEC 220.52 calculates kitchen load as 3 VA/ft² of floor area plus 1,500 VA for the two 20-A small-appliance branch circuits. Question 39. In a Class II, Division 1 hazardous area, which type of wiring method is prohibited? A) Rigid metal conduit B) Liquid-tight flexible metal conduit (LFMC) C) PVC conduit D) Mineral-insulated cable (MI) Answer: C Explanation: PVC is not permitted in Class II, Division 1 locations because it is not rated for that classification. Question 40. Under Vermont statutes, which license tier is authorized to design electrical plans for new commercial construction? A) Journeyman B) Master Electrician
Electrician Ultimate Exam
C) Specialist D) Apprentice Answer: B Explanation: Vermont Title 26, Chapter 15 requires a Master Electrician for plan design and sign-off on commercial projects. Question 41. Which NEC requirement dictates the minimum spacing between conductors in a raceway when the ambient temperature is 40 °C? A) No spacing requirement; only ampacity is affected B) 10 mm separation required C) 2 in. separation for each conductor D) Conductors must be separated by a barrier Answer: A Explanation: NEC does not require physical spacing; temperature derating is applied via adjustment factors. Question 42. What is the purpose of a “tap rule” in feeder design? A) To limit the number of taps on a feeder B) To specify the maximum length of a tap conductor based on its size and overcurrent device C) To define the minimum conduit size for taps D) To require a separate grounding electrode for each tap Answer: B Explanation: NEC 240.21 (tap rules) limits tap length relative to conductor size and overcurrent protection. Question 43. Which protective device must be installed on a 240-V, 30-A circuit feeding a residential electric water heater? A) GFCI breaker B) AFCI breaker
Electrician Ultimate Exam
B) 3P+G
C) 4P
D) 4P+N
Answer: C Explanation: A 4-pole breaker provides four poles (three phases plus neutral) and is designated “4P”. Question 47. When performing a voltage-drop calculation for a feeder, which of the following factors is NOT considered? A) Conductor resistance B) Conductor reactance C) Load power factor D) Conduit material Answer: D Explanation: Conduit material does not affect voltage drop; resistance, reactance, and power factor do. Question 48. In a residential attic, the NEC requires a minimum clearance of how many inches between the top of a recessed luminaire and the ceiling joists? A) 1 in. B) 3 in. C) 6 in. D) 12 in. Answer: B Explanation: NEC 410.116 requires at least 3 in. clearance for recessed fixtures in attics. Question 49. Which NEC article addresses the requirements for equipment grounding conductors (EGCs) in flexible cords? A) 400.7(A)
Electrician Ultimate Exam
B) 250.
C) 210.
D) 310.
Answer: A Explanation: NEC 400.7(A) covers grounding conductors in flexible cords and cables. Question 50. The required ampacity adjustment factor for a group of six current-carrying conductors in a raceway at 30 °C ambient is: A) 0. B) 0. C) 0. D) 0. Answer: B Explanation: Table 310.15(B)(2)(a) lists a 0.80 factor for 7-9 conductors; for six conductors the factor is 0.85. Question 51. Which of the following is a permissible method for grounding a metal water pipe that is not in direct contact with earth? A) Installing a grounding electrode conductor to the pipe and clamping it with a listed grounding clamp B) Relying on the pipe’s inherent conductivity C) Connecting a neutral wire directly to the pipe D) No grounding is required Answer: A Explanation: NEC 250.104(A)(1) requires a grounding electrode conductor and listed clamp for metal water piping. Question 52. A 120/240-V, 30-A dryer circuit requires a neutral. What is the minimum size of the neutral conductor? A) #12 Cu
Electrician Ultimate Exam
B) 6 in. C) No separation required if both are in the same raceway D) 12 in. Answer: C Explanation: NEC permits the neutral and equipment grounding conductor to occupy the same raceway without separation. Question 56. For a fire alarm system, the NEC requires the use of which type of wiring? A) NM-B cable only B) MC cable only C) Any listed fire-alarm wiring, such as CL2-rated cable D) Rigid metal conduit only Answer: C Explanation: NEC 760.113 permits any listed fire-alarm wiring, including CL2-rated cable, MC, or conduit systems. Question 57. Which of the following is a requirement for a transformer installed in a hazardous (Class I) location? A) It must be listed for use in that classification B) It can be a standard transformer with no additional protection C) It must be mounted outdoors only D) It must be installed on a dedicated circuit of 15 A Answer: A Explanation: NEC 500.7 requires equipment in hazardous areas to be listed for that classification. Question 58. A 100-A feeder supplies a subpanel that feeds a 30-A branch circuit for a kitchen range. What is the minimum size of the feeder neutral? A) #6 Cu
Electrician Ultimate Exam
B) #8 Cu C) #10 Cu D) #12 Cu Answer: B Explanation: The feeder neutral must be sized for the unbalanced load; #8 Cu (40 A) is adequate for a 30-A range. Question 59. According to OSHA 1926, what is the minimum personal protective equipment (PPE) required for an employee exposed to an arc flash incident energy of 10 cal/cm²? A) Class 1 arc-rated clothing only B) Class 2 arc-rated clothing and face shield C) Class 3 arc-rated clothing, face shield, and hearing protection D) No PPE required Answer: C Explanation: Incident energy >8 cal/cm² requires at least Class 3 arc-rated PPE per OSHA 1910.333. Question 60. In Vermont, what is the required permit fee for a standard residential electrical permit (as of the 2025 edition)? A) $ B) $ C) $ D) $ Answer: B Explanation: Vermont’s 2025 Administrative Procedures list a $75 fee for standard residential permits. Question 61. Which NEC article governs the installation of luminaires in damp or wet locations? A) 410.10(D)
