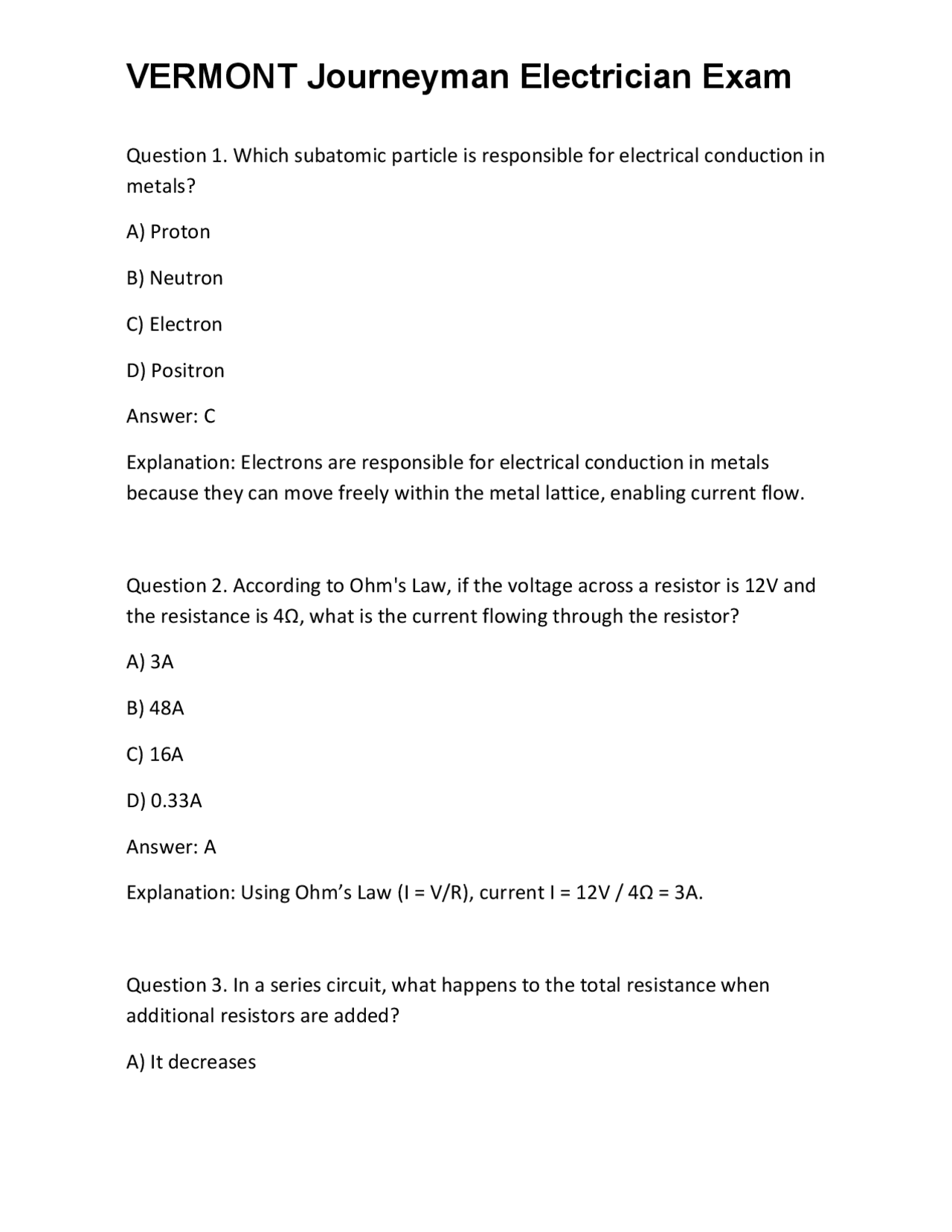

Question 1. Which subatomic particle is responsible for electrical conduction in metals? A) Proton B) Neutron C) Electron D) Positron Answer: C Explanation: Electrons are responsible for electrical conduction in metals because they can move freely within the metal lattice, enabling current flow. Question 2. According to Ohm's Law, if the voltage across a resistor is 12V and the resistance is 4Ω, what is the current flowing through the resistor? A) 3A B) 48A C) 16A D) 0.33A Answer: A Explanation: Using Ohm’s Law (I = V/R), current I = 12V / 4Ω = 3A. Question 3. In a series circuit, what happens to the total resistance when additional resistors are added? A) It decreases
B) It remains the same C) It increases D) It fluctuates randomly Answer: C Explanation: In a series circuit, resistances add together, so adding resistors increases the total resistance. Question 4. Which of the following is a characteristic of alternating current (AC)? A) Flows in only one direction B) Changes direction periodically C) Is generated by chemical reactions D) Has a constant amplitude Answer: B Explanation: AC periodically reverses direction, which is a key characteristic distinguishing it from DC. Question 5. What principle explains how a magnetic field can induce an electric current in a conductor? A) Ohm's Law B) Faraday's Law of Electromagnetic Induction C) Coulomb's Law
Question 8. Which type of PPE is specifically designed to protect against arc flash hazards? A) Safety glasses B) Arc-rated clothing and face shields C) Hearing protection D) Insulated gloves only Answer: B Explanation: Arc-rated clothing, face shields, and other PPE rated for arc flash are essential for protection against arc flash hazards. Question 9. Which of the following is the primary purpose of lockout/tagout procedures? A) To secure tools B) To prevent accidental energization of equipment during maintenance C) To improve electrical system efficiency D) To identify circuit breakers Answer: B Explanation: Lockout/tagout procedures are designed to ensure equipment remains de-energized during maintenance, preventing accidental startup. Question 10. When testing for continuity with a multimeter, what does a reading of zero ohms indicate?
A) Open circuit B) Short circuit C) Good continuity D) Faulty multimeter Answer: C Explanation: Zero ohms indicates a very low resistance, meaning good continuity between two points. Question 11. Which symbol on an electrical diagram indicates a ground connection? A) A circle B) An inverted triangle C) A set of parallel lines, one shorter than the other D) A square Answer: C Explanation: The ground symbol consists of parallel lines, with the lower line shorter, representing a grounding point. Question 12. What is the main purpose of the NEC’s Chapter 1? A) Wiring methods B) General requirements for electrical installations C) Special occupancies
Explanation: NM (nonmetallic-sheathed) cable, commonly known as Romex, is a flexible cable with a plastic sheath. Question 15. What is the primary function of a panelboard? A) To distribute electrical power and house overcurrent devices B) To connect lighting fixtures C) To serve as a transformer D) To act as a grounding point Answer: A Explanation: Panelboards distribute electrical power within a building and contain overcurrent protection devices like circuit breakers. Question 16. Which type of switch is used to control lighting from multiple locations? A) Dimmer switch B) Three-way switch C) Single-pole switch D) Transfer switch Answer: B Explanation: Three-way switches allow control of lighting from two locations, commonly used in hallways or staircases.
Question 17. Which receptacle type is designed to prevent unauthorized insertion of objects? A) Grounding-type receptacle B) Tamper-resistant receptacle C) Weather-resistant receptacle D) GFCI receptacle Answer: B Explanation: Tamper-resistant receptacles have internal shutters that prevent foreign objects from being inserted. Question 18. For a dwelling unit, what is the minimum required GFCI protection? A) Only in bathrooms B) Only in kitchens C) In all outdoor receptacles, bathrooms, kitchens, and laundry areas D) No GFCI protection is required Answer: C Explanation: NEC requires GFCI protection in outdoor receptacles, bathrooms, kitchens, and laundry areas for safety. Question 19. Which motor protection device is designed to protect against overcurrent and prevent motor damage? A) Overload relay
D) Chapter 8 Answer: C Explanation: Chapter 6 covers special equipment, including electric signs and outline lighting. Question 22. What is the primary function of a GFCI device? A) Protect against overloads B) Protect against ground faults C) Limit short circuits D) Control motor speed Answer: B Explanation: GFCI devices detect ground faults and shut off power to prevent electrical shocks. Question 23. When performing a load calculation for a dwelling, which NEC article provides the guidelines? A) Article 210 B) Article 220 C) Article 430 D) Article 250 Answer: B
Explanation: NEC Article 220 provides the rules for calculating electrical loads in residential and commercial occupancies. Question 24. In an industrial setting, what is the typical overcurrent protection device rating for a branch circuit serving a motor? A) 15A B) 20A C) Based on motor full load ampacity, usually larger than the motor’s FLA D) Always 30A Answer: C Explanation: The overcurrent device must be sized according to the motor’s full load current, often larger than standard ratings. Question 25. What is the purpose of bonding in electrical systems? A) To increase resistance B) To ensure all conductive parts are at the same electrical potential C) To prevent circuit overload D) To reduce voltage Answer: B Explanation: Bonding ensures conductive parts are at the same potential, reducing shock hazard and ensuring proper operation of grounding systems.
A) Replace all wiring B) Use a multimeter to check continuity at various points C) Turn off all power D) Reset the circuit breaker Answer: B Explanation: Using a multimeter to check continuity helps locate where the open circuit exists. Question 29. Which wiring method is most suitable for underground applications requiring high mechanical protection? A) NM cable B) Rigid metal conduit (RMC) C) Flexible cord D) Nonmetallic-sheathed cable Answer: B Explanation: Rigid metal conduit provides high mechanical protection suitable for underground or exposed environments. Question 30. When installing a motor control circuit, which device is used to disconnect power during maintenance? A) Overload relay B) Motor disconnect switch
C) Contactor D) Fuse Answer: B Explanation: A motor disconnect switch provides a means to isolate power for servicing or safety. Question 31. What is the main safety concern when working with energized circuits? A) Short circuits B) Arc flash and electric shock hazards C) Overcurrent D) Power surges Answer: B Explanation: Working with energized circuits poses risks of electric shock and arc flash, which can cause serious injury if proper precautions are not followed. Question 32. Which PPE is essential when performing arc flash hazard assessments? A) Hearing protection B) Arc-rated clothing and face shield C) Steel-toed boots D) Respirator
Question 35. What is the typical maximum fill percentage allowed in a conduit according to NEC? A) 25% B) 40% C) 53% D) 75% Answer: C Explanation: The NEC generally limits conduit fill to 53% of the cross-sectional area for multiple conductors. Question 36. Which type of conduit is most suitable for outdoor, wet, or corrosive environments? A) EMT B) PVC conduit C) RMC D) ENT Answer: B Explanation: PVC conduit is resistant to moisture and corrosion, making it suitable for outdoor and wet locations. Question 37. When installing a receptacle outdoors, what NEC requirement must be met?
A) Use of GFCI protection B) Use of weather-resistant enclosure C) Use of tamper-resistant receptacles D) All of the above Answer: D Explanation: Outdoor receptacles must be weather-resistant, GFCI protected, and tamper-resistant for safety and durability. Question 38. Which of the following is a correct application of flexible cords? A) Permanent wiring in building walls B) Temporary power supply or portable tools C) Overhead street lighting D) Underground wiring Answer: B Explanation: Flexible cords are intended for temporary or portable use, not permanent wiring. Question 39. In terms of motor overload protection, what is the typical setting relative to the motor’s full load current? A) 125% B) 100% C) 115%
Explanation: Chapter 5 covers special occupancies, including hazardous (classified) locations. Question 42. What is a typical feature of an AFCI device? A) Protects against ground faults B) Detects arcing conditions that could lead to fires C) Protects against overloads D) Acts as a circuit breaker Answer: B Explanation: AFCIs detect arcing faults that could cause fires, providing additional fire safety. Question 43. Which type of wiring method is most appropriate for exposed indoor wiring that requires flexibility? A) RMC B) NM cable C) FMC D) ENT Answer: C Explanation: Flexible metal conduit (FMC) provides flexibility suitable for exposed or movable applications inside buildings.
Question 44. When calculating voltage drop, which of the following is most critical? A) Length of wire run B) Color of conductor C) Type of conduit D) Number of outlets Answer: A Explanation: The length of the wire run directly affects voltage drop; longer distances increase voltage loss. Question 45. Under NEC rules, what is the minimum height for receptacles placed above the countertop in kitchens? A) 12 inches B) 15 inches C) 20 inches D) 18 inches Answer: D Explanation: NEC requires countertop receptacles to be installed at a height of at least 18 inches above the countertop surface. Question 46. What is the main function of a motor starter? A) To increase motor speed
