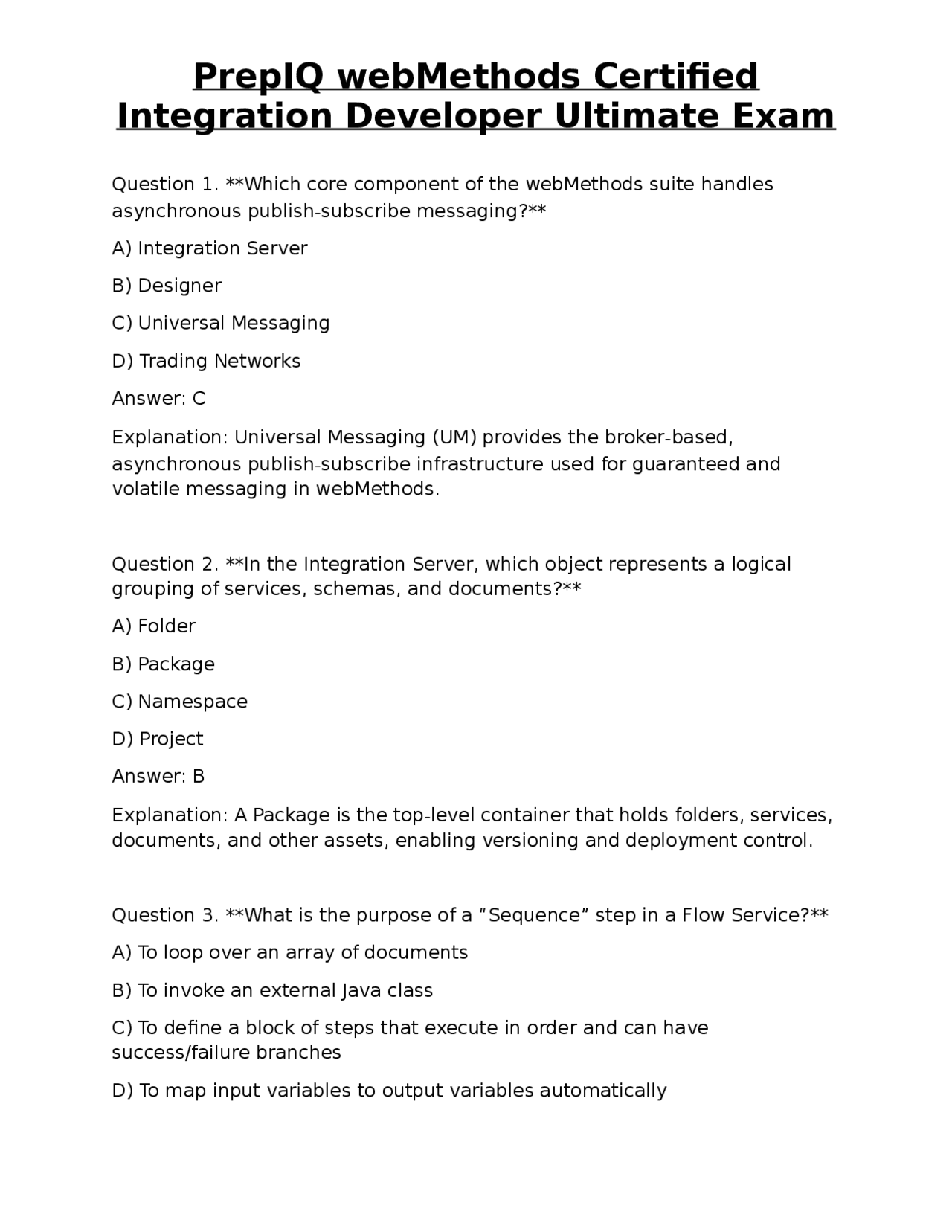

Integration Developer Ultimate Exam
Question 1. Which core component of the webMethods suite handles asynchronous publish-subscribe messaging? A) Integration Server B) Designer C) Universal Messaging D) Trading Networks Answer: C Explanation: Universal Messaging (UM) provides the broker-based, asynchronous publish-subscribe infrastructure used for guaranteed and volatile messaging in webMethods. Question 2. In the Integration Server, which object represents a logical grouping of services, schemas, and documents? A) Folder B) Package C) Namespace D) Project Answer: B Explanation: A Package is the top-level container that holds folders, services, documents, and other assets, enabling versioning and deployment control. Question 3. What is the purpose of a “Sequence” step in a Flow Service? A) To loop over an array of documents B) To invoke an external Java class C) To define a block of steps that execute in order and can have success/failure branches D) To map input variables to output variables automatically
Integration Developer Ultimate Exam
Answer: C Explanation: A Sequence groups steps; on normal completion it follows the success branch, and on exception it follows the failure branch, allowing structured error handling. Question 4. Which built-in service throws a custom exception from a Flow Service? A) pub.flow:handleException B) pub.flow:throwException C) pub.flow:raiseError D) pub.flow:logError Answer: B Explanation: pub.flow:throwException creates a user-defined exception that can be caught by a TRY-CATCH block. Question 5. When designing a REST resource in Designer, which HTTP method is typically used to retrieve a single resource identified by an ID? A) POST B) GET C) PUT D) DELETE Answer: B Explanation: GET is the standard method for reading data without side effects; a REST GET service returns the representation of the requested resource. Question 6. Which step type is used to iterate over each element of a document list in a Flow Service? A) Branch
Integration Developer Ultimate Exam
Question 9. Which of the following is NOT a valid pipeline operation in a Flow Service? A) Dropping a variable B) Implicit mapping C) Direct SQL execution without an adapter service D) Using the Map step to transform data Answer: C Explanation: Direct SQL must be executed via a JDBC Adapter service; the Flow Service pipeline cannot run raw SQL without an adapter. Question 10. When configuring a JDBC Adapter connection, which property defines the database driver class? A) URL B) UserID C) Driver Class D) Alias Answer: C Explanation: The Driver Class property tells the adapter which JDBC driver to load (e.g., com.mysql.jdbc.Driver). Question 11. What does the “$default” label refer to in a Flow Service? A) The default package name B) The default success branch of a Sequence step C) The default namespace for documents D) The default logging level Answer: B Explanation: $default is the implicit label for the success path of a Sequence when no explicit label is defined.
Integration Developer Ultimate Exam
Question 12. Which service type is used to expose a Flow Service as a SOAP Web Service? A) WSDL Generation Service B) pub.webservice:publishService C) pub.flow:createWSD D) pub.webservice:publishWSDL Answer: C Explanation: pub.flow:createWSD generates a Web Service Descriptor (WSD) that maps a Flow Service to a SOAP endpoint. Question 13. In a Flow Service, the “Branch” step evaluates which of the following? A) A list of documents to iterate over B) A Boolean expression to decide which path to follow C) A mapping between input and output variables D) A call to an external Java method Answer: B Explanation: Branch evaluates a condition (e.g., $pipeline/var > 0) and routes execution to the matching labeled path. Question 14. Which of these is a recommended practice for improving Flow Service performance? A) Use a large number of nested Loops B) Drop unused pipeline variables after processing C) Map every field even if not needed D) Disable service auditing in production Answer: B
Integration Developer Ultimate Exam
Answer: B Explanation: Idempotency means duplicate executions produce the same result without side effects, essential for reliable retries. Question 18. Which of the following is NOT a valid HTTP status code that a REST service might return? A) 200 OK B) 404 Not Found C) 500 Internal Server Error D) 302 Created Answer: D Explanation: 302 is “Found” (redirect) not “Created”. The correct code for resource creation is 201. Question 19. In Universal Messaging, what is the difference between a “Guaranteed” and a “Volatile” document? A) Guaranteed documents are encrypted, volatile are not B) Guaranteed documents survive broker restarts; volatile do not C) Volatile documents are larger than guaranteed documents D) There is no functional difference; the terms are synonyms Answer: B Explanation: Guaranteed documents are persisted to disk, ensuring delivery even after a broker failure, whereas volatile documents exist only in memory. Question 20. Which ACL permission allows a user to execute a service but not edit it? A) Read B) Write
Integration Developer Ultimate Exam
C) Execute D) Delete Answer: C Explanation: The Execute permission grants runtime invocation rights without allowing modifications. Question 21. What is the purpose of the “Map” step’s “Implicit Mapping” option? A) To automatically map variables with identical names between input and output documents B) To map all fields regardless of type mismatches C) To generate a WSDL automatically D) To invoke a Java class for custom mapping Answer: A Explanation: Implicit mapping copies values from source to target when field names match, reducing manual mapping effort. Question 22. Which service is used to call a stored procedure via JDBC Adapter? A) pub.jdbc:executeSQL B) pub.jdbc:callStoredProcedure C) pub.jdbc:invokeSP D) pub.jdbc:runProcedure Answer: B Explanation: pub.jdbc:callStoredProcedure executes a stored procedure defined in the database connection. Question 23. When configuring a REST resource, which Designer element defines the URL pattern?
Integration Developer Ultimate Exam
Question 26. Which of the following is a valid way to secure a SOAP Web Service endpoint? A) Adding a .htaccess file to the IS directory B) Enabling HTTPS/SSL on the Integration Server’s listener port C) Setting the service’s ACL to “Read Only” D) Using a Loop step to encrypt the payload Answer: B Explanation: HTTPS encrypts transport traffic for SOAP services, protecting credentials and data in transit. Question 27. In the Designer debugger, what does the “Step Over” command do? A) Executes the current step and pauses at the next step in the same sequence B) Skips the current step entirely C) Executes the current step and any called services without stopping inside them D) Restarts the service from the beginning Answer: C Explanation: Step Over runs the current step (including any invoked sub-services) and stops at the following step in the same flow. Question 28. Which property of a JDBC Adapter connection defines the maximum number of connections in the pool? A) Max Connections B) Pool Size C) Connection Limit D) Thread Count
Integration Developer Ultimate Exam
Answer: A Explanation: “Max Connections” controls the upper bound of simultaneous database connections the adapter can maintain. Question 29. **When you publish a document to Universal Messaging with the “pub.publish:publish” service, which parameter determines its durability? ** A) Delivery Mode B) Persistence Flag C) Document Type D) Priority Answer: A Explanation: The Delivery Mode (Guaranteed vs. Volatile) tells the broker whether to persist the document. Question 30. What is the effect of setting “auditLoggingEnabled” to “false” for a service? A) The service will not be executed B) No audit entries will be written for that service’s executions C) All pipeline variables are automatically dropped after execution D) The service becomes invisible in the Administrator console Answer: B Explanation: Disabling audit logging suppresses audit record creation, reducing log volume but also removing traceability. Question 31. Which of the following best describes the purpose of a “Dictionary File” in flat-file processing? A) It defines the XML schema for the flat file
Integration Developer Ultimate Exam
Question 34. When consuming an external REST API via the “pub.client:http” service, which parameter specifies the HTTP method to use? A) method B) httpMethod C) requestType D) verb Answer: B Explanation: The “httpMethod” input tells the HTTP client service whether to perform GET, POST, PUT, DELETE, etc. Question 35. What is the primary benefit of using “Document Types” (IS Documents) over plain XML strings in the pipeline? A) Faster network transmission B) Built-in validation against schemas and easier field access via dot notation C) Automatic conversion to JSON D) They require no memory allocation Answer: B Explanation: Document Types enforce structure, enable compile-time validation, and allow direct field referencing (e.g., $document/field) without parsing. Question 36. **Which of the following is NOT a valid built-in mapping service? ** A) pub.string:concat B) pub.date:parseDate C) pub.math:addNumbers
Integration Developer Ultimate Exam
D) pub.file:readFile Answer: D Explanation: pub.file:readFile is a file I/O service, not a mapping service; mapping services focus on data transformation. Question 37. In the Integration Server Administrator, where can you view the current number of active sessions? A) Server Settings → Performance B) Monitoring → Sessions C) Security → Users D) Packages → Sessions Answer: B Explanation: The Monitoring → Sessions page displays active IS sessions, useful for capacity planning. Question 38. Which of the following is a correct way to make a Flow Service “public” so that it can be invoked by external clients? A) Set its ACL to “Public” B) Publish it as a Web Service or REST Resource C) Rename the service with a “pub.” prefix D) Place it in the “public” folder Answer: B Explanation: Exposing a Flow Service via a WSD (SOAP) or a REST resource makes it callable over HTTP(S) by external systems. Question 39. When configuring a JMS alias in the Integration Server, which of the following must be provided? A) File system path
Integration Developer Ultimate Exam
A) Loop B) Branch C) Map D) Invoke Answer: B Explanation: Branch evaluates a Boolean expression; you can set the condition $pipeline/flag == "Y" and route accordingly. Question 43. Which of these is a valid reason to enable “Full” audit logging for a package? A) To improve runtime performance B) To capture every variable value for compliance investigations C) To reduce disk usage on the server D) To hide service execution details from administrators Answer: B Explanation: Full audit logging records detailed pipeline information, useful for forensic analysis or regulatory compliance. Question 44. What is the effect of setting the “Persistent” flag to “true” on a Universal Messaging document? A) The document will be encrypted automatically B) The broker will store the document on disk, guaranteeing delivery after a restart C) The document will be broadcast to all subscribers instantly D) The document size limit is increased Answer: B Explanation: Persistent (Guaranteed) documents are written to the broker’s storage, ensuring they survive crashes or restarts.
Integration Developer Ultimate Exam
Question 45. Which built-in service converts a string to a date using a supplied pattern? A) pub.date:stringToDate B) pub.string:toDate C) pub.date:parseDate D) pub.datetime:convert Answer: C Explanation: pub.date:parseDate takes a date string and a format pattern (e.g., “yyyy-MM-dd”) and returns a date object. Question 46. When using a File Adapter Listener, what does the “Polling Interval” define? A) The size of the file to be read B) How often the listener checks the directory for new files C) The maximum number of files processed per minute D) The timeout for file locks Answer: B Explanation: Polling Interval (in seconds) controls the frequency at which the listener scans the target folder. Question 47. Which of the following is NOT a valid way to secure a REST resource in webMethods? A) Enforcing HTTPS only B) Adding Basic Authentication in the resource’s security settings C) Using a custom Java filter to validate tokens D) Setting the service’s ACL to “Read Only” Answer: D
Integration Developer Ultimate Exam
D) A binary protocol definition Answer: B Explanation: Flat File Schemas describe how to map fixed-width or delimited text files into documents for processing. Question 51. When a Flow Service throws an exception that is not caught, what happens to the transaction? A) It is automatically committed B) It is rolled back if the service is part of a transactional context C) The server restarts D) The exception is ignored and execution continues Answer: B Explanation: Uncaught exceptions cause the transaction manager to roll back any enlisted resources, preserving data integrity. Question 52. Which step would you use to call a Java class method from a Flow Service? A) Invoke B) Map C) Branch D) Loop Answer: A Explanation: The Invoke step can call a Java service (public static method) or a custom Java class packaged in the IS. Question 53. In the context of webMethods, what does “SOA” stand for? A) Service Oriented Architecture B) Simple Object Access
Integration Developer Ultimate Exam
C) Secure Operational API D) System Orchestration Agent Answer: A Explanation: SOA is Service Oriented Architecture, a design paradigm that webMethods implements through reusable services. Question 54. Which of the following is a recommended naming convention for Flow Services? A) All uppercase with underscores (e.g., CREATE_ORDER) B) Lowercase only (e.g., createorder) C) CamelCase prefixed with the package name (e.g., pkg.OrderCreate) D) Random alphanumeric strings Answer: C Explanation: Using CamelCase with a package prefix improves readability and avoids name collisions. Question 55. What does the “pub.flow:handleException” service do? A) It logs an exception and continues execution B) It re-throws the caught exception to the caller C) It converts an exception into a string and stores it in a variable D) It terminates the Integration Server process Answer: B Explanation: handleException propagates the caught exception upward, allowing higher-level services to react. Question 56. When configuring a JMS Destination Alias, which property defines the physical destination name (queue or topic)? A) Destination Name
