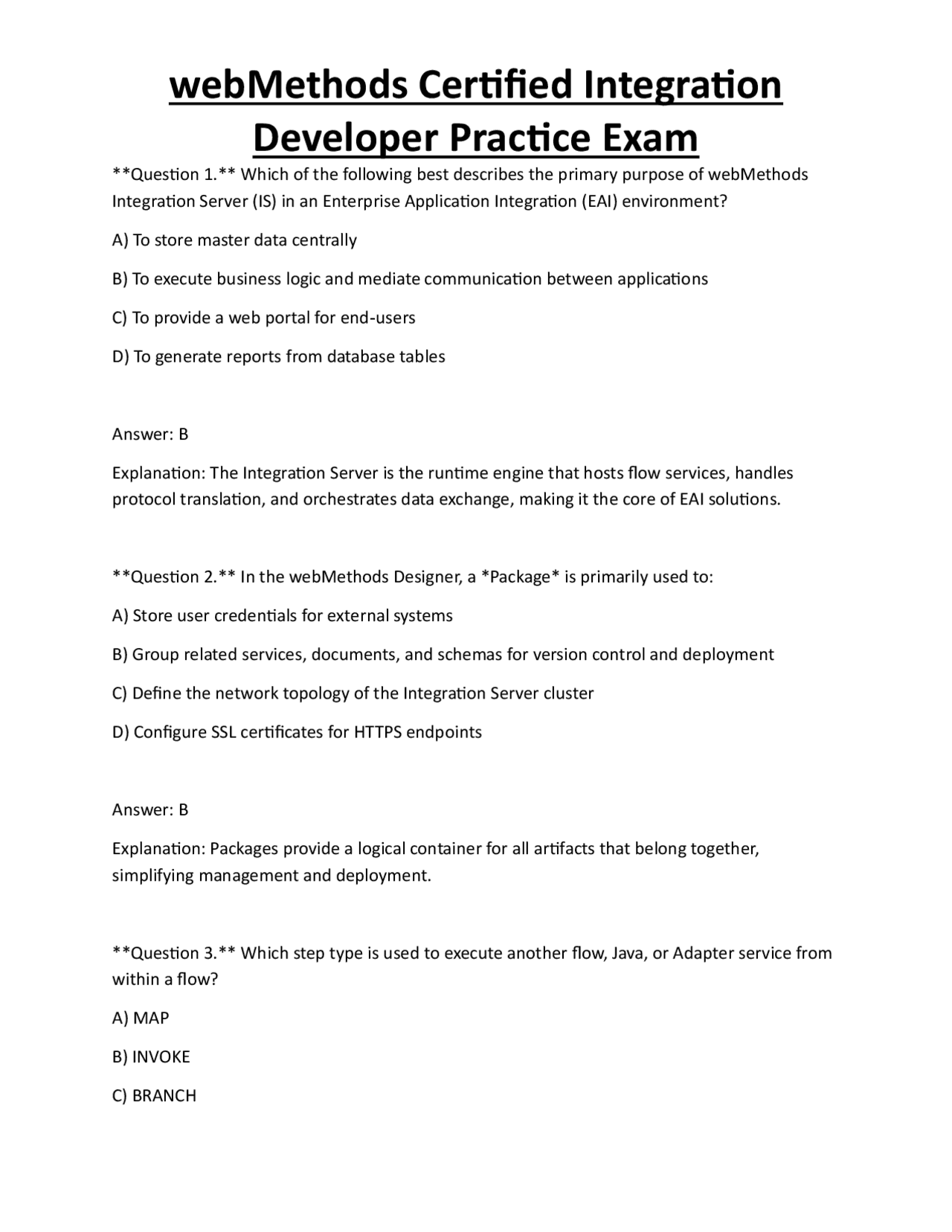

Developer Practice Exam
Question 1. Which of the following best describes the primary purpose of webMethods Integration Server (IS) in an Enterprise Application Integration (EAI) environment? A) To store master data centrally B) To execute business logic and mediate communication between applications C) To provide a web portal for end‑users D) To generate reports from database tables Answer: B Explanation: The Integration Server is the runtime engine that hosts flow services, handles protocol translation, and orchestrates data exchange, making it the core of EAI solutions. Question 2. In the webMethods Designer, a Package is primarily used to: A) Store user credentials for external systems B) Group related services, documents, and schemas for version control and deployment C) Define the network topology of the Integration Server cluster D) Configure SSL certificates for HTTPS endpoints Answer: B Explanation: Packages provide a logical container for all artifacts that belong together, simplifying management and deployment. Question 3. Which step type is used to execute another flow, Java, or Adapter service from within a flow? A) MAP B) INVOKE C) BRANCH
Developer Practice Exam
D) LOOP
Answer: B Explanation: The INVOKE step calls external services, allowing reuse of existing logic. Question 4. When designing a flow service, the $default label is used to: A) Define the default namespace for XML documents B) Mark the start of the main execution path that runs when no errors occur C) Set the default values for all input variables D) Indicate the default logging level for the service Answer: B Explanation: $default is the primary sequence that executes when the service runs successfully without entering any error handling sequences. Question 5. Which of the following statements about the pipeline in webMethods IS is FALSE? A) It is a shared memory area that holds variables during service execution B) Variables are automatically dropped at the end of each step unless explicitly removed C) Input and output signatures define the variables that appear in the pipeline at service entry and exit D) Dropping unused variables improves memory usage and performance Answer: B Explanation: Variables are retained in the pipeline until the service completes; they are not automatically dropped after each step.
Developer Practice Exam
C) BRANCH step with error‑specific labels D) INVOKE step calling pub.flow:throwException Answer: A Explanation: A SEQUENCE step can contain nested SEQUENCE steps labeled as $catch and $finally to model try‑catch‑finally behavior. Question 9. Which built‑in service throws a custom exception from a flow? A) pub.flow:throwException B) pub.flow:logMessage C) pub.flow:executeSQL D) pub.flow:invokeJavaService Answer: A Explanation: pub.flow:throwException raises an exception that can be caught by a surrounding TRY‑CATCH block. Question 10. When debugging a flow service in Designer, what does the Step Over command do? A) Executes the current step and pauses before the next step B) Skips the current step entirely without execution C) Executes the current step and any called sub‑services without pausing inside them D) Restarts the service from the beginning Answer: C
Developer Practice Exam
Explanation: Step Over runs the current step (including any invoked services) and stops at the following step in the current flow. Question 11. Which logging level records every variable change in the pipeline for a service execution? A) INFO B) DEBUG C) TRACE D) ERROR Answer: C Explanation: TRACE level provides the most granular logging, including variable values and changes. Question 12. A Web Service Descriptor (WSD) is created in webMethods to: A) Define the database schema for a JDBC adapter service B) Describe the SOAP interface of a flow service so it can be published as a web service C) Configure SSL certificates for HTTPS communication D) Set up user authentication for the Integration Server Answer: B Explanation: WSDs map flow service inputs/outputs to SOAP messages, enabling SOAP publishing. Question 13. Which HTTP method is typically used to retrieve a resource without modifying it in a RESTful API?
Developer Practice Exam
Answer: D Explanation: JMS destination is unrelated to JDBC; it belongs to messaging configuration. Question 16. Which of the following best describes a Polling Adapter Notification? A) A push‑based mechanism that sends data as soon as it arrives B) A scheduled process that periodically checks an external source for new data C) A synchronous call that waits for a response before proceeding D) A security feature that encrypts outbound messages Answer: B Explanation: Polling adapters periodically query external systems (e.g., databases, files) to detect new records. Question 17. In Universal Messaging, a Guaranteed document is: A) Sent without any acknowledgment and may be lost if the broker restarts B) Stored persistently by the broker until a consumer acknowledges receipt C) Encrypted automatically by the broker D) Only usable for non‑persistent topics Answer: B Explanation: Guaranteed messages are durable; the broker retains them until they are successfully delivered and acknowledged. Question 18. Which JNDI alias type is used to look up a JMS connection factory in webMethods? A) DataSource
Developer Practice Exam
B) JMSConnectionFactory C) FileSystem D) LDAP Answer: B Explanation: JMSConnectionFactory JNDI aliases point to the messaging broker’s connection factory. Question 19. What is the effect of setting an Access Control List (ACL) on a package to Deny for a specific user group? A) The group can read but not modify services in the package B) The group cannot invoke any services contained in the package C) The group can only view the package metadata D) The group gains administrative rights over the package Answer: B Explanation: A Deny ACL blocks all access (including invocation) for the specified users/groups. Question 20. Which of the following is a recommended practice to ensure idempotency of a flow service that writes records to a database? A) Use a random primary key for each insert B) Perform a lookup for an existing record before inserting and only insert if not found C) Disable transaction rollback on failure D) Rely on the database’s auto‑increment feature without checks Answer: B
Developer Practice Exam
A) Record definition – “Delimiter” property B) Document Type – “Separator” attribute C) Adapter connection – “FileEncoding” setting D) Service input – “Delimiter” variable Answer: A Explanation: The flat file schema’s record definition includes a delimiter property that defines the character separating fields. Question 24. Which of the following statements about Universal Messaging Triggers is TRUE? A) Triggers can only be attached to Guaranteed documents B) Triggers are executed in the same JVM as the Integration Server by default C) Triggers require a separate broker instance to run D) Triggers cannot access pipeline variables Answer: B Explanation: By default, triggers run in the Integration Server’s JVM, allowing direct pipeline manipulation. Question 25. In webMethods Deployer, a Deployment Project is used to: A) Store source code for version control B) Package selected services, documents, and configurations for transport between environments C) Generate WSDL files for web services automatically D) Monitor real‑time message throughput
Developer Practice Exam
Answer: B Explanation: Deployment Projects group artifacts for migration from development to test or production. Question 26. Which security feature ensures that data exchanged between the Integration Server and an external HTTPS endpoint is encrypted? A) Access Control List (ACL) B) SSL/TLS configuration on the server and client side C) LDAP authentication D) Auditing enabled on the service Answer: B Explanation: SSL/TLS provides transport‑level encryption for HTTPS communications. Question 27. Which of the following is NOT a recommended naming convention for flow services? A) Use camelCase for service names B) Prefix service names with the package name (e.g., MyPkg_ValidateOrder) C) Include the word “Service” at the end of every flow name D) Keep names short but descriptive Answer: C Explanation: Adding “Service” to every flow name is redundant and not part of standard conventions.
Developer Practice Exam
D) The subscription automatically encrypts all messages Answer: B Explanation: Non‑durable subscriptions receive messages only while the subscriber is active; messages are not stored persistently. Question 31. Which step type is most appropriate for converting a string date “2023‑ 07 ‑ 15 ” to a Date object within a flow? A) MAP using pub.string:toDate B) INVOKE with a custom Java class only C) BRANCH with a date comparison D) EXIT with a formatted string Answer: A Explanation: pub.string:toDate converts a string representation into a Date pipeline variable. Question 32. When configuring a JDBC connection alias, which property defines the maximum number of concurrent connections allowed? A) MaxPoolSize B) Timeout C) AutoCommit D) IsolationLevel Answer: A Explanation: MaxPoolSize controls the size of the connection pool for the alias.
Developer Practice Exam
Question 33. In a flow service, the $loop label is used to: A) Define a default error handling sequence B) Mark the start of a loop that can be exited via an EXIT step with label $loop C) Specify the namespace for XML documents D) Set the default logging level Answer: B Explanation: $loop is the label for the loop sequence; an EXIT step targeting $loop terminates the loop early. Question 34. Which of the following is a characteristic of a Guaranteed message in Universal Messaging? A) It is delivered at most once, with no acknowledgment required B) It is stored in a persistent queue until a consumer acknowledges receipt C) It can only be sent to topics, not queues D) It is automatically compressed Answer: B Explanation: Guaranteed messages are persisted and require consumer acknowledgment to be removed. Question 35. Which built‑in service would you use to log a custom informational message from within a flow? A) pub.flow:logMessage B) pub.flow:throwException C) pub.flow:executeSQL
Developer Practice Exam
Question 38. When using a Flat File Adapter to read a delimited file, which setting determines how empty fields are treated? A) TrimWhitespace property B) TreatEmptyFieldsAsNull property C) Encoding attribute D) RecordLength attribute Answer: B Explanation: TreatEmptyFieldsAsNull specifies whether empty strings are converted to null values. Question 39. In a flow, which construct allows you to execute a set of steps only when a given condition is FALSE? A) BRANCH with the “Else” path B) MAP with a negative expression C) LOOP with a zero‑length array D) EXIT with a failure status Answer: A Explanation: The Else branch of a BRANCH step runs when the condition evaluates to false. Question 40. Which of the following best describes the purpose of a Service Level Agreement (SLA) in the context of webMethods? A) It defines the maximum response time for a flow service execution B) It is a contract outside of webMethods that has no technical enforcement C) It configures the number of concurrent users allowed on the server
Developer Practice Exam
D) It determines the logging level for audit logs Answer: A Explanation: An SLA can be enforced via monitoring and alerts to ensure services meet defined performance thresholds. Question 41. Which step would you use to terminate a flow service immediately with a failure status? A) EXIT with status = failure B) MAP with error flag C) BRANCH to $catch D) LOOP with empty array Answer: A Explanation: EXIT can end execution and set the service status to success or failure. Question 42. In the context of webMethods, what does JMS stand for? A) Java Message Service B) Job Management System C) JSON Mapping Specification D) Java Middleware Security Answer: A Explanation: JMS is the standard Java API for messaging, used by Universal Messaging.
Developer Practice Exam
Answer: B Explanation: Polling adapters periodically check external sources, while triggers react to incoming messages/events. Question 46. Which built‑in service can be used to convert a Date pipeline variable to a formatted string? A) pub.string:formatDate B) pub.date:toString C) pub.flow:throwException D) pub.xml:serializeDocument Answer: A Explanation: pub.string:formatDate formats a Date according to a supplied pattern. Question 47. In a flow, the MAP step can perform which of the following actions? A) Execute SQL statements directly B) Transform data, rename variables, and perform simple calculations C) Start a new thread for parallel processing D) Publish a message to Universal Messaging automatically Answer: B Explanation: MAP handles data transformation and variable manipulation within the pipeline. Question 48. Which of the following is the correct order of steps to create a new REST resource that supports GET and POST?
Developer Practice Exam
A) Create a package → Define a WSD → Add a SOAP service → Publish as REST B) Create a folder → Add a Flow service for GET → Add a Flow service for POST → Define a REST resource and map methods to the flows C) Create a Java class → Compile → Deploy as REST D) Use the Deployer to import a pre‑built REST template Answer: B Explanation: REST resources are defined in Designer by creating flow services for each HTTP method and then mapping them to a REST resource. Question 49. Which of the following statements about transaction management in webMethods is correct? A) All flow services are automatically transactional B) Transactional behavior is controlled by the “Transactional” flag on the service properties and coordinated with adapter services that support XA C) Transactions can only be used with JDBC adapters, not with file adapters D) The Integration Server does not support distributed transactions Answer: B Explanation: Setting a service as transactional enables the IS to coordinate commit/rollback across XA‑aware adapters. Question 50. When a flow service throws an exception that is not caught, what is the default behavior of the Integration Server? A) The server shuts down B) The service returns a failure status and the exception is logged in the server log
