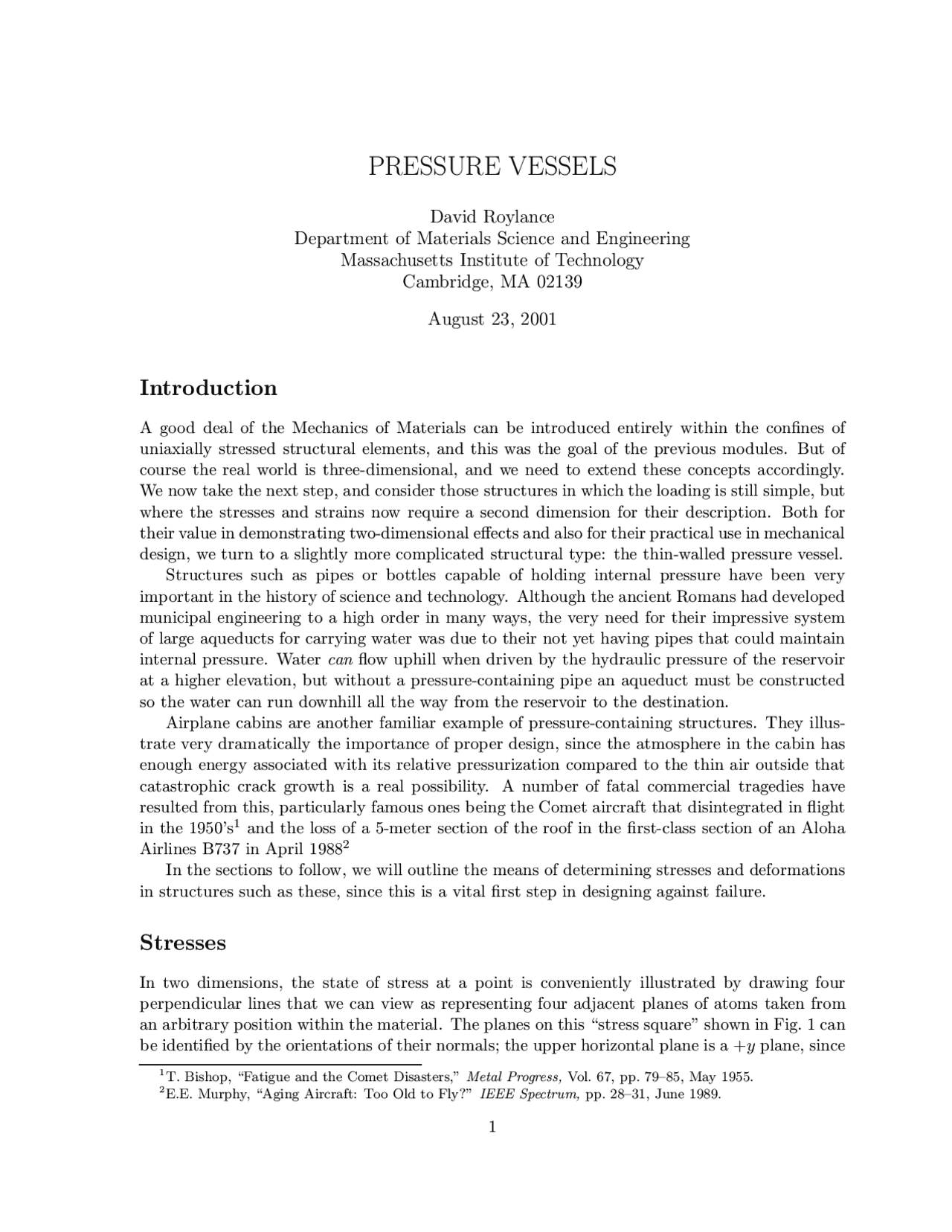

PRESSURE VESSELS
David Roylance
Department of Materials Science and Engineering
Massachusetts Institute of Technology
Cambridge, MA 02139
August 23, 2001
Introduction
A good deal of the Mechanics of Materials can be introduced entirely within the confines of uniaxially stressed structural elements, and this was the goal of the previous modules. But of course the real world is three-dimensional, and we need to extend these concepts accordingly. We now take the next step, and consider those structures in which the loading is still simple, but where the stresses and strains now require a second dimension for their description. Both for their value in demonstrating two-dimensional effects and also for their practical use in mechanical design, we turn to a slightly more complicated structural type: the thin-walled pressure vessel. Structures such as pipes or bottles capable of holding internal pressure have been very important in the history of science and technology. Although the ancient Romans had developed municipal engineering to a high order in many ways, the very need for their impressive system of large aqueducts for carrying water was due to their not yet having pipes that could maintain internal pressure. Water can flow uphill when driven by the hydraulic pressure of the reservoir at a higher elevation, but without a pressure-containing pipe an aqueduct must be constructed so the water can run downhill all the way from the reservoir to the destination. Airplane cabins are another familiar example of pressure-containing structures. They illus- trate very dramatically the importance of proper design, since the atmosphere in the cabin has enough energy associated with its relative pressurization compared to the thin air outside that catastrophic crack growth is a real possibility. A number of fatal commercial tragedies have resulted from this, particularly famous ones being the Comet aircraft that disintegrated in flight in the 1950’s^1 and the loss of a 5-meter section of the roof in the first-class section of an Aloha Airlines B737 in April 1988^2 In the sections to follow, we will outline the means of determining stresses and deformations in structures such as these, since this is a vital first step in designing against failure.
Stresses
In two dimensions, the state of stress at a point is conveniently illustrated by drawing four perpendicular lines that we can view as representing four adjacent planes of atoms taken from an arbitrary position within the material. The planes on this “stress square” shown in Fig. 1 can be identified by the orientations of their normals; the upper horizontal plane is a +y plane, since (^1) T. Bishop, “Fatigue and the Comet Disasters,” Metal Progress, Vol. 67, pp. 79–85, May 1955. (^2) E.E. Murphy, “Aging Aircraft: Too Old to Fly?” IEEE Spectrum, pp. 28–31, June 1989.
its normal points in the +y direction. The vertical plane on the right is a +x plane. Similarly, the left vertical and lower horizontal planes are −y and −x, respectively.
Figure 1: State of stress in two dimensions: the stress square.
The sign convention in common use regards tensile stresses as positive and compressive stresses as negative. A positive tensile stress acting in the x direction is drawn on the +x face as an arrow pointed in the +x direction. But for the stress square to be in equilibrium, this arrow must be balanced by another acting on the −x face and pointed in the −x direction. Of course, these are not two separate stresses, but simply indicate the stress state is one of uniaxial tension. A positive stress is therefore indicated by a + arrow on a + face, or a − arrow on a − face. Compressive stresses are the reverse: a − arrow on a + face or a + arrow on a − face. A stress state with both positive and negative components is shown in Fig. 2.
Figure 2: The sign convention for normal stresses.
Consider now a simple spherical vessel of radius r and wall thickness b, such as a round balloon. An internal pressure p induces equal biaxial tangential tensile stresses in the walls, which can be denoted using spherical rθφ coordinates as σθ and^ σφ.
Figure 3: Wall stresses in a spherical pressure vessel.
The magnitude of these stresses can be determined by considering a free body diagram of half the pressure vessel, including its pressurized internal fluid (see Fig. 3). The fluid itself is assumed to have negligible weight. The internal pressure generates a force of pA = p(πr^2 ) acting on the fluid, which is balanced by the force obtained by multiplying the wall stress times its area, σφ(2πrb). Equating these:
p(πr^2 ) = σφ(2πrb)
compelling advantages for engineered materials that can be made stronger in one direction than another (the property of anisotropy). If a pressure vessel constructed of conventional isotropic material is made thick enough to keep the hoop stresses below yield, it will be twice as strong as it needs to be in the axial direction. In applications placing a premium on weight this may well be something to avoid.
Example 1
Figure 6: Filament-wound cylindrical pressure vessel.
Consider a cylindrical pressure vessel to be constructed by filament winding, in which fibers are laid down at a prescribed helical angle α (see Fig. 6). Taking a free body of unit axial dimension along which n fibers transmitting tension T are present, the circumferential distance cut by these same n fibers is then tan α. To balance the hoop and axial stresses, the fiber tensions must satisfy the relations
hoop : nT sin α = pr b (1)(b)
axial : nT cos α = pr 2 b (tan α)(b)
Dividing the first of these expressions by the second and rearranging, we have
tan^2 α = 2, α = 54. 7 ◦
This is the “magic angle” for filament wound vessels, at which the fibers are inclined just enough to- ward the circumferential direction to make the vessel twice as strong circumferentially as it is axially. Firefighting hoses are also braided at this same angle, since otherwise the nozzle would jump forward or backward when the valve is opened and the fibers try to align themselves along the correct direction.
Deformation: the Poisson effect
When a pressure vessel has open ends, such as with a pipe connecting one chamber with another, there will be no axial stress since there are no end caps for the fluid to push against. Then only the hoop stress σθ = pr/b exists, and the corresponding hoop strain is given by Hooke’s Law as:
θ = σθ E
pr bE Since this strain is the change in circumference δC divided by the original circumference C = 2πr we can write:
δC = Cθ = 2πr
pr bE
The change in circumference and the corresponding change in radius δr are related by δr = δC / 2 π, so the radial expansion is:
δr =
pr^2 bE
This is analogous to the expression δ = P L/AE for the elongation of a uniaxial tensile specimen.
Example 2 Consider a compound cylinder, one having a cylinder of brass fitted snugly inside another of steel as shown in Fig. 7 and subjected to an internal pressure of p = 2 MPa.
Figure 7: A compound pressure vessel.
When the pressure is put inside the inner cylinder, it will naturally try to expand. But the outer cylinder pushes back so as to limit this expansion, and a “contact pressure” pc develops at the interface between the two cylinders. The inner cylinder now expands according to the difference p − pc, while the outer cylinder expands as demanded by pc alone. But since the two cylinders are obviously going to remain in contact, it should be clear that the radial expansions of the inner and outer cylinders must be the same, and we can write
δb = δs −→ (p^ −^ pc)r
(^2) b Ebbb = pcr s^2 Esbs
where the a and s subscripts refer to the brass and steel cylinders respectively. Substituting numerical values and solving for the unknown contact pressure pc:
pc = 976 KPa
Now knowing pc, we can calculate the radial expansions and the stresses if desired. For instance, the hoop stress in the inner brass cylinder is
σθ,b = (p − pc)rb bb = 62.5 MPa (= 906 psi)
Note that the stress is no longer independent of the material properties (Eb and Es), depending as it does on the contact pressure pc which in turn depends on the material stiffnesses. This loss of statical determinacy occurs here because the problem has a mixture of some load boundary values (the internal pressure) and some displacement boundary values (the constraint that both cylinders have the same radial displacement.)
If a cylindrical vessel has closed ends, both axial and hoop stresses appear together, as given by Eqns. 2 and 3. Now the deformations are somewhat subtle, since a positive (tensile) strain in one direction will also contribute a negative (compressive) strain in the other direction, just as stretching a rubber band to make it longer in one direction makes it thinner in the other
pr bE
( 1 −
ν 2
)
The radial expansion is then
δr = rθ = pr^2 bE
( 1 − ν 2
) (9)
Note that the radial expansion is reduced by the Poisson term; the axial deformation contributes a shortening in the radial direction.
Example 3 It is common to build pressure vessels by using bolts to hold end plates on an open-ended cylinder, as shown in Fig. 9. Here let’s say for example the cylinder is made of copper alloy, with radius R = 5′′, length L = 10′′^ and wall thickness bc = 0. 1 ′′. Rigid plates are clamped to the ends by nuts threaded on four 3/ 8 ′′^ diameter steel bolts, each having 15 threads per inch. Each of the nuts is given an additional 1/2 turn beyond the just-snug point, and we wish to estimate the internal pressure that will just cause incipient leakage from the vessel.
Figure 9: A bolt-clamped pressure vessel.
As pressure p inside the cylinder increases, a force F = p(πR^2 ) is exerted on the end plates, and this is reacted equally by the four restraining bolts; each thus feels a force Fb given by
Fb = p(πR^2 ) 4 The bolts then stretch by an amount δb given by:
δb = FbL AbEb It’s tempting to say that the vessel will start to leak when the bolts have stretched by an amount equal to the original tightening; i.e. 1/2 turn/15 turns per inch. But as p increases, the cylinder itself is deforming as well; it experiences a radial expansion according to Eqn. 4. The radial expansion by itself doesn’t cause leakage, but it is accompanied by a Poisson contraction δc in the axial direction. This means the bolts don’t have to stretch as far before the restraining plates are lifted clear. (Just as leakage begins, the plates are no longer pushing on the cylinder, so the axial loading of the plates on the cylinder becomes zero and is not needed in the analysis.)
The relations governing leakage, in addition to the above expressions for δb and Fb are therefore:
δb + δc = 1 2 × 1 15 where here the subscripts b and c refer to the bolts and the cylinder respectively. The axial deformation δc of the cylinder is just L times the axial strain z , which in turn is given by an expression analogous to Eqn. 7:
δc = z L = L Ec [σz − νσθ ]
Since σz becomes zero just as the plate lifts off and σθ = pR/bc, this becomes
δc = L Ec
νpR bc Combining the above relations and solving for p, we have
p = 2 AbEbEcbc 15 RL (π REcbc + 4 ν AbEb)
On substituting the geometrical and materials numerical values, this gives
p = 496 psi
The Poisson’s ratio is a dimensionless parameter that provides a good deal of insight into the nature of the material. The major classes of engineered structural materials fall neatly into order when ranked by Poisson’s ratio:
Material Poisson’s Class Ratio ν Ceramics 0. Metals 0. Plastics 0. Rubber 0.
(The values here are approximate.) It will be noted that the most brittle materials have the lowest Poisson’s ratio, and that the materials appear to become generally more flexible as the Poisson’s ratio increases. The ability of a material to contract laterally as it is extended longi- tudinally is related directly to its molecular mobility, with rubber being liquid-like and ceramics being very tightly bonded. The Poisson’s ratio is also related to the compressibility of the material. The bulk modulus K, also called the modulus of compressibility, is the ratio of the hydrostatic pressure p needed for a unit relative decrease in volume ∆V /V :
K = −p ∆V /V
where the minus sign indicates that a compressive pressure (traditionally considered positive) produces a negative volume change. It can be shown that for isotropic materials the bulk modulus is related to the elastic modulus and the Poisson’s ratio as
K =
E
3(1 − 2 ν)
a thickness of 4 mm, and the outer cylinder is of aluminum with a thickness of 2 mm. The inside radius of the inner cylinder is 300 mm, and the internal pressure is 1.4 MPa. Determine the radial displacement and circumfrential stress in the inner cylinder.
- A pressure vessel is constructed with an open-ended steel cylinder of diameter 6′′, length 8 ′′, and wall thickness 0. 375 ′′^. The ends are sealed with rigid end plates held by four 1 / 4 ′′^ diameter bolts. The bolts have 18 threads per inch, and the retaining nuts have been tightened 1/4 turn beyond their just-snug point before pressure is applied. Find the internal pressure that will just cause incipient leakage from the vessel.
- An aluminum cylinder, with 1. 5 ′′^ inside radius and thickness 0. 1 ′′, is to be fitted inside a steel cylinder of thickness 0. 25 ′′. The inner radius of the steel cylinder is 0. 005 ′′^ smaller than the outer radius of the aluminum cylinder; this is called an interference fit. In order to fit the two cylinders together initially, the inner cylinder is shrunk by cooling. By how much should the temperature of the aluminum cylinder be lowered in order to fit it inside the steel cylinder? Once the assembled compound cylinder has warmed to room temperature, how much contact pressure is developed between the aluminum and the steel?
- Assuming the material in a spherical rubber balloon can be modeled as linearly elastic with modulus E and Poisson’s ratio ν = 0.5, show that the internal pressure p needed to expand the balloon varies with the radial expansion ratio λr = r/r 0 as
pr 0 4 Eb 0
λ^2 r
λ^3 r where b 0 is the initial wall thickness. Plot this function and determine its critical values.
- Repeat the previous problem, but using the constitutive relation for rubber:
tσx =^
E
( λ^2 x −
λ^2 xλ^2 y
)
- What pressure is needed to expand a balloon, initially 3′′^ in diameter and with a wall thickness of 0.1′′, to a diameter of 30′′? The balloon is constructed of a rubber with a specific gravity of 0.9 and a molecular weight between crosslinks of 3000 g/mol. The temperature is 20◦.
- After the balloon of the previous problem has been inflated, the temperature is increased by 25C. How do the pressure and radius change?
