Probabilistic Models: Understanding Joint Distributions, Inference, and Bayes' Rule, Slides of Robotics and Autonomous Systems

Aligarh Muslim UniversityRobotics and Autonomous Systems

An introduction to probabilistic models, focusing on joint distributions, inference, and bayes' rule. Probabilistic models help us understand complex systems by simplifying the representation of reality and making predictions or drawing conclusions based on evidence. The basics of probabilistic inference, the product and chain rules, and bayes' rule, with examples and applications.

Typology: Slides

2013/2014

Uploaded on 02/01/2014

sailendra
sailendra šŸ‡®šŸ‡³

4.3

(19)

113 documents

1 / 43

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

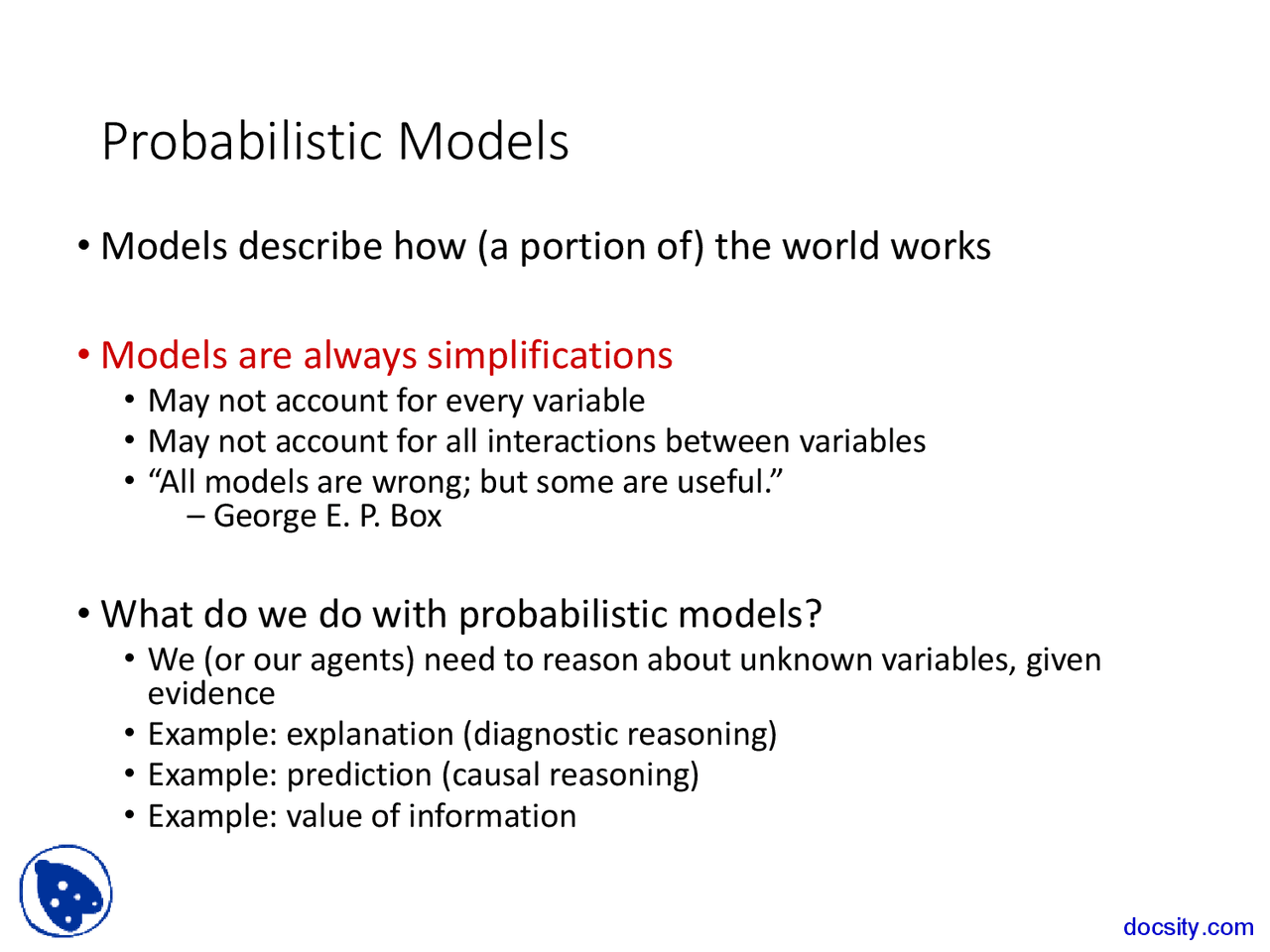

Probabilistic Models
ā€¢Models describe how (a portion of) the world works
ā€¢Models are always simplifications
ā€¢May not account for every variable
ā€¢May not account for all interactions between variables
ā€¢ā€œAll models are wrong; but some are useful.ā€
ā€“George E. P. Box
ā€¢What do we do with probabilistic models?
ā€¢We (or our agents) need to reason about unknown variables, given
evidence
ā€¢Example: explanation (diagnostic reasoning)
ā€¢Example: prediction (causal reasoning)
ā€¢Example: value of information
docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b

Partial preview of the text

Download Probabilistic Models: Understanding Joint Distributions, Inference, and Bayes' Rule and more Slides Robotics and Autonomous Systems in PDF only on Docsity!

Probabilistic Models

ā€¢ Models describe how (a portion of) the world works

ā€¢ Models are always simplifications

  • May not account for every variable
  • May not account for all interactions between variables
  • ā€œAll models are wrong; but some are useful.ā€
    • George E. P. Box

ā€¢ What do we do with probabilistic models?

  • We (or our agents) need to reason about unknown variables, given

evidence

  • Example: explanation (diagnostic reasoning)
  • Example: prediction (causal reasoning)
  • Example: value of information

Probabilistic Models

ā€¢ A probabilistic model is a joint distribution over a set of

variables

ā€¢ Inference: given a joint distribution, we can reason about

unobserved variables given observations (evidence)

ā€¢ General form of a query:

ā€¢ This conditional distribution is called a posterior distribution or

the the belief function of an agent which uses this model

Stuff you

care

about

Stuff you

already

know

The Product Rule

ā€¢ Sometimes have conditional distributions but want the joint

ā€¢ Example:

R P

sun 0. rain 0.

D W P

wet sun 0. dry sun 0. wet rain 0. dry rain 0.

D W P

wet sun 0. dry sun 0. wet rain 0. dry rain 0.

The Chain Rule

ā€¢ More generally, can always write any joint distribution as an

incremental product of conditional distributions

Inference with Bayesā€™ Rule

ā€¢ Example: Diagnostic probability from causal probability:

ā€¢ Example:

  • m is meningitis, s is stiff neck
  • Note: posterior probability of meningitis still very small
  • Note: you should still get stiff necks checked out! Why?

Exampl

e

givens

Ghostbusters, Revisited

ā€¢ Letā€™s say we have two distributions:

  • Prior distribution over ghost location: P(G)
    • Letā€™s say this is uniform
  • Sensor reading model: P(R | G)
    • Given: we know what our sensors do
    • R = reading color measured at (1,1)
    • E.g. P(R = yellow | G=(1,1)) = 0.

ā€¢ We can calculate the posterior distribution

P(G|r) over ghost locations given a reading

using Bayesā€™ rule:

Example: Independence?

T W P

warm sun 0. warm rain 0. cold sun 0. cold rain 0.

T W P

warm sun 0. warm rain 0. cold sun 0. cold rain 0.

T P

warm 0. cold 0. W P sun 0. rain 0.

Example: Independence

  • N fair, independent coin flips: H 0. T 0.

H 0.

T 0.

H 0.

T 0.

Conditional Independence

ā€¢ Unconditional (absolute) independence is very rare (why?)

ā€¢ Conditional independence is our most basic and robust form of

knowledge about uncertain environments:

ā€¢ What about this domain:

  • Traffic
  • Umbrella
  • Raining

ā€¢ What about fire, smoke, alarm?

Bayesā€™ Nets: Big Picture

ā€¢ Two problems with using full joint distribution tables as our

probabilistic models:

  • Unless there are only a few variables, the joint is WAY too big to

represent explicitly

  • Hard to learn (estimate) anything empirically about more than a few

variables at a time

ā€¢ Bayesā€™ nets: a technique for describing complex joint

distributions (models) using simple, local distributions

(conditional probabilities)

  • More properly called graphical models
  • We describe how variables locally interact
  • Local interactions chain together to give global, indirect interactions

Example Bayesā€™ Net: Car

Graphical Model Notation

ā€¢ Nodes: variables (with domains)

  • Can be assigned (observed) or unassigned

(unobserved)

ā€¢ Arcs: interactions

  • Indicate ā€œdirect influenceā€ between

variables

  • Formally: encode conditional

independence (more later)

ā€¢ For now: imagine that arrows mean

direct causation (in general, they

donā€™t!)

Example: Traffic

ā€¢ Variables:

ā€¢ R: It rains

ā€¢ T: There is traffic

ā€¢ Model 1 : independence

ā€¢ Model 2 : rain causes traffic

ā€¢ Why is an agent using model 2 better?

R

T

Example: Traffic II

ā€¢ Letā€™s build a causal graphical model

ā€¢ Variables

ā€¢ T: Traffic

ā€¢ R: It rains

ā€¢ L: Low pressure

ā€¢ D: Roof drips

ā€¢ B: Ballgame

ā€¢ C: Cavity
