Practice Exam

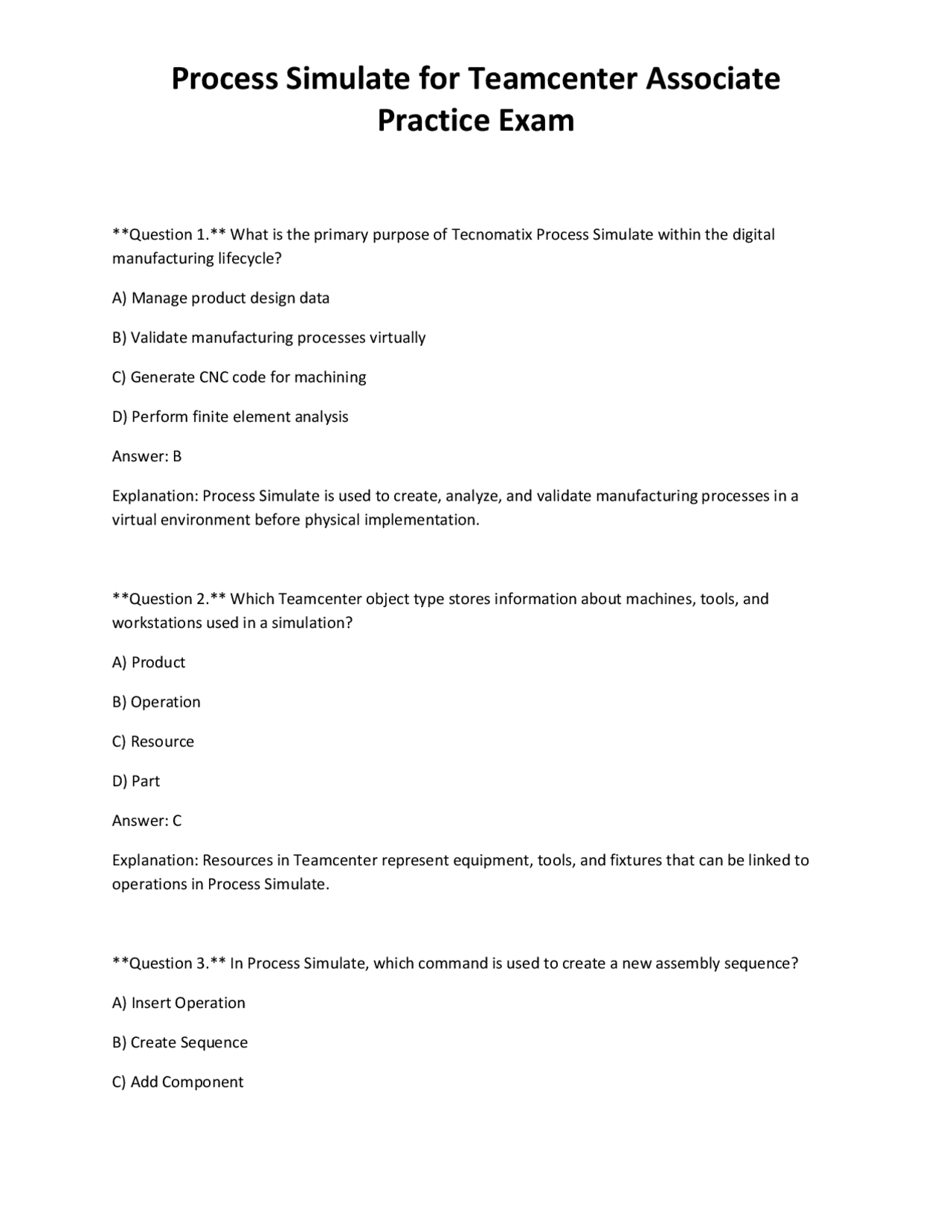

Question 1. What is the primary purpose of Tecnomatix Process Simulate within the digital manufacturing lifecycle? A) Manage product design data B) Validate manufacturing processes virtually C) Generate CNC code for machining D) Perform finite element analysis Answer: B Explanation: Process Simulate is used to create, analyze, and validate manufacturing processes in a virtual environment before physical implementation. Question 2. Which Teamcenter object type stores information about machines, tools, and workstations used in a simulation? A) Product B) Operation C) Resource D) Part Answer: C Explanation: Resources in Teamcenter represent equipment, tools, and fixtures that can be linked to operations in Process Simulate. Question 3. In Process Simulate, which command is used to create a new assembly sequence? A) Insert Operation B) Create Sequence C) Add Component
Practice Exam
D) New Study Answer: B Explanation: “Create Sequence” initiates a structured list of operations that define the manufacturing process flow. Question 4. Which geometric representation is most suitable for editing part geometry directly in Process Simulate? A) XTBRep B) JTBRep C) STL D) IGES Answer: A Explanation: XTBRep (eXtended Tessellation) allows direct manipulation of geometry within Process Simulate, unlike read‑only formats such as STL. Question 5. When loading a simulation from Teamcenter, which option ensures you retrieve the latest approved revision? A) Load All Versions B) Load Latest Revision C) Load Draft Only D) Load All Variants Answer: B Explanation: “Load Latest Revision” pulls the most recent released version of the object, respecting Teamcenter’s revision rules.
Practice Exam
D) Measurement Panel Answer: B Explanation: The Operation Tree displays the ordered list of operations, sub‑operations, and associated resources. Question 9. Which Teamcenter module directly integrates with Process Simulate to manage manufacturing process planning data? A) Teamcenter Engineering B) Teamcenter Manufacturing Process Planner (MPP) C) Teamcenter Visualization D) Teamcenter Asset Management Answer: B Explanation: MPP stores process plans, operations, and resources that are consumed by Process Simulate for validation. Question 10. What is the effect of enabling “Auto‑Save” during a simulation study? A) Saves a copy to the local disk only B) Commits changes to Teamcenter after each operation C) Periodically writes the current state to the Teamcenter server D) Prevents any changes from being saved Answer: C Explanation: Auto‑Save automatically writes the current study state to the server at defined intervals, reducing data loss risk.
Practice Exam
Question 11. Which tool is used to create a “reach study” for a digital human model? A) Path Planner B) Human Reach Analyzer C) Collision Detector D) Kinematic Solver Answer: B Explanation: The Human Reach Analyzer evaluates whether a virtual human can reach specific points within the workcell. Question 12. When defining a robotic workcell, which component defines the robot’s controller logic? A) Robot Model B) Controller Object C) Tool Center Point (TCP) D) Gripper Answer: B Explanation: The Controller object stores the robot’s program, motion parameters, and communication settings. Question 13. What is the purpose of an “Interference Zone” in Process Simulate? A) To limit the robot’s speed B) To define an area where collisions are prohibited C) To calculate material waste D) To set lighting conditions for rendering
Practice Exam
A) Angle Measurement B) Distance Measurement C) Volume Calculator D) Mass Analyzer Answer: B Explanation: Distance Measurement directly reports the linear distance between selected points. Question 17. What does the “Sectioning” feature allow a user to do? A) Cut a part into multiple pieces for analysis B. Create a new operation sequence C. Generate a 2‑D drawing from 3‑D geometry D. Export the simulation as a video Answer: A Explanation: Sectioning creates a cut plane to view internal features or hidden geometry. Question 18. In Process Simulate, which file format is commonly used to exchange robot programs with external controllers? A. STEP B. RAPID C. PLCopen XML D. ABB RobotStudio XML Answer: C
Practice Exam
Explanation: PLCopen XML is an industry‑standard format for exchanging robot motion data between tools and controllers. Question 19. Which option best describes “Object Flow” simulation? A. Simulating the deformation of a part under load B. Validating the movement of parts and materials through a workcell C. Generating CNC toolpaths for machining D. Performing thermal analysis of a component Answer: B Explanation: Object Flow focuses on the logistics of parts moving through stations, conveyors, and handling equipment. Question 20. What is the main advantage of using “Human Jogging” in a digital human simulation? A. To automatically generate ergonomic reports B. To manually adjust the human pose for specific tasks C. To calculate the human’s metabolic rate D. To simulate fatigue over time Answer: B Explanation: Human Jogging lets the user manually move joints to achieve desired postures for analysis. Question 21. Which Teamcenter attribute controls whether a part can be used in a simulation without modification? A. Read‑Only Flag B. Simulation‑Ready Flag
Practice Exam
Question 24. Which ergonomic standard can be directly applied within Process Simulate to evaluate posture? A. ISO 9241 B. OSHA 1910 C. RULA (Rapid Upper Limb Assessment) D. ANSI Z Answer: C Explanation: RULA is integrated into Process Simulate to assess upper‑limb ergonomic risk. Question 25. During a “Collision Detection” run, what does the “Critical Collision” flag indicate? A. A collision that can be ignored B. A collision that violates a defined interference zone C. A collision that occurs only at low speed D. A collision that is outside the workcell boundary Answer: B Explanation: Critical Collisions are those that breach defined safety or interference constraints. Question 26. Which of the following is a valid reason to use “JTBRep” geometry in Process Simulate? A. To edit part features directly B. To reduce file size for large assemblies C. To enable high‑precision collision detection D. To import parametric CAD data without modification
Practice Exam
Answer: D Explanation: JTBRep (Joint Tessellation) is a read‑only representation used for visualizing CAD data without editing. Question 27. What is the effect of setting an operation’s “Cycle Time” attribute? A. It determines the simulation playback speed B. It defines the time required to complete that operation in a manufacturing schedule C. It controls the visual rendering quality D. It locks the operation from further editing Answer: B Explanation: Cycle Time is used for production planning and KPI calculations. Question 28. Which command would you use to generate a “Disassembly Report” after validating an assembly sequence? A. Export Report → Disassembly B. Analyze → Generate Report → Disassembly C. File → Print → Disassembly Summary D. Tools → Report Builder → Disassembly Answer: B Explanation: The “Analyze” menu contains the option to create a detailed Disassembly Report. Question 29. Which of the following best describes a “Resource Library” in Teamcenter? A. A collection of CAD models only
Practice Exam
Question 32. What is the purpose of a “Workcell” definition in Process Simulate? A. To store material properties of parts B. To group resources, operations, and layout information for a specific manufacturing cell C. To define the color scheme of the simulation viewer D. To manage user permissions for a project Answer: B Explanation: A workcell encapsulates the physical arrangement and resources needed for a manufacturing process. Question 33. Which Teamcenter feature ensures that a simulation study can only be edited by its owner? A. Check‑Out/Check‑In mechanism B. Read‑Only flag C. Workflow Approval D. Object Locking Answer: A Explanation: Check‑Out restricts editing to the user who has checked out the object, preventing concurrent modifications. Question 34. When performing a “Human Reach Study,” which parameter defines the maximum distance a virtual human can extend? A. Arm Length B. Reach Envelope Radius
Practice Exam
C. Shoulder Flexion Angle D. Hand Grip Strength Answer: B Explanation: The Reach Envelope Radius sets the outer boundary of the human’s reachable space. Question 35. Which simulation feature allows you to test the effect of “tool wear” on part quality? A. Material Degradation Model B. Tool Life Parameter in Operation C. Collision Detection D. Energy Consumption Analyzer Answer: B Explanation: The Tool Life parameter tracks wear and can trigger tool change or quality warnings. Question 36. In Process Simulate, what does the “Snap to Grid” option affect? A. The resolution of collision detection B. The placement accuracy of components during manual positioning C. The file size of exported videos D. The speed of the simulation playback Answer: B Explanation: Snap to Grid constrains object movement to predefined increments, improving placement precision.
Practice Exam
Answer: A Explanation: The “Lift Assist” is created via the Mechanical Device insertion wizard. Question 40. In the context of Process Simulate, what is a “Sequence Node”? A. A point in the 3‑D space where a part is placed B. An element in the operation hierarchy representing a single step or group of steps C. A data object that stores simulation results D. A visual marker for collision hotspots Answer: B Explanation: Sequence Nodes form the tree structure of the process plan, each representing an operation or sub‑sequence. Question 41. Which of the following best defines “Digital Twin” as used with Process Simulate? A. A 2‑D drawing of a product B. A virtual replica of a physical manufacturing system that can be simulated in real time C. A backup copy of the CAD model stored in the cloud D. An animation of the assembly process Answer: B Explanation: A Digital Twin mirrors the real system, allowing virtual testing and optimization. Question 42. What is the function of the “Resource Allocation” dialog? A. To assign specific machines, tools, or fixtures to operations within a sequence B. To calculate the total cost of resources used in the simulation
Practice Exam
C. To generate a list of all parts in the assembly D. To export resource data to a CSV file Answer: A Explanation: Resource Allocation binds physical assets to workflow steps, ensuring realistic simulation. Question 43. Which setting controls the level of detail shown in the Process Simulate viewer? A. Graphics → Quality → High/Medium/Low B. File → Preferences → Detail Level C. View → Rendering Options → Simplify Geometry D. Tools → Visual Settings → Detail Slider Answer: A Explanation: The Graphics Quality setting determines rendering fidelity versus performance. Question 44. When performing a “Human Ergonomic Assessment,” which metric indicates the risk of musculoskeletal disorders? A. Cycle Time B. RULA Score C. Collision Count D. Energy Consumption Answer: B Explanation: RULA (Rapid Upper Limb Assessment) provides a quantitative risk level for ergonomics.
Practice Exam
Answer: B Explanation: Motion Constraints allow definition of maximum joint or TCP speeds. Question 48. In Process Simulate, what does the “Export to PLMXML” function produce? A. A 3‑D model file for visualization B. An XML representation of the process plan compatible with other PLM tools C. A video file of the simulation playback D. A spreadsheet of operation times Answer: B Explanation: PLMXML encodes process data for exchange between PLM systems. Question 49. Which of the following is true regarding “Revision Rules” in Teamcenter when used with Process Simulate? A. Revisions are automatically created each time a simulation runs B. Users must manually approve a new revision before it can be used in a simulation C. Revision rules control how new versions of parts and resources are generated and related D. Revisions are only applicable to documents, not to parts or resources Answer: C Explanation: Revision rules define the creation and relationship of new versions for managed objects. Question 50. What does the “Batch Delete” command do in Process Simulate? A. Removes all geometry from the current study B. Deletes multiple selected studies from the Teamcenter database
Practice Exam
C. Clears the operation tree without affecting resources D. Deletes all collision detection results Answer: B Explanation: Batch Delete permanently removes selected simulation studies from the repository. Question 51. Which operation type is used to represent a “painting” process in a manufacturing simulation? A. Assembly B. Surface Treatment C. Material Removal D. Inspection Answer: B Explanation: Surface Treatment operations model processes like painting, coating, or plating. Question 52. In a robotic simulation, what is the purpose of a “Safety Zone”? A. To define the robot’s maximum payload B. To create a region where the robot must not enter, preventing collisions with humans or equipment C. To limit the robot’s joint angles D. To set the robot’s power consumption limits Answer: B Explanation: Safety Zones enforce spatial restrictions for safety compliance.
