Practice Exam

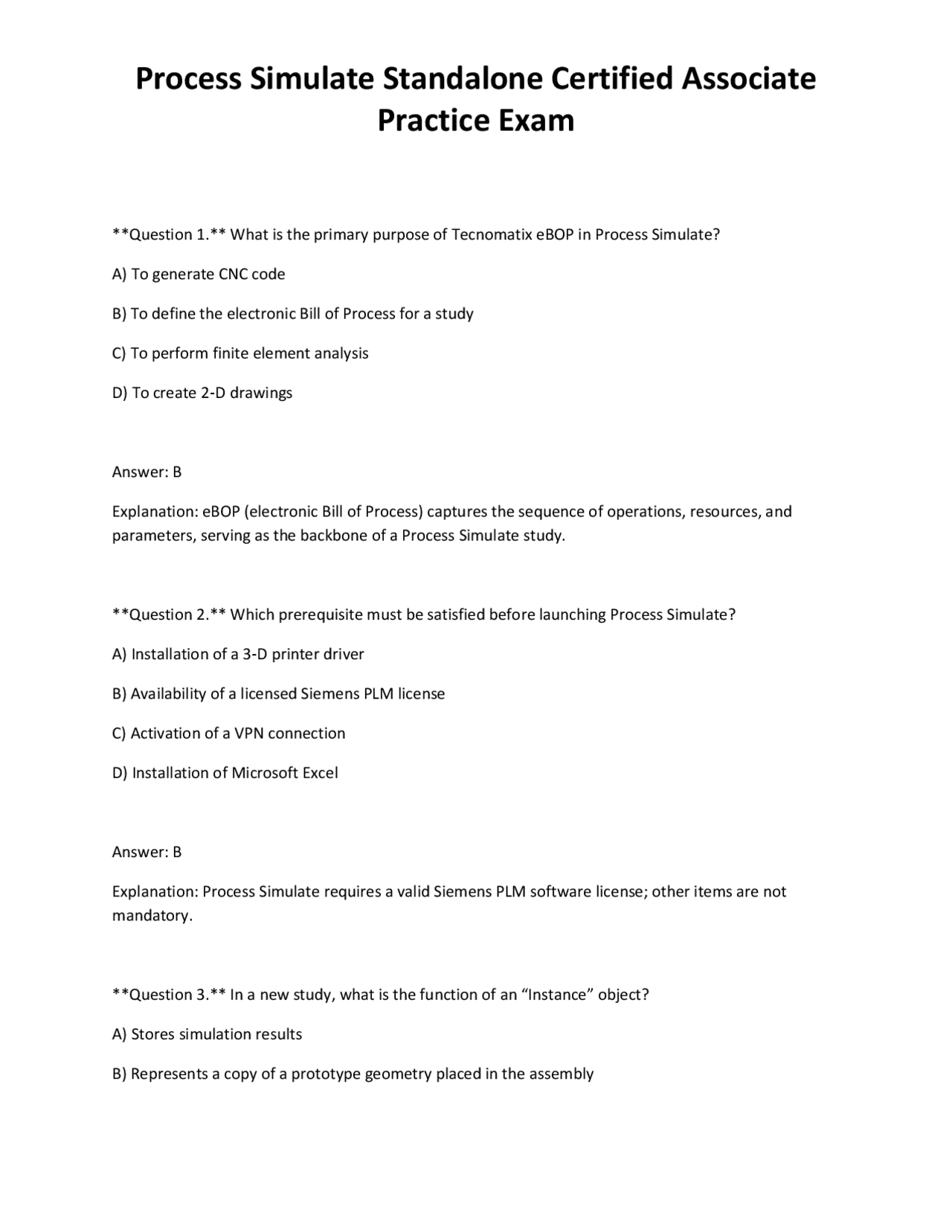

Question 1. What is the primary purpose of Tecnomatix eBOP in Process Simulate? A) To generate CNC code B) To define the electronic Bill of Process for a study C) To perform finite element analysis D) To create 2‑D drawings Answer: B Explanation: eBOP (electronic Bill of Process) captures the sequence of operations, resources, and parameters, serving as the backbone of a Process Simulate study. Question 2. Which prerequisite must be satisfied before launching Process Simulate? A) Installation of a 3‑D printer driver B) Availability of a licensed Siemens PLM license C) Activation of a VPN connection D) Installation of Microsoft Excel Answer: B Explanation: Process Simulate requires a valid Siemens PLM software license; other items are not mandatory. Question 3. In a new study, what is the function of an “Instance” object? A) Stores simulation results B) Represents a copy of a prototype geometry placed in the assembly
Practice Exam
C) Generates a bill of materials automatically D) Controls robot kinematics Answer: B Explanation: An Instance references a Prototype (original geometry) and can be positioned multiple times within the study. Question 4. Which toolbar button changes the cursor to the placement manipulator? A) “Move” B) “Rotate” C) “Place” D) “Snap” Answer: C Explanation: The “Place” command activates the placement manipulator, allowing users to position new objects. Question 5. What is the purpose of creating a snapshot during a simulation? A) To export the model to IGES format B) To capture the current visual state for later reference or documentation C) To reset all robot positions to defaults D) To generate a collision report
Practice Exam
Question 8. What does a “crank” kinematic definition describe? A) Linear motion along a rail B) Rotary motion about a fixed axis C) A combined rotary‑to‑linear motion typical of a crank‑slider mechanism D) A robot joint limit Answer: C Explanation: A crank converts rotary motion into linear motion, used for simulating mechanisms like pistons. Question 9. Which command adds a new location to an existing Object Flow operation? A) Insert → Location B) Edit → Add Point C) Object Flow → New Location D) Right‑click → Create Location Answer: D Explanation: Right‑clicking inside the Object Flow editor provides a “Create Location” option to add points. Question 10. How can a user detect dynamic collisions between moving parts? A) Use the “Static Collision Check” tool
Practice Exam
B) Run a “Dynamic Collision Detection” simulation after enabling the option in the Collision Settings C) Export the model to a collision‑analysis software D) Manually measure distances in the viewer Answer: B Explanation: Enabling dynamic collision detection allows the engine to evaluate collisions during motion. Question 11. Which robot attribute defines the orientation of the tool center point (TCP) relative to the robot flange? A) Reach envelope B) TCP offset matrix C) Joint limit D) Payload Answer: B Explanation: The TCP offset matrix specifies position and orientation of the tool relative to the robot’s flange. Question 12. In robotic path development, what is a “via point”? A) The final target location of a robot B) An intermediate waypoint used to avoid obstacles or refine motion C) A point where the robot changes payload D) The home position of the robot
Practice Exam
Explanation: “Part‑in‑tool” means the part is attached to the robot’s end‑effector during welding. Question 15. Which of the following is NOT a valid continuous feature operation type? A) Arc welding B) Painting C) Pick and Place D) Laser cutting Answer: C Explanation: Pick and Place is a discrete operation; arc welding, painting, and laser cutting are continuous features. Question 16. How does the Cyclic Event Evaluator (CEE) influence a simulation? A) It optimizes robot trajectories automatically B) It evaluates periodic events (e.g., every 10 seconds) to trigger actions such as part release C) It generates a bill of materials D) It creates 2‑D drawings from the 3‑D model Answer: B Explanation: CEE processes cyclic events, allowing repeated or timed actions within a simulation. Question 17. Which human model parameter is most important for evaluating reachability? A) Hand size
Practice Exam
B) Height of the operator C) Footwear type D) Hair color Answer: B Explanation: Operator height determines the vertical reach envelope and influences whether a task is ergonomically feasible. Question 18. What does the “Auto‑Grasp Wizard” automate? A) Generation of robot joint limits B) Assignment of grasp points for human or robot hands on a selected part C) Creation of collision detection meshes D) Export of simulation data to CSV Answer: B Explanation: The Auto‑Grasp Wizard suggests optimal grasp locations for hands or grippers based on part geometry. Question 19. In the Task Simulation Builder (TSB), which element defines the duration of a human operation? A) Speed factor B) Time attribute in the operation properties panel C) Number of repetitions D) Tool selection
Practice Exam
Question 22. Which file type stores motion parameter data for advanced kinematic functions? A) .mot B) .xml C) .csv D) .motn Answer: A Explanation: Motion parameter files typically use the .mot extension to define custom motion curves and functions. Question 23. When creating a 3‑D section for measurement analysis, which tool is used? A) Section Plane B) Slice Viewer C) Cutaway Tool D) Measurement Grid Answer: A Explanation: The Section Plane tool defines a cutting plane to generate a 3‑D cross‑section for analysis. Question 24. Which of the following statements about “Compound” operations is true? A) They can only contain robot motions B) They group multiple sub‑operations into a single logical block
Practice Exam
C) They are used exclusively for welding D) They cannot be animated in presentation mode Answer: B Explanation: Compound operations act as containers, allowing several operations to be treated as one unit. Question 25. What does the “Payload” setting of a robot control? A) Maximum weight the robot can safely carry B) The speed of the robot’s motion C) The number of joints the robot has D) The type of end‑effector used Answer: A Explanation: Payload defines the maximum mass the robot is rated to handle without overload. Question 26. Which option allows a user to lock an object’s position after placement? A) Freeze Transformation B) Lock Geometry C) Anchor Object D) Pin to Ground Answer: C
Practice Exam
A) The field of view of a robot’s camera B) The line‑of‑sight of a human operator, highlighting visible and hidden areas C) The laser scan pattern of a sensor D) The UV lighting conditions in a paint booth Answer: B Explanation: Vision Window shows what a human can see from a given viewpoint, useful for accessibility analysis. Question 30. Which command restores an object to its original imported position? A) Reset Transform B) Restore Initial Pose C) Revert Geometry D) Undo Placement Answer: B Explanation: “Restore Initial Pose” returns the object to the coordinates it had when first imported. Question 31. When defining a rail kinematic, which parameter specifies the travel limit? A) Rail Length B) Joint Velocity C) Payload D) Tool Center Point
Practice Exam
Answer: A Explanation: The rail length defines the maximum allowable travel distance along the rail axis. Question 32. What is the primary benefit of using “Markups” in a study? A) To export the model to a 3‑D printer B) To annotate the scene with notes, dimensions, or comments for collaboration C) To increase simulation speed D) To generate a BOM automatically Answer: B Explanation: Markups provide visual annotations that aid communication among team members. Question 33. Which operation type would you select to model a continuous paint line where the paint gun moves along a part’s surface? A) Weld B) Continuous Feature C) Pick and Place D) Object Flow Answer: B Explanation: Continuous Feature operations model processes like painting, where the tool follows a path across a surface.
Practice Exam
C) The cost breakdown of the simulation project D) The hierarchy of assemblies Answer: A Explanation: The Collision Matrix reports colliding part pairs and can be filtered by severity. Question 37. Which setting controls the speed at which a robot moves along a defined path? A) Acceleration profile B) Motion speed factor C) Payload limit D) Tool weight Answer: B Explanation: The Motion Speed Factor scales the default robot speed for the specific path. Question 38. In human simulation, what does “Task Duration” influence? A) The number of robots required B) The ergonomic rating of the operation, as longer durations increase fatigue risk C) The color of the human avatar D) The resolution of the 3‑D viewer Answer: B Explanation: Longer task durations affect ergonomic scores, reflecting increased fatigue potential.
Practice Exam
Question 39. Which file is typically used to store a complete Process Simulate study for exchange with other Siemens tools? A) .pss B) .psm C) .psml D) .psx Answer: C Explanation: The .psml (Process Simulate Model) file contains the full study data for import/export. Question 40. What is the effect of enabling “Automatic Alignment” when placing an object on a surface? A) The object snaps to the nearest grid point B) The object rotates to align its bottom face with the surface normal automatically C) The object’s material properties are copied from the surface D) The object is duplicated Answer: B Explanation: Automatic Alignment orients the object so its base conforms to the target surface’s normal. Question 41. Which operation type is primarily used to simulate the flow of liquids or gases through a system? A) Object Flow
Practice Exam
Answer: A Explanation: The Reach Envelope Generator visualizes the volume a human can comfortably reach. Question 44. What does the “Event” object in Process Simulate represent? A) A point in time that triggers a specific action, such as starting a robot or logging data B) A geometric primitive used for collision detection C) A material property definition D) A 2‑D drawing view Answer: A Explanation: Events are time‑based triggers that can start/stop operations, change parameters, or record data. Question 45. Which of the following is NOT a valid method for documenting a study? A) Exporting a movie via Movie Manager B) Creating snapshots and markups C) Printing the 3‑D model without annotations D) Generating an ergonomic report Answer: C Explanation: Simply printing a raw 3‑D model lacks the contextual information required for proper documentation.
Practice Exam
Question 46. In a robotic arc‑welding operation, what does the “Lead‑in” parameter define? A) The speed of the welding torch B) The distance and angle the torch travels before reaching the weld start point to ensure smooth entry C) The type of filler material used D) The robot’s payload Answer: B Explanation: Lead‑in controls the approach path, helping to avoid abrupt starts that could affect weld quality. Question 47. Which setting determines whether a robot can pick up a part in a “Pick and Place” operation? A) Gripper type and size compatibility with the part geometry B) Robot’s joint limits only C) The color of the part D) The simulation’s frame rate Answer: A Explanation: Gripper geometry must match the part’s shape and size to enable successful picking. Question 48. What is the primary function of the “Motion Parameter File” in advanced kinematics? A) To store custom motion curves, such as sinusoidal or spline profiles, that can be applied to devices like gantries or positioners
