Program Development Tools

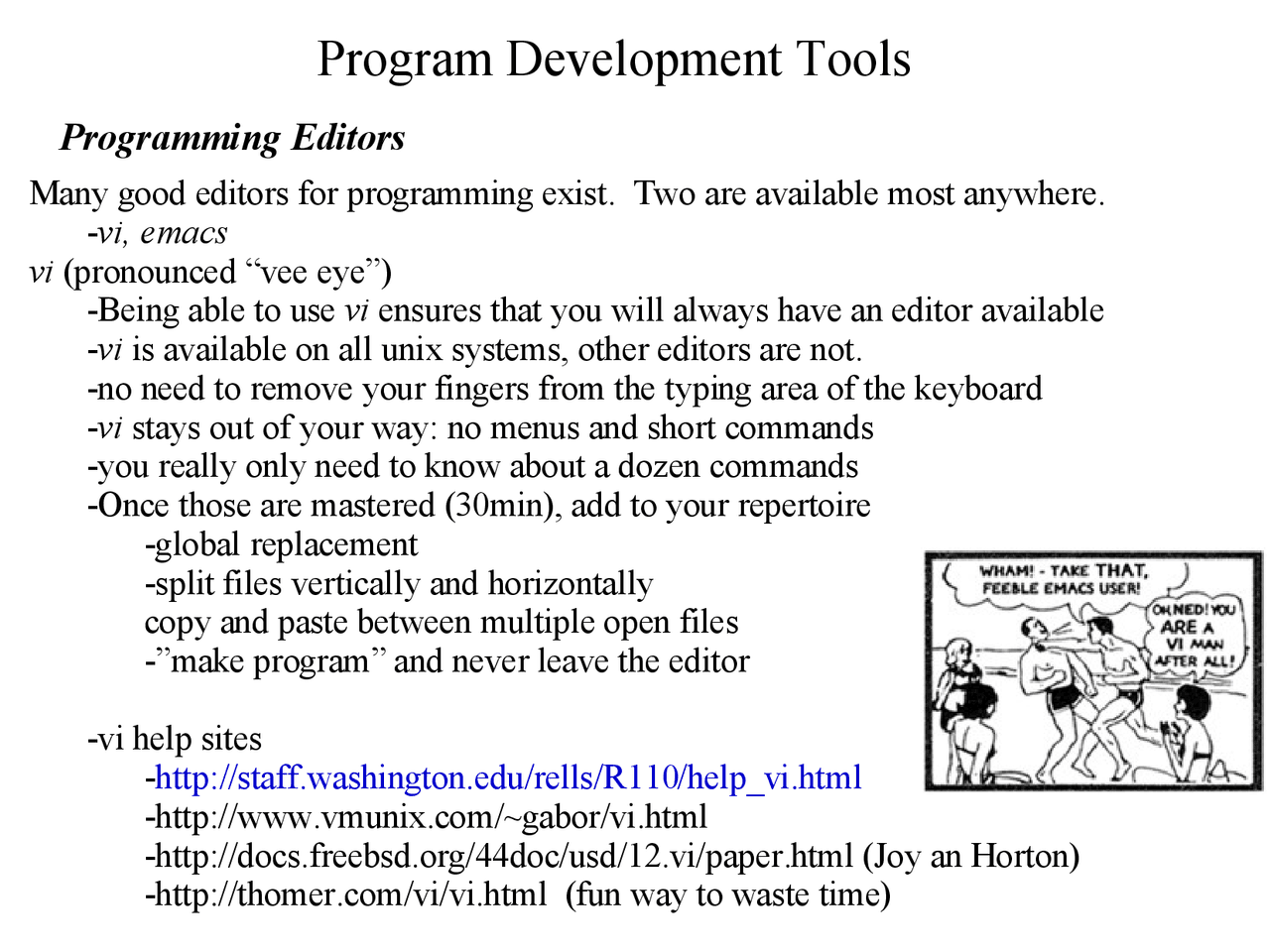

Programming Editors
Many good editors for programming exist. Two are available most anywhere.
- vi, emacs
vi (pronounced “vee eye”)
-Being able to use vi ensures that you will always have an editor available
- vi is available on all unix systems, other editors are not.
-no need to remove your fingers from the typing area of the keyboard
- vi stays out of your way: no menus and short commands
-you really only need to know about a dozen commands
-Once those are mastered (30min), add to your repertoire
-global replacement
-split files vertically and horizontally
copy and paste between multiple open files
-”make program” and never leave the editor
-vi help sites
- http://staff.washington.edu/rells/R110/help_vi.html
-http://www.vmunix.com/~gabor/vi.html
-http://docs.freebsd.org/44doc/usd/12.vi/paper.html (Joy an Horton)
-http://thomer.com/vi/vi.html (fun way to waste time)
Program Development Tools
Vi commands
To begin editing a file:
vi opens vi
vi file_name opens vi on file_name
To close vi:
:q quit (it will query you if changes were made)
:q! quit without save
:x save and exit
zz save and exit
Writing a file:
:w write out current file
:w new_name write out current file as new_name
:wq write file and quit (like “x” or “zz)
Read in a file:
:r file_name Read in file_name into current one after the cursor
Program Development Tools
Vi commands – Modes (input, command)
Command mode:
In command mode we do everything else.....
-moving around in the file
-search and replace
-yank (copy) and put (paste)
-delete
-split screens
Command mode entered from input mode by
You enter vi in the command mode.
Program Development Tools
Vi commands – Modes (input, command)
Moving around in the file:
h move one character left
l move one character right
k move one line up
j move one line down
u move up one page
d move down one page
w move forward 1 word
b move back 1 word
$ move to end of line
H move to line 1, column 1
G move to last line, column 1
:n go to line n
Program Development Tools
Vi commands – Modes (input, command)
Search and Replace:
/pattern search for pattern (forwards)
?pattern search for pattern (backwards)
n repeat last search
:%s/old/new/g
replace every occurrence of old with new in entire file
Program Development Tools
Vi commands – Modes (input, command)
Multiple screens:
:sp new_file open split screen with new_file displayed
:vsp new_file open vertically split screen with new_file displayed
ww move between screens
wn split existing window
wv split existing window vertically
Program Development Tools: avr-gcc/avr-objcopy/uisp
mycode.c
uisp -dprog=stk200 -dpart=atmega128 -dlpt=/dev/parport0 –-erase –upload if=mycode.hex
mycode.o
mycode.elf
mega
avr-gcc -g -c -Wall -O2 -mmcu=atmega128 -o mycode.o mycode.c avr-objcopy -j .text -j .data -O -ihex mycode.elf mycode.hex
mycode.hex
Program Development Tools
make
To automate and simplify the process of making an executable image for the
microcontroller we use the make utility
make is the puppetmaster of your build environment. It...
-checks file dependencies and compiles only the files that require it
-executes other commands to generate other files (EEPROM images)
-is very general purpose, it works with any language and other tools
-lets us make one Makefile that can be used with many other programs
In more complex programming environments, make is an excellent way to
manage the creation of an executable from 10's or 100's of files.
Program Development Tools - make
#a simple make file for sr.c PRG = sr all: $(PRG).elf sr.o : sr.c avr-gcc -g -c -Wall -O2 -mmcu=atmega128 -o sr.o sr.c sr.elf : sr.o avr-gcc -g -Wall -O2 -mmcu=atmega128 -Wl,-Map,$(PRG).map -o sr.elf sr.o sr.hex : sr.elf avr-objcopy -j .text -j .data -O ihex sr.elf sr.hex program : $(PRG).hex uisp -dprog=stk200 -dpart=atmega128 -dlpt=/dev/parport0 --erase --upload if=sr.hex lst : $(PRG).lst sr.lst : sr.elf avr-objdump -h -S sr.elf > sr.lst clean : rm -rf *.o *.elf *.hex *.lst *.map a phony target dependancy with no command
Program Development Tools - make
PRG = sr OBJ = $(PRG).o MCU_TARGET = atmega OPTIMIZE = -O0 # options are 1, 2, 3, s OBJCOPY = avr-objcopy OBJDUMP = avr-objdump CC = avr-gcc override CFLAGS = -g -Wall $(OPTIMIZE) -mmcu=$(MCU_TARGET) override LDFLAGS = -Wl,-Map,$(PRG).map #The automatic variables make recognizes:
$@ file name of target, i.e., left hand side of :
$< name of first prerequisite
$? name of all the prerequisites that are newer than the target
$^, $+ Names of all the prerequisites
all: $(PRG).elf lst text eeprom #######################################################################
The dependency for 'all" is the program.elf and three other rules.
The target "all" is known as a "phony target" as it is not a file
but a name used to have "make" do something for you.
#######################################################################
Program Development Tools - make
lst: $(PRG).lst %.lst: %.elf $(OBJDUMP) -h -S $< > $@ ############################################################
The target "lst" is another phony target. Its depends
on the .lst (list) file. The list file shows the
assembly language output of the compiler intermixed
with the C code so it is easier to debug and follow.
avr-objdump ($OBJDUMP) is the avr binutil tool we us to
get information from the .elf file.
$< is shorthand for source file for the single dependency
############################################################
Program Development Tools - make
Following are rules for building the .text rom images
This is the stuff that will be put in flash.
############################################################ text: hex bin srec hex: $(PRG).hex bin: $(PRG).bin srec: $(PRG).srec %.hex: %.elf $(OBJCOPY) -j .text -j .data -O ihex $< $@ ##########################################################
Take any .elf file and build the .hex file from it using
avr-objcopy. avr-objcopy is used to extract the downloadable
portion of the .elf file to build the flash image.
########################################################## %.srec: %.elf $(OBJCOPY) -j .text -j .data -O srec $< $@ #Make the Motorola S-record file %.hex: %.elf $(OBJCOPY) -j .text -j .data -O binary $< $@ #Make a binary imagae also
