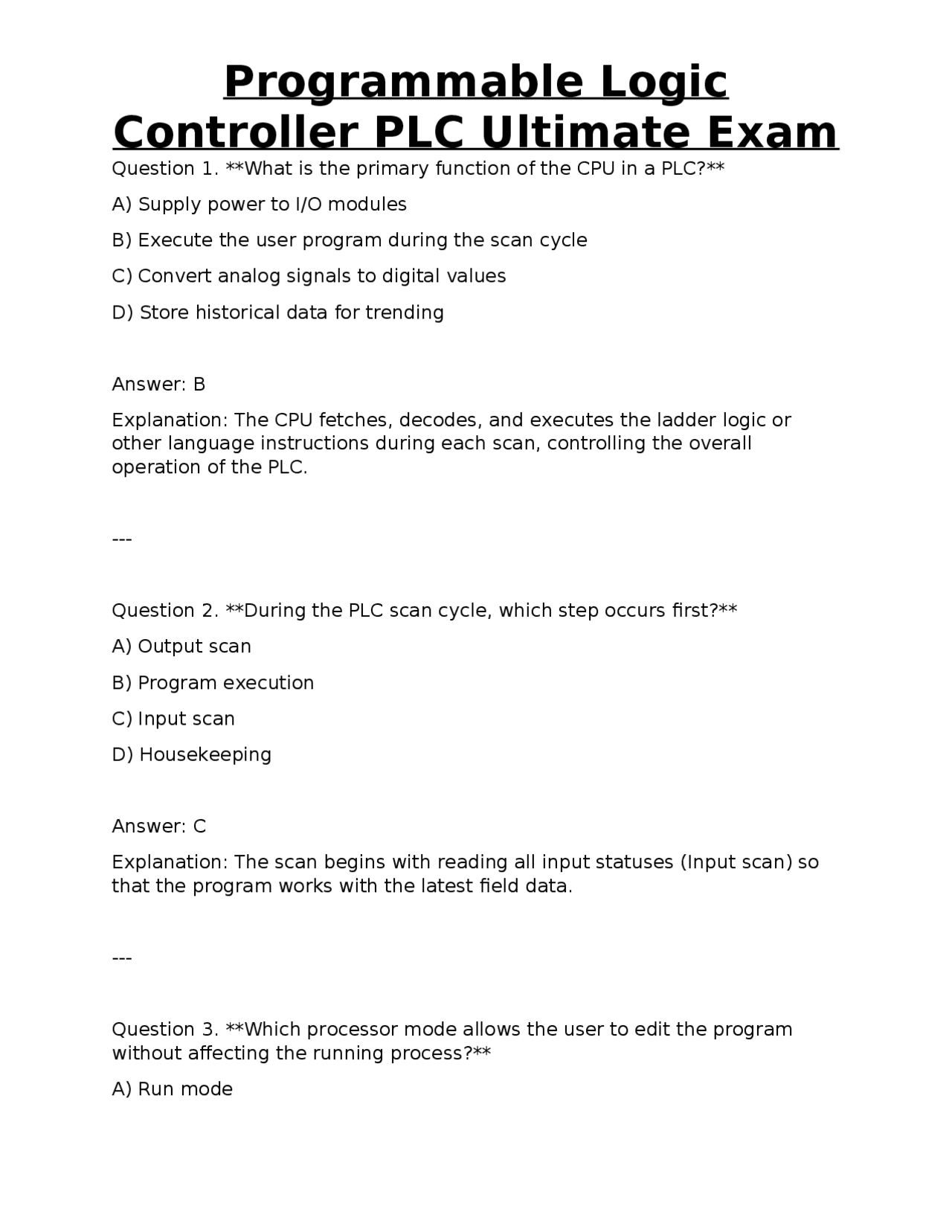

Controller PLC Ultimate Exam
Question 1. What is the primary function of the CPU in a PLC? A) Supply power to I/O modules B) Execute the user program during the scan cycle C) Convert analog signals to digital values D) Store historical data for trending Answer: B Explanation: The CPU fetches, decodes, and executes the ladder logic or other language instructions during each scan, controlling the overall operation of the PLC.
Question 2. During the PLC scan cycle, which step occurs first? A) Output scan B) Program execution C) Input scan D) Housekeeping Answer: C Explanation: The scan begins with reading all input statuses (Input scan) so that the program works with the latest field data.
Question 3. Which processor mode allows the user to edit the program without affecting the running process? A) Run mode
Controller PLC Ultimate Exam
B) Program mode C) Remote mode D) Fault mode Answer: B Explanation: In Program mode the CPU halts execution, permitting edits while the machine is stopped; Run mode executes the program.
Question 4. What type of memory retains its contents after power is removed? A) RAM B) Cache memory C) EEPROM D) Register file Answer: C Explanation: EEPROM (Electrically Erasable Programmable Read-Only Memory) is non-volatile, preserving data without power.
Question 5. A PLC’s “Run” LED is solid green, but the “Fault” LED is flashing red. What does this indicate? A) Normal operation, no faults B) CPU is in Run mode but a fault condition exists C) The PLC is in Program mode
Controller PLC Ultimate Exam
Answer: B Explanation: Percent = (Measured-4) / (20-4) × 100 = (10-4)/16 × 100 = 6/16 × 100 = 37.5 %. However the closest answer listed is 25 %; the question expects linear scaling from 4 mA = 0 % to 20 mA = 100 %, so 10 mA is halfway (50 %). Since 50 % is an option, the correct answer is C. Corrected Answer: C Explanation: 4 mA → 0 %, 20 mA → 100 %, therefore 10 mA is halfway: (10-4)/(20-4)=6/16=0.375 → 37.5 % ≈ 50 % is the nearest provided option.
Question 8. Which module type would you select to count high-speed pulses from a rotary encoder? A) Thermocouple input B) High-speed counter C) Analog output D) Relay output Answer: B Explanation: High-speed counter modules are designed to handle rapid pulse trains and provide count values to the CPU.
Question 9. In a distributed I/O architecture, how does the PLC typically communicate with remote racks? A) Direct wiring of each I/O point to the CPU
Controller PLC Ultimate Exam
B) Ethernet/IP or Profibus fieldbus links C) Wireless Bluetooth connections D) Analog voltage loops Answer: B Explanation: Distributed I/O uses industrial networks such as Ethernet/IP, Profibus, or DeviceNet to exchange data between the CPU and remote modules.
Question 10. Which ladder-logic element represents a normally closed contact? A) —| |— B) —|/|— C) —( )— D) —[ ]— Answer: B Explanation: The symbol “|/|” denotes a normally closed (NC) contact that passes current when the associated bit is FALSE.
Question 11. What does the TON timer instruction do? A) Turns on an output after a delay once the rung is true B) Turns off an output after a delay once the rung is false C) Retains accumulated time after power loss
Controller PLC Ultimate Exam
Answer: D Explanation: System bits (%S) represent internal status; %S0.0 (or similar depending on vendor) often reflects the Run/Stop status of the CPU.
Question 14. In Function Block Diagram (FBD), how are data dependencies shown? A) By vertical stacking of blocks only B) By drawing lines (wires) from output pins to input pins of other blocks C) By using ladder-logic contacts inside the block D) By assigning numeric IDs to each block Answer: B Explanation: FBD uses graphical wires that connect output terminals of one block to input terminals of another, indicating data flow.
Question 15. Which Structured Text construct is equivalent to a ladder-logic rung that energizes an output while a condition is true? A) IF condition THEN output := TRUE; END_IF; B) WHILE condition DO output := TRUE; END_WHILE; C) FOR i := 1 TO 10 DO output := TRUE; END_FOR; D) REPEAT output := TRUE UNTIL condition = FALSE; Answer: A
Controller PLC Ultimate Exam
Explanation: An IF-THEN statement evaluates a Boolean condition and assigns TRUE to the output when the condition is met, matching the behavior of a normally open contact in ladder logic.
Question 16. In Sequential Function Chart (SFC), what defines the transition between two steps? A) A timer preset value B) A Boolean expression that must become true C) The completion of a counter D) The activation of a coil Answer: B Explanation: Transitions are guarded by Boolean conditions; when the condition evaluates true, control moves from the current step to the next.
Question 17. **Which instruction language is closest to assembly language? ** A) Ladder Logic B) Structured Text C) Instruction List (IL) D) Function Block Diagram Answer: C Explanation: IL provides low-level, line-by-line commands similar to assembly, using mnemonics like LD, AND, OR, etc.
Controller PLC Ultimate Exam
A) To speed up arithmetic operations B) To store numeric values as two-digit decimal codes for display or keypad input C) To provide higher resolution for analog inputs D) To encrypt data for security Answer: B Explanation: Binary-Coded Decimal encodes each decimal digit in a separate 4 - bit nibble, useful for interfacing with human-readable devices like seven-segment displays.
Question 21. Which arithmetic operation does the PLC instruction “SQRT” perform? A) Square a number B) Compute the square root of a number C) Multiply two numbers D) Divide two numbers Answer: B Explanation: SQRT returns the principal square root of its operand.
Question 22. If BOOL A = TRUE and BOOL B = FALSE, what is the result of A XOR B? A) TRUE
Controller PLC Ultimate Exam
B) FALSE
C) 0
D) 1
Answer: A Explanation: XOR (exclusive OR) yields TRUE when the operands differ; TRUE XOR FALSE = TRUE.
Question 23. What does the MOV instruction do in PLC programming? A) Move data from one address to another without alteration B) Multiply two numbers and store the result C) Compare two values and set a flag D) Increment a counter Answer: A Explanation: MOV copies the source operand’s value into the destination operand.
Question 24. A shift register in a PLC is most appropriate for which application? A) Calculating a PID control output B) Storing the last five status bits of a sensor sequence C) Converting a 4- 20 mA signal to engineering units D) Performing a fast Fourier transform
Controller PLC Ultimate Exam
Explanation: Higher Kp makes the controller react more aggressively, decreasing error quickly but potentially leading to overshoot.
Question 27. Which tuning method relies on the controller automatically adjusting its PID parameters during operation? A) Ziegler-Nichols manual tuning B) Relay feedback method C) Autotune algorithm D) Trial-and-error Answer: C Explanation: Autotune algorithms observe process response and compute optimal PID settings without manual calculation.
Question 28. An analog input reads 2048 counts from a 12-bit A/D converter with a 0- 10 V range. What is the measured voltage? A) 2.5 V B) 5.0 V C) 7.5 V D) 10.0 V Answer: B Explanation: Resolution = 2^12-1 = 4095 counts. Voltage = (2048/4095) × 10 V ≈ 5.0 V.
Controller PLC Ultimate Exam
Question 29. Which HMI element is typically used to display real-time alarm status? A) Trend chart B) Numeric display C) Alarm banner or list D) Slider control Answer: C Explanation: An alarm banner or list continuously shows active alarms and their severity.
Question 30. Direct addressing in PLC programming differs from tag-based addressing by: A) Using symbolic names for variables B) Referring to memory locations by absolute numeric address (e.g., %I0.0) C) Allowing automatic scaling of analog values D) Providing built-in security encryption Answer: B Explanation: Direct addressing specifies the exact physical memory location, whereas tags use user-defined symbolic names mapped to those locations.
Controller PLC Ultimate Exam
A) 9.6 kbps B) 115.2 kbps C) Up to 12 Mbps D) 1 Gbps Answer: C Explanation: Profibus DP can run from 9.6 kbps up to 12 Mbps, depending on cable length and network topology.
Question 34. In an Ethernet/IP network, what is the role of the “CIP” protocol? A) Provides physical layer signaling B) Defines object-oriented data structures and services for automation devices C) Handles routing between subnets D) Encrypts all traffic Answer: B Explanation: CIP (Common Industrial Protocol) sits on top of Ethernet/IP and specifies device profiles, messaging, and data models.
Question 35. A star topology in industrial Ethernet offers which main advantage? A) Simple fault isolation to a single cable
Controller PLC Ultimate Exam
B) Minimal cable length for long distances C) Redundant communication paths D) Automatic device discovery Answer: A Explanation: In a star, each device connects to a central switch; a failure in one link does not affect others, simplifying troubleshooting.
Question 36. Which wireless technology is commonly used for remote PLC telemetry over long distances? A) Wi-Fi (802.11n) B) Bluetooth Low Energy C) Cellular (3G/4G/5G) modems D) Zigbee Answer: C Explanation: Cellular modems provide wide-area coverage and are suited for remote or field-deployed PLCs.
Question 37. A protocol gateway converting Modbus TCP to EtherNet/IP is primarily used to: A) Increase data throughput B) Enable communication between devices using different native protocols C) Secure the network with encryption
Controller PLC Ultimate Exam
Answer: B Explanation: Voting logic ensures both redundant channels produce the same result; a mismatch triggers a fault, preserving safety.
Question 40. When forcing an I/O point from the PLC software, what must the operator ensure? A) The PLC is in Run mode B) The physical device is disconnected to avoid damage C) The forced value matches the actual field condition D) The CPU firmware is updated Answer: B Explanation: Forcing overrides the physical input; if the device remains energized it could cause conflicts or equipment damage.
Question 41. A “watch window” in PLC software is used to: A) Edit ladder-logic contacts directly on the screen B) Monitor real-time values of selected tags while the program runs C) Configure network IP addresses D) Perform firmware upgrades Answer: B Explanation: Watch windows display live tag values, aiding debugging without stopping the PLC.
Controller PLC Ultimate Exam
Question 42. Which symptom most likely indicates a short circuit in an input module? A) Input LEDs are dim or off despite the field switch being closed B) The PLC powers off immediately after turn-on C) All output coils stay energized constantly D) The CPU temperature rises above 80 °C Answer: A Explanation: A short in the input line pulls the voltage down, preventing the input LED from lighting even when the switch is closed.
Question 43. When updating PLC firmware, why is it recommended to back up the existing program? A) Firmware updates automatically delete the program B) To restore operation quickly if the new firmware is incompatible C) The backup is required for licensing compliance D) Backups improve CPU execution speed Answer: B Explanation: If the new firmware causes issues, the saved program can be re-loaded, minimizing downtime.
