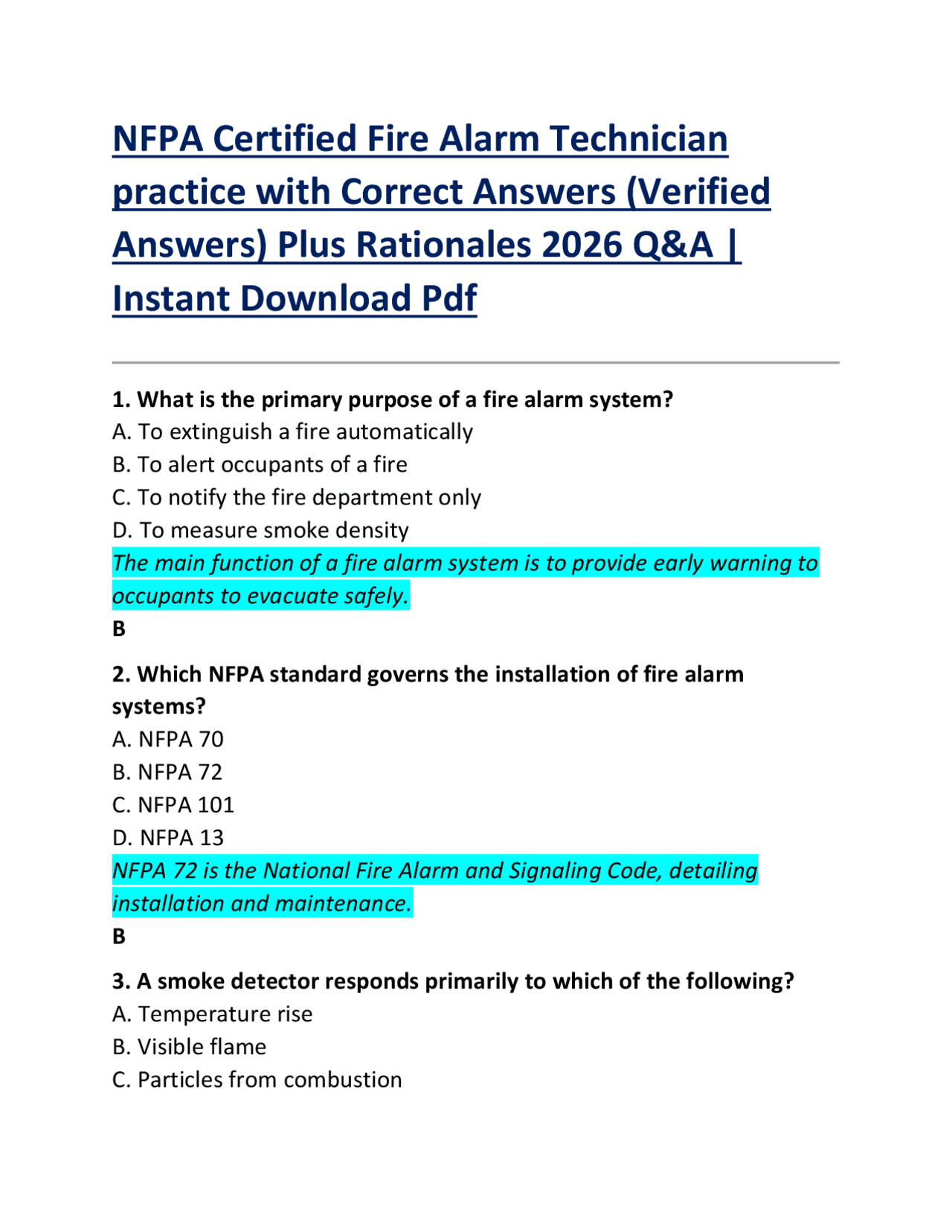

NFPA Certified Fire Alarm Technician
practice with Correct Answers (Verified
Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. What is the primary purpose of a fire alarm system? A. To extinguish a fire automatically B. To alert occupants of a fire C. To notify the fire department only D. To measure smoke density The main function of a fire alarm system is to provide early warning to occupants to evacuate safely. **B
- Which NFPA standard governs the installation of fire alarm systems?** A. NFPA 70 B. NFPA 72 C. NFPA 101 D. NFPA 13 NFPA 72 is the National Fire Alarm and Signaling Code, detailing installation and maintenance. **B
- A smoke detector responds primarily to which of the following?** A. Temperature rise B. Visible flame C. Particles from combustion
D. Carbon monoxide Smoke detectors are designed to sense smoke particles in the air. C
4. What type of fire detector is most suitable for kitchens where smoke and steam are present? A. Ionization smoke detector B. Photoelectric smoke detector C. Heat detector D. Flame detector Photoelectric detectors are less prone to false alarms from cooking smoke. **B
- Which component converts a detected fire signal into a notification?** A. Control panel B. Initiating device C. Notification appliance D. Annunciator Notification appliances like horns or strobes alert occupants when a fire is detected. **C
- What is the minimum power supply requirement for a fire alarm system?** A. 24 hours standby only B. 24 hours standby plus 5 minutes alarm C. 24 hours standby plus 24 hours alarm D. 48 hours standby plus 10 minutes alarm NFPA 72 requires 24 hours of standby power and at least 5 minutes of
B. Quarterly C. Annually D. Every 5 years NFPA 72 requires testing at intervals depending on the component; initiating devices monthly or quarterly, and a full system annually. C
11. What is the main hazard of an ionization smoke detector? A. Slow to respond to fast-flaming fires B. Short circuit risk C. Cannot detect smoke D. Excessive power consumption Ionization detectors respond faster to flaming fires but may give false alarms in kitchens. **A
- Which type of heat detector responds to a rapid rise in temperature?** A. Fixed temperature B. Rate-of-rise C. Combination D. Spot type Rate-of-rise detectors activate when temperature increases rapidly, regardless of absolute temperature. **B
- Which of the following is required for a public mode fire alarm system?** A. Manual pull stations only B. Notification appliances in all areas C. Fire extinguishers D. Sprinklers in every room
Public mode systems require audible and visual notifications throughout the building. B
14. What is a supervisory signal in fire alarm systems? A. Indicates a fire B. Indicates a system trouble condition C. Indicates a sprinkler valve position abnormality D. Indicates battery low only Supervisory signals are used to alert personnel to conditions that affect fire protection equipment, not fires directly. **C
- A fire alarm system control panel indicates a “trouble” condition. What should be checked first?** A. Smoke detectors B. Power supply and wiring C. Notification appliances D. Sprinklers Trouble signals usually indicate wiring, device, or power supply issues. **B
- What is the purpose of a fire alarm annunciator?** A. Detect fire B. Display system status and location of activated devices C. Sound alarms D. Control sprinklers An annunciator shows the location of activated devices and system conditions for monitoring personnel. **B
- What type of wiring is recommended for fire alarm systems?** A. Standard copper
devices. A
21. How is a Class A circuit different from a Class B circuit in fire alarm systems? A. Class A has a single path; Class B is looped B. Class A returns to panel for fault tolerance; Class B does not C. Class A is unsupervised; Class B is supervised D. Class A uses battery only; Class B uses AC only Class A circuits provide redundancy; if a break occurs, the system can still function. **B
- Which of the following is a main advantage of a voice evacuation system?** A. Lower cost B. Provides clear instructions during emergencies C. Uses fewer circuits D. Eliminates the need for smoke detectors Voice systems can direct occupants safely, especially in complex buildings. **B
- What is the minimum sound level for audible alarms in a sleeping area?** A. 40 dB B. 60 dB C. 75 dB D. 85 dB NFPA 72 specifies 75 dB minimum for sleeping areas to ensure occupants wake. C
24. A fire alarm system uses a 24 VDC power supply. What is the typical battery backup voltage? A. 12 V B. 24 V C. 48 V D. 120 V Battery backup typically matches the system voltage to maintain operation during power loss. **B
- Which type of detector is ideal for detecting smoldering fires?** A. Heat detector B. Photoelectric smoke detector C. Ionization smoke detector D. Flame detector Photoelectric detectors respond faster to smoldering fires that produce more visible smoke. **B
- What is the minimum separation required between a smoke detector and a supply air vent?** A. 3 feet B. 10 feet C. 15 feet D. 20 feet Smoke detectors should be installed at least 10 feet from air supply vents to prevent false alarms. **B
- Which device is intended to activate sprinklers?** A. Smoke detector B. Heat detector
normal state, such as a closed valve. B
31. What is the function of a combination smoke/heat detector? A. Detects fire and automatically notifies the fire department B. Detects smoke and heat to improve detection reliability C. Detects only smoke D. Detects only heat Combination detectors improve detection reliability in areas where one type alone may be insufficient. **B
- How often must batteries in a fire alarm system be inspected?** A. Weekly B. Monthly C. Quarterly D. Annually Batteries must be inspected monthly to ensure reliable backup power. **B
- Which type of fire alarm system is required in high-rise buildings?** A. Single-station smoke alarms B. Public mode system with voice evacuation C. Standalone horns only D. None High-rise buildings typically require public mode systems to manage evacuations safely. **B
- Which type of detector is most susceptible to false alarms from cooking smoke?** A. Photoelectric smoke detector B. Heat detector
C. Ionization smoke detector D. Flame detector Ionization detectors are very sensitive to small particles and can trigger false alarms in kitchens. C
35. What is the maximum spacing between ceiling-mounted smoke detectors in a typical open area? A. 10 feet B. 30 feet C. 50 feet D. 75 feet NFPA 72 specifies maximum spacing of 30 feet for most ceiling-mounted smoke detectors. **B
- Which type of fire alarm system requires a supervising station?** A. Local alarm only B. Proprietary or central station C. Standalone horns D. None Supervising station systems transmit signals to offsite monitoring centers. **B
- Which of the following is a supervisory signal device?** A. Smoke detector B. Water-flow switch C. Horn/strobe D. Pull station Supervisory devices monitor the condition of fire protection equipment
B. Dust accumulation, cooking smoke, or steam C. Functioning sprinklers D. Regular inspection Environmental factors like dust or steam are frequent sources of false alarms. B
42. In a conventional system, how many zones are typically recommended for large buildings? A. 1–2 zones B. 5–10 zones C. Multiple zones based on floor or area size D. No zoning required Zoning allows pinpointing of alarm locations in larger buildings. **C
- Which NFPA standard addresses emergency communication systems in buildings?** A. NFPA 13 B. NFPA 70 C. NFPA 72 D. NFPA 101 NFPA 72 covers fire alarm, signaling, and emergency communication systems. **C
- What is a flow switch connected to a sprinkler system intended to detect?** A. Water leaks B. Water movement caused by sprinkler activation C. Low battery D. Smoke
Flow switches detect water flow indicating sprinkler discharge. B
45. What type of detector is ideal for detecting fast-flaming fires? A. Heat detector B. Ionization smoke detector C. Photoelectric smoke detector D. Flame detector Ionization smoke detectors respond more quickly to flaming fires producing small particles. **B
- What is the purpose of a fire alarm control panel’s trouble relay?** A. Activate sprinklers B. Notify of system faults C. Trigger alarm appliances D. Detect smoke The trouble relay indicates problems with wiring, power, or devices that need attention. **B
- Which device is not an initiating device?** A. Manual pull station B. Smoke detector C. Horn/strobe D. Heat detector Horn/strobes are notification appliances, not initiating devices. **C
- What is the primary advantage of a supervised NAC?** A. Reduces wiring costs B. Detects faults in notification circuits C. Eliminates need for batteries
52. Which of the following is a common characteristic of a duct smoke detector? A. Installed on the floor B. Installed inside HVAC ducts to detect smoke in air streams C. Measures temperature only D. Connects only to sprinklers Duct smoke detectors monitor air in ventilation systems to prevent smoke spread. **B
- What is the recommended minimum mounting height for a wall- mounted notification appliance?** A. 24 inches above floor B. 48 inches above floor C. 80 inches above floor D. 6 inches above floor NFPA 72 requires strobes or horns to be mounted at heights ensuring visibility and audibility. **B
- Which type of fire alarm system can communicate directly with a central monitoring station?** A. Local system B. Proprietary system C. Central station system D. Manual pull station only Central station systems transmit alarms to offsite monitoring centers for rapid response. **C
- What is a common cause of trouble signals in fire alarm systems?** A. Alarm activation
B. Wiring faults, battery issues, or device failures C. Sprinkler flow D. Smoke detection Trouble signals indicate issues that may impair system performance. B
56. What does “Class B” wiring mean in fire alarm systems? A. Circuit returns to panel B. Circuit has one path with end-of-line supervision C. Circuit is unsupervised D. Circuit is used only for NACs Class B circuits monitor for open or short circuits but do not loop back to the panel. **B
- Which of the following is a requirement for pull stations?** A. Must be at least 8 feet from the floor B. Must be clearly visible and within 5 feet of doorways C. Must be installed in HVAC ducts D. Must only be used with sprinklers Pull stations must be accessible and located for quick manual activation. **B
- Which type of fire detector uses light scattering to sense smoke?** A. Ionization B. Photoelectric C. Heat D. Flame Photoelectric detectors use a light source and sensor to detect smoke particles in the air. B
A. Sound the alarm B. Monitor circuit integrity C. Activate sprinklers D. Charge batteries End-of-line resistors allow the control panel to detect open or short circuits in the wiring. B
63. Which device is specifically designed to detect flames in large open areas? A. Heat detector B. Flame detector C. Smoke detector D. Pull station Flame detectors sense radiation emitted by flames to provide rapid alarm in critical areas. **B
- What type of fire alarm system uses a two-wire circuit for both signaling and power?** A. Conventional system B. Addressable system C. Single-wire local system D. Intelligent two-wire system Two-wire systems can carry signaling and appliance power simultaneously, commonly in smaller installations. **D
- Which of the following devices is required to be tested annually according to NFPA 72?** A. Smoke detector batteries only B. Fire alarm system as a whole
C. Only manual pull stations D. Only NAC circuits Full system testing ensures that all components function as intended. B
66. What is the purpose of a supervisory signal from a fire pump controller? A. Indicates a fire B. Indicates abnormal equipment status C. Triggers evacuation D. Alerts the fire department Supervisory signals alert personnel of abnormal fire protection equipment conditions. **B
- Which is the main difference between ionization and photoelectric smoke detectors?** A. Ionization responds faster to flaming fires; photoelectric to smoldering fires B. Ionization detects heat only; photoelectric detects smoke C. Both detect the same type of fire equally D. Photoelectric detects heat; ionization detects smoke Ionization is more sensitive to fast flames, while photoelectric detects smoldering fires. **A
- What is the maximum spacing for ceiling-mounted smoke detectors in ordinary hazard areas?** A. 15 feet B. 30 feet C. 50 feet D. 75 feet
