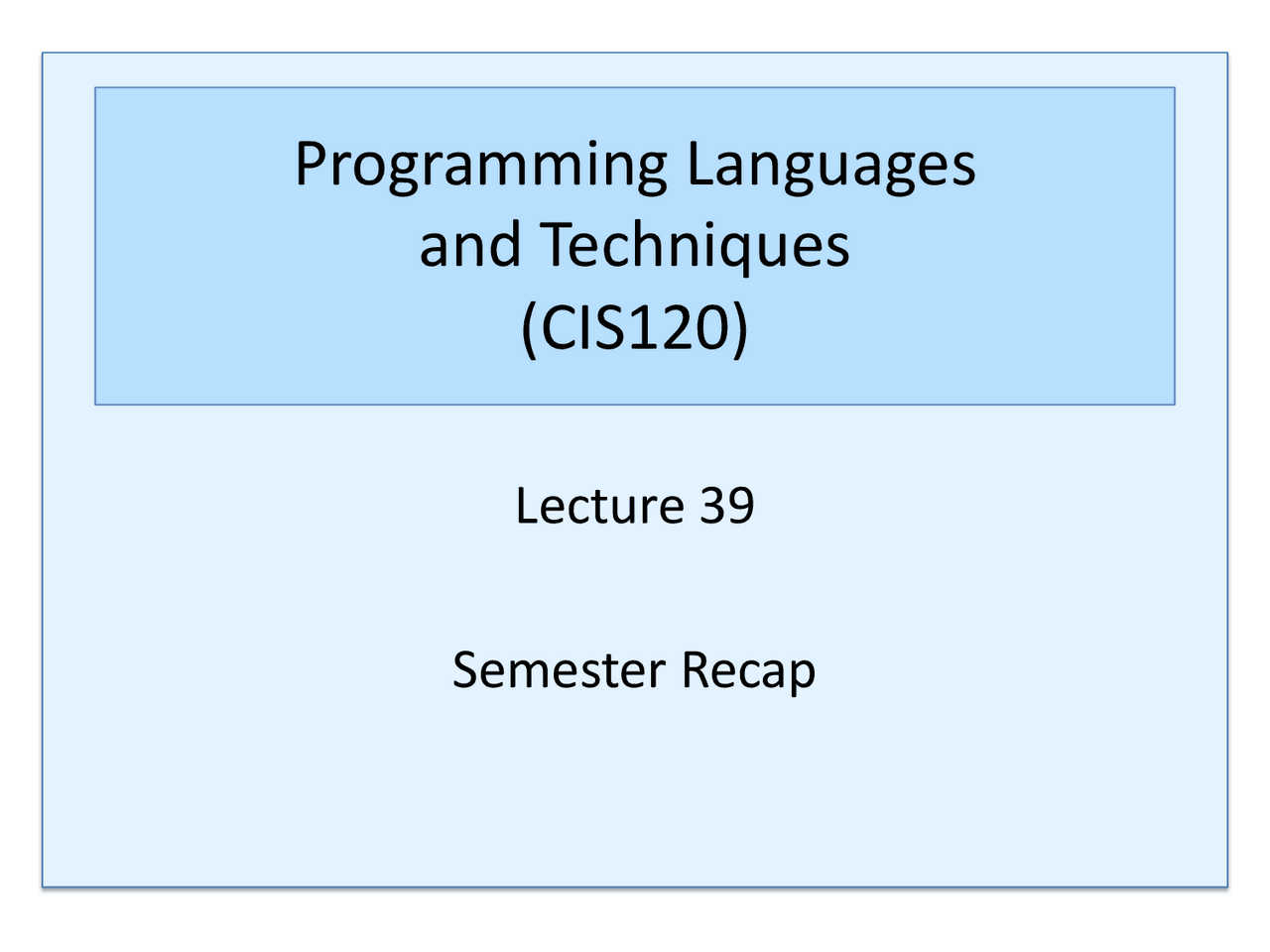

Programming Languages

and Techniques

(CIS120)

Lecture 39

Semester Recap

Announcements

• HW9: Game – Due tonight at 11:59pm

Final Exam:

• Tuesday, December 17 th 6:00-8:00 PM
• 4 Locations:
  • Meyerson B1 Last Names A - L
  • Towne 100 Last Names M - Sh
  • Skirkanich Auditorium Last Names Si – W
  • Moore 216 Last Names X - Z
• Makeup exam offered Weds. December 18 th
• required by registrar for exam conflicts
• time: noon – 2:00PM
• sign up form on course web page

CIS 120 Recap

From Day 1

• CIS 120 is a course in program design
• Practical skills:
  • ability to write larger (~1000 lines) programs
  • increased independence ("working without a recipe")
  • test-driven development, principled debugging
• Conceptual foundations:
  • common data structures and algorithms
  • several different programming idioms
  • focus on modularity and compositionality
  • derived from first principles throughout
• It will be fun!

Promise: A challenging

but rewarding course.

CIS 120 Concepts

13 concepts in 38 lectures

Interface vs. Implementation

• Concept: Type abstraction hides the actual implementation of a data structure, describes a data structure by its interface (what it does vs. how it is represented), supports reasoning with invariants
• Examples: Set/Map interface (HW3), queues in OCaml and Java, encapsulation and access control
• Why?
  • Flexibility: Can change the implementation without modifying clients
  • Correctness: Can preserve invariants about the implementation Invariants are a crucial tool for reasoning about data structures: 1. Establish the invariants when you create the structure. 2. Preserve the invariants when you modify the structure. 1 3 0 abstract view 1 0 3 < > concrete representation BST:

Testing

• Concept: Write tests before coding
  • "test first" methodology
• Examples:
  • Simple assertions for declarative programs (or subprograms)
  • Longer (and more) tests for stateful programs / subprograms
  • Informal tests for GUIs (can be automated through tools)
• Why?
  • Tests clarify the specification of the problem
  • Helps you understand the invariants
  • Thinking about tests informs the implementation
  • Tests help with extending and refactoring code later
  • Industry practice; useful for coordinating teams

Persistent data structures

• Concept: Store data in persistent, immutable structures; implement computation as transformations of those structures
• Examples: immutable lists and trees in OCaml (HW 1/2/3), images, Strings, Streams in Java (HW 7/9)
• Why?
  • Simple model of computation, similar to mathematics
  • Simple interface: Don't have to reason about aliasing (no implicit communication between various parts of the program, all interfaces are explicit)
  • Recursion amenable to mathematical analysis (CIS 160/121)
  • Plays well with parallelism Recursion is the natural way of computing a function f(t) when t belongs to an inductive data type:
    1. Determine the value of f for the base case(s).
    2. Compute f for larger cases by combining the results of recursively calling f on smaller cases.
    3. Same idea as mathematical induction (a la CIS 160)

Concept: Tree Structured data

• Lists (i.e. “unary” trees)
• Simple binary trees
• Trees with invariants: e.g. binary search trees
• Widget trees: screen layout + event routing
• Swing components
• Why? Trees are ubiquitous in CS! - file system organization - languages, compilers - domain name hierarchy www.google.com let rec length (l:int list) : int = begin match l with | [] - > 0 | _::tl - > 1 + length(tl) end

Types, Generics, and Subtyping

• Concept: Static type systems prevent many errors. Every expression has a static type, and OCaml/Java use the types to rule out buggy programs. Generics and subtyping make types more flexible and allow for better code reuse.
• Why?
  • Easier to fix problems indicated by a type error than to write a test case and then figure out why the test case fails
  • Promotes refactoring: type checking ensures that basic invariants about the program are maintained let rec contains (x:’a) (l:’a list) : bool = begin match l with | [] - > false | h::tl - > x = a || (contains x tl) end

Mutable data

• Concept: Some data structures are ephemeral : computations mutate them over time
• Examples: queues, deques (HW4), GUI state (HW5, 9), arrays (HW 6), dictionaries (HW8)
• Why?
  • Common in OO programming, which simulates the transformations that objects undergo when interacting with their environment
  • Heavily used for event-based programming, where different parts of the application communicate via shared state
  • Default style for Java libraries (collections, etc.)

Lists, Trees, BSTs, Queues, and Arrays

• Concept: There are implementation trade-offs for abstract types
• Examples:
  • Binary Search Trees vs. Lists vs. Hashing for sets and maps
  • Linked lists vs. Arrays for sequential data
• Why?
  • Abstract types have multiple implementations
  • Different implementations have different trade-offs. Need to understand these trade-offs to use them well.
  • For example: BSTs use their invariants to speed up lookup operations compared to linked lists. interface Set {boolean isEmpty(); …}

Abstract Stack Machine

• Concept: The Abstract Stack Machine is a detailed model of how programs execute in OCaml/Java
