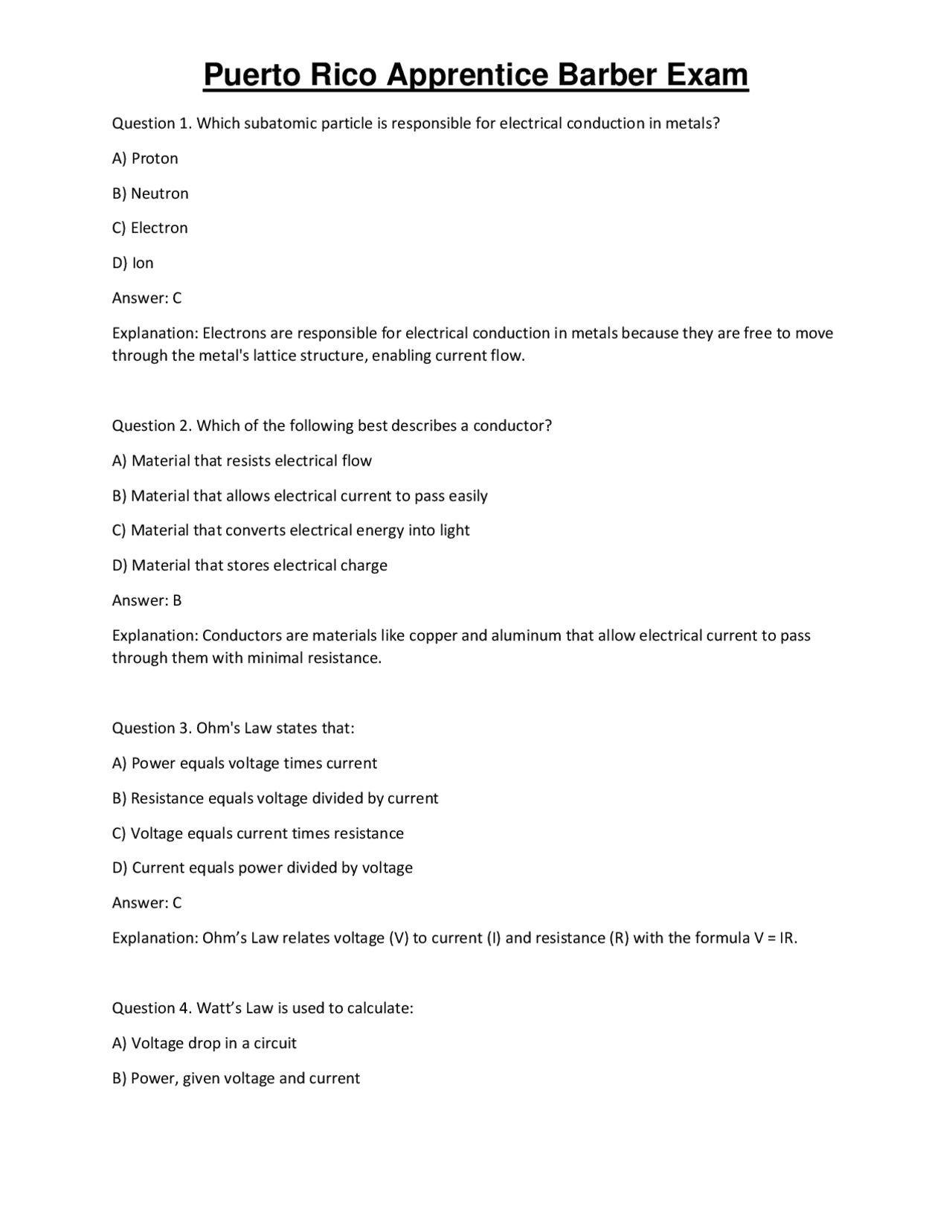

Question 1. Which subatomic particle is responsible for electrical conduction in metals? A) Proton B) Neutron C) Electron D) Ion Answer: C Explanation: Electrons are responsible for electrical conduction in metals because they are free to move through the metal's lattice structure, enabling current flow. Question 2. Which of the following best describes a conductor? A) Material that resists electrical flow B) Material that allows electrical current to pass easily C) Material that converts electrical energy into light D) Material that stores electrical charge Answer: B Explanation: Conductors are materials like copper and aluminum that allow electrical current to pass through them with minimal resistance. Question 3. Ohm's Law states that: A) Power equals voltage times current B) Resistance equals voltage divided by current C) Voltage equals current times resistance D) Current equals power divided by voltage Answer: C Explanation: Ohm’s Law relates voltage (V) to current (I) and resistance (R) with the formula V = IR. Question 4. Watt’s Law is used to calculate: A) Voltage drop in a circuit B) Power, given voltage and current
C) Resistance based on voltage and current D) The frequency of AC power Answer: B Explanation: Watt’s Law states that power (W) equals voltage (V) times current (I), used to determine electrical power consumption or generation. Question 5. Which of the following describes Alternating Current (AC)? A) Current flows in only one direction B) Current periodically reverses direction C) Current is constant and unidirectional D) Current is only used in batteries Answer: B Explanation: AC periodically reverses direction, which is typical of household power supply, unlike DC which flows in one direction. Question 6. The frequency of standard household AC power in Puerto Rico is: A) 50 Hz B) 60 Hz C) 75 Hz D) 100 Hz Answer: B Explanation: In Puerto Rico, as in most of the US, the standard residential AC frequency is 60 Hz. Question 7. Which circuit configuration has the same voltage across each component? A) Series circuit B) Parallel circuit C) Combination circuit D) None of the above Answer: B
A) Volt B) Ampere C) Ohm D) Watt Answer: C Explanation: Resistance is measured in ohms (Ω). Question 12. Which device is used to measure current in a circuit? A) Multimeter in voltage mode B) Multimeter in current mode C) Clamp meter in resistance mode D) Insulation tester Answer: B Explanation: A multimeter set to current mode (amperes) measures current flow through a circuit. Question 13. Which article of the NEC covers general requirements for wiring methods and materials? A) Article 90 B) Article 200 C) Article 300 D) Article 400 Answer: C Explanation: Article 300 addresses general wiring methods, materials, and installation requirements. Question 14. In the Puerto Rico Electrical Code, which is true about local amendments? A) They replace the NEC entirely B) They are additional requirements specific to Puerto Rico C) They only apply to industrial facilities D) They are optional guidelines Answer: B
Explanation: Local amendments in Puerto Rico supplement the NEC with additional or modified requirements for local conditions. Question 15. The purpose of a grounding conductor is to: A) Carry current during normal operation B) Provide a safe path for fault current C) Connect appliances to the power source D) Isolate electrical circuits from each other Answer: B Explanation: Grounding conductors provide a low-resistance path to ground for fault currents, enhancing safety. Question 16. Which conduit type is most suitable for outdoor use and provides the highest environmental protection? A) EMT B) PVC C) RMC D) IMC Answer: C Explanation: Rigid Metal Conduit (RMC) offers high durability and weather resistance, ideal for outdoor applications. Question 17. Which type of cable is nonmetallic-sheathed and commonly used for residential wiring? A) Armored cable (AC) B) Nonmetallic sheath cable (NM) C) Metal-clad cable (MC) D) Service-entrance cable (SE) Answer: B Explanation: NM cable, often called Romex, is widely used in residential wiring because of its ease of installation.
B) Fluorescent C) LED D) Halogen Answer: C Explanation: LED fixtures consume less energy and have longer lifespans compared to incandescent and fluorescent lights. Question 22. The main purpose of a disconnecting means on a motor is to: A) Provide overcurrent protection B) Allow safe maintenance and emergency shutdown C) Improve motor efficiency D) Reduce voltage to the motor Answer: B Explanation: Disconnecting means enable safe servicing by isolating the motor from power. Question 23. A step-down transformer is used to: A) Increase voltage B) Decrease voltage C) Convert AC to DC D) Increase current Answer: B Explanation: Step-down transformers reduce voltage levels from higher to lower voltage suitable for specific applications. Question 24. In a panelboard, what does proper labeling ensure? A) Aesthetic appearance B) Ease of identification and safety during maintenance C) Increased capacity D) Reduced cost of installation
Answer: B Explanation: Proper labeling helps technicians quickly identify circuits, enhancing safety and efficiency. Question 25. Which class of hazardous location is characterized by the presence of flammable gases or vapors? A) Class I B) Class II C) Class III D) Class IV Answer: A Explanation: Class I locations involve flammable gases or vapors that can ignite under certain conditions. Question 26. In Puerto Rico, which type of electrical system is typical for healthcare facilities? A) Emergency systems only B) Essential electrical systems with backup power C) Standard residential wiring D) Low-voltage systems only Answer: B Explanation: Healthcare facilities require essential electrical systems with backup power to ensure critical equipment remains operational. Question 27. GFCI protection is required for receptacles within: A) 6 feet of a sink B) 10 feet of a door C) 20 feet of a window D) Any outdoor location only Answer: A Explanation: GFCIs are mandated for receptacles within 6 feet of sinks to prevent electrical shock hazards.
C) Overcurrent protection calculation D) Branch circuit load calculation Answer: D Explanation: Branch circuit load calculations help size conductors to safely handle the expected current. Question 32. To prevent overheating in conductors, what factor must be considered? A) Conductor ampacity rating B) Length of conductor only C) Color of insulation D) Ambient temperature only Answer: A Explanation: Conductors should be rated for the expected current (ampacity) to prevent overheating. Question 33. Which type of cable is armored and provides additional physical protection? A) NM cable B) MC cable C) UF cable D) Service-entrance cable Answer: B Explanation: Metal-clad (MC) cable is armored for enhanced protection against physical damage. Question 34. When bending conduit, what is the recommended minimum bend radius? A) Equal to the conduit diameter B) Twice the conduit diameter C) Three times the conduit diameter D) Four times the conduit diameter Answer: B Explanation: The minimum bend radius is generally twice the conduit diameter to prevent damage and maintain conduit integrity.
Question 35. Which type of switch is used to control a light from three or more locations? A) Single-pole switch B) Three-way switch C) Four-way switch D) Dimmer switch Answer: C Explanation: Four-way switches are used in conjunction with three-way switches to control a fixture from multiple locations. Question 36. A GFCI receptacle is designed to trip when the leakage current exceeds: A) 15 milliamps B) 30 milliamps C) 50 milliamps D) 100 milliamps Answer: B Explanation: GFCIs trip when leakage current reaches approximately 30 milliamps, providing protection against shock. Question 37. Which lighting control device allows dimming of lights? A) Switch B) Dimmer switch C) Photoeye D) Timer Answer: B Explanation: Dimmer switches adjust the light output, allowing for lighting level control. Question 38. The primary purpose of a motor starter is to: A) Protect the motor from overload
Answer: B Explanation: Transfer switches switch the load between utility power and backup generators during outages. Question 42. Which component is essential in a photovoltaic (PV) system to disconnect the system during maintenance? A) Inverter B) Combiner box C) Disconnecting means D) Grounding rod Answer: C Explanation: Disconnecting means isolate the PV system for safe maintenance or emergency shutdown. Question 43. Which PPE is vital when working on or near energized electrical equipment? A) Leather gloves B) Arc-rated clothing C) Insulated tools D) All of the above Answer: D Explanation: All listed PPE—gloves, arc-rated clothing, and insulated tools—are essential for safety. Question 44. The primary purpose of a fuse in an electrical circuit is to: A) Step down voltage B) Protect against overcurrent C) Convert AC to DC D) Reduce electrical noise Answer: B Explanation: Fuses protect circuits by melting and disconnecting when current exceeds safe levels.
Question 45. Which NEC article covers grounding and bonding requirements? A) Article 210 B) Article 250 C) Article 300 D) Article 400 Answer: B Explanation: Article 250 details grounding and bonding procedures necessary for electrical safety. Question 46. Which is a typical application of a three-phase motor? A) Residential lighting B) Large industrial machinery C) Small household appliances D) Personal electronics Answer: B Explanation: Three-phase motors are commonly used in industrial settings for powering large machinery. Question 47. The main advantage of LED lighting over incandescent is: A) Lower initial cost B) Higher energy efficiency C) Better color rendering D) Simpler installation Answer: B Explanation: LED lighting provides higher energy efficiency and longer lifespan compared to incandescent bulbs. Question 48. Which type of circuit provides multiple paths for current? A) Series circuit B) Parallel circuit
Explanation: Conduit fill calculations primarily depend on the number and size of conductors to prevent overcrowding. Question 52. Which tool is best suited for testing voltage in a circuit? A) Clamp meter B) Multimeter C) Insulation resistance tester D) Power analyzer Answer: B Explanation: A multimeter set to voltage mode accurately measures voltage across circuit points. Question 53. An AFCI (Arc-Fault Circuit Interrupter) is designed to detect: A) Ground faults B) Arc faults that could cause fires C) Overcurrent D) Voltage surges Answer: B Explanation: AFCIs detect dangerous arc faults that could ignite fires, providing enhanced safety. Question 54. The main purpose of a circuit breaker is to: A) Allow current flow B) Protect circuits from overcurrent and short circuits C) Step down voltage D) Provide a ground path Answer: B Explanation: Circuit breakers automatically trip during overloads or shorts to prevent damage and hazards. Question 55. A NEMA rating indicates:
A) The environmental conditions a device can withstand B) The voltage capacity of a device C) The current rating of a breaker D) The frequency of the power supply Answer: A Explanation: NEMA ratings specify environmental protection levels, such as weather resistance and dustproof features. Question 56. Which of the following is a common cause of electrical faults? A) Loose connections B) Proper grounding C) Adequate wiring installation D) Correct conductor sizing Answer: A Explanation: Loose connections can cause arcing, overheating, and faults in electrical systems. Question 57. The main difference between a socket outlet and a switch is: A) Socket outlets supply power; switches control power B) Switches are always on; outlets are always off C) Outlets are only used outdoors D) Switches carry current; outlets do not Answer: A Explanation: Outlets provide a point to connect appliances, while switches control the flow of current to fixtures. Question 58. Which type of lighting fixture uses a ballast to regulate current? A) Incandescent B) Fluorescent C) LED
Question 62. In Puerto Rico, which license category is required for an individual performing electrical work as an apprentice? A) Master electrician B) Journeyman electrician C) Electrician trainee D) Electrical contractor Answer: C Explanation: Apprentice electricians are licensed as trainees or in training categories to gain experience under supervision. Question 63. Which of the following is a component of a typical photovoltaic (PV) system? A) Inverter B) Transformer C) Circuit breaker D) All of the above Answer: D Explanation: PV systems include inverters to convert DC to AC, along with protection and control devices. Question 64. When working at heights, which safety practice is most critical? A) Wearing steel-toed boots B) Using fall protection equipment C) Working during daylight only D) Keeping tools in hand at all times Answer: B Explanation: Fall protection equipment is essential to prevent falls when working at elevated heights. Question 65. Which PPE is appropriate for working on energized electrical equipment? A) Arc-rated clothing
B) Insulated gloves C) Safety glasses D) All of the above Answer: D Explanation: All listed PPE—arc-rated clothing, insulated gloves, and safety glasses—are necessary for safety. Question 66. Which formula is used to calculate the voltage drop in a circuit? A) V = IR B) V = P / I C) V = I × R × L / 1000 D) V = P × R Answer: C Explanation: Voltage drop calculation considers current (I), resistance (R), length (L), and conductor properties to determine voltage loss over distance. Question 67. The main function of a disconnect switch in a PV system is to: A) Provide overcurrent protection B) Isolate the system for maintenance C) Step up voltage D) Convert DC to AC Answer: B Explanation: Disconnect switches isolate PV arrays safely for maintenance or emergency shutdown. Question 68. Which of the following best describes a combination circuit? A) A circuit with only series components B) A circuit with only parallel components C) A circuit combining series and parallel elements D) A circuit with no resistive elements
