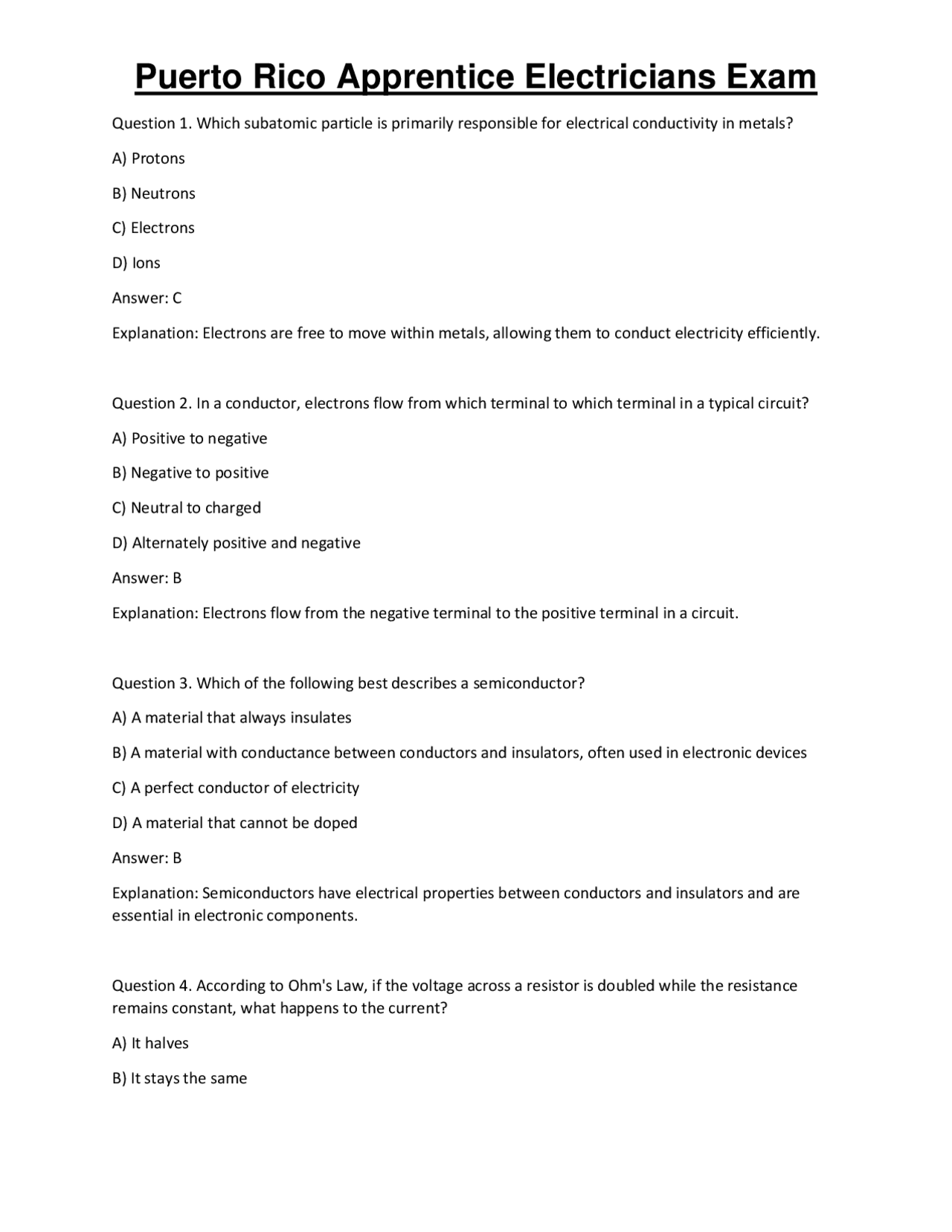

Question 1. Which subatomic particle is primarily responsible for electrical conductivity in metals? A) Protons B) Neutrons C) Electrons D) Ions Answer: C Explanation: Electrons are free to move within metals, allowing them to conduct electricity efficiently. Question 2. In a conductor, electrons flow from which terminal to which terminal in a typical circuit? A) Positive to negative B) Negative to positive C) Neutral to charged D) Alternately positive and negative Answer: B Explanation: Electrons flow from the negative terminal to the positive terminal in a circuit. Question 3. Which of the following best describes a semiconductor? A) A material that always insulates B) A material with conductance between conductors and insulators, often used in electronic devices C) A perfect conductor of electricity D) A material that cannot be doped Answer: B Explanation: Semiconductors have electrical properties between conductors and insulators and are essential in electronic components. Question 4. According to Ohm's Law, if the voltage across a resistor is doubled while the resistance remains constant, what happens to the current? A) It halves B) It stays the same
C) It doubles D) It quadruples Answer: C Explanation: Ohm's Law states I = V/R; therefore, if V doubles and R stays the same, current doubles. Question 5. Watt's Law relates power, voltage, and current. Which of the following formulas correctly represents Watt's Law? A) P = V × I B) P = V / I C) P = I / V D) P = V + I Answer: A Explanation: Power (Watts) equals voltage times current (V × I). Question 6. Which type of current flows continuously in one direction? A) Alternating Current (AC) B) Direct Current (DC) C) Inductive Current D) Reactive Current Answer: B Explanation: DC flows in a single, steady direction, unlike AC which alternates direction. Question 7. The frequency of standard household AC in Puerto Rico is typically: A) 50 Hz B) 60 Hz C) 100 Hz D) 120 Hz Answer: B Explanation: Puerto Rico, like most of the US, uses a frequency of 60 Hz for household AC.
C) Thomas Edison D) James Clerk Maxwell Answer: B Explanation: Faraday discovered electromagnetic induction, which involves generating current by changing magnetic flux. Question 12. A transformer operates on which fundamental principle? A) Electromagnetic induction B) Mechanical motion C) Thermal conduction D) Chemical reaction Answer: A Explanation: Transformers work based on electromagnetic induction to transfer energy between circuits. Question 13. What is the primary purpose of a motor in electrical systems? A) To generate electricity B) To convert electrical energy into mechanical energy C) To store electrical charge D) To regulate voltage levels Answer: B Explanation: Motors convert electrical energy into mechanical motion. Question 14. When measuring electrical parameters, a multimeter can be used to measure all of the following EXCEPT: A) Voltage B) Current C) Resistance D) Magnetic flux Answer: D
Explanation: Multimeters measure voltage, current, and resistance, but not magnetic flux. Question 15. The unit of electrical capacitance is the: A) Henry B) Farad C) Ohm D) Watt Answer: B Explanation: Capacitance is measured in Farads. Question 16. Which type of electrical device is used to protect a circuit from overcurrent? A) Transformer B) Circuit breaker C) Resistor D) Capacitor Answer: B Explanation: Circuit breakers interrupt current flow during overloads or short circuits. Question 17. The National Electrical Code (NEC) is primarily intended to: A) Provide guidelines for plumbing installations B) Ensure safe electrical installations C) Regulate HVAC systems D) Standardize manufacturing processes Answer: B Explanation: The NEC establishes safety standards for electrical wiring and equipment. Question 18. In Puerto Rico, the NEC has been adopted with amendments. This means: A) The NEC is used without any changes B) Local regulations modify certain provisions of the NEC to suit local needs
Question 22. The purpose of conduit in electrical installations is to: A) Protect conductors from physical damage and environmental factors B) Increase electrical resistance C) Reduce voltage D) Serve as a ground connection only Answer: A Explanation: Conduits protect conductors from physical damage and environmental exposure. Question 23. Which conduit type is most suitable for outdoor, wet locations? A) EMT B) PVC C) RMC D) IMC Answer: B Explanation: PVC conduit is corrosion-resistant and suitable for outdoor, wet locations. Question 24. An Underground Feeder (UF) cable is designed for: A) Overhead wiring only B) Direct burial underground without conduit C) Inside conduit only D) Use in hazardous locations exclusively Answer: B Explanation: UF cable is rated for direct burial without conduit. Question 25. When pulling conductors through conduit, one should: A) Use excessive force to speed up the process B) Ensure the conductors are lubricated and pulled gently to avoid damage C) Use only steel conductors
D) Avoid using any tools to assist Answer: B Explanation: Lubrication reduces friction, and gentle pulling prevents conductor damage. Question 26. The purpose of a grounding conductor is to: A) Conduct current during normal operation B) Provide a low-resistance path for fault current to prevent electric shock C) Serve as a phase conductor D) Increase circuit impedance Answer: B Explanation: Grounding conductors safely carry fault current to prevent shock hazards. Question 27. A GFCI receptacle is designed to detect: A) Overcurrent B) Ground faults C) Overvoltage D) Power surges Answer: B Explanation: GFCIs detect ground faults and trip to prevent electrical shock. Question 28. AFCI protection is required primarily to prevent: A) Overload conditions B) Arc fault fires caused by damaged wiring or devices C) Ground faults D) Voltage surges Answer: B Explanation: AFCIs detect arcing conditions that can lead to fires. Question 29. Which type of lighting fixture uses a ballast to regulate current flow?
Explanation: Panelboards distribute electrical power and contain circuit protection devices. Question 33. In hazardous (classified) locations, wiring methods must: A) Be the same as in regular locations B) Use approved explosion-proof or flameproof equipment C) Avoid grounding D) Use only aluminum conductors Answer: B Explanation: Hazardous areas require specialized, approved wiring methods to prevent ignitions. Question 34. In Puerto Rico, the electrical code for healthcare facilities requires: A) No special grounding requirements B) Grounding and bonding to ensure patient safety C) Use of only aluminum wiring D) No special electrical considerations Answer: B Explanation: Proper grounding and bonding are critical to patient safety in healthcare environments. Question 35. For residential dwellings, GFCI protection is required in which locations? A) Bedrooms only B) Kitchens, bathrooms, garages, and outdoor outlets C) Living rooms only D) All areas without exception Answer: B Explanation: GFCIs are mandated in wet or damp areas like kitchens and bathrooms for safety. Question 36. Which of the following is an example of a special occupancy requiring additional electrical considerations? A) Single-family home
B) Hazardous (classified) locations C) Office space D) Retail store Answer: B Explanation: Hazardous locations require special wiring methods and equipment to prevent ignition. Question 37. The purpose of a transfer switch in emergency systems is to: A) Automatically switch power from the utility to generator in case of outage B) Regulate voltage C) Protect against overcurrent D) Reduce noise in electrical signals Answer: A Explanation: Transfer switches safely switch power sources during outages. Question 38. The basic components of a photovoltaic (PV) system include all EXCEPT: A) Solar panels B) Inverter C) Battery storage (optional) D) Thermostat Answer: D Explanation: Thermostats are unrelated to PV systems; PV components include panels, inverters, and batteries. Question 39. Lockout/tagout procedures are important because they: A) Enable quick energization of circuits B) Prevent accidental energization during maintenance C) Improve electrical efficiency D) Increase circuit capacity Answer: B
C) Only repairing after failure D) Avoiding testing equipment calibration Answer: B Explanation: Regular preventive maintenance helps prevent failures and prolongs equipment life. Question 44. Which type of electrical work in Puerto Rico requires a permit and inspection? A) Minor repairs without any modifications B) New installations, upgrades, or modifications to electrical systems C) Replacing light bulbs D) Moving furniture that covers outlets Answer: B Explanation: Permits and inspections are required for new or significant electrical work to ensure safety. Question 45. The difference between a Master Electrician and an Apprentice in Puerto Rico is primarily based on: A) Years of experience and licensing level B) Age C) Educational background only D) Type of work performed Answer: A Explanation: Licensure levels depend on experience, education, and passing required exams. Question 46. The hierarchy of electrical codes typically starts with: A) Local amendments B) The National Electrical Code (NEC) C) Manufacturer specifications D) International standards Answer: B Explanation: The NEC provides the primary framework, with local amendments added as needed.
Question 47. In wiring methods, "box fill" calculations determine: A) The number of conductors and devices that can safely fit in an electrical box B) The maximum voltage in a circuit C) The total length of conductors in a circuit D) The resistance of conductors Answer: A Explanation: Box fill calculations ensure electrical boxes are not overcrowded, maintaining safety and code compliance. Question 48. A conduit bend radius should generally be: A) As tight as possible to save space B) At least 6 times the conduit diameter to prevent damage and facilitate pulling C) Less than the conduit diameter D) Arbitrary, based on preference Answer: B Explanation: Proper bend radius prevents damage to conductors and eases installation. Question 49. Which type of switch allows control of a light from two locations? A) Single-pole switch B) Three-way switch C) Dimmer switch D) Four-way switch Answer: B Explanation: Three-way switches are used to control lighting from two locations. Question 50. A duplex receptacle is designed to: A) Provide a single power outlet B) Offer two outlets in one device for multiple connections
Question 54. The main function of a panelboard is to: A) Distribute electrical power to branch circuits and provide overcurrent protection B) Store excess electrical energy C) Measure total electrical consumption D) Convert AC to DC power Answer: A Explanation: Panelboards distribute power and contain circuit breakers or fuses. Question 55. Which of the following wiring methods is most suitable for outdoor, wet locations? A) EMT B) PVC conduit C) RMC D) Metallic cable (MC) Answer: B Explanation: PVC conduit is resistant to moisture and corrosion, suitable for outdoor wet locations. Question 56. When installing conductors in a conduit, the maximum number of conductors is determined by: A) The conduit’s physical size and fill capacity B) The length of the conduit only C) The color of the conductors D) The number of circuits connected Answer: A Explanation: Conduit fill calculations depend on physical size and maximum fill percentage to prevent overheating. Question 57. Which article of the NEC covers grounding and bonding requirements? A) Article 250
B) Article 300 C) Article 110 D) Article 220 Answer: A Explanation: Article 250 addresses grounding and bonding of electrical systems. Question 58. The primary function of a GFCI is to: A) Detect ground faults and quickly disconnect power B) Protect against overcurrent C) Control lighting levels D) Reduce power surges Answer: A Explanation: GFCIs detect imbalance in current flow to ground and trip to prevent shocks. Question 59. The term "ampacity" refers to: A) The maximum safe current a conductor can carry B) The resistance of a conductor C) The voltage rating of a conductor D) The physical diameter of a wire Answer: A Explanation: Ampacity is the maximum current a conductor can carry safely under specified conditions. Question 60. A NEMA rating indicates: A) The environmental conditions an enclosure can withstand B) The current capacity of a circuit breaker C) The voltage of a power supply D) The type of conductor material used Answer: A Explanation: NEMA ratings specify environmental protection levels of enclosures.
C) Calibration D) Testing only Answer: B Explanation: Inspection and approval ensure equipment complies with safety standards before use. Question 65. The primary purpose of a transformer in an electrical system is to: A) Convert DC to AC B) Change voltage levels efficiently C) Reduce current to zero during faults D) Store electrical energy temporarily Answer: B Explanation: Transformers efficiently step voltage levels up or down as needed. Question 66. The main advantage of using LED lighting fixtures over incandescent is: A) Lower energy consumption and longer lifespan B) Higher heat output C) Greater power draw D) Less durability Answer: A Explanation: LEDs are energy-efficient, have longer lifespans, and produce less heat. Question 67. An AFCI device is most effective at preventing: A) Ground faults B) Arc faults that can cause fires C) Overcurrent conditions D) Voltage surges Answer: B Explanation: AFCIs detect arcing conditions that can lead to electrical fires.
Question 68. Which of the following is a common method to protect wiring in hazardous locations? A) Using non-metallic conduit only B) Using explosion-proof or weatherproof enclosures C) Leaving wiring unprotected for flexibility D) Using only aluminum conductors Answer: B Explanation: Explosion-proof or weatherproof enclosures prevent ignition of flammable materials. Question 69. When installing receptacles in a dwelling, the maximum spacing typically required in living areas is: A) 6 feet B) 12 feet C) 3 feet D) 24 inches Answer: A Explanation: The NEC generally requires outlets no more than 6 feet apart in living spaces. Question 70. The calculation of the load for a branch circuit involves considering: A) Only the largest load connected B) Total connected load, applying demand factors where applicable C) The length of the circuit only D) The number of outlets only Answer: B Explanation: Load calculations consider total connected loads and demand factors to size circuits properly. Question 71. Which of the following is a NEMA-rated enclosure designed for outdoor use? A) NEMA 1 B) NEMA 4X
