RAMSAY MAINTENANCE TEST STUDY GUIDE COMPREHENSIVE STUDY GUIDE 2026 FULL QUESTIONS AND SOLU, Exams of Mechanics of Materials

Princeton UniversityMechanics of Materials

RAMSAY MAINTENANCE TEST STUDY GUIDE COMPREHENSIVE STUDY GUIDE 2026 FULL QUESTIONS AND SOLUTIONS GRADED A+

Typology: Exams

2025/2026

Available from 03/15/2026

WuodKowino
WuodKowino 🇺🇸

3.9

(11)

26K documents

1 / 4

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

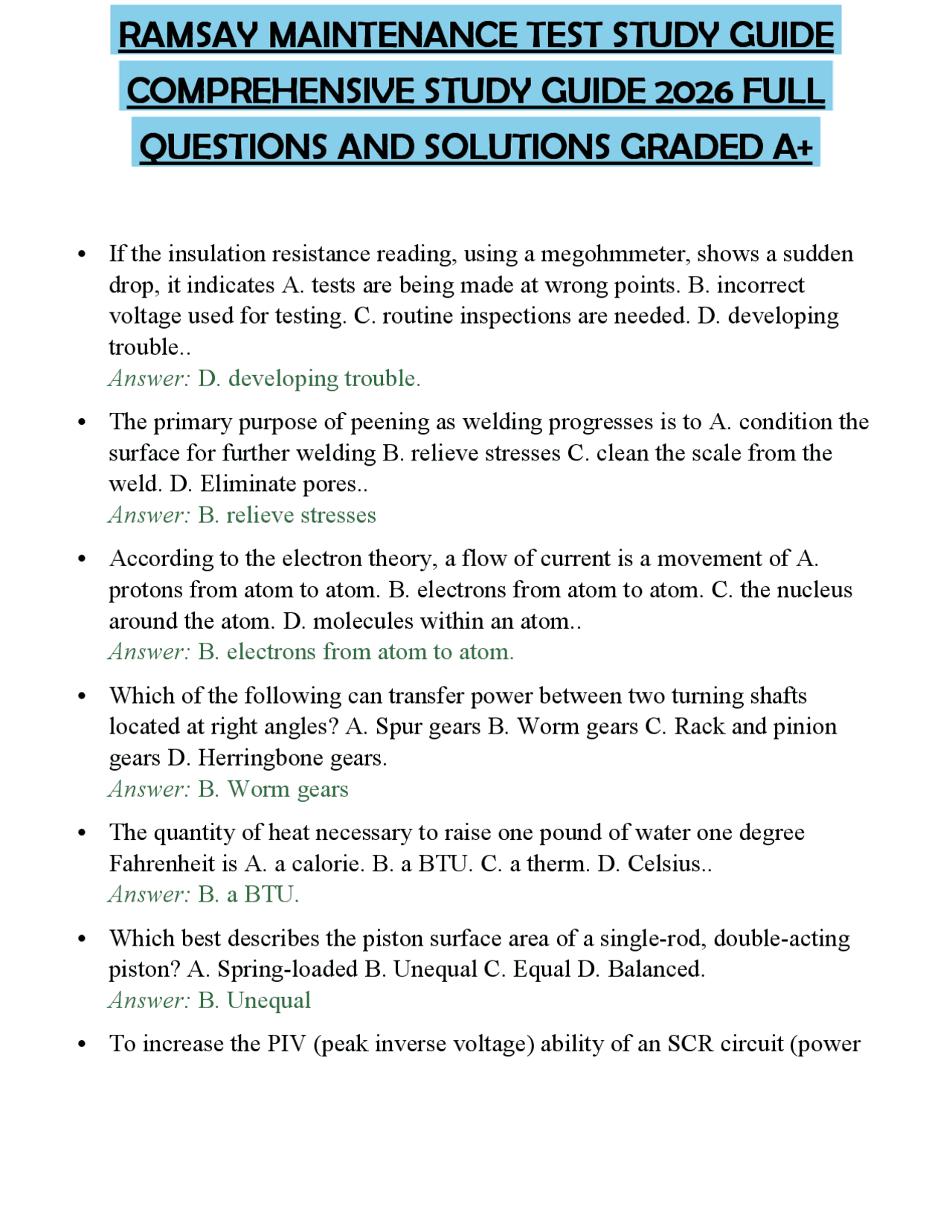

RAMSAY MAINTENANCE TEST STUDY GUIDERAMSAY MAINTENANCE TEST STUDY GUIDE
COMPREHENSIVE STUDY GUIDE 2026 FULLCOMPREHENSIVE STUDY GUIDE 2026 FULL
QUESTIONS AND SOLUTIONS GRADED A+QUESTIONS AND SOLUTIONS GRADED A+
•If the insulation resistance reading, using a megohmmeter, shows a sudden
drop, it indicates A. tests are being made at wrong points. B. incorrect
voltage used for testing. C. routine inspections are needed. D. developing
trouble..
Answer: D. developing trouble.
•The primary purpose of peening as welding progresses is to A. condition the
surface for further welding B. relieve stresses C. clean the scale from the
weld. D. Eliminate pores..
Answer: B. relieve stresses
•According to the electron theory, a flow of current is a movement of A.
protons from atom to atom. B. electrons from atom to atom. C. the nucleus
around the atom. D. molecules within an atom..
Answer: B. electrons from atom to atom.
•Which of the following can transfer power between two turning shafts
located at right angles? A. Spur gears B. Worm gears C. Rack and pinion
gears D. Herringbone gears.
Answer: B. Worm gears
•The quantity of heat necessary to raise one pound of water one degree
Fahrenheit is A. a calorie. B. a BTU. C. a therm. D. Celsius..
Answer: B. a BTU.
•Which best describes the piston surface area of a single-rod, double-acting
piston? A. Spring-loaded B. Unequal C. Equal D. Balanced.
Answer: B. Unequal
•To increase the PIV (peak inverse voltage) ability of an SCR circuit (power
pf3
pf4

Partial preview of the text

Download RAMSAY MAINTENANCE TEST STUDY GUIDE COMPREHENSIVE STUDY GUIDE 2026 FULL QUESTIONS AND SOLU and more Exams Mechanics of Materials in PDF only on Docsity!

RAMSAY MAINTENANCE TEST STUDY GUIDERAMSAY MAINTENANCE TEST STUDY GUIDE

COMPREHENSIVE STUDY GUIDE 2026 FULLCOMPREHENSIVE STUDY GUIDE 2026 FULL

QUESTIONS AND SOLUTIONS GRADED A+QUESTIONS AND SOLUTIONS GRADED A+

- If the insulation resistance reading, using a megohmmeter, shows a sudden drop, it indicates A. tests are being made at wrong points. B. incorrect voltage used for testing. C. routine inspections are needed. D. developing trouble.. Answer: D. developing trouble. - The primary purpose of peening as welding progresses is to A. condition the surface for further welding B. relieve stresses C. clean the scale from the weld. D. Eliminate pores.. Answer: B. relieve stresses - According to the electron theory, a flow of current is a movement of A. protons from atom to atom. B. electrons from atom to atom. C. the nucleus around the atom. D. molecules within an atom.. Answer: B. electrons from atom to atom. - Which of the following can transfer power between two turning shafts located at right angles? A. Spur gears B. Worm gears C. Rack and pinion gears D. Herringbone gears. Answer: B. Worm gears - The quantity of heat necessary to raise one pound of water one degree Fahrenheit is A. a calorie. B. a BTU. C. a therm. D. Celsius.. Answer: B. a BTU. - Which best describes the piston surface area of a single-rod, double-acting piston? A. Spring-loaded B. Unequal C. Equal D. Balanced. Answer: B. Unequal - To increase the PIV (peak inverse voltage) ability of an SCR circuit (power

rectifier), A. connect two SCRs in series. B. increase the snubber capacitor value. C. decrease the snubber resistor. D. parallel to anode inductive reactances.. Answer: A. connect two SCRs in series.

- The greatest current flow in an AC capacitive circuit having a constant line voltage will be at which of the following frequencies? A. 25 hertz B. 30 hertz C. 50 hertz D. 60 hertz. Answer: C. 50 hertz - When a shaft mounted on two bearings must be positioned axially, A. one bearing should be fixed and the other floating. B. both bearings must be fixed. C. a thrust bearing must be added to this shaft. D. both bearings should be floating.. Answer: A. one bearing should be fixed and the other floating. - Post heating welded metals A. eliminates adhesions. B. prevents oxidation. C. provides more ductility. D. avoids stresses from quick cooling.. Answer: C. provides more ductility. - Clutches on machinery provide for disengaging and sometimes allow for A. positive drive. B. misalignment. C. slippage. D. variable speed.. Answer: A. positive drive. - A resistor that is color-coded orange, orange, and brown has a resistive value of A. 22 Q. B. 330Q. C. 44 kQ. D. 2 kS +5%.. Answer: B. 330Q. - Before opening the tank valve on an oxygen cylinder which is connected to an oxyfuel cutting torch, you should turn the diaphragm screw A. all the way out. B. 12 of the way out. C. 2/3 of the way out. D. all the way in.. Answer: A. all the way out. - How many BTU's are there in a therm of natural gas? A. 97,560 B. 100, C. 97,560,976 D. 102,500,000. Answer: B. 100,

Answer: A. load.

- Safe operating speed for a grinding wheel is determined by the A. material being ground. B. ambient temperature. C. maximum rpm of the grinder. D. diameter of the wheel.. Answer: D. diameter of the wheel. - What tap is best to start cutting a thread in a piece of metal? A. Centering tap B. Plug tap C. Taper tap D. Bottoming tap. Answer: C. Taper tap - If a burner were functioning properly and set "rich," which one of the following would NOT be present in an exhaust analysis? A.H2 B. CO2 C. 02 D. N2. Answer: B. CO - It is good practice to put slope in steam line installations because it A. eliminates condensate pockets. B. decreases the resistance to steam flow. C. Prevents strain due to expansion. D. allows for expansion.. Answer: A. eliminates condensate pockets - Combustion air is normally preheated by using which one of the following? A. Recuperator B. Atomizer C. Premixer D. Dampers. Answer: C. Premixer - In what way does a resisting force always act in relation to an applied force? A. Perpendicular B. Equal and opposite C. Parallel D. On a slant. Answer: B. Equal and opposite
