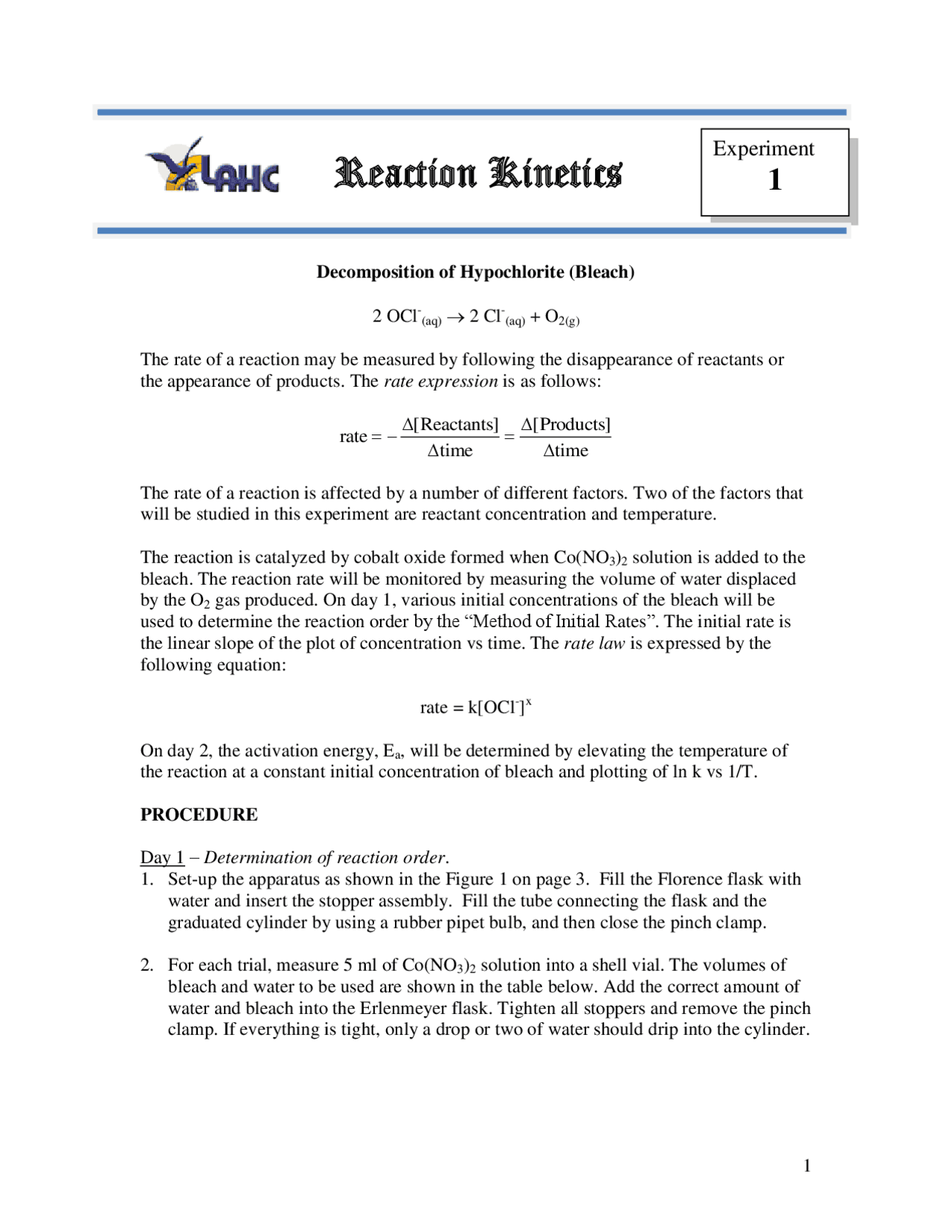

Decomposition of Hypochlorite (Bleach)
2 OCl-(aq) 2 Cl-(aq) + O2(g)
The rate of a reaction may be measured by following the disappearance of reactants or
the appearance of products. The rate expression is as follows:
rate Reactants]
time
Products]
time
[ [
The rate of a reaction is affected by a number of different factors. Two of the factors that
will be studied in this experiment are reactant concentration and temperature.
The reaction is catalyzed by cobalt oxide formed when Co(NO3)2 solution is added to the
bleach. The reaction rate will be monitored by measuring the volume of water displaced
by the O2 gas produced. On day 1, various initial concentrations of the bleach will be
used to determine the reaction order by the “Method of Initial Rates. The initial rate is
the linear slope of the plot of concentration vs time. The rate law is expressed by the
following equation:
rate = k[OCl-]x
On day 2, the activation energy, Ea, will be determined by elevating the temperature of
the reaction at a constant initial concentration of bleach and plotting of ln k vs 1/T.
PROCEDURE
Day 1 Determination of reaction order.
1. Set-up the apparatus as shown in the Figure 1 on page 3. Fill the Florence flask with
water and insert the stopper assembly. Fill the tube connecting the flask and the
graduated cylinder by using a rubber pipet bulb, and then close the pinch clamp.
2. For each trial, measure 5 ml of Co(NO3)2 solution into a shell vial. The volumes of
bleach and water to be used are shown in the table below. Add the correct amount of
water and bleach into the Erlenmeyer flask. Tighten all stoppers and remove the pinch
clamp. If everything is tight, only a drop or two of water should drip into the cylinder.
Reaction Kinetics
Experiment
1
pf3

Partial preview of the text

Download Reaction Kinetics and more Exams Chemical Kinetics in PDF only on Docsity!

Decomposition of Hypochlorite (Bleach)

2 OCl-(aq)  2 Cl-(aq) + O2(g)

The rate of a reaction may be measured by following the disappearance of reactants or the appearance of products. The rate expression is as follows:

rate

Reactants] time

Products] time

[ [

The rate of a reaction is affected by a number of different factors. Two of the factors that will be studied in this experiment are reactant concentration and temperature.

The reaction is catalyzed by cobalt oxide formed when Co(NO 3 ) 2 solution is added to the bleach. The reaction rate will be monitored by measuring the volume of water displaced by the O 2 gas produced. On day 1, various initial concentrations of the bleach will be used to determine the reaction order by the “Method of Initial Rates”. The initial rate is the linear slope of the plot of concentration vs time. The rate law is expressed by the following equation:

rate = k[OCl-]x

On day 2, the activation energy, Ea, will be determined by elevating the temperature of the reaction at a constant initial concentration of bleach and plotting of ln k vs 1/T.

PROCEDURE

Day 1 – Determination of reaction order.

  1. Set-up the apparatus as shown in the Figure 1 on page 3. Fill the Florence flask with water and insert the stopper assembly. Fill the tube connecting the flask and the graduated cylinder by using a rubber pipet bulb, and then close the pinch clamp.
  2. For each trial, measure 5 ml of Co(NO 3 ) 2 solution into a shell vial. The volumes of bleach and water to be used are shown in the table below. Add the correct amount of water and bleach into the Erlenmeyer flask. Tighten all stoppers and remove the pinch clamp. If everything is tight, only a drop or two of water should drip into the cylinder.

Reaction Kinetics

Experiment

  1. At time zero, remove the stopper and add the catalyst into the flask. Quickly place the stopper back onto the flask and mix the two solutions. Keep swirling the contents of the flask at a uniform rate as the reaction proceeds. Record the volume of water in the graduate at 30 second intervals until a volume of about 50 mL is obtained.
  2. Repeat the process for each of the dilutions shown in the table for A-D. Record the temperature for each of the trials.

Dilution Table

Trial (^) Temp. (C) mL bleach mL H 2 O mL Co(NO 3 ) 2

Total Volume (mL) A room 25 none 5 30

B room 25 30 5 60

C room 25 60 5 90

D room 25 90 5 120

Day 2- Determination of Activation Energy.

  1. Using the concentration of bleach and water in trial D warm this solution to 10 degrees higher than the temperature previously recorded and repeat the rate study.
  2. Repeat the measurements for 20 and 30 degrees above room temperature.

Day 3 - Computer Graphing of Data and Analysis.

You may chose to use your own laptop or one of the computers in the computer lab to plot the data for analysis. Each group may plot the group data together. Bring a flash drive to save the data plots.

REPORT

  1. Graph the results for each of the concentrations (trials A, B, C and D) on the same plot. Using a computer graphing program (excel), plot [O 2 ] on the vertical axis versus time (s) on the horizontal axis. Determine the initial rate for each trial (M/s). How does the rate vary with the concentration of OCl-. Use the equation below to calculate the concentrations of O 2 at various time intervals.

P = barometric pressure (atm) Vt = volume (L) of O 2 gas evolved at time t.

  1. Determine the rate order for [OCl-] using the initial rate method. Calculate the rate constant for this reaction.
