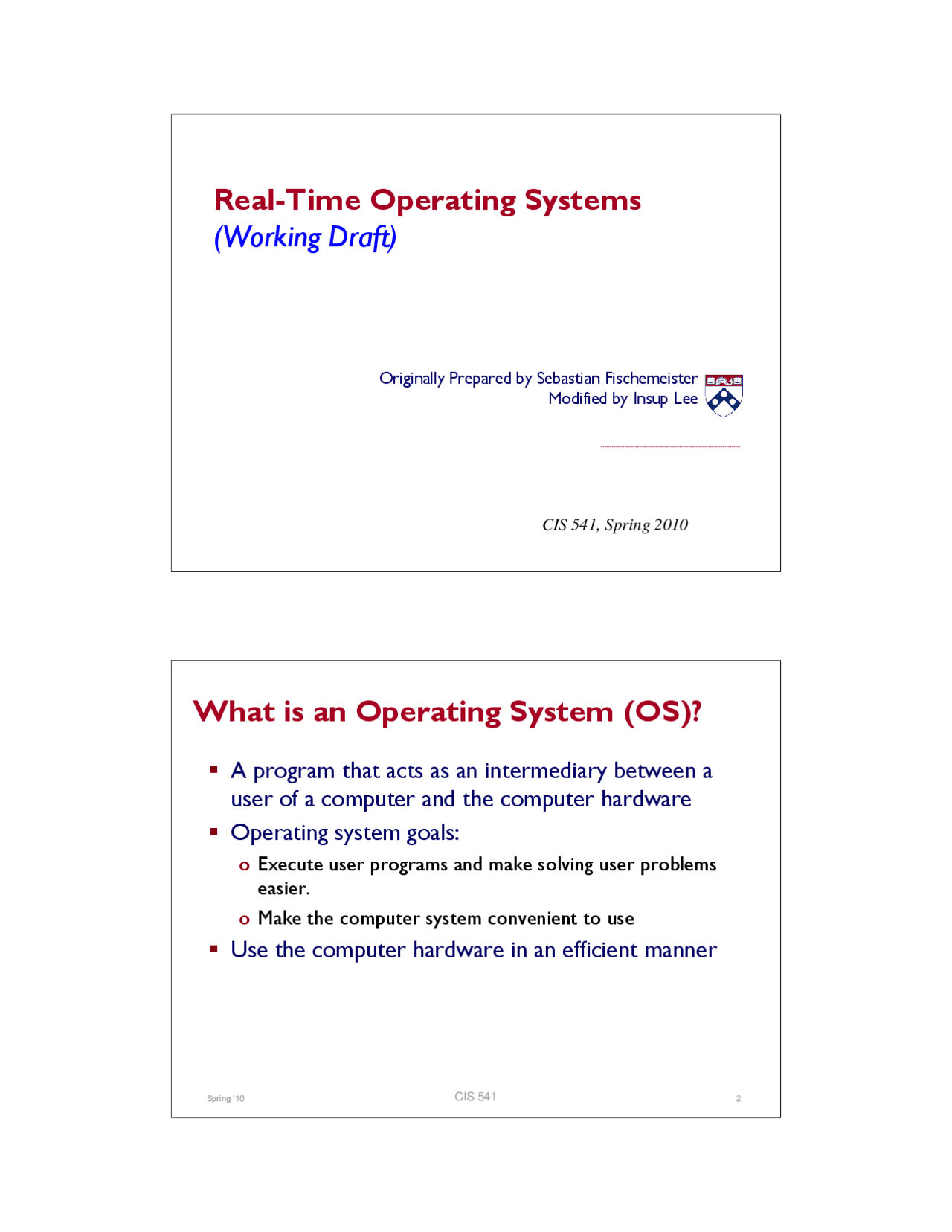

Originally Prepared by Sebastian Fischemeister Modified by Insup Lee CIS 541, Spring 2010
A program that acts as an intermediary between a user of a computer and the computer hardware Operating system goals: o Execute user programs and make solving user problems easier. o Make the computer system convenient to use Use the computer hardware in an efficient manner
Spring ‘10 CIS 541^3
Spring ‘10 CIS 541^7
Small, fast, proprietary kernels RT extensions to commercial timesharing systems Component-based kernels Monolithic kernels
They come in two varieties: o Homegrown o Commercial offerings Usually used for small embedded systems Typically specialized for one particular application Typically stripped down and optimized versions: o Fast context switch o Small size, limited functionality o Low interrupt latency o Fixed or variable sized partitions for memory management PICOS18, pSOS, MicroC, …
Spring ‘10 CIS 541^9
A common approach is to extend Unix o Linux: RT-Linux, RTLinuxPro, RTAI, o Posix: RT-Posix o MACH: RT-MACH Also done for Windows based on virtualization. Generally slower and less predictable. Richer environment, more functionality. These systems use familiar interfaces, even standards. Problems when converting an OS to an RTOS: o Interface problems (nice and setpriority in Linux) o Timers too coarse o Memory management has no bounded execution time o Intolerable overhead, excessive latency
Compliant kernels o Takes an existing RTOS and make it execute other UNIX binaries (see LynxOS). o Interfaces need to be reprogrammed. o Behavior needs to be correctly reimplemented.
Spring ‘10 CIS 541^13
The source consists of a number of components that can be selectively included to compose the RTOS. See OS-Kit, Coyote, PURE, 2k, MMLite, Pebble, Chaos, eCos. eCos o Hardware Abstraction Layer (HAL) o Real-time kernel Interrupt handling Exception handling Choice of schedulers Thread support Rich set of synchronization primitives Timers, counters and alarms Choice of memory allocators Debug and instrumentation support Counters -- Count event occurrences Clocks -- Provide system clocks Alarms -- Run an alarm function Mutexes -- Synchronization primitive Condition Variables -- Synchronization primitive Semaphores -- Synchronization primitiveMail boxes -- Synchronization primitive Event Flags -- Synchronization primitive Spinlocks -- Low-level Synchronization Primitive Scheduler Control -- Control the state of the scheduler Interrupt Handling -- Manage interrupt handlers
eCos o μITRON 3.0 compatible API o POSIX compatible API o ISO C and math libraries o Serial, ethernet, wallclock and watchdog device drivers o USB slave support o TCP/IP networking stacks o GDB debug support All components can be added through a configuration file that includes and excludes parts of the source code.
Spring ‘10 CIS 541^15
Many researchers built a new kernel for one of these reasons: o Challenge basic assumptions made in timesharing OS o Developing real-time process models o Developing real-time synchronization primitives o Developing solutions facilitating timing analysis o Strong emphasis on predictability o Strong emphasis on fault tolerance o Investigate the object-oriented approach o Real-time multiprocessor support o Investigating QoS
Spring ‘10 CIS 541^19
Admission control is a function that decides if new work entering the system should be admitted or not. To perform this it requires: o A model of the state of system resources o Knowledge about incoming requests o An algorithm to make the admission decision o Policies for actions to take upon admission and rejection Statically scheduled systems require no admission control.
The admission algorithm requires preanalyzed tasks Shared data Execution time Precedence information Importance level Deadlines Positive decision assigns time slices to the task Negative decision has options: o Run a simpler version of the task o Run on a different machine o Reject the task Admission algorithms can be complex as they have to consider multiple resources (e.g., networked video streaming).
Spring ‘10 CIS 541^21
Resource reservation is the act of actually assigning resources to a task. o Initially no resource reservation, only allocation as the task runs. o Valuable for hard real-time systems. o Introduces an overhead as resources might be unused => introduction of resource reclaiming strategies Closely linked to resource kernels that offer interfaces for resource reservation, donation, and reflection.
RTOSs tailored to microprocessors often require a static declaration of tasks. Advantages are: o Simple check that the system has sufficient resources. o No admission control necessary. o No overhead introduced by the admission test. o No thread spawning problems => but quite static
Spring ‘10 CIS 541^25
Remove unused functions o May be done via linker automatically Replace functionality o Motor placement comes in three functions: Calculated Lookup table (program memory) Lookup table (EEPROM) Conditional compilation o Use #if, #ifdef constructs o Needs configuration editor o Example: Linux make config….
Per (boolean) configuration option, we obtain two new OS versions. Embedded systems require extensive testing. The application must be tested with each configuration separately: o 100 configuration options we get around 2^ o Require hardware setup o Require software setup o Require reporting for automated testing
Spring ‘10 CIS 541^27
I/O normally only through kernel via a system call. o Expensive but provides control In an RTOS for embedded systems, tasks are allowed to do I/O operations directly o Direct fast access o Direct task to task communication between chips Problem: Can cause troubles if tasks interfere Solution: Programmer must do synchronization too
Normal OS: Interrupts are kernel only o Must be reliable (dropped disk interrupts…) o Costly: Notification via context switch/syscalls Embedded OS: tasks can use interrupts o Again: only trusted/tested programs o Speed important o Fast task control possible o But: modularity decreases, as tasks may have to share interrupts correctly
Spring ‘10 CIS 541^39
PICOS18 requires you to statically declare o Alarms o Resources o Tasks Let’s have a look.
At most 16 events. The task state is encoded in the following variables: o tsk_X_state_ID Bits 0-3: task identifier Bit 4: unused Bit 5-7: task state o tsk_X_active_prio Bits 0-3: task priority Bit 5-7: activation counter o Let’s look at some of the functions in pro_man.c
Spring ‘10 CIS 541^42
StatusType SetEvent (TaskType TaskID, EventMaskType Mask) o Posts an event to another task. Causes a scheduling operation. StatusType ClearEvent (EventMaskType Mask) o Clears the event, otherwise an infinite loop. StatusType GetEvent (TaskType TaskID, EventMaskRefType Event) o Receives the event value for a specific task. StatusType WaitEvent (EventMaskType Mask) o Blocks the current task until the event occurs.
At most 16 events. The event status is encoded in these two variables: o EventMaskType event_X For each task 16 possible events. o EventMaskType wait_X Each task can listen for 16 possible events. Let’s have a look at the code.
Let’s look at the sample application that comes with PICOS18.
