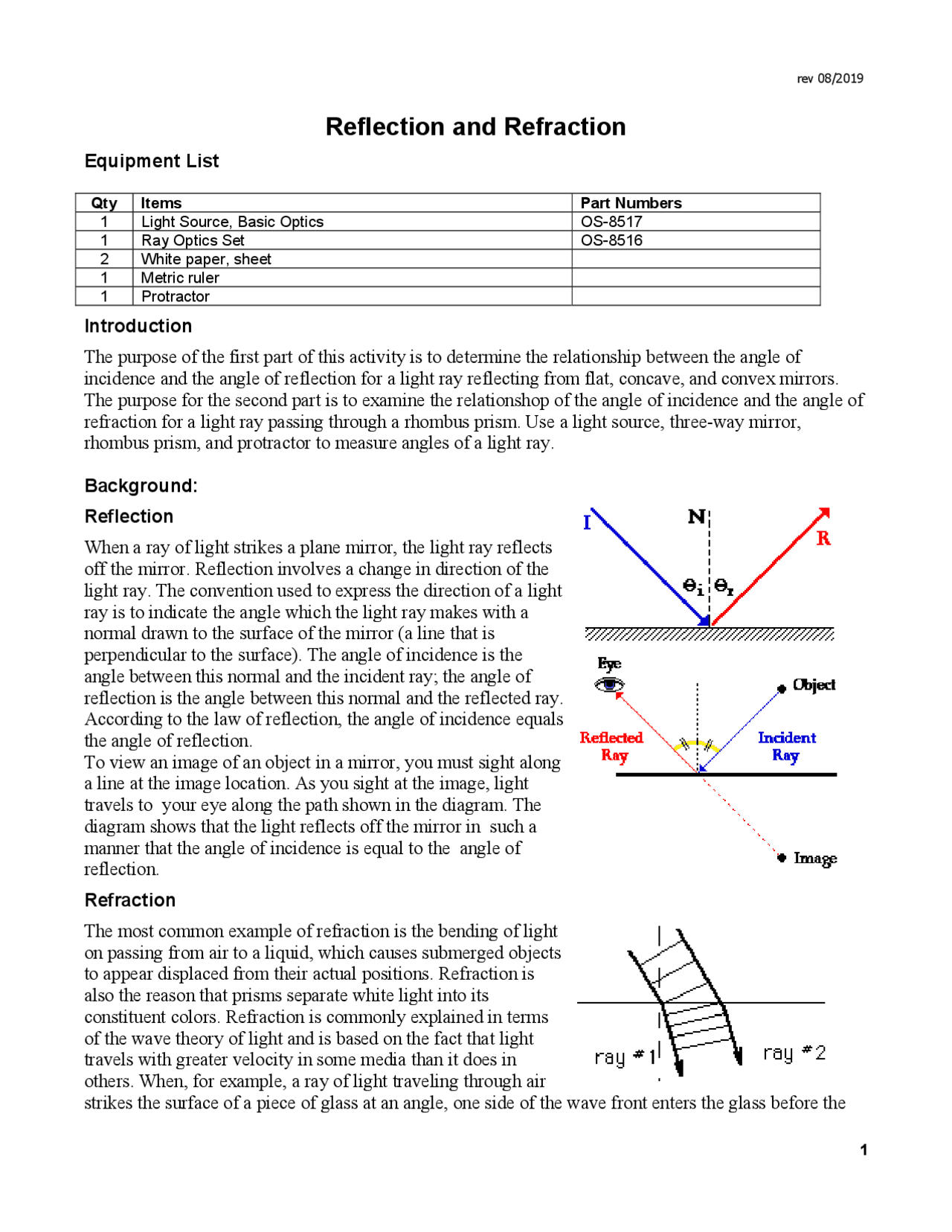

1
Reflection and Refraction
Equipment List
Qty Items Part Numbers
1 Light Source, Basic Optics OS-8517
1 Ray Optics Set OS-8516
2 White paper, sheet
1 Metric ruler
1 Protractor
Introduction
The purpose of the first part of this activity is to determine the relationship between the angle of
incidence and the angle of reflection for a light ray reflecting from flat, concave, and convex mirrors.
The purpose for the second part is to examine the relationshop of the angle of incidence and the angle of
refraction for a light ray passing through a rhombus prism. Use a light source, three-way mirror,
rhombus prism, and protractor to measure angles of a light ray.
Background:
Reflection
When a ray of light strikes a plane mirror, the light ray reflects
off the mirror. Reflection involves a change in direction of the
light ray. The convention used to express the direction of a light
ray is to indicate the angle which the light ray makes with a
normal drawn to the surface of the mirror (a line that is
perpendicular to the surface). The angle of incidence is the
angle between this normal and the incident ray; the angle of
reflection is the angle between this normal and the reflected ray.
According to the law of reflection, the angle of incidence equals
the angle of reflection.
To view an image of an object in a mirror, you must sight along
a line at the image location. As you sight at the image, light
travels to your eye along the path shown in the diagram. The
diagram shows that the light reflects off the mirror in such a
manner that the angle of incidence is equal to the angle of
reflection.
Refraction
The most common example of refraction is the bending of light
on passing from air to a liquid, which causes submerged objects
to appear displaced from their actual positions. Refraction is
also the reason that prisms separate white light into its
constituent colors. Refraction is commonly explained in terms
of the wave theory of light and is based on the fact that light
travels with greater velocity in some media than it does in
others. When, for example, a ray of light traveling through air
strikes the surface of a piece of glass at an angle, one side of the wave front enters the glass before the
rev 08/2019
