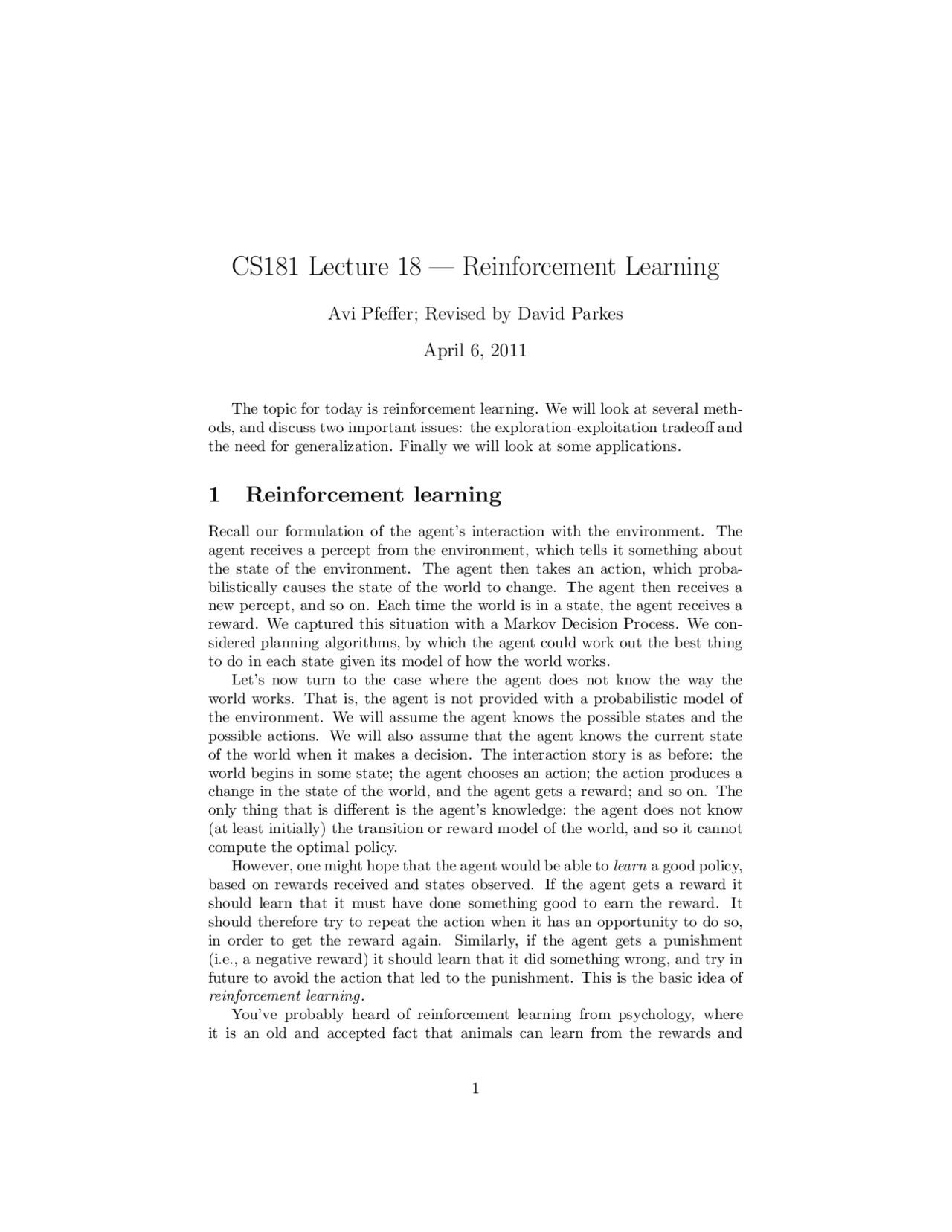

CS181 Lecture 18 — Reinforcement Learning
Avi Pfeffer; Revised by David Parkes
April 6, 2011
The topic for today is reinforcement learning. We will look at several meth- ods, and discuss two important issues: the exploration-exploitation tradeoff and the need for generalization. Finally we will look at some applications.
1 Reinforcement learning
Recall our formulation of the agent’s interaction with the environment. The agent receives a percept from the environment, which tells it something about the state of the environment. The agent then takes an action, which proba- bilistically causes the state of the world to change. The agent then receives a new percept, and so on. Each time the world is in a state, the agent receives a reward. We captured this situation with a Markov Decision Process. We con- sidered planning algorithms, by which the agent could work out the best thing to do in each state given its model of how the world works. Let’s now turn to the case where the agent does not know the way the world works. That is, the agent is not provided with a probabilistic model of the environment. We will assume the agent knows the possible states and the possible actions. We will also assume that the agent knows the current state of the world when it makes a decision. The interaction story is as before: the world begins in some state; the agent chooses an action; the action produces a change in the state of the world, and the agent gets a reward; and so on. The only thing that is different is the agent’s knowledge: the agent does not know (at least initially) the transition or reward model of the world, and so it cannot compute the optimal policy. However, one might hope that the agent would be able to learn a good policy, based on rewards received and states observed. If the agent gets a reward it should learn that it must have done something good to earn the reward. It should therefore try to repeat the action when it has an opportunity to do so, in order to get the reward again. Similarly, if the agent gets a punishment (i.e., a negative reward) it should learn that it did something wrong, and try in future to avoid the action that led to the punishment. This is the basic idea of reinforcement learning. You’ve probably heard of reinforcement learning from psychology, where it is an old and accepted fact that animals can learn from the rewards and
punishments that they get. For example, from studies of rats in mazes, that show that rats can learn to navigate a maze when the only feedback they get is a piece of cheese at the end of the maze. We’re going to show that reinforcement learning has a computational basis, and that agents can perform quite well using reinforcement learning. In fact, there have been some remarkable successes. For example, a world-class backgammon player was constructed using reinforcement learning (RL). There are two things that make reinforcement learning in domains with re- peated interaction challenging. Suppose you are playing a game like backgam- mon. You get a reward or punishment at the end of the game, depending on whether you won or lost. The problem is this — even though you get your reward after the final move of the game, it is probably not that move that really led to a win. There were probably a series of decisions that you made earlier, that eventually led to you winning. The question is this: how do you deter- mine which decisions were actually responsible for leading to the win? This is the credit assignment problem: how to assign credit or blame for rewards or punishments. The second issue is that an agent in a reinforcement learning process has to determine what action to take, even while it is learning. It receives rewards and punishments even as it is learning. Imagine that you have a new job. Certainly your employers will give you some time to learn the ropes, but they will expect you to start being productive before you have learned everything there is to know about the job. In particular, a reinforcement learning agent needs to decide what to do, taking into account the effect of its action on its immediate rewards and future state, but also taking into consideration the need to learn for the future. This issue is known as the exploration-exploitation tradeoff. There are two main approaches to reinforcement learning.
- The first approach is called the model-based approach. In the model- based approach, the agent explicitly learns a model of the MDP in which it is operating. As it learns, it can solve the current (estimated) model using a planning algorithm such as value iteration or policy iteration, while still being sure to continue exploring enough to keep learning.
- The second approach is model-free. Rather than learning a model, the agent tries to learn a policy directly: learn how to behave without learning a model. A popular algorithm to do this is called Q-learning, because the agent learns the Q functions that tell it the value of taking each action in each state (and then behaving optimally). Model free approaches are very simple but they tend to be slow compared to model-based approaches.
A hybrid approach combines the two: learn a model and the value func- tion (or Q-function) at the same time. One algorithm for implementing this is temporal-difference value learning (as opposed to Q-learning, which is a temporal- difference value-action learning method.) Another algorithm that combines the two approaches is Dyna-Q, in which Q-learning is augmented with extra value-update steps. An advantage of these hybrid methods over straightforward
number of times a transition from s to s′^ happened on action a. The (maximum
likelihood) estimate for P (s′^ | s, a) = N^ (s,a,s
′) N (s,a). Of course we are just doing maximum likelihood learning here, and more sophisticated (e.g., MAP) approaches can be used.
2.2 Planning and Acting
Every so often, the agent will want to re-plan given its current model. This can be achieved through standard approaches such as value iteration or policy iteration. Moreover, the agent will also generally choose not to follow the optimal policy given the current model exactly, because of considerations of needing to explore the environment. We return to this in a later section because the issues are similar across model-based and model-free reinforcement learning. One issue to address using the model-based approach is how often the agent should solve the MDP and update its policy. How often should the agent re- plan? A typical approach is to work in epochs, with an epoch consisting of a sequence of trials in an “episodic” problem such as driving to the airport or just a sequence of periods in a “continuous” problem such as driving around a city. An agent does not re-plan during an epoch, but replans at the end of every epoch. The question is how to tune the length of an epoch, and thus how frequently to plan. The tradeoff is between additional computation (planning is difficult) and better use of information (more frequent planning will lead to better policies more quickly.) One extreme is to update the estimates of the transition and reward model every time it takes an action, and immediately solve the updated MDP. To make this reasonably efficient, one can simply use the previous value function as the starting point for value iteration. Since the new value function should be close to it, the algorithm should converge very quickly. Similarly, one can use the old policy as the starting point for policy iteration. Since in many cases the optimal policy does not change as a result of one update, the policy iteration algorithm will often converge in one iteration. This is quite powerful: we can even imagine replanning every period because of this observation. Still, model-based approaches can be infeasible because planning while learn- ing can simply take too long in very time sensitive domains.
3 Model-Free Reinforcement Learning
The second approach to reinforcement learning dispenses with learning a model, and tries to directly learn the value of taking each action in each state. This approach is a model-free approach. Recall that for the purpose of solving MDPs, we defined the function Q(s, a) which provides the expected value of taking action a in state s under the optimal policy forward from the next state. The Q value incorporates both the imme- diate reward and expected value of the next state reached. With knowledge of
a Q value, the agent does not need a model to decide how to act: it can simply keep acting according to the action with the maximum Q-value in the current state. A popular model-free learning algorithm is the Q-learning algorithm. This provides a method to learn the Q function directly without needing to also learn a probabilistic model of the environment. This provides two advantages over model-based approaches: it is no longer necessary to learn a transition model of size O(n^2 m) for n states and m actions. Moreover, it avoids the need to perform planning while learning, which can be infeasible in complex domains. On the other hand, we will see that Q-learning can be very slow in terms of the number of periods of experience required to learn a good policy, and much more slow to learn a good policy than model-based RL.
3.1 Q-Learning
How does an agent learn the Q function? Expanding the definition of the Q function from the Bellman equations, we have
Q(s, a) = R(s, a) + γ
s′^ P^ (s
′ (^) | s, a) maxa′ (^) Q(s′, a′) = R(s, a) + γEs′^ [maxa′^ Q(s′, a′)] = Es′^ [R(s, a) + γ maxa′^ Q(s′, a′)] (∗)
Our goal then, is to estimate Q(s, a) as the expectation, where s′^ is drawn from P (s′^ | s, a), of R(s, a)+maxa′^ Q(s′, a). But we must do this without having access to the model of the probabilistic transition function. This is possible because each time we actually take action a from state s we observe a transition to s′^ and receive a reward r. This gives us a sample from P (s′^ | s, a). We can use this sample for updating our old estimate of Q(s, a). Specifically, on transitioning from s to s′^ under action a and receiving reward r, the following update rule used in Q-learning:
Q(s, a) ← Q(s, a) + α
[
(r + γ max a′^ Q(s′, a′)) − Q(s, a)
]
where γ < 1 is the discount factor and α > 0 is the learning rate. To get the new estimate of Q(s, a), we move the current estimate by some amount that depends on the error between Q(s, a) and the target value that we find in the new state. The target value is r + γ maxa′^ Q(s′, a′), which provides a sample of Q(s, a). The rule adjusts towards this, with learning rate α deter- mining how much of an effect the new sample has on the current estimate. If α is large, we will adjust quickly but may not converge. If α is small then we will adjust slowly, but learning may converge. A natural thing to do is to decrease α gradually as the number of samples of Q(s, a) increases.
The technical property required for α to allow for learning but be “eventually small enough” is that
∑^ ∞
k=
αk(s, a) = ∞
∑^ ∞
k=
α^2 k(s, a) < ∞,
which is satisfied for example by a learning rate that varies as 1/k, but not by some fixed α. The first summation ensures there is enough learning, the second summation ensures eventually convergence.
3.4 Discussion: Credit-Assignment
How does Q learning solve the credit assignment problem? The answer is that the rewards are eventually propagated back through the Q function to all the states that lead to good reward. Consider the following situation:
−
1 a
b
Here the critical decision happens early: choosing a at the first step eventu- ally leads to a reward of 1, while b leads to -1. This situation models a critical point in the middle of a game where you have to make a decision that eventually will lead to a win or a loss. The problem is that the information only propagates one state back in the chain every new episode. This can make learning slow– the agent is not using all the available information in the same way as was possible with model-based RL. There is an additional concern, which is that there is a bias of Q-learning in favor of more quickly propagating positive rewards than negative rewards. For positive rewards, the number of trials required to filter backwards is linear in the number of intervening states. But for negative rewards it is exponential, because in each state every possible other action must also be ruled out before updating with a negative Q-value. This is because of the “max” in the Q-learning update rule: it is first necessary to update the Q-values to indicate that every action is bad before a bad Q-value is sent “upstream” (i.e., to an earlier state in the sequence.) This asymmetry leads to the result that while positive rewards are prop- agated backwards reasonably quickly, punishments (i.e., negative rewards) are propagated much more slowly. A punishment will only be propagated back from a state s′^ to a previous state s only if it is understood to be unavoidable that the punishment will be received once s′^ is reached — i.e., only if it shows up
in Q(s′, a) for every action a. For this reason, it can take many trials to dis- cover that a punishment is unavoidable and learn that an earlier action is a bad action.
4 Hybrid Approaches
There are good arguments for both model-based and model-free approaches. The model-free approach is very simple. In addition, there is a good computa- tional argument for it: solving MDPs is expensive. It can be done if the state space is not too huge, but shouldn’t be done too often. Model-based learning, on the other hand, requires that a new policy be computed regularly as the model is updated. With Q-learning, the agent just needs to look up the Q values for the current state in order to decide what to do. On the other hand, Q-learning is not taking full advantage of the data that it is getting. Since ev- ery transition provides information about the transition model, doesn’t it make sense to use that information and actually learn the model? For this reason it can be extremely slow to learn a policy with Q-learning. We explore a few simple variations that provide some intermediate approaches, and often enjoy good properties in practice.
4.1 TD-Value Learning
Q-learning, as discussed above, is a method of temporal difference value-action learning. Literally, it is learning a model for the value of different actions in each state. But what if rather than learn Q-values we learn V (s) values instead? This is temporal difference value learning. One thing that is apparent is that we would also need to learn a model of the transition model, P , and the reward R, in order to be able to know how to act. Just knowing V ∗(s) for the optimal policy π∗^ is not quite enough. The TD-value learning method tries to combine the advantages of both the model-based and model-free approaches. Like the model-based approach, it does learn a transition model and reward model. Like the model-free approach, it provides a very quick decision procedure. Rather than learn the Q function, TD learns the value function V (s). The idea is quite similar to Q-learning. It is based on the fact that the value of a state s is equal to the expected immediate reward at s plus the expected future reward from the successor state s′. Every time a transition is made from s to s′, we receive a sample of both the immediate and future rewards. On transitioning from s to s′^ and receiving reward r, the estimate for the value of s is updated according to the formula
V (s) ← V (s) + α((r + γV (s′)) − V (s)) (2)
Once again, α is the learning rate, and can be decreased as a state s is visited more often. As with Q-learning, rewards are eventually propagated backwards
cause Dyna-Q to forfeit the opportunity to learn the optimal policy unless used with care. In particular, one needs to be careful to explore enough. A slight variation on Dyna-Q, called “prioritized sweeping” is to choose the Q values to update in the planning step (the “repeat L times step”) based on a priority queue of Q-updates, where prioritization is given to those for which there is a big difference between the target and the current value. As updates are made, the priority queue is maintained and “big changes” are updated first in this asynchronous manner.
5 Exploration vs Exploitation
One of the issues that makes reinforcement learning fascinating is the fact that the agent needs to make decisions as it learns. There are two basic motivations for choosing an action:
Exploitation Choose an action that leads to a good reward.
Exploration Choose an action that provides information to help to act better in the future.
For a model-based reinforcement learner, exploitation means following the optimal policy given the current estimated MDP. Similarly, for a Q-learner, exploitation means choosing the action with the highest Q value. For a TD- value learner, exploitation means choosing the action a at state s that maximizes R(s, a) + γ
s′^ P^ (s ′ (^) | s, a)V (s′). Exploitation does not mean stopping learning altogether — the agent will still use the next state reached, and the reward received, to adapt its behavior in the future. However, it can mean an agent will get stuck in a local minima. Exploration means choosing which action to take based on the need to learn how to behave. There are several possibilities for which action to take in order to explore:
- Choose the action that has been tried least often in the current state.
- Choose an action that leads to states that have been unexplored.
- Choose a random action.
There is a natural tradeoff between exploration and exploitation. Exploita- tion helps the agent maximize its short and medium-term reward. However, in the long term, exploration is beneficial, because it can help the agent learn a better model and a better overall policy. Suppose for example that you are learning to navigate around Boston. In the past, you have once successfully made your way from Harvard Square to Coolidge Corner in Brookline, by taking Harvard Avenue, but found that the traffic was heavy along that route. Next time you have to get from Harvard Square to Coolidge Corner, you could simply take the same route. Or you could explore, hoping to find a better route. You expect that your explorations will
hurt you in the short term. However, you believe that they might pay off in the long run, because you will discover a better route. There is no perfect answer to the exploration-exploitation tradeoff. In gen- eral, both pure exploration and pure exploitation are bad. With pure explo- ration, the agent will never reap the benefits of learning. With pure exploita- tion, the agent will get stuck in a rut, like taking Harvard Avenue to Coolidge Corner. A mixture of both is needed. With a completely unknown model, the agent should mainly explore. As the model becomes more known, the agent should gradually shift from an exploration to an exploitation mode, though it may never completely stop exploring. One may think that the answer is then to explore (e.g., with random actions) until some time T , and then to switch modes and exploit from then on. This is still problematic, for the following reasons:
(a) It might provide for insufficient exploration.
(b) The cost for the initial exploration phase in lost reward could be very high
(c) It is not robust, in that if the environment changes the agent is no longer learning and not adaptive
(d) The learning method might be “on policy” meaning that the policy learned depends on the policy taken while learning. This is not a problem for Q- learning, model-based learning, or Dyna-Q. These are all what are called “off policy” methods. But it is a problem for TD-value learning, for which the update rule converges towards the value of the policy followed.^1
A popular and simple alternative is ǫ-greedy exploration. Although useful, one problem with this approach is that we want the exploration probability to decrease as the model is better known (in particular, this can allow for learning the optimal policy in the limit.) What we have seen above is that the GLIE property is useful, which says that we need to ensure that in the long run two things happen:
- Every action is taken in every state an unbounded number of times and the learning rate is eventually small enough.
- The probability of exploration tends to zero (i.e., is zero in the limit).
A simple way to achieve the GLIE property was outlined above. Basically, one reduces the learning rate and the exploration rate over time in a careful way. In addition to simply decaying the exploration rate in ǫ-greedy as described above, another common method is Boltzmann exploration, where the probability of selecting action a in state s is given by
e
Q(s,a) τ ∑ a′^ e^
Q(s,a′^ ) τ
(^1) SARSA is another (model-free) RL method that is not discussed here and is also on-policy.
Now we can adopt gradient descent, with a Q-update rule that works with this function approximation defined as
θj ← θj + α(Target(s, a) − Qˆθ(s, a))
∂ Qˆθ(s, a) ∂θj
This takes the place of Eq. (1), with Target(s, a) = R(s, a)+γ maxa′^ Qˆθ(s′, a′), where s′^ is the state reached after action a in state s. The innovation is that when a Q-update is made in state s after action a, the effect now propagates everywhere, because of the generalization that occurs because of the general representation Qˆθ(s, a). One way to think about this is that the state is actually described by a set of variables X 1 ,... , XK : it is these variables that define the features. These variables may be Boolean, continuous, or take on one of a finite number of values. Any assignment (x 1 ,... , xK ) of values to all the variables is a possible state, so the number of states is exponential in the number of variables. Storing a complete table with the value of every (state,action) pair is infeasible. Instead, the learner tries to learn a function ˆQθ on X 1 ,... , XK and actions A, such that Qˆθ(x 1 ,... , xK , a) is approximately the Q-value. This technique is called Q-value function approximation because the learner learns a compact approximation to the Q-value, rather than storing it exactly. As we know by now, the problem of learning a function from a set of variables to a value is a typical problem in supervised machine learning. It is possible, for example, to use neural networks or SVMs or linear regression to learn this function. Practical applications of reinforcement learning generally integrate generalization methods such as this into the RL framework. The basic method that is adopted is gradient descent in parameter space, with this step used whenever new information is received following taking an action in some state.
7 Applications of RL
Reinforcement learning is a very old idea in AI. It goes back to the very first years of AI — 1959, in fact, and Arthur Samuel’s checkers playing program.
7.1 Checkers
Samuel’s program used a simple form of value function approximation. In his approach, the state of a game of checkers is represented by a set of variables.
For example, the state variables may be^3
X 1 Number of black pieces X 2 Number of red pieces X 3 Number of black kings X 4 Number of red kings X 5 Number of black pieces threatened by red X 6 Number of red pieces threatened by black
Samuel assumed that the value function was a linear function of these variables. I.e., that there exist weights w 0 ,... , w 6 such that
V (x 1 , x 2 , x 3 , x 4 , x 5 , x 6 ) = w 0 + w 1 x 1 + w 2 x 2 + w 3 x 3 + w 4 x 4 + w 5 x 5 + w 6 x 6
Whenever the state of the game changed from s to s′, the program used V (s′), the value at the successor state, as an estimate for V (s), the value at the previous state, like in TD-value learning. He used the new estimate to adjust the weights as follows: ws ← ws + α(V (s′) − V (s))xs (x 0 is always 1) This is the standard rule for minimizing squared error via gradient descent. Notice that the degree to which the weights need to be adjusted in general is proportional to the error V (s′) − V (s). The degree to which the particular weight ws needs to be adjusted is proportional to xs, because xs determines what contribution this particular weight made to the error. Samuel trained his program by having it play many games against itself. Samuel was not an expert, and the program learned to play much better than he did. Thus, already in 1959, Samuel refuted the charge that AI is impossible because “a computer can only do what it is programmed to do”. By using learning, Samuel’s checkers player was able to play a much better game than Samuel could have told it to play.
7.2 Backgammon
Gerry Tesauro used a similar approach in developing his TD-Gammon backgam- mon player. As you can tell by the name, TD-Gammon is based on TD-value learning. It also uses value function approximation, using a neural network to estimate the value of a state of the game. Before developing TD-Gammon, Tesauro had built the Neurogammon player, which used supervised learning rather than reinforcement learning to learn the Q function. That is, the pro- gram was given a set of positions labeled by a human backgammon expert, and tried to learn the Q function directly from those. Neurogammon was a decent backgammon player, but not world-class. In contrast, TD-Gammon learned by playing against itself, and the only feedback it received was whether or not it won the game. TD-Gammon became a much better player than Neurogammon, and reached world-champion level.
(^3) This formulation is from Chapter 1 of Mitchell, “Machine Learning”.
